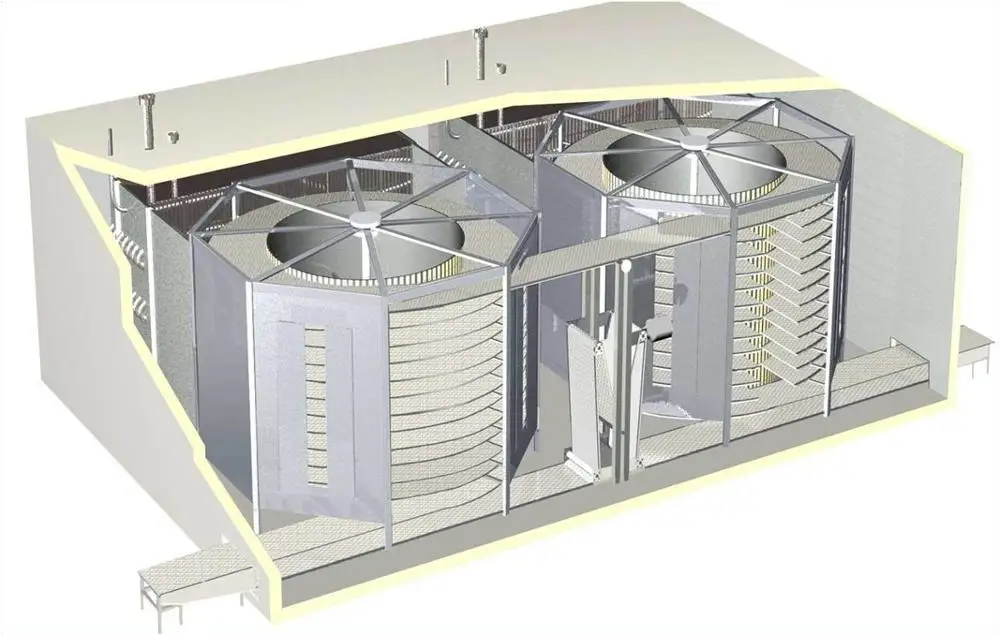

Double Drum Spiral Freezer Instant IQF Freezer For Seafood

Product Overview

Description

Double Drum Spiral Freezer Instant IQF Freezer For Seafood



Product description

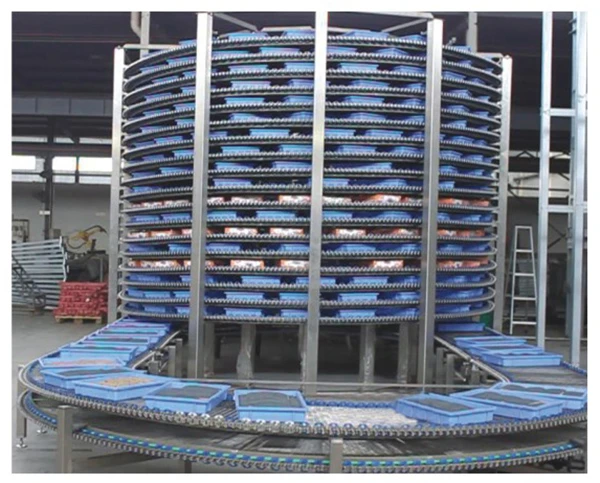

 Self-stacking spiral freezer is a kind of spiral freeze without traditional rail support, the top belt supports by the bottom belt, its own support structure for compact building dimensions. Self-contained freezing zone, with benchmark hygiene (100% air flow), high efficiency and lower consumptions advantages, reliable and less maintenance realized comes from high quality of Aerospace technology; continuous producing creates by comprehensive cleaning system-lower consumption of water, energy and chemicals. So it is more suitable for meat balls, fish balls, sausage, Spring rolls, chicken wings, legs, etc.



Features

Thoroughly sanitary freezing environment

1 According to HACCP sanitary safety concept, the inner is designed for simple cleaning and maintenance, fully conforming to food sanitary requirements.

2 The internal body and mesh belt are made of stainless steel SUS304.

3 With hydrophilic film, the fins of heat exchanger can be avoided from harmful powder of alumina.

4 All roller wheel, turn hub,and guideway are made of sanitary ultra-high molecular weight polyethylene.



Advantages

1. High production capacity in a smaller footprint than conventional spiral freezers.

2.Low operating cost through maximized cryogen efficiency.

3.Higher frozen product quality from a quicker freeze.

4.Reduced labor for cleaning and improved food safety through hygienic design.

5.Less product dehydration through reduced freezing time resulting in higher product yield.



Standard configuration

The fully assembled and pre-tested freezer is delivered with the following features:

1. Stainless steel/Plastic mesh belt

2. Drive motor with variable-speed control

3. Two blowers/fans for horizontal gas movement

4. Mounted HMI control panel, automatic gas supply controller, and temperature readout

5. Sandwich wall panels with polyurethane insulation as well as inner and outer stainless steel facing

6. Fully welded construction

7. Cryogen spray manifold and exhaust plenums

8. Emergency shutdown switches, flash light warning system, and safety lockouts.



Parameters

Model	500	1000	1500
Output capacity	500kg/h	1000kg/h	1500kg/h
Feeding temp.	15℃	15℃	15℃
Circulating cold air temp.(while no loading)	-35±2℃	-35±2℃	-35±2℃
Dimension of quick-freezing chamber	6.6×2.7×2.55m	9.1×7.2×3.6m	12.6×7.4×3.6m
Overall length of quick-freezing equipment	9.4	16.8	22
Refrigerate capacity required	105kw	180kw	300kw
Power	15	28	48
