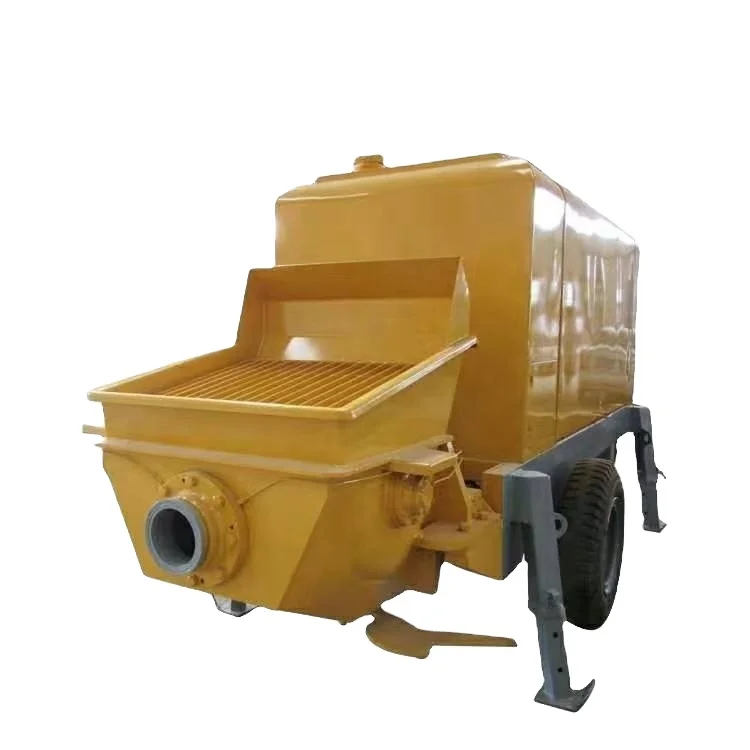

HBT60S-13-90 lightweight trailer concrete stationary pump for sale

_20191106095002

Product Description

1.Introduction of concrete pump

Based on mature large model concrete pumps, we researched and developed 20m3/h ,

30m3/h and 40m3/h small model concrete pump in order to meet customers different requirements. The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.

2.Features of concrete pump

1. The small model is light, easy to move, suitable for small construction projects;

2. The full hydraulic system can extend component life, improve equipment reliability, reduce the failure rate and reduce maintenance costs;

3. The S tube valve are cast into shape with austenitic manganese steel and has the dual advantages of anti-high pressure and anti-wearing;

4. Main electric elements are from Schneider and LG company, the reliability of the electric-control system is highly approved;

5. Glasses plates and cut loops are made of anti-wearing horiness alloy, they have long service life;

6.The lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set to save oil.

3.Range of Application:

1) Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete

2) Conveying refractory and insulation materials

3) Conveying greening soil in ecological environment construction

4) Conveying all kinds of engineering construction in the plain concrete, fiber concrete

5) Pressure grouting of foundation pile

Main technical Parameters:

Item	Unit	HBTS-15	HBTS20-8-30	HBTS25-8-37	HBTS30-10-45
Max. Theoretical Concrete Output	m³/h	15	20	25	30
Max. Concrete Pumping Pressure	Mpa	6	8	8	10
Distribution valve		S Valve	S Valve	S Valve	S Valve
Conveying tube inner Dim	mm	Φ100A/70A	Φ100A/70A	Φ100A/70A	Φ100A/800A
Max. Theoretical Conveying Distance (Horizontal Distance/Perpendicular Height)	m	300/80	400/130	400/130	500/150
Concrete Cylinder Diameter	mm	Φ140×700	Φ140×750	Φ140×750	Φ160×1000
Hopper Capacity/ Filling Height	m³/mm	0.3/1100	0.3/1100	0.3/1100	0.4/1100
Maximum aggregate size	mm	30	30	30	30
Concrete slump range	mm	120-230	120-230	120-230	120-230
Main motor power	kw	22	30	37	45
Rated speed	r/min	1480	1480	1480	1480
Voltage	v	380/50	380/50	380/50	380/50
Fuel tank capacity	L	150	150	150	200
Cleaning mode		High pressure washing	High pressure washing	High pressure washing	High pressure washing
Dimension	mm	3900×1350×1450	4100×1400×1450	440014501700	450015001800
Total Weight (including oil)	kg	1950kg	2200	2200	3000
