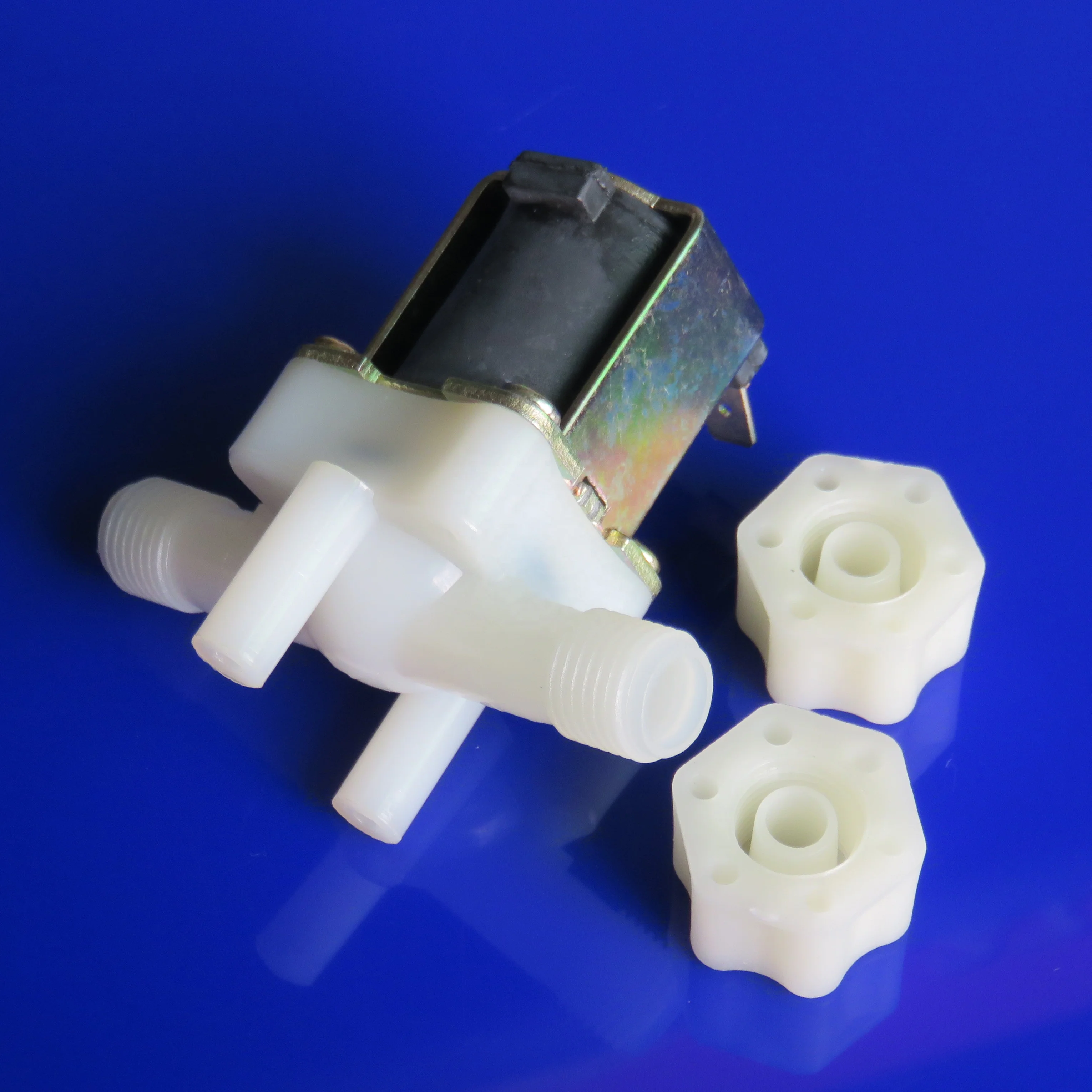

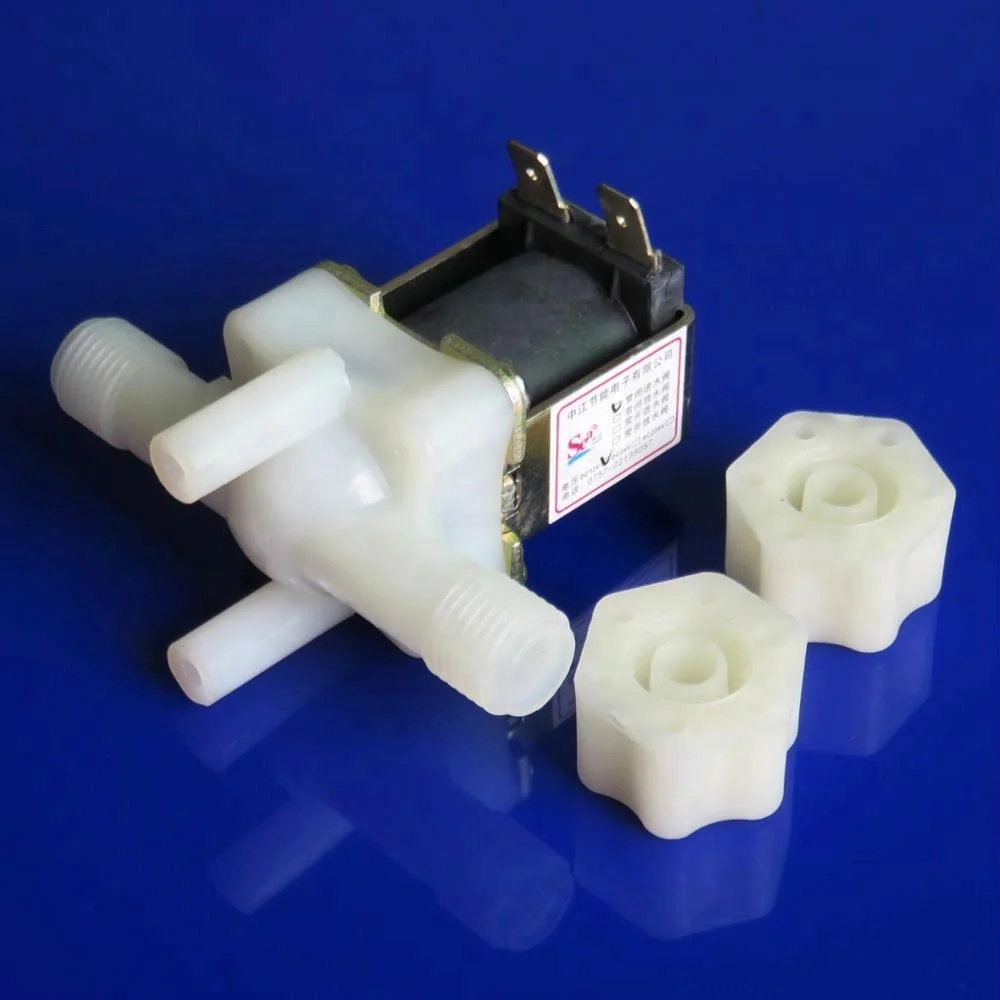

FPDJ 05 Water Electric Solenoid Valve Water Inlet Flow Switch Valve 1/4' DC 12V Normally Closed for Water DispenseR

Product Overview

Description

SEA FPDJ-23 G1/2'' Normally Closed Inlet Plastic Solenoid Valve for Water Dispenser Automatically Flushing Valve DC12V/24V/AC220V



Application : Water control switch valve



Operating Parameter

A.    Rated Operating Voltage

Direct Current: DC6V,DC9V,DC12V,DC24V;

Alternating current:AC6V,AC9V,AC12V,AC24V,AC36V,AC110V,AC220V…;

Power Level:4W,5W,6W,7W,8W…;

B.    Operating Current

C.    Operating Pressure: 0.02-0.8MPa = 0.2-8KG; Withstand static pressure no less than 2.0MPa.

No.	Rated Voltage(v)	Rated Current(A)	DC Resistance(20℃)(Ω)	No.	Rated Voltage(v)	Rated Current(A)	DC Resistance(20℃)(Ω)
	Rated Power(w)				Rated Power(w)
1	DC12V 5W	0.42A	27.7+0.6	2	AC12V 5W	0.43A	15.5+0.5
3	DC24V 4.5W	0.19A	119+2.4	4	AC220V 4.5W	0.02A	4.6+0.2

D.    Flow Range / Characteristic

0.02Mpa>2L/min;
0.10Mpa>10L/min;
0.30Mpa>16L/min;
0.80Mpa>28L/min

E.    Operating Mode: Normally closed inlet valve



Subdivision of Solenoid valve

1. Normally Open: Close the valve when it is energized.

2. Normally Close: Open the valve when it is energized.

3. Inlet Valve: Used in an environment with water pressure of 0.02-0.8MPa.

4. Drain Valve: Used in an environment without water pressure, and It refers to the water column working pressure <400mm.

5. Installation: Parallel (180) ; Angle (90)

6. Interface connection: G1/4’’ / G1/2’’ / G3/4’’ (Thread) ; 6mm / 8mm / 10mm / 12mm (tube fast connect)

 7. Voltage: DC3V, DC6V, DC12V, DC24V, AC220V



Product Information

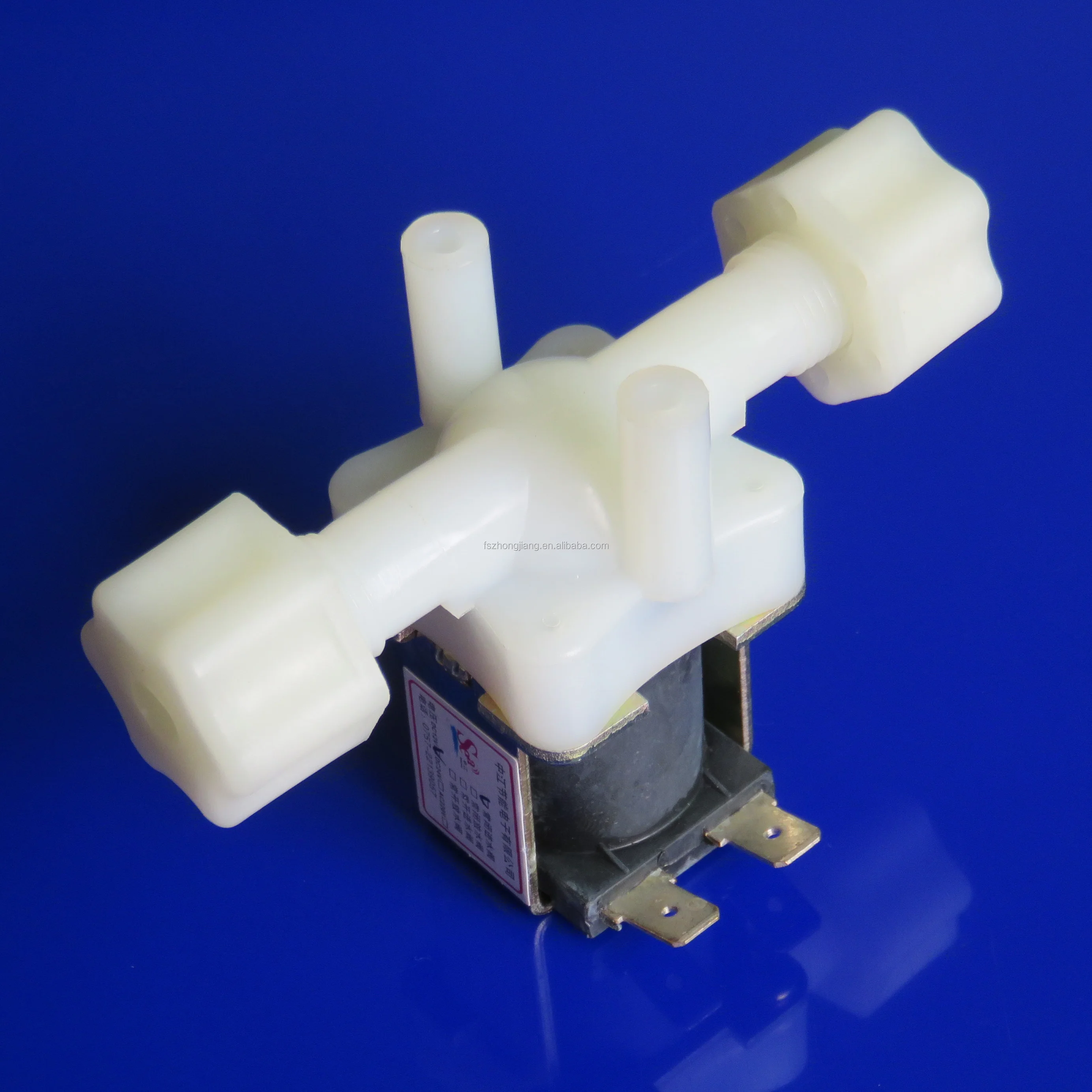

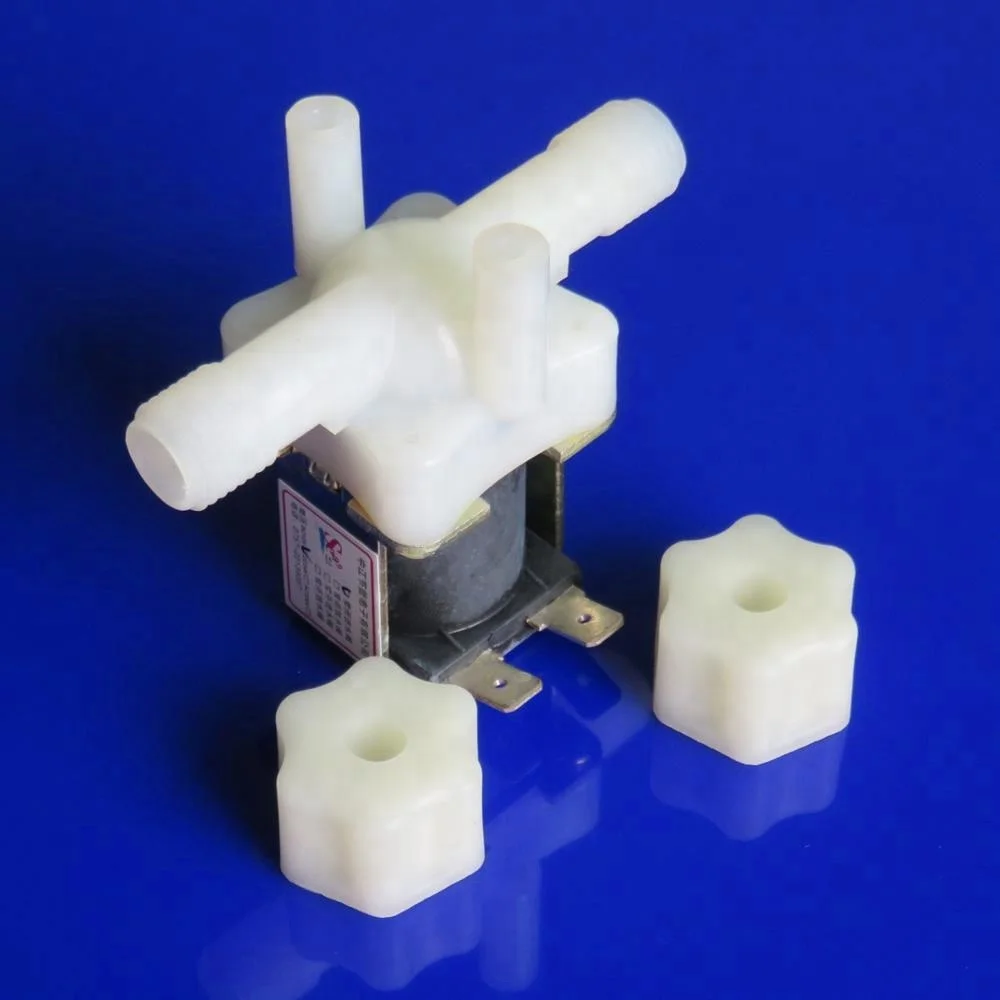

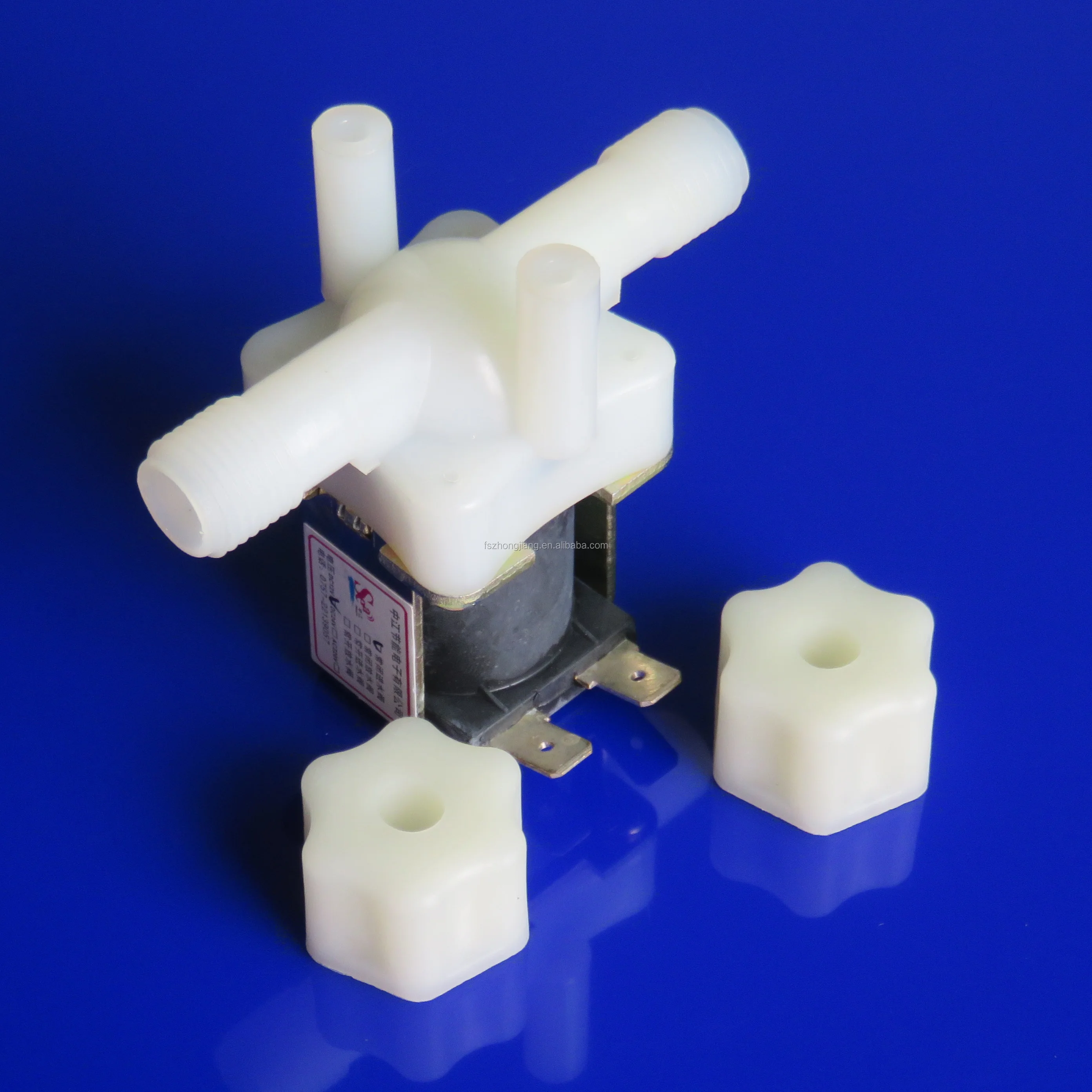

 FPDJ-05 Two Sides With Fast Connection PE Nuts
