OUORO UC 1(6.35mm 1/4 inch) R Type Nylon Wire Cable Clip With Screws
- Category: >>>
- Supplier: Yueqing City Ouoro Electric Co. Ltd.
Share on (60801312058):
Product Overview
Description

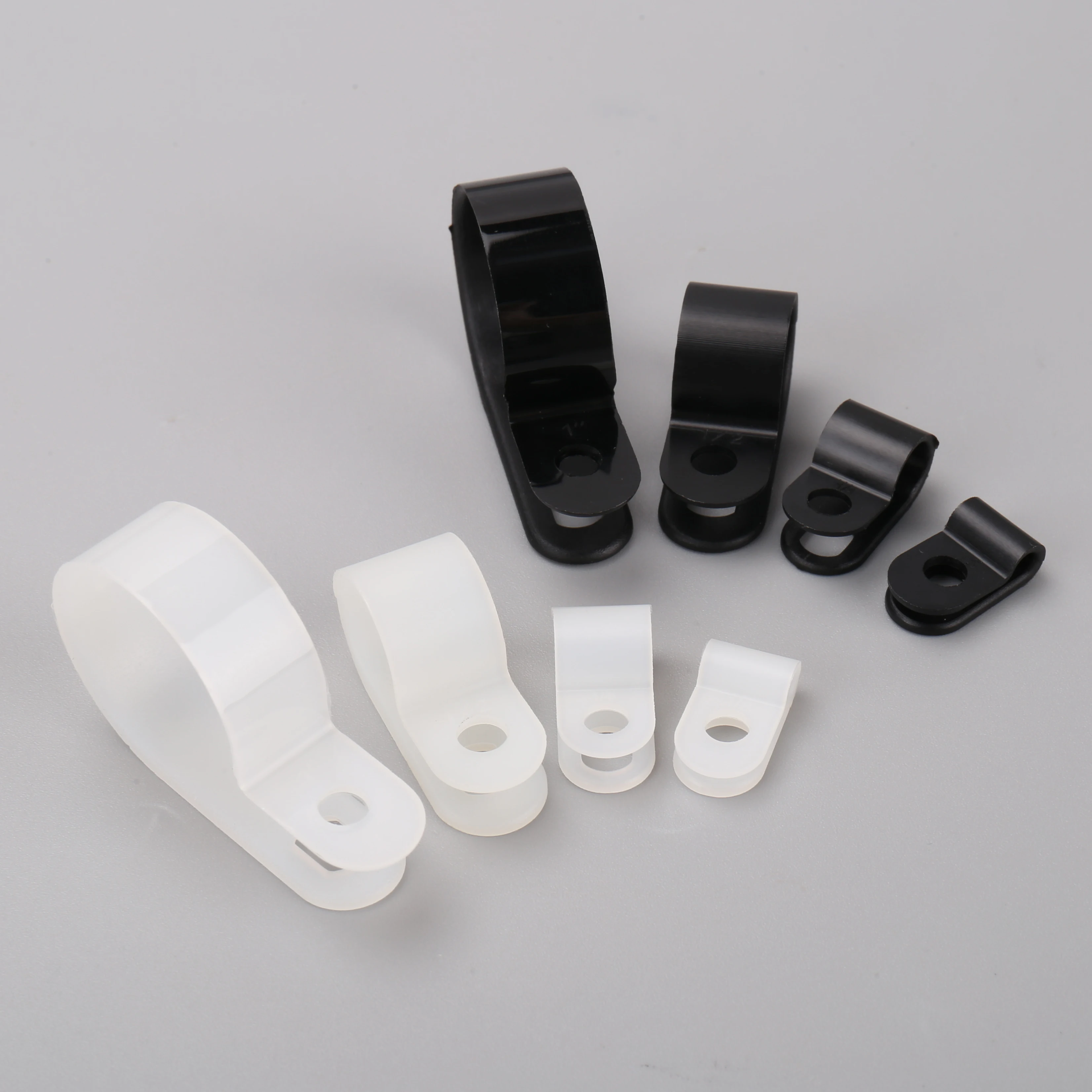

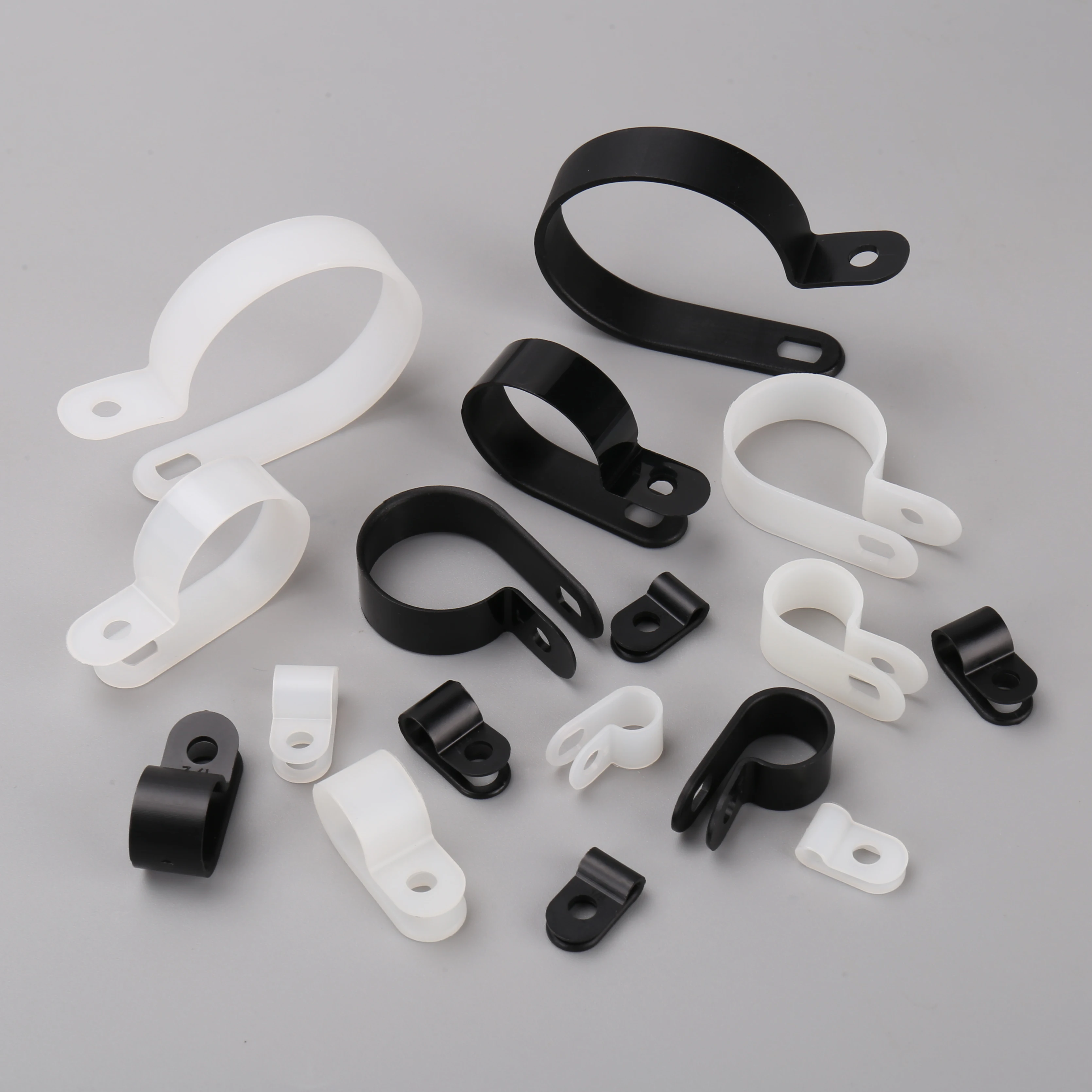

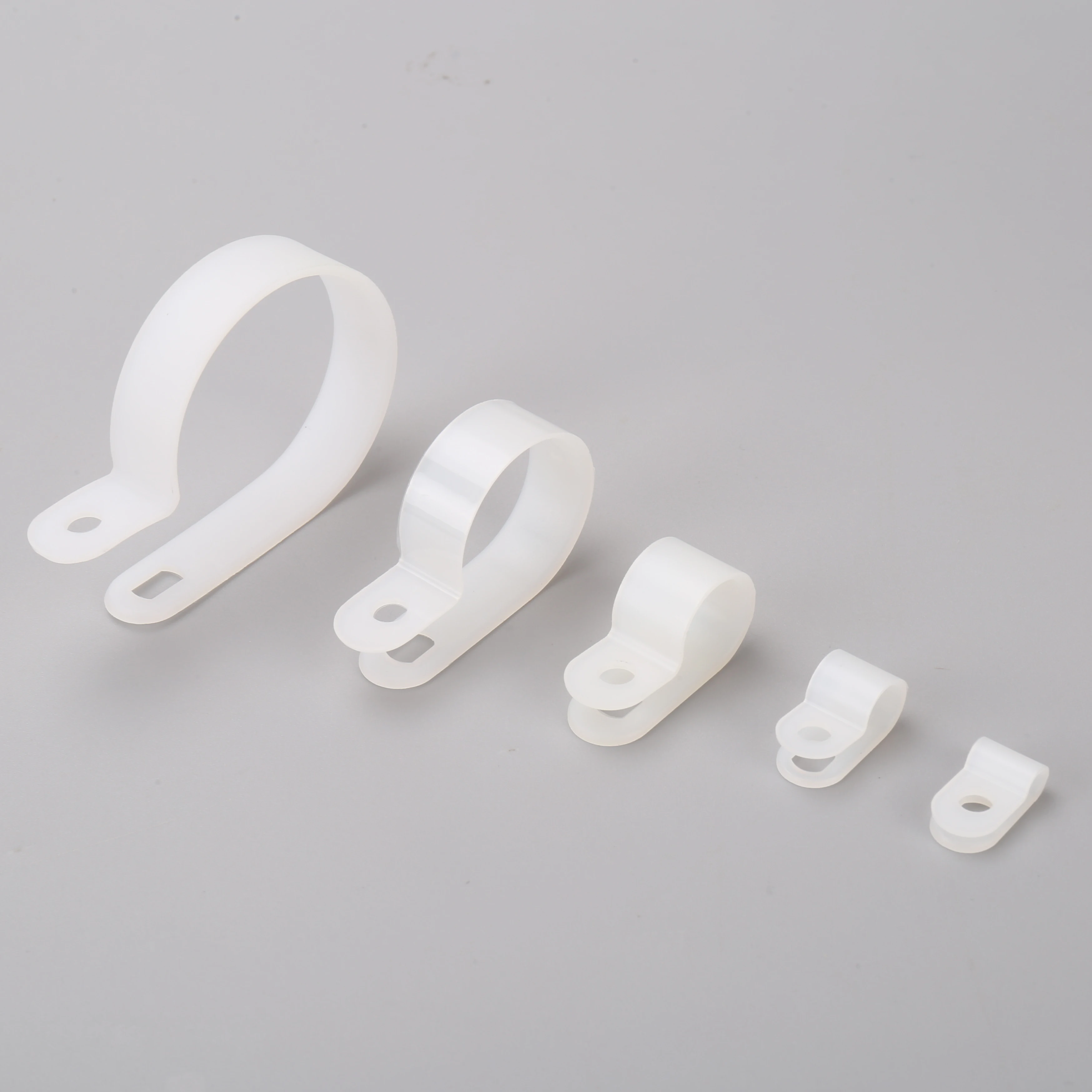

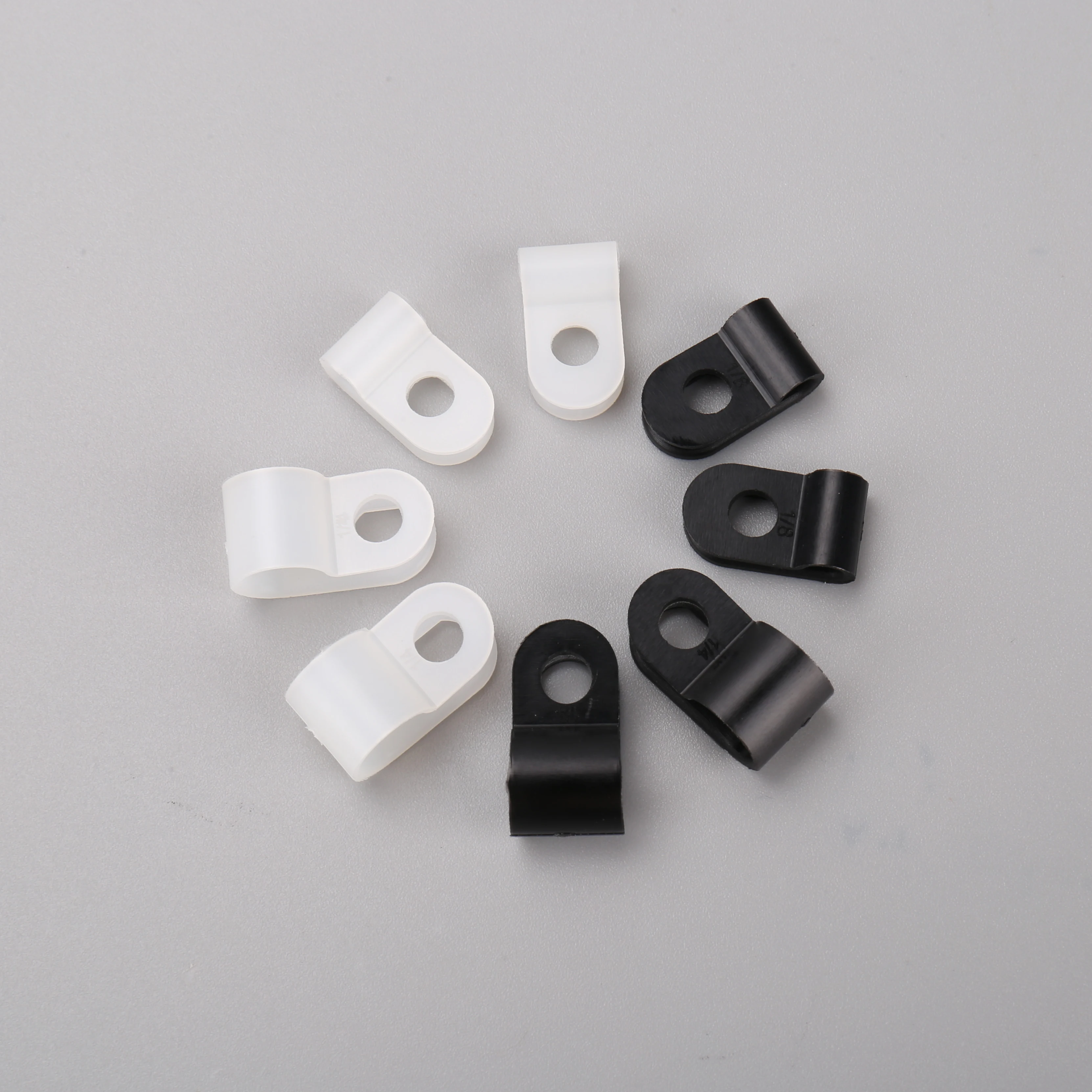

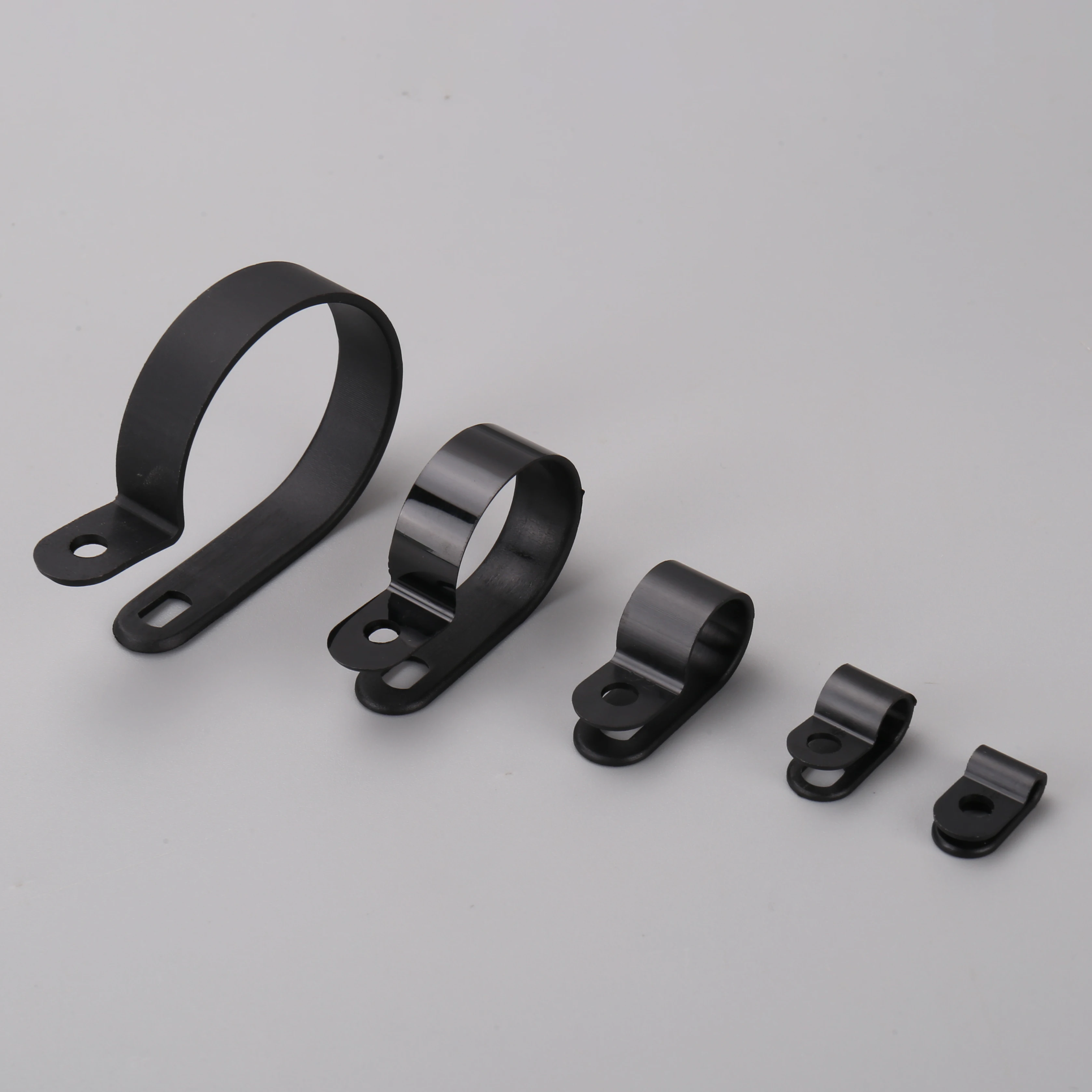

OUORO UC-1(6.35mm 1/4 inch) R Type Nylon Plastic Wire Cable Clip With Screws

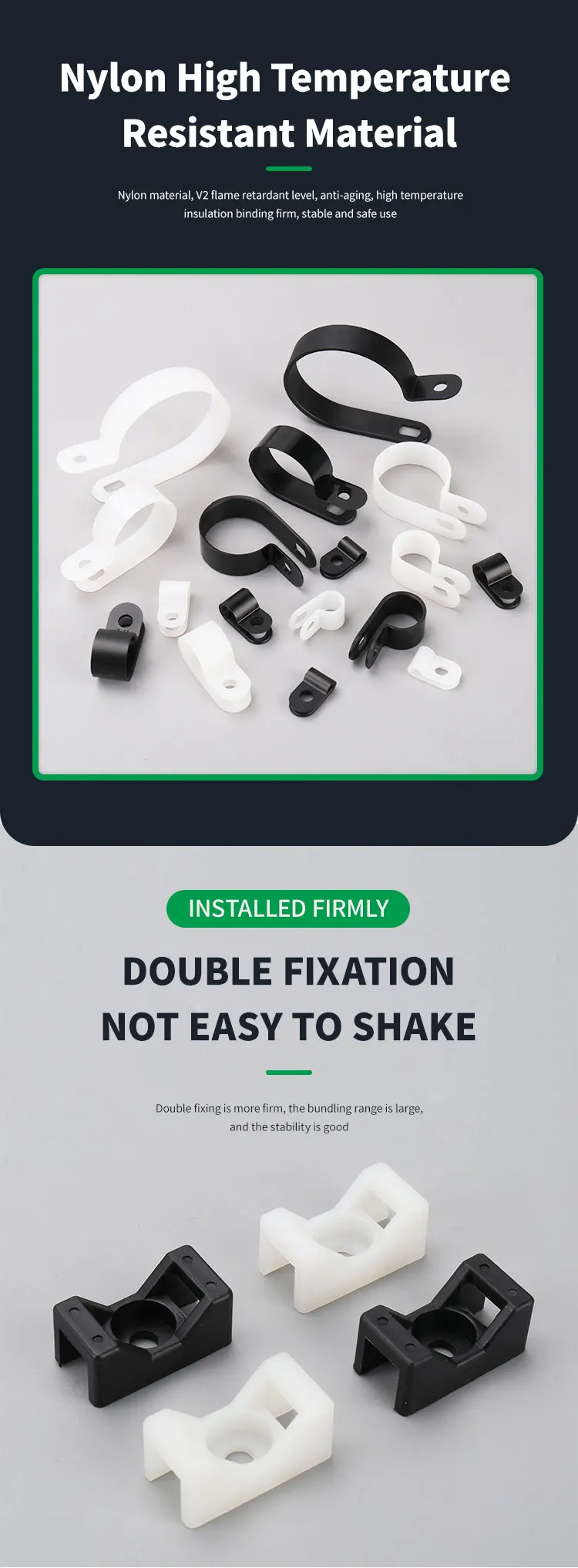

Material: UL approved Nylon, 94V-2
Color: Natural, available in other colors.
OUORO CABLE CLAMPS are designed to hold cables, tubes, and components in domestic appliance, electronics and electric apparatus generally.
interior edges are radiused to protect cable insulation.
To apply, just clamp down on loosen cables and screw it to chassis.
Color: Natural, available in other colors.
OUORO CABLE CLAMPS are designed to hold cables, tubes, and components in domestic appliance, electronics and electric apparatus generally.
interior edges are radiused to protect cable insulation.
To apply, just clamp down on loosen cables and screw it to chassis.

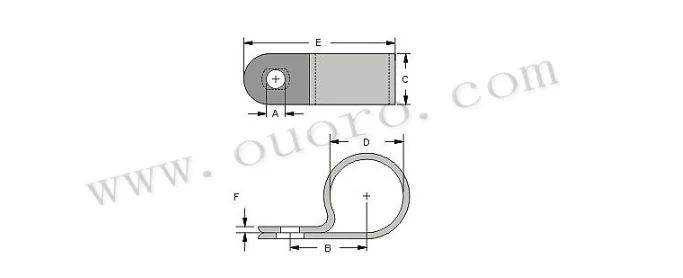

Unit:mm | ||||||||||||||||
Item No. | A | B | C | Bundle Dia. D | E | F | pcs / Bag | |||||||||
mm | inch | |||||||||||||||
UC-0 | 4.9 | 7.9 | 9.4 | 3.2 | 1/8" | 17 | 1.36 | 1000 | ||||||||
UC-0.5 | 4.9 | 10 | 9.6 | 4.8 | 3/16" | 18.51 | 1.15 | 1000 | ||||||||
UC-1 | 4.93 | 10 | 10.11 | 6.35 | 1/4" | 19.62 | 1.23 | 1000 | ||||||||
UC-1.5 | 5.1 | 10.1 | 10 | 7.9 | 5/16" | 22.38 | 1.13 | 1000 | ||||||||
UC-2 | 5.1 | 12.4 | 12 | 9.5 | 3/8" | 23.64 | 1.24 | 500 | ||||||||
UC-3 | 5.1 | 15 | 12 | 12.7 | 1/2" | 30.4 | 1.31 | 500 | ||||||||
UC-4 | 5.1 | 15.2 | 12 | 15.8 | 5/8" | 32.6 | 1.35 | 500 | ||||||||
UC-5 | 5.1 | 20 | 12 | 19.4 | 3/4" | 37.11 | 1.33 | 500 | ||||||||
UC-6 | 5.1 | 22 | 12 | 25.4 | 1" | 42.2 | 1.34 | 100 | ||||||||
UC-6.5 | 5 | 27 | 12.8 | 27.5 | 1-1/16" | 50 | 1.49 | 100 | ||||||||
UC-7 | 5.1 | 27 | 11.7 | 31.8 | 1-1/4" | 50.5 | 1.7 | 100 | ||||||||
UC-9 | 5.1 | 32 | 12 | 36.7 | 1-1/2" | 56.31 | 1.7 | 100 | ||||||||
