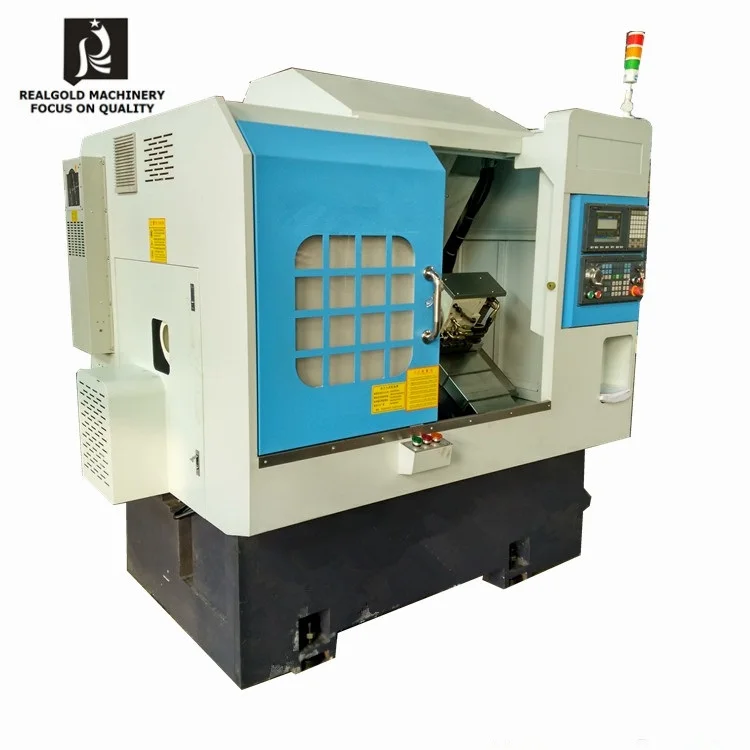

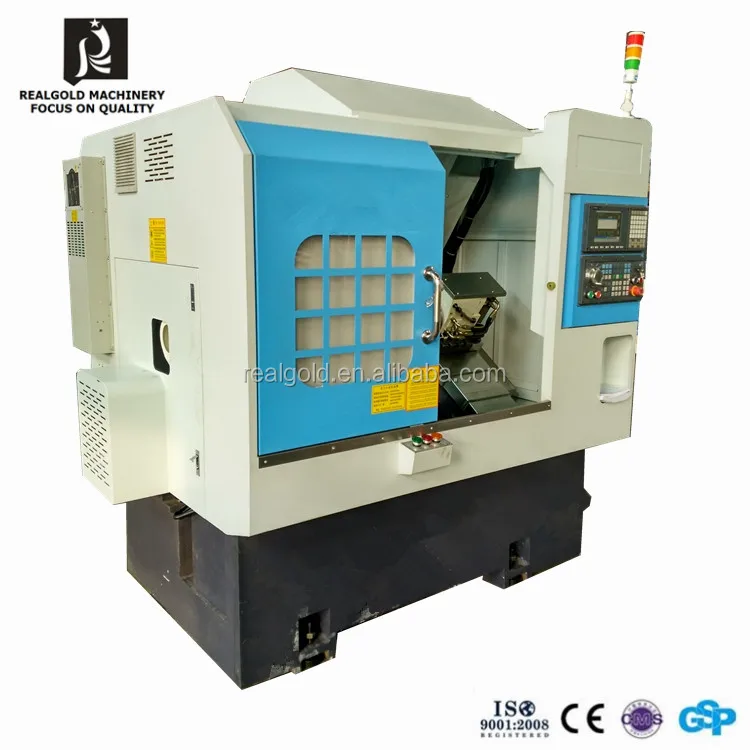

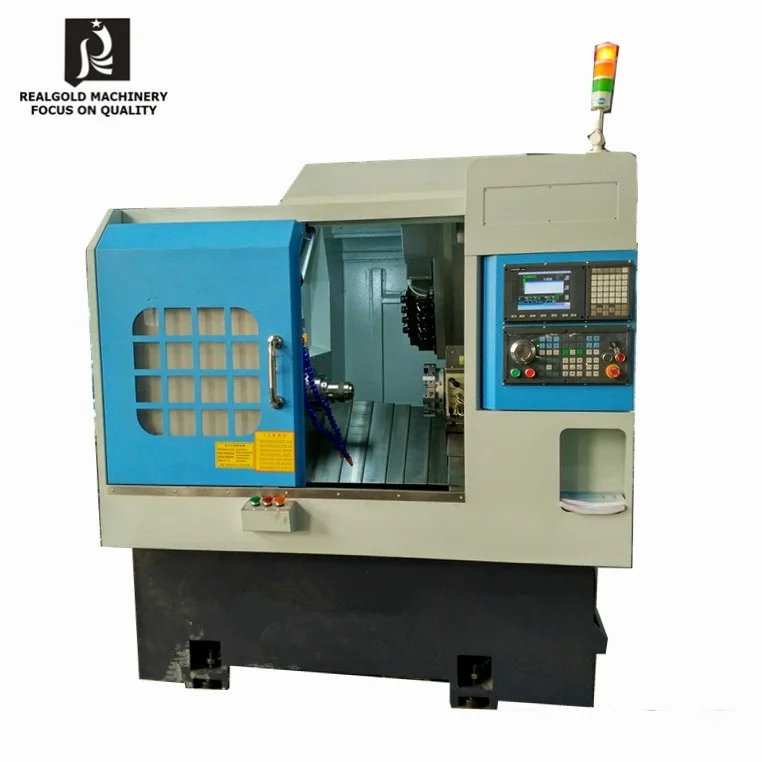

cnc slant bed CK46D 8 cnc lathe with drive tool
- Category: >>>
- Supplier: Tengzhou Realgold Machinery Co. Ltd.
Share on (60801324808):
Product Overview
Description
Product Description
NO. | Specs | Unit | CK46D-8 |
1 | Bed incline degree | . | 30 |
2 | Max swing over bed | mm | φ450 |
3 | Max swing over carriage | mm | φ160 |
4 | Max work-piece length | mm | 370 |
5 | X travel | mm | 450 |
6 | Y travel | mm | 190 |
7 | Z travel | mm | 370 |
8 | Spindle nose | type | A2-5 collect chuck 46mm |
9 | Power tools |
| 4+4 |
10 | Power tools center distance | mm | 60 |
11 | Tool shank | mm | 20X20 |
12 | Spindle speed | rpm | 50~4500 |
13 | Rapid speed (X/Y/Z) | M/min | 24/15/24 |
14 | Positioning | mm | 0.006 |
15 | RE-Positioning | mm | 0.003 |
16 | Min control unit | mm | X:0.001 Z:0.001 |
17 | Machine weight | Kg | 3t |
2. power
1 | Main motor | Kw | 7.5 GSK servo motor | ||
2 | X servo motor | Kw | 2.36(7.5NM) | ||
3 | Z servo motor | Kw | 2.36(7.5NM) | ||
4 | Y servo motor | Kw | 1.57(5NM) | ||
5 | Power tool motor | Kw | 2.36(7.5NM) | ||
6 | Hydraulic station power | Kw | 0.75 | ||
7 | Cooling pump | Kw | 0.37 | ||
8 | Lubrication pump | Kw | 0.035 | ||
Standard accessories
GSK988 controller
Taiwan PMI or HIWIN linear guide-way 30mm
Taiwan PMI or HIWIN ball-screw 4013-C3 class
Collect chuck 46mm
Power tool 4+4
Rank tools 4 pcs
Spindle brake
Optional accessories
Fanuc 0i-TF(5) controller
hydraulic chuck (hollow inside 46mm)
Taiwan 8 station turret
Chip conveyor
Auto bar feeder

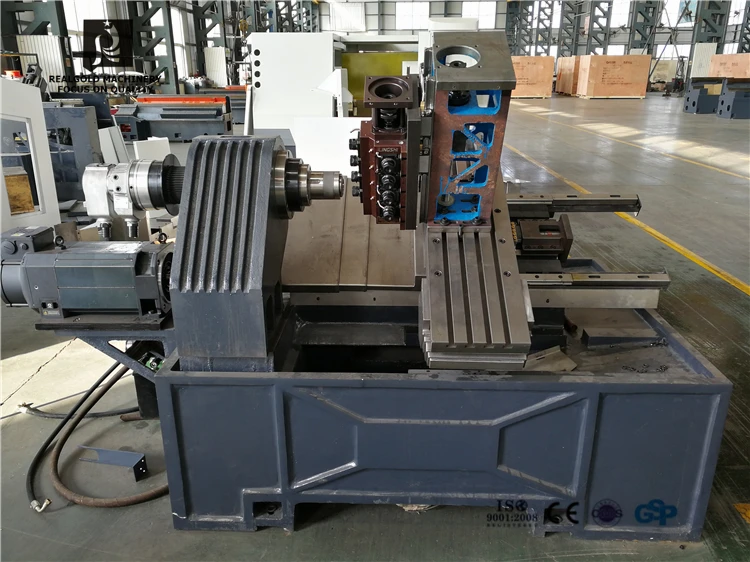

CNC LATHE DETAILS

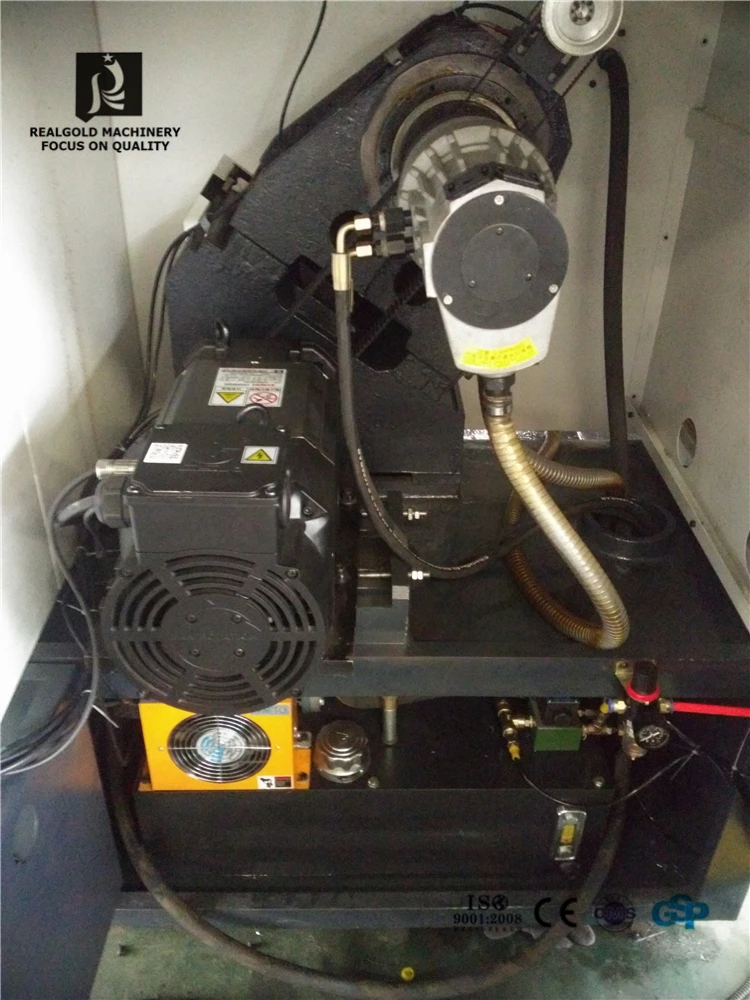

Spindle
CW & CA Series high-performance spindles use a robust bearing arrangement that is 20% stiffer than on previous models,with 50%less thermal expansion.To ensure long-term reliability and simplified service, spindle bearings are lubricated automatically by a proprietary minimal lubrication system.All Realgold spindles are designed and built in-house at our manufacturing facility.

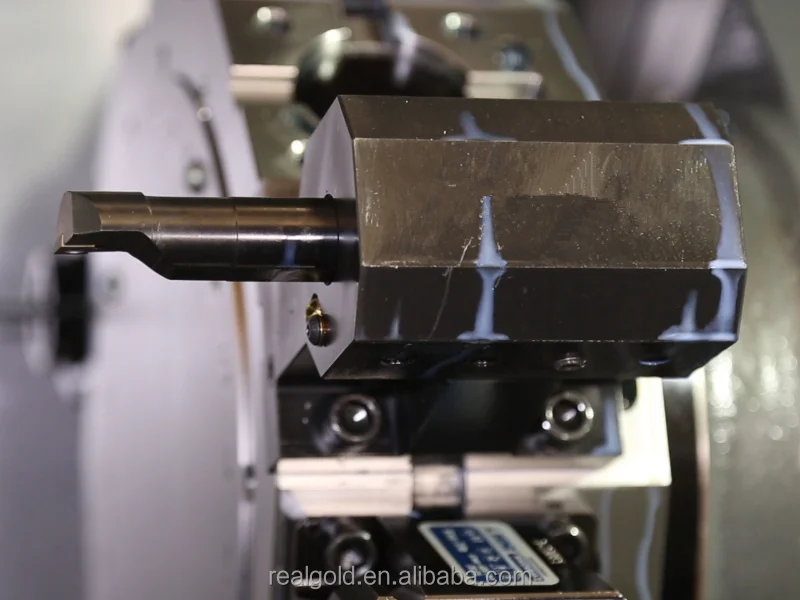

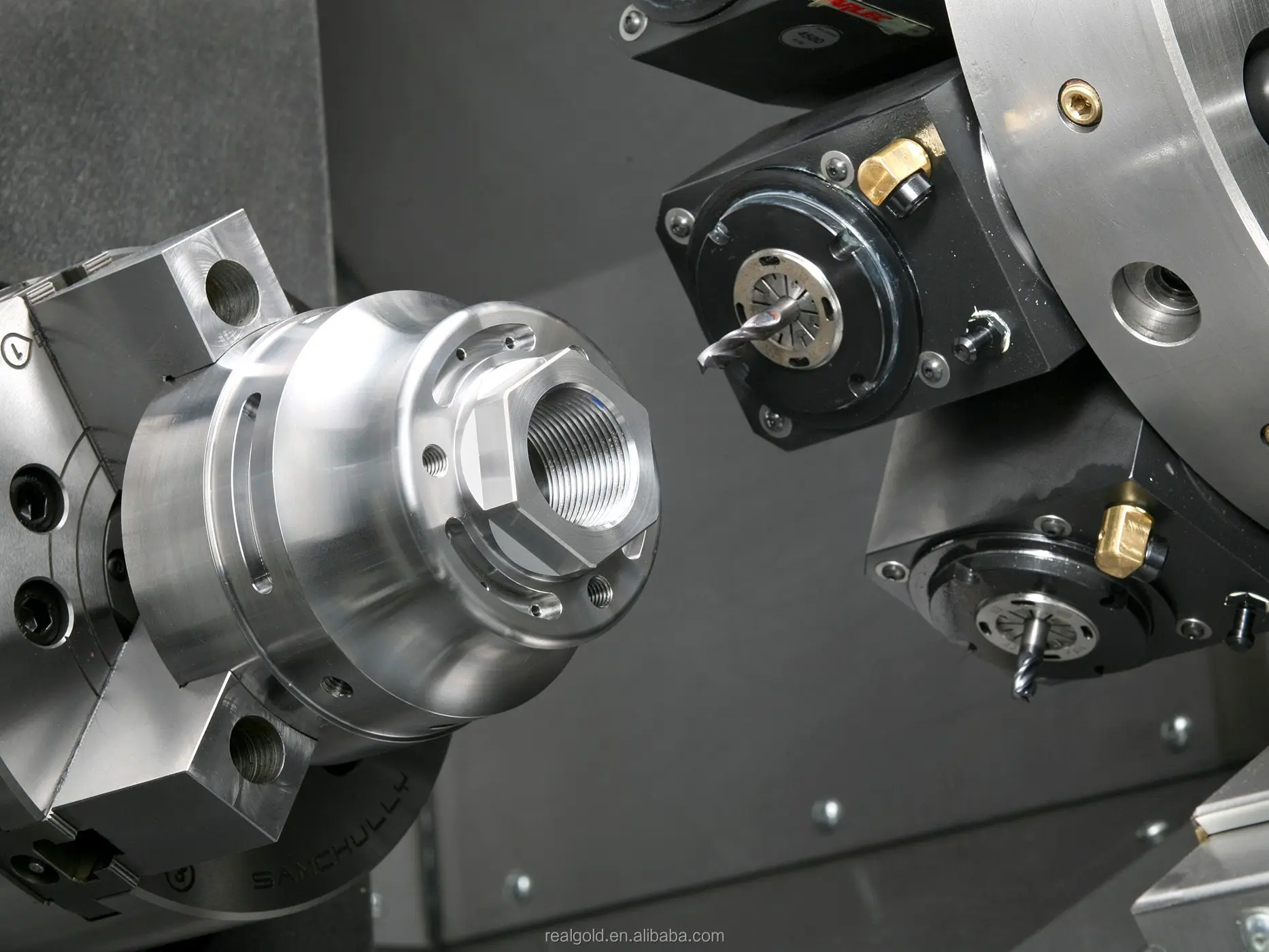

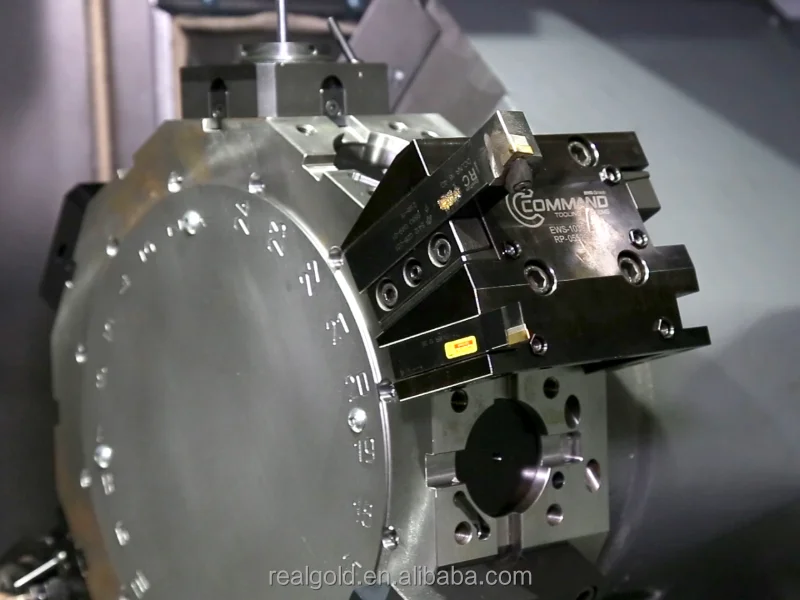

Turret & Live tooling
Customize your Realgold lathe with avariety of turrets, including stanrd 4 station toolpost, mostly 12 station with ER32 live tooling.
Multi-axis machining
Adding additional axis motion to a lathe is the fastest way to boost throughput, increase accuracy, and reduce part handling. With Y axis, C axis, and live tooling, you can machine parts complete in a single setup. Y-axis lathes offer the simplest and most cost-effective entry into multi-axis lathe machining in the industry.

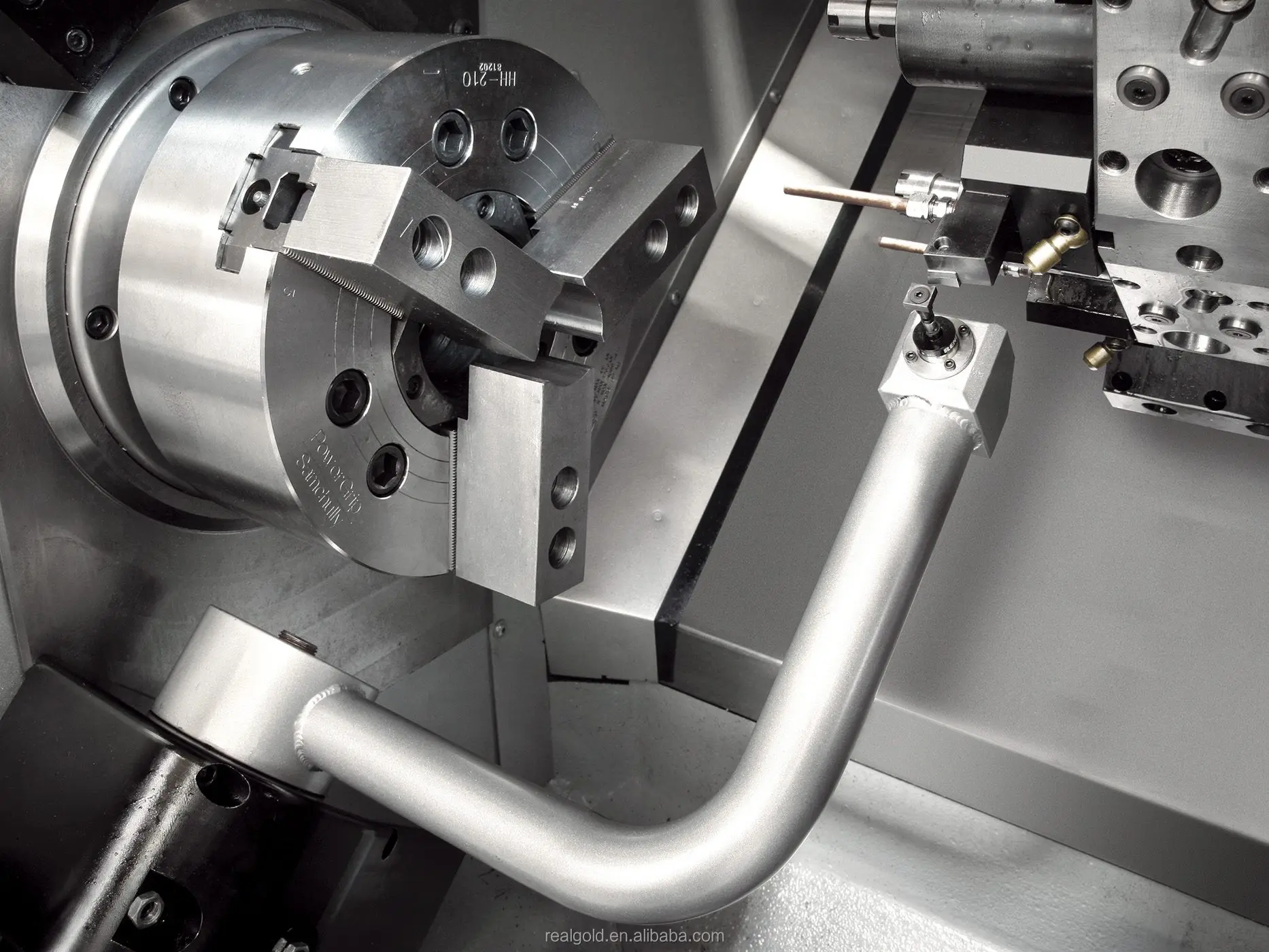

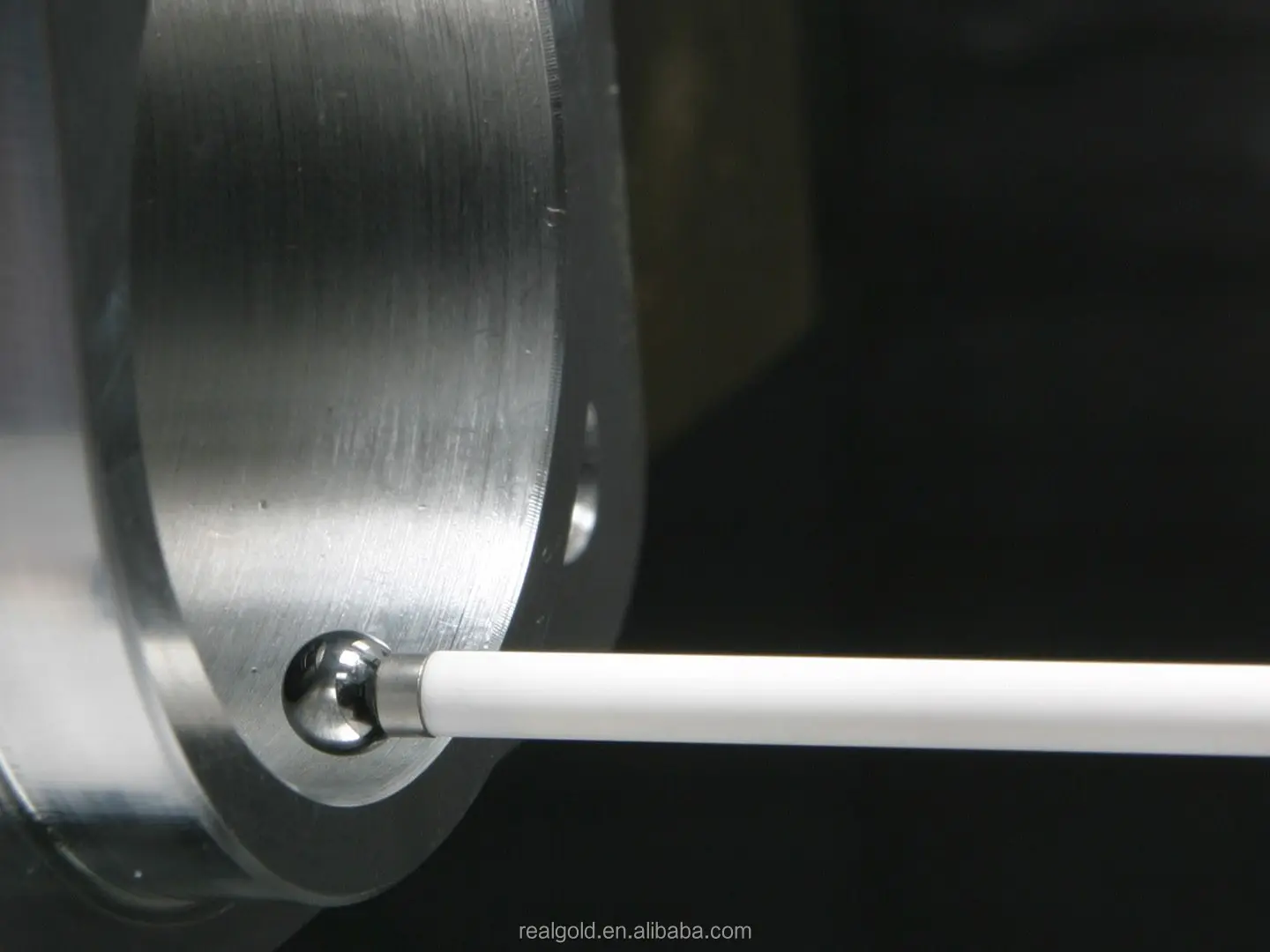

Lathe Probing
Setup reduction is critical to maximizing the productivity of any machine tool. With the probing solutions available from Realgold, any machine can be set up in minutes, withjust a few button pushes. Our Automatic Tool Presetter system features easy-to-use automated and manual modes of operation.It has a user-friendly interface for quick,conversational-style programming, and is one of the smartest investments you can make.

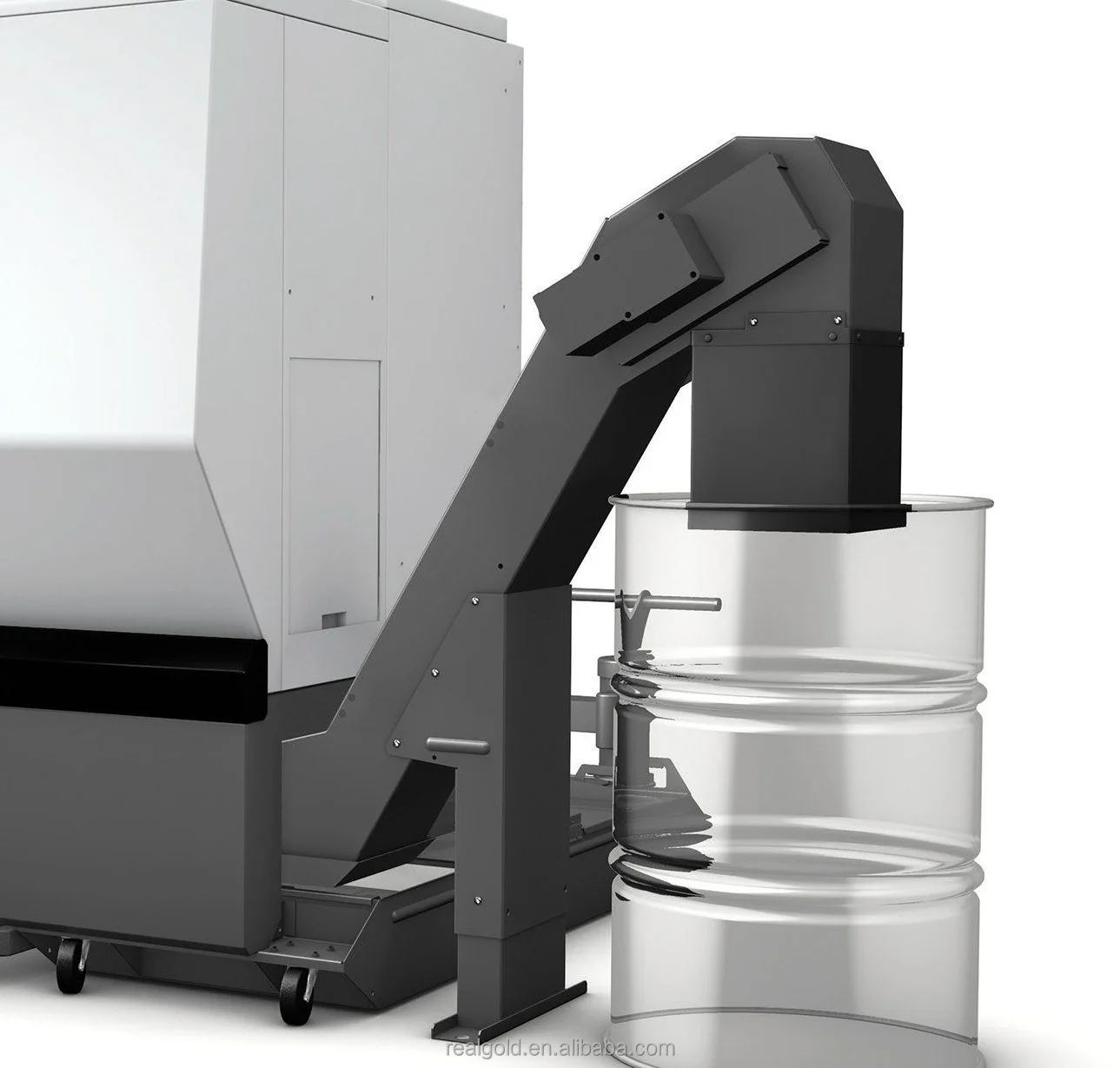

Chip conveyor (slant bed only)
Managing chips and coolant is critical for any machine tool.As machinists ourselves, we know that if you can't keep chips out of the cutting area,and remove them from the machine efficiently, you aren't using the machine to its full potential.
