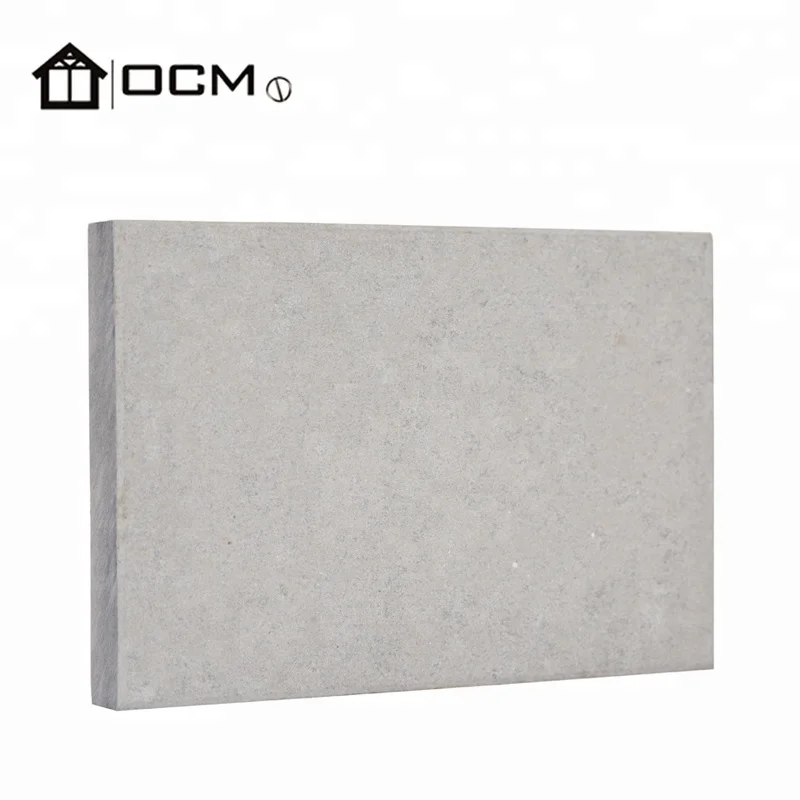

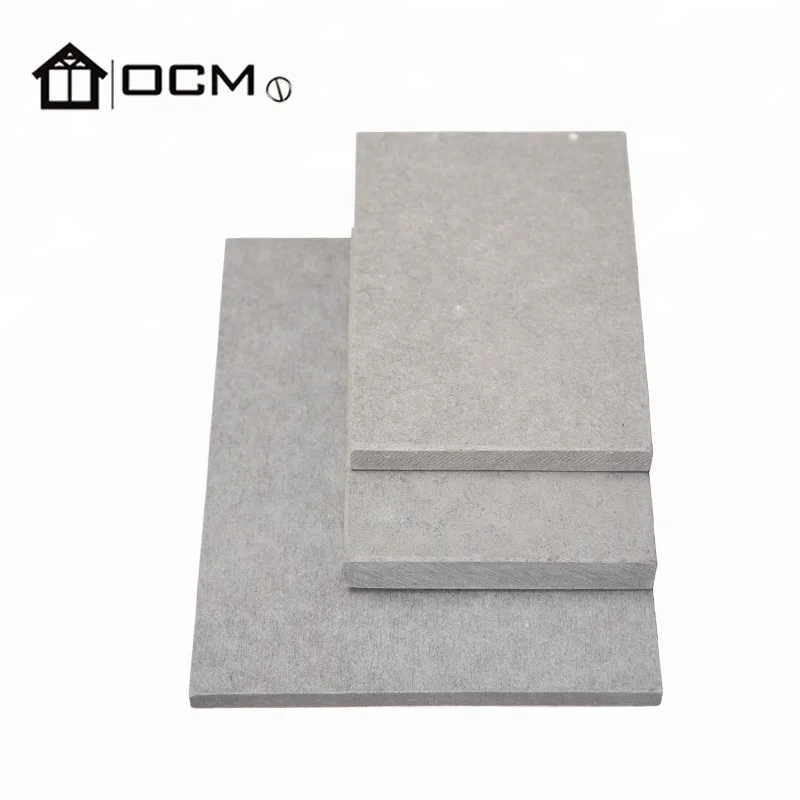

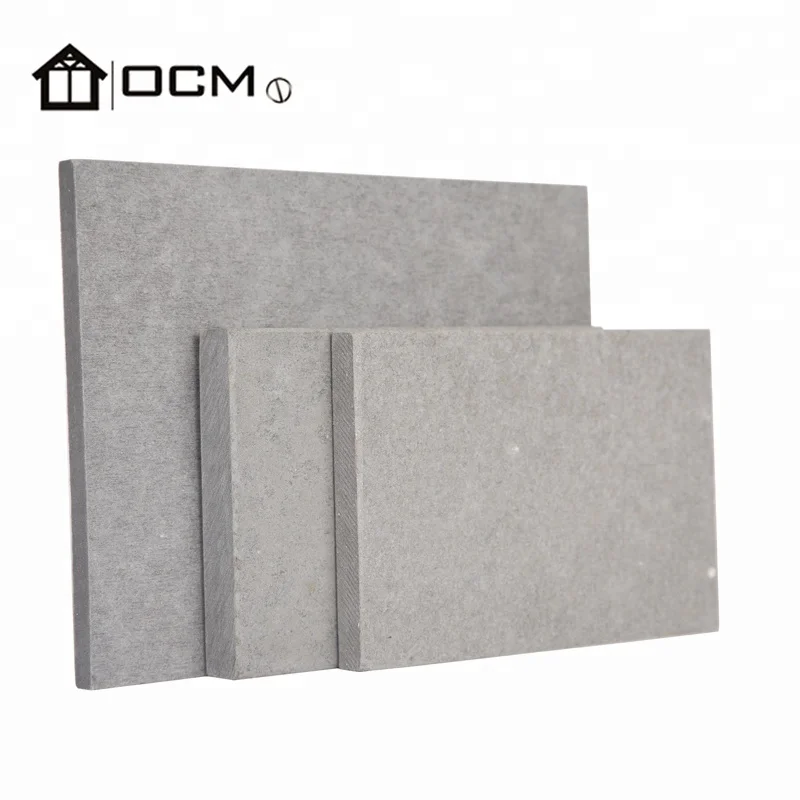

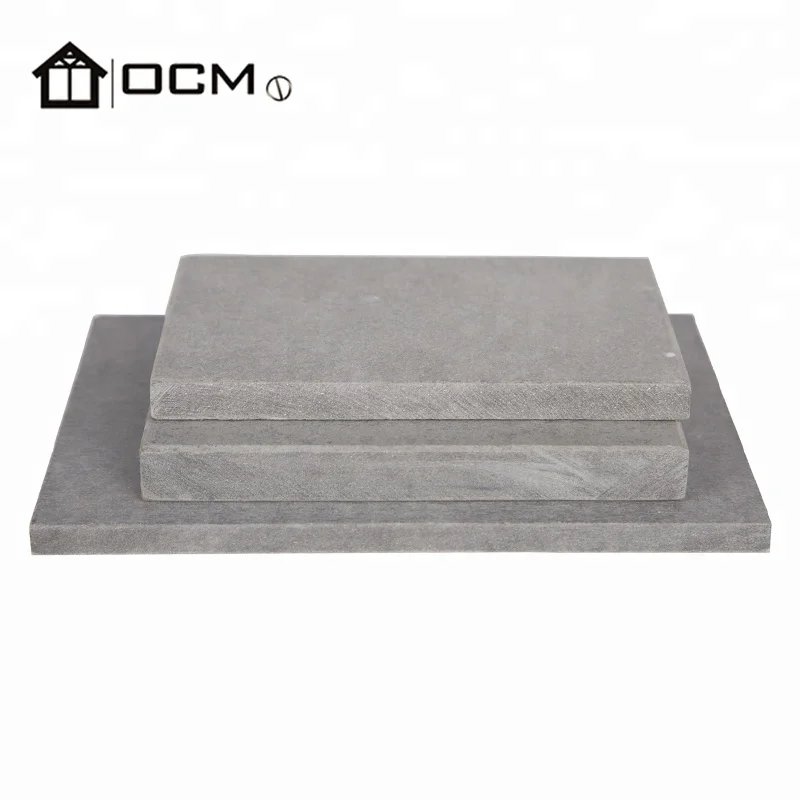

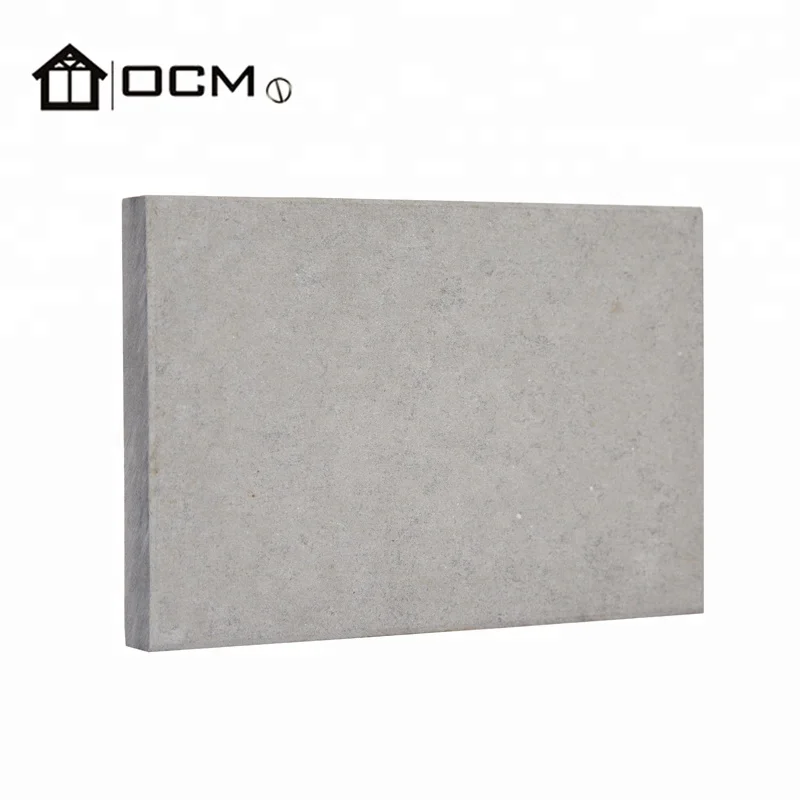

Asbestos Free 6mm Fiber Cement Board Floor Panel

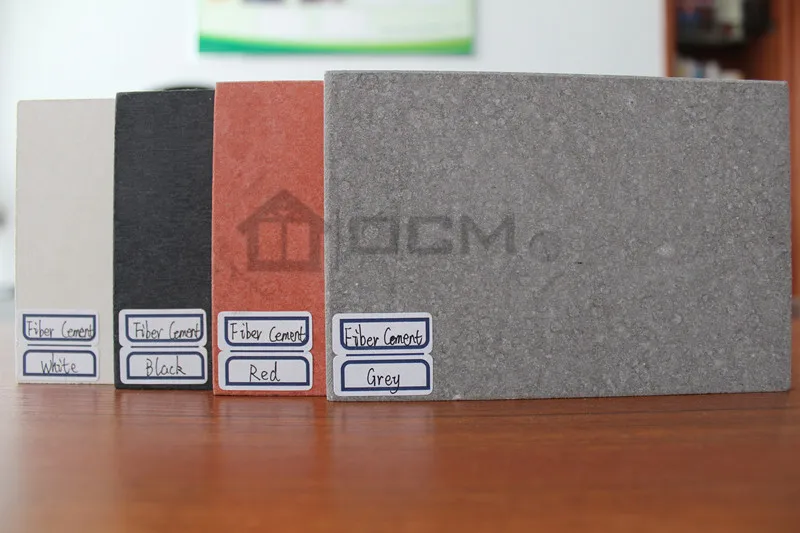

Color

Grey, Black, White, Red, Green, Yellow

Density

>=1.2g/cm3

Raw materials

Paper Pulp, Portland Cement, Quartz Sand and Inanimate matter

100% Asbestos Free

Standard size(mm)

1200*2400 mm / 1220*2440 mm

1200*2700 mm / 1200*3000 mm

Max. width(mm)

1220 mm

Max. length(mm)

3000 mm

Thickness range(mm)

4-20 mm

 Special sizes available by special order

 Fire Resistance: Incombustibility A Class (GB8624-A)

Size (mm)

Thickness (mm)

Weight (kg)

Edge Profile

Application

1200*2400

1220*2440

4

18.00

18.61

Square-cut edge

Internal cladding

1200*2400

1220*2440

6

27.00

27.91

Square-cut edge/

Recessed edge

Internal/external ceiling

1200*2400

1220*2440

8

36.00

37.21

Square-cut edge/

Recessed edge

Internal partition

External wall cladding
Wet area and tile backing

Floor underlay

1200*2400

1220*2440

9

10

40.50

41.86

45.00

46.51

Square-cut edge

External wall cladding

Wet area and tile backing
Floor underlay

1200*2400

1220*2440

12

54.00

55.82

Square-cut edge/

Recessed edge

External wall cladding

Wet area and tile backing
Floor underlay

1200*2400

1220*2440

15

66.27

68.50

Square-cut edge

Internal partitions with special requirements

Elevated Floor

1200*2400

1220*2440

18

79.52

82.20

Square-cut edge

Internal partitions with special requirements

Elevated Floor

1200*2400

1220*2440

20

88.36

91.33

Square-cut edge

Internal partitions with special requirements

Elevated Floor

Density (g/cm3)

≈1.44

Water Absorption (%)

28

Wet Expansion (%)

0.17

Incombustibility

Incombustible Class A

Water Penetration

No water drop on the board surface after 24 hours

Modulus of Rupture

Air Dried Condition

14

Saturated Condition

10

Frost Resistant

No delamination and crack after 25 cycles under freezing and thawing

Radioactivity

Decorative Materials Class A

Incombustibility

Incombustible Class A1

Water Penetration

Backside without water drop after 24 hours

Modulus of Rupture

Air Dried Condition

≥12

Saturated Condition

≥8

Radioactivity

Decorative Materials Class A

Density (g/cm3)

1.4-1.7

Water Absorption (%)

≤25

Wet Expansion (%)

≤0.23

Incombustibility

Incombustible Class A1

Water Penetration

Backside without water drop after 24 hours

Modulus of Rupture

Air Dried Condition

≥18

Saturated Condition

≥14

Frost Resistance

No layers and no cracks after 25 cycles under freezing and thawing

Radioactivity

Decorative Materials Class A
