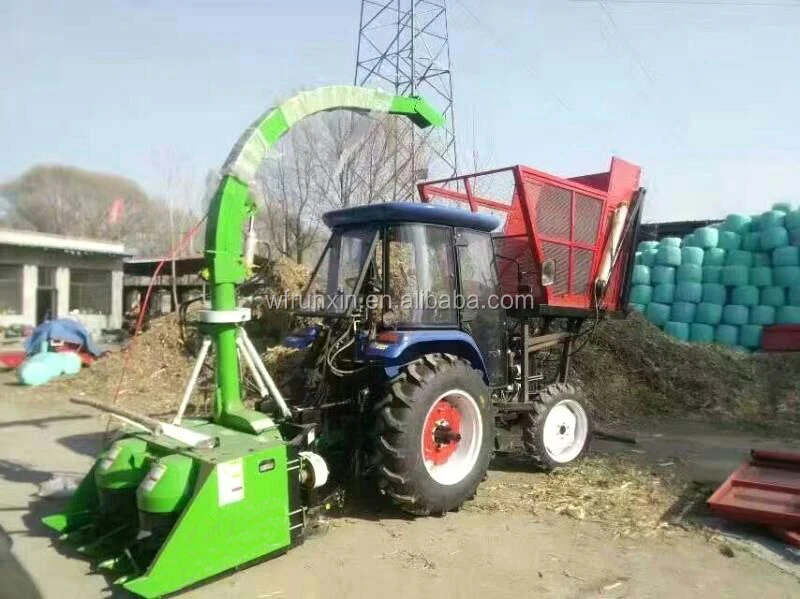

corn silage harvester

Description:
Silage Harvester is mainly used for harvesting maize, sorghum and elephant grass etc. Multi-functions can be achieved at one time, like harvesting, chopping, kneading and blowing silage to trailer etc.

Features:
1. Complete Gear Drive
2. High-performance Header Combined with Double Vertical Pre-compressed Rollers
3. Equipped with Knife Grinder
4. Hydraulically Folding Chute
SPECIFICATION
| MODEL | 4QX-1400 | 4QX-1800 | 4QX-2300 | |
| MATCH POWER | HP | 60-90 | 90-120 | 120-200 |
| CUTTING WIDTH | MM | 1400 | 1650 | 2250 |
| MIN. CUTTING HEIGHT | MM | 50 | 50 | 50 |
| CUTTER SPEED | R/MIN | 1000 | 1000 | 1000 |
| CAPACITY | KGS | OVER 12000 | OVER 20000 | OVER 30000 |
| THROW DISTANCE | M | OVER 6 | OVER 8 | OVER 8 |
| THROW HEIGHT | M | 3.5 | 4 | 4 |
| THROW ANGEL | DEGREE | 360 | 360 | 360 |
| STRUCTURE WEIGHT | KGS | 900 | 1200 | 1400 |
| OVERALL SIZE | MM | 3800X1490X3480 | 4900X1830X4070 | 4760X2380X4070 |

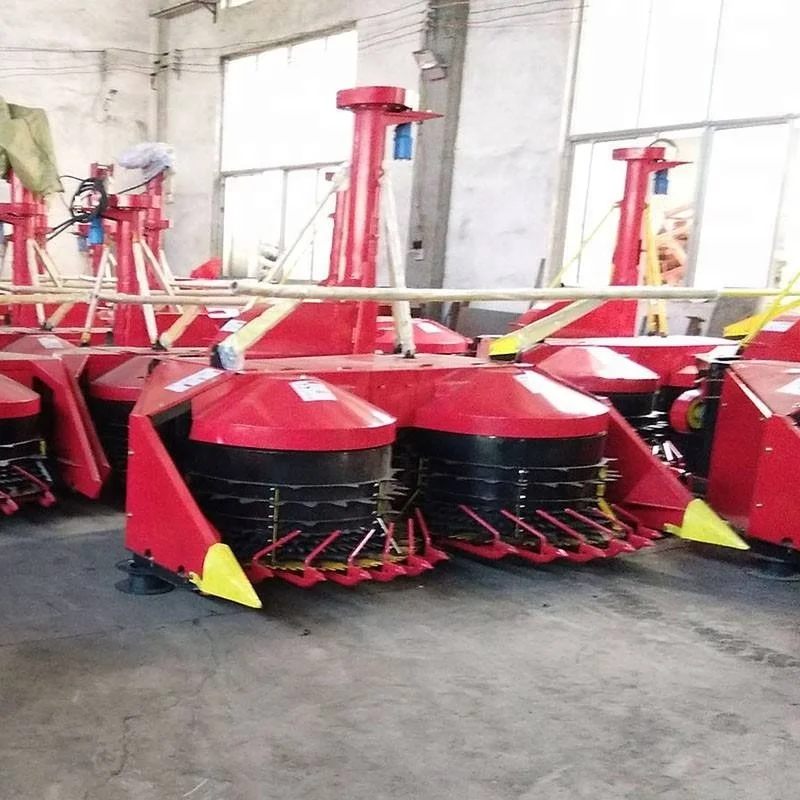

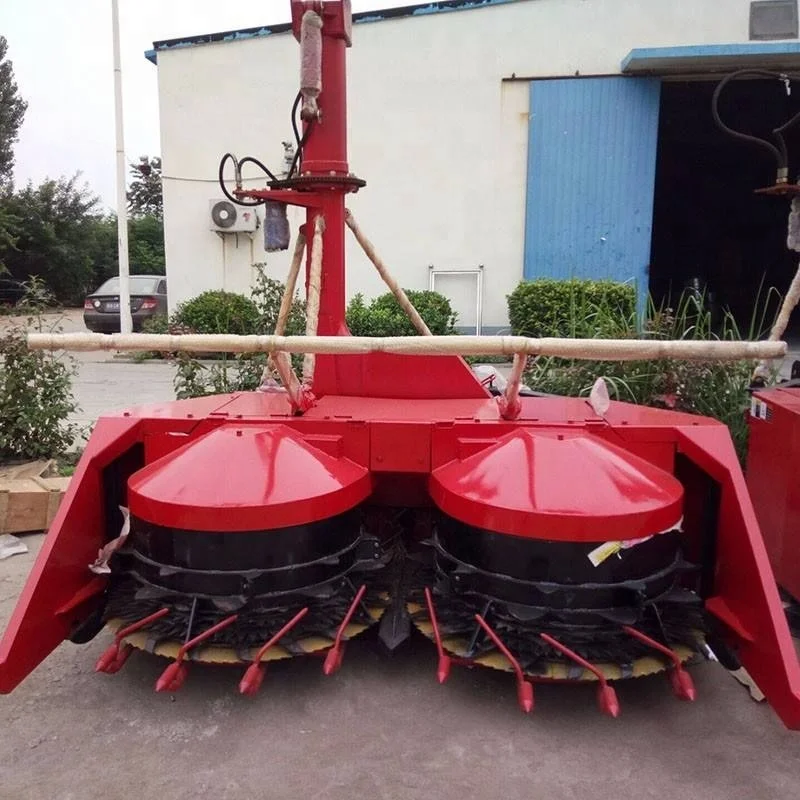

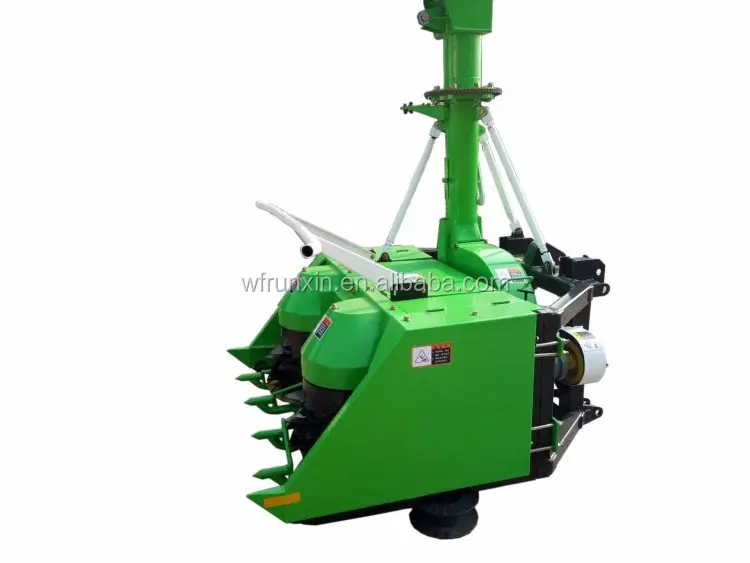

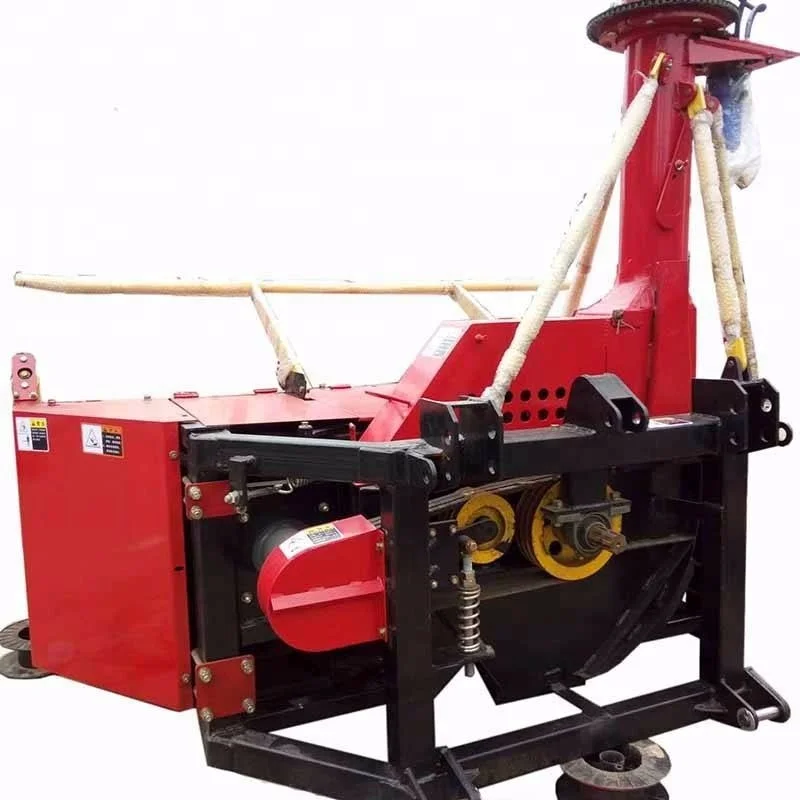

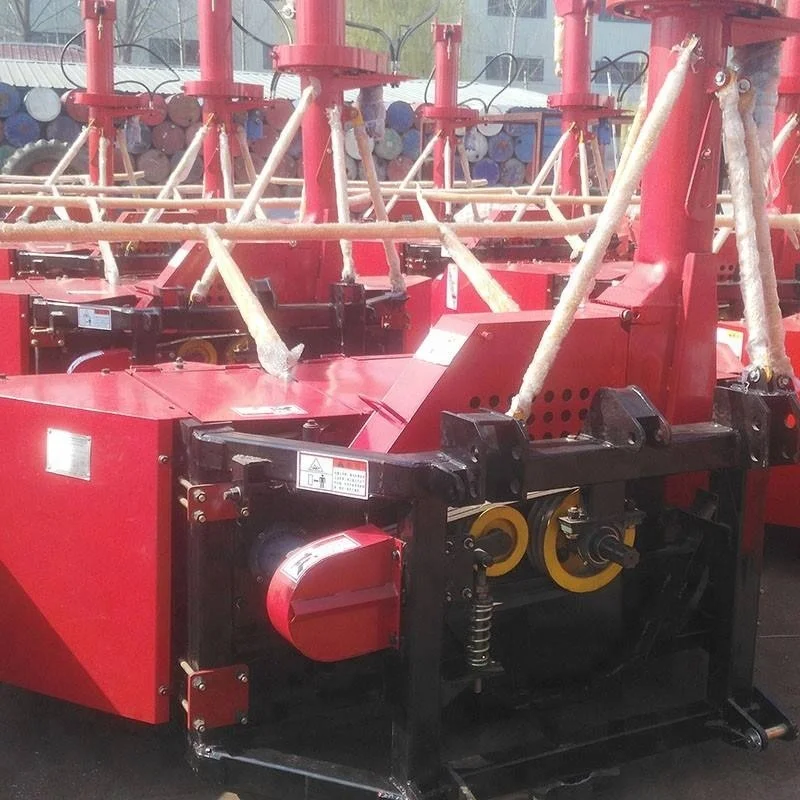

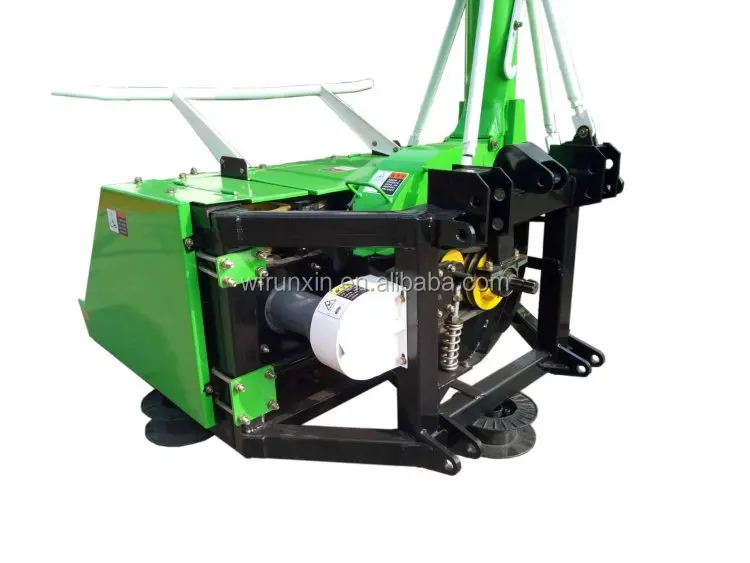

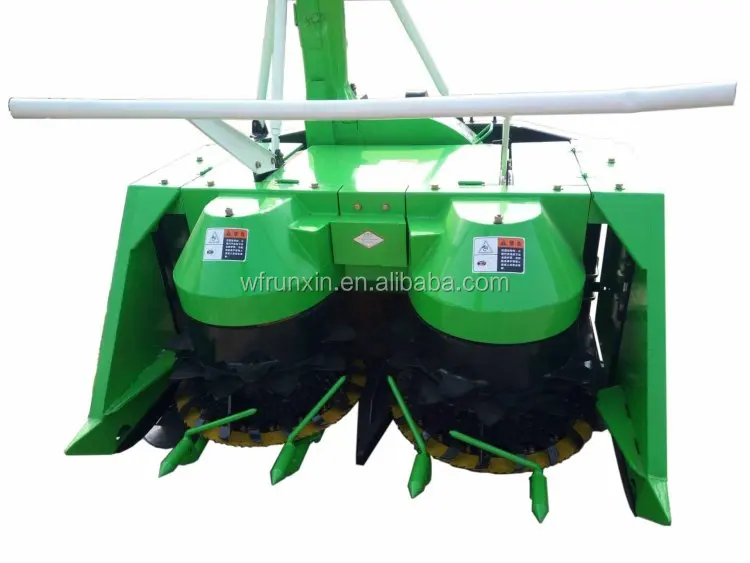

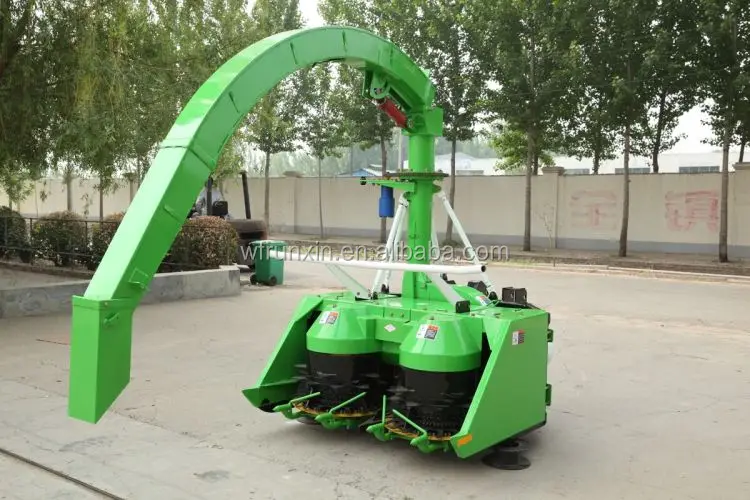

PICTURES
