factory supply 15 cubic meter per hour shotcrete machine prices
- Category: Shotcrete Machine >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.
Share on (60801367337):
Product Overview
Description

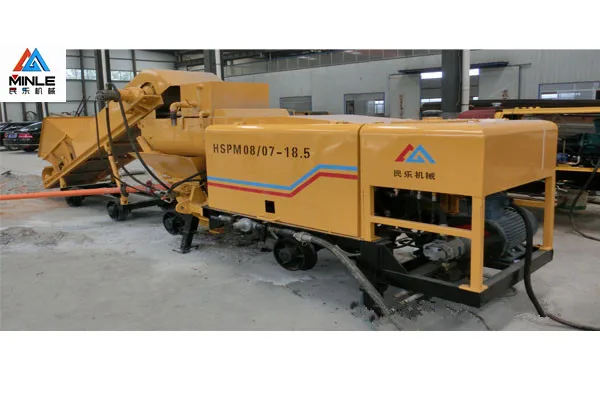

factory supply 15 cubic meter per hour shotcrete machine prices
contact:sara mao mobile/wechat/whatsapp:86-15866001919
Choose MINLE as partner,let us make every effort to support your custruction works!

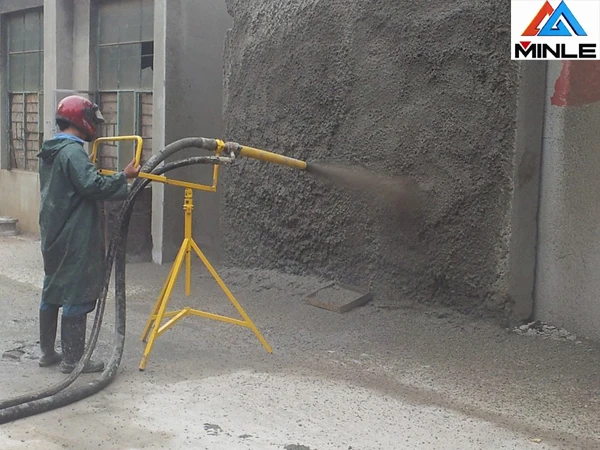

Wet shotcrete machine is an advanced product in shotcreting technology enabling continuous flow with minimum rebound ensuring coverage of maximum area in shortest possible time thereby increasing the overall productivity of project. The wet shotcrete machine is often used to spay out the finished concrete mixed with accelerator from its nozzle to the construction surface. The nozzle is installed at the outlet of the pipe and the air is compressed and the concrete is ejected. MINLE wet shotcrete machine is engineered with high quality wearing parts, variable displacement plunger pump, novel developed cam track and rolling body to obtain higher reliability and high concrete spaying efficiency and uniformity. our Wet shotcreting machine features simple structure, reliable working performance, high efficiency, decreased dust, small shape, light weight, low concrete consumption, reduced rebound resilience, saving material, It is extensively used for concrete spraying, filling, grouting, pumping in construction projects in mine, culvert, construct foundation pit support, channel slope protection, etc.
- High quality, high working efficiency.
- The water ash ratio is much easier to control and concrete coefficient is high, it can greatly improve the concrete quality and increase the concrete uniformity.
- Hydraulic pumping method, high system reliability, stable delivery volume. It is extensively used for concrete spraying, filling, grouting, pumping in construction projects.
- Low rebound resilience. The concrete rebound resilience can be less than 10% when wet spray.
- The injection quantity can be continuously adjustable.
- The main oil pump adopts a variable displacement plunger pump, and the injection speed can be adjusted freely (the maximum number of adjustments is not more than 10 times/min.)
- The concrete accelerator quantity can be continuously adjustable according to the amount of spraying.
- It greatly reduces the dust concentration around the machine and jet nozzle.
- Longer life span of the wearing parts.
- The consumable parts service life of the main engine is not lower than the spraying 4000m3.
- Automatic lubrication system. Automatic controlled lubrication for main sealed parts, grease filling amount and filling time.
- Intelligent automatic control can greatly prolong the life of vulnerable parts.
- Humanized product design.
- The use of remote control handle, easy to operate.
- Easy to operate and maintain.
- Competitive factory price.
Advantages:
1, High pumping pressure and long transmission distance.
2, High efficiency, large displacement.
3, Spare parts is not easy to loss, long service life.
4, Simple and environment
5, Multi-usage, it also can be used for wet spraying machine and concrete pump
Technical Parameter
item | Diesel one |
Theoretical Max output(m³/h) | 15 |
Max. Pressure (Mpa) | 7.8 |
Maximum theoretical delivery distance(m) | 80 |
The type of distribution valve | S Tube valve |
concrete cylinder(mm) | Φ140×1000 |
Main oil pump cylinder(mm) | Φ80×Φ55×1000 |
Outlet dia.(mm) | Φ100 |
Filling height(mm) | 1080 |
Hopper capacity(L) | 400 |
diesel power(Kw) | 39 |
Main valve | Germany Bolseen |
Hydraulic hose | Italy manuli |
Electric elements | Schneider,Mitsubishi |
Working wind presure(Mpa) | 0.6-0.8 |
Air consumption(m³/min) | ≥13 |
Hydraulic circuit type | open |
Pumping system pressure(Mpa) | 24 |
Distribution system pressure(Mpa) | 14 |
Mixing system pressure(Mpa) | 12 |
Hydraulic oil tank capacity(L) | 200 |
Aggregates size(mm) | gravel≤10 pebble≤15 |
concrete slump(mm) | 120-180 |
Delivery pipe dia(mm) | Φ64 |
Rebound Rate | ≤10% |
dust density(mg/m³) | ≤6 |

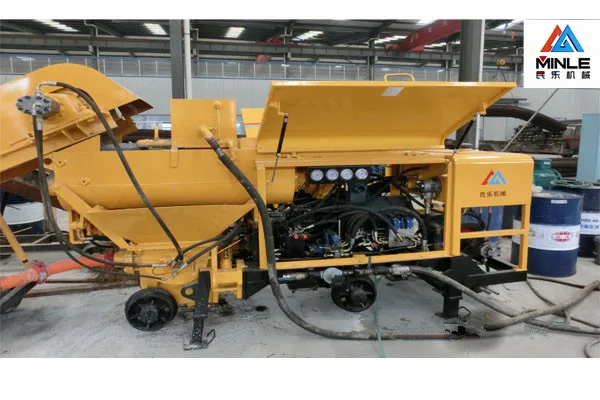

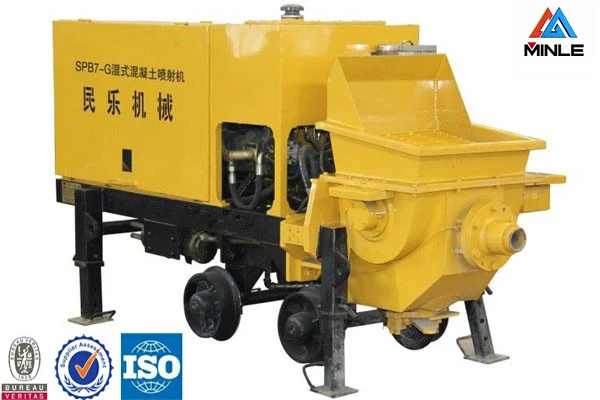

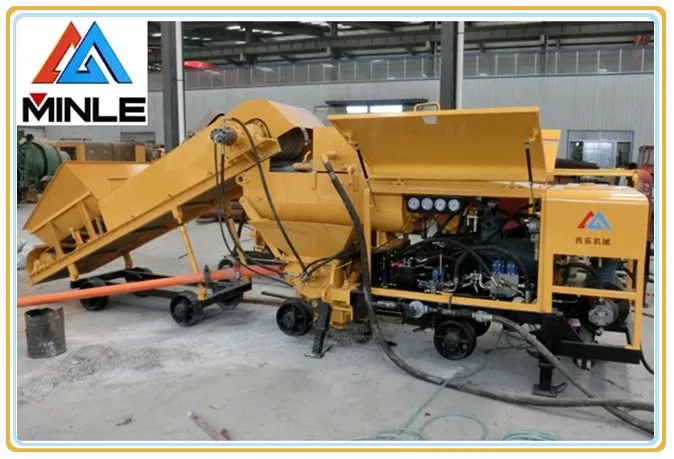

Product details
Production process
Company
cases
Loading
why choose us
Our service
12 months warranty.
We guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique.
(Damage caused by improper use and natural aging are not covered under the guarantee. )
l serve worldwide clients with high-quality products,devoted professional services
honorable credibility to meet customers' requirements
l supply you 24 hoursa day and 7 days a week after-sale services.
FQ
Related machine
Contact us for more details!
Sara Mao
TAIAN MINLE MACHINE MANUFACTURE CO., LTD
Mobile:86-15866001919
Website://www.concretepumpmachine.com
Welcome to inquiry /visit us .
