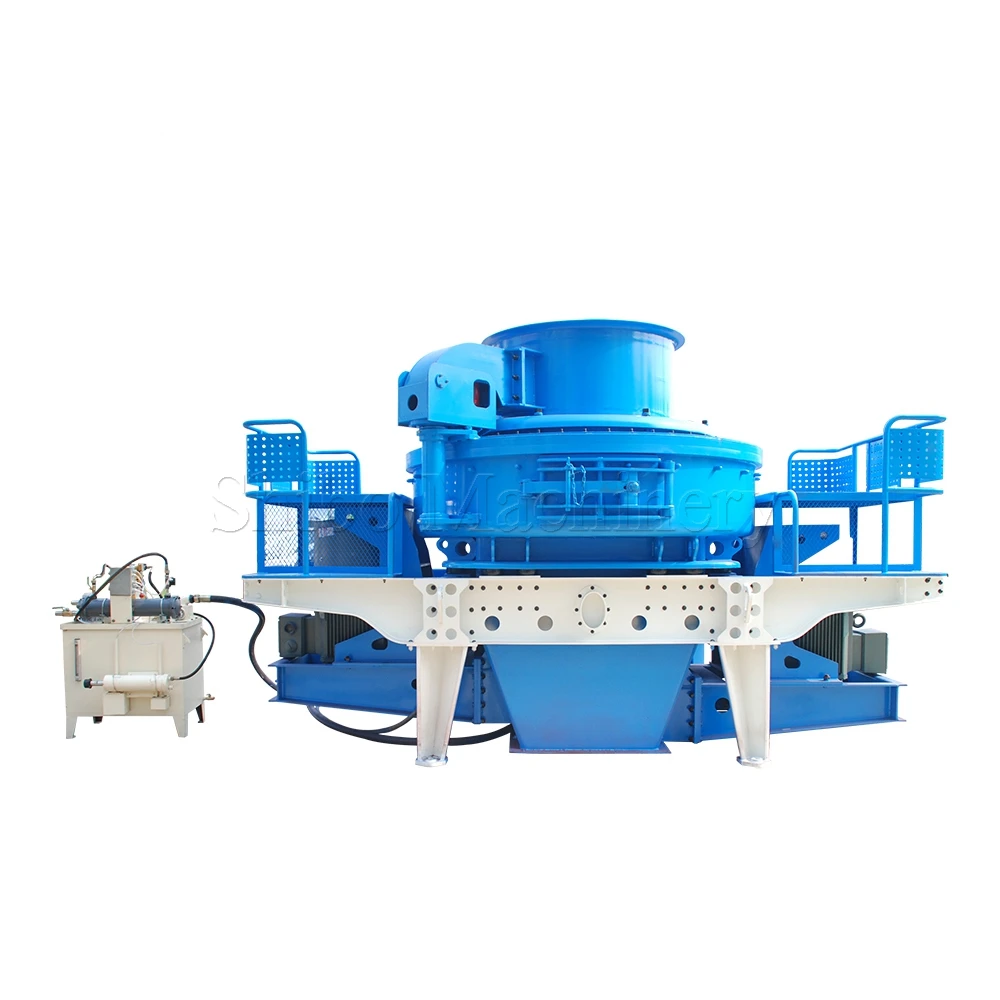

New Technology Crusher Stone Making Sand Vertical Shaft Machine
Product Description
VSI sand making machine is the latest product of our company which absorbed the advanced technology from German. It can provide the best material for the highway,railway,construction project and concrete mixing station etc. Lower cost and good performance decide that this kind of equipment is a preferred choice for artificial sand making or stone reshaping.
Applicable Materials
1. Pebble, Rock( the limestone, granite, basalt, aluminum, andesite, etc.), Ore tailings, Attle artificial sand production.
2. Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand making production and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, hemical industry, cement, abrasive, refractory material, etc.
5. The crush of high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
6. The production of glass,quartz sand and other high purity material.
Features of VSI Sand Making Machine
- Large capacity & stable running.
- Low consumption of wearing parts.
- High-efficiency.
- Perfect product shape, suitable for sand-making and stone-shaping.
- Thinning oil lubricant and automatic maintenance.
- Hydraulic device for easy maintenance and operation.
Working Principle
1. Center Feeding:
Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.
2. Ring Feeding:
Raw material falls down into feed hopper, then through ring, it is devided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.
Technical Parameters
|
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140 |
VSI-1145 |
||
|
Capacity (t/h) |
Center and Ring feeding |
120-180 |
200-260 |
300-380 |
450-520 |
490-600 |
|
|
Center feeding |
60-90 |
100-130 |
150-190 |
225-260 |
250-310 |
||
|
Max Feed Size (mm) |
Soft material |
<35 |
<40 |
<45 |
<50 |
<50 |
|
|
Hard material |
<30 |
<35 |
<40 |
<45 |
<45 |
||
|
Rotation speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
1180-1280 |
||
|
Power for double motor (kW) |
110-150 |
180-220 |
264-320 |
400-440 |
440-520 |
||
|
Overall Dimension L×W×H (mm) |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
5100×2790×3320 |
||
|
Weight (t) |
7.5 |
10.5 |
14 |
16 |
27.5 |
||
|
Power Source |
380v 50Hz |
||||||
|
Vibrating Sensor |
Inspect scope: 0.1-20mm/s adjusted continuously |
||||||
|
Lubrication hydraulic pressure station |
Power for double oil pump |
2×0.31kW |
|||||
|
Safety |
To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. |
||||||
|
Power for oil box heater |
2 kW |
||||||
If you want to get price or more product details, please contact us with your detailed requirements (model or capacity, input size and output size), we will send you accurate quotation and extra discounts. Whatsapp/Wechat/Telegram: +86-15617669073 (Bella)
Production Line
The sand making plant can crush, screen and clean river pebbles or mountain rocks to make qulified sand. The whole plant usually includes first crushing machine, sand making machine, vibrating screen, sand washing machine, fine sand recycling machine, belt conveyor and electrical control system.
Sand making plant includes quartz sand making production line, building sand making production line and stone material production line, all of which could produce aggregates and crushed sand from limestone, granite, basalt and river stone.
Packaging & Shipping
Our Services
• Pre-sales
- Help customers to choose product.
- Freely send engineers to the working field to plan the installation site and design the best technical production process.
- Design the special product according to the contract.
• On-sales
- Inspect every part of machines before production.
- Deliver goods on schedule according to the contract.
• After-sales
- Send the engineers to guide the installation.
- Install and adjust the equipment for customers.
- Train the operator for customers.
- We also provide the technical service for our customers after the installation.
- If there is any problem during the application, our after-sale engineer shall ensure to offer clear solutions within 24 hours or arrive at the working site within 48 hours ASAP.
