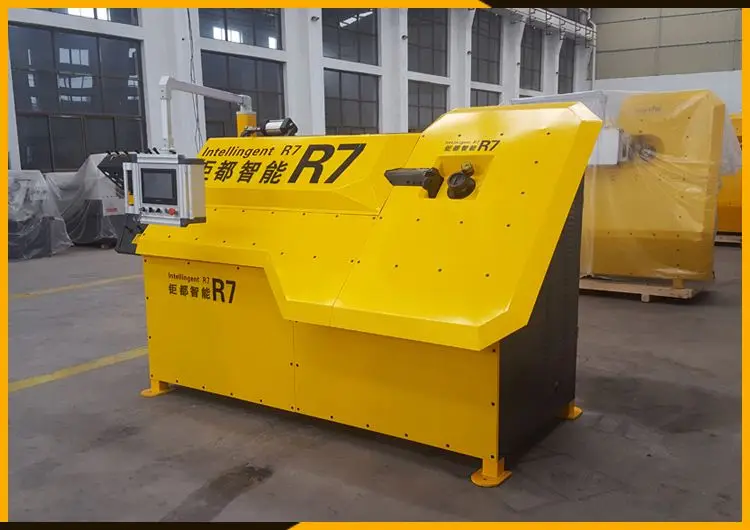

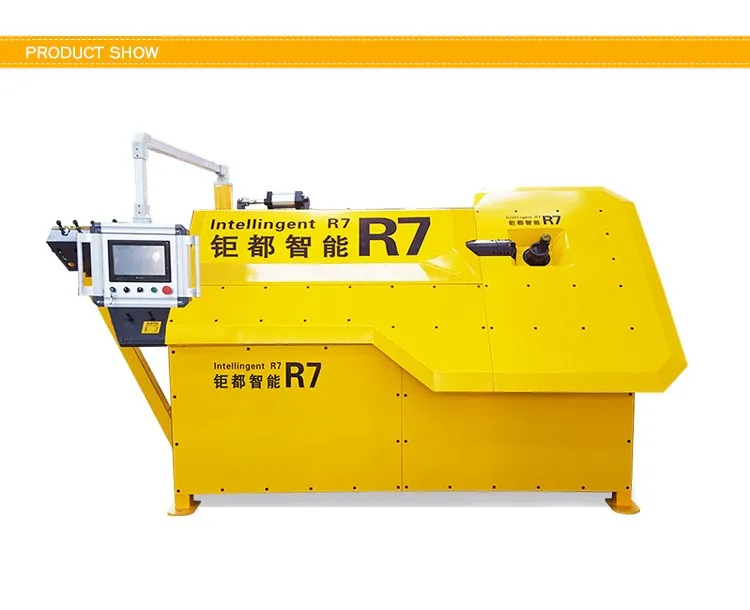

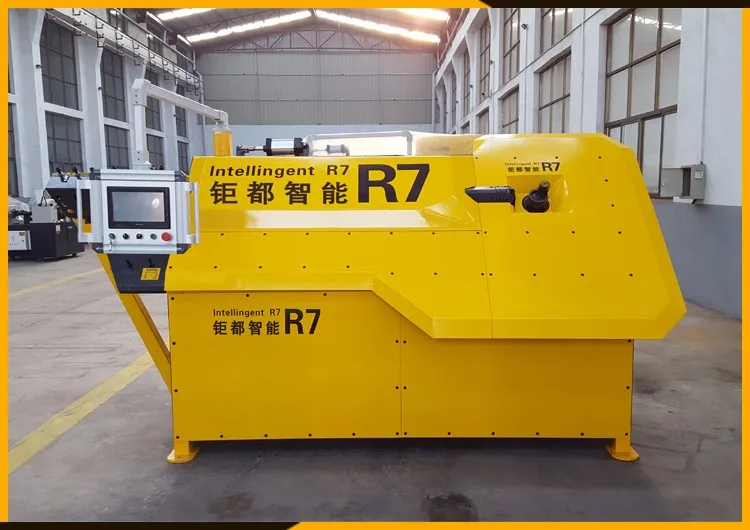

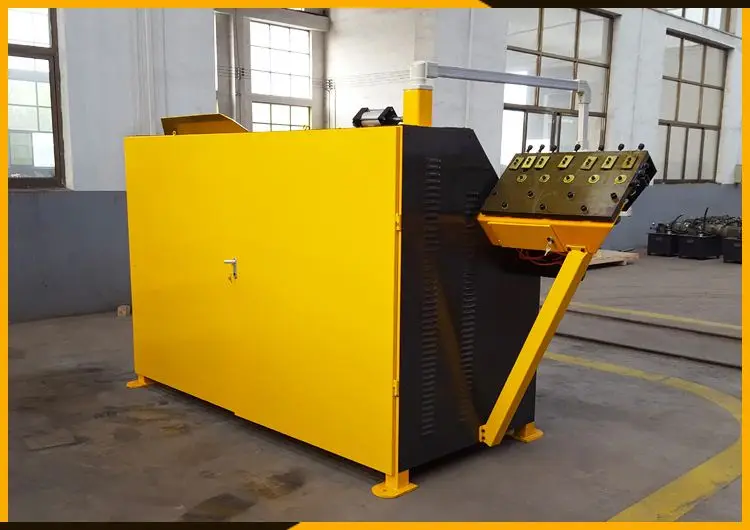

R7 4 10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price
R7 4-10mm round/deformed steel bar bender rebar bending machine price

R7 4 10mm round/deformed steel bar bender rebar bending machine price

Share on (60801383958):


Price:$13,000.88 - $14,000.88

Quantity:


Product Overview

Description


Product Description

Product Application

The steel rebar bending machine  uses CNC servo control system, can be done automatically reinforced straightening, cut to length, bending hoop, cutting and other processes, the Maximum diameter of 14mm can bend steel ,continuous production of any planar shape of products, widely used in construction, a large steel plant and other fields, further equipment since production improved after a few more perfect products and better meet the actual needs of steel processing

R7 steel rebar bending machine techincal specification

\t
Item
\t
unit
\t
parameter
\t
item
\t
unit
\t
parameter
\t
single bar diameter
\t
mm
\t
5-10
\t
length Accuracy
\t
mm
\t
1
\t
double bar diameter
\t
mm
\t
5-8
\t
Angle Accuracy
\t
º
\t
1
\t
the maximum bending angle
\t
º
\t
180
\t
weight
\t
kg
\t
1980
\t
Maimum bending speed
\t
º/sec
\t
800
\t
dimension
\t
mm
\t
3310*1000*1980
\t
maximum towing speed
\t
m/min
\t
60
\t
the number of processing
\t
\t
2
\t
Pwer equipment
\t
kw
\t
21
\t
steel processing shape
\t
kind
\t
500
\t
working temperature
\t
℃
\t
-5-40
\t
average power
\t
kw/h
\t
5

Main Features

 1.The steel rebar bending machine  Integration automatic feed high precision wire structure

2.\tCNC control system, high precision, small error
3.\tThe belt conveying means, failure rate, low maintenance costs
4.\tWith two-way bend function, process a variety of shaped pieces

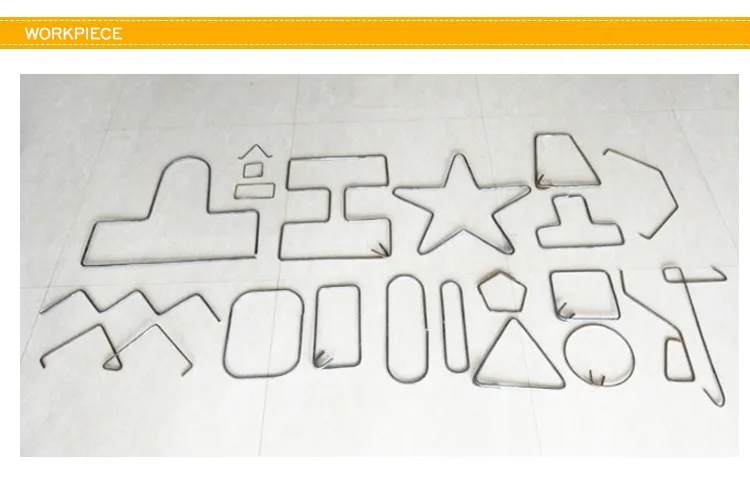

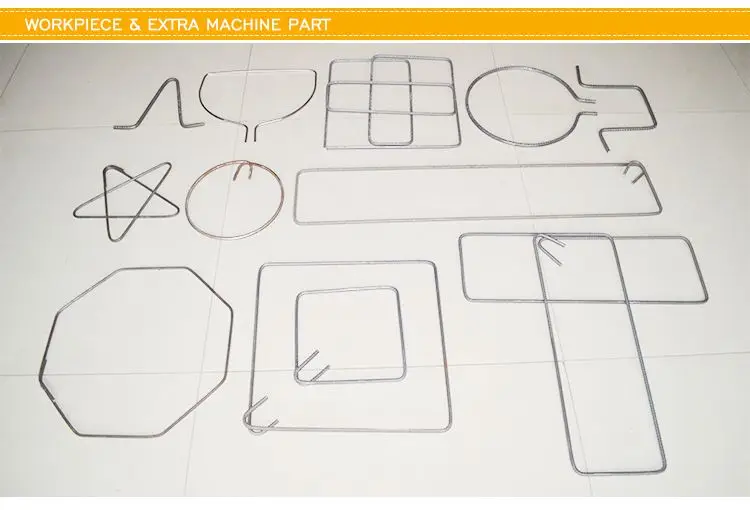

5.\tWith large storage, can be processed nearly 500 different size artifacts
6.\tDouble roller sync wire feed units, wire feed is simpleeasy to operate, easy to learn
7.\tWorks bevel design, not random wire straightening high efficiency

Certifications

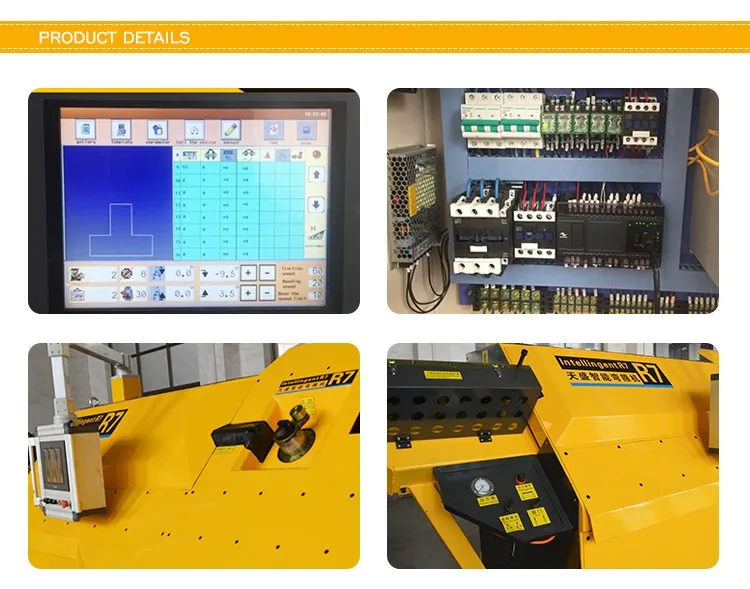

Detailed Images

Machine Parts

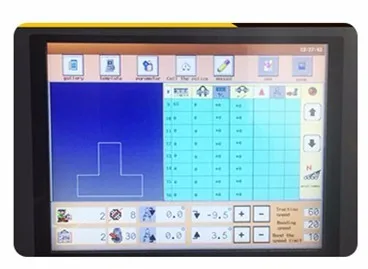

Name: Programmable Logic Controller
Automatic CNC technology, can achieve multiple languages. Such as English, French, Russian, Spanish and so on

Main Features

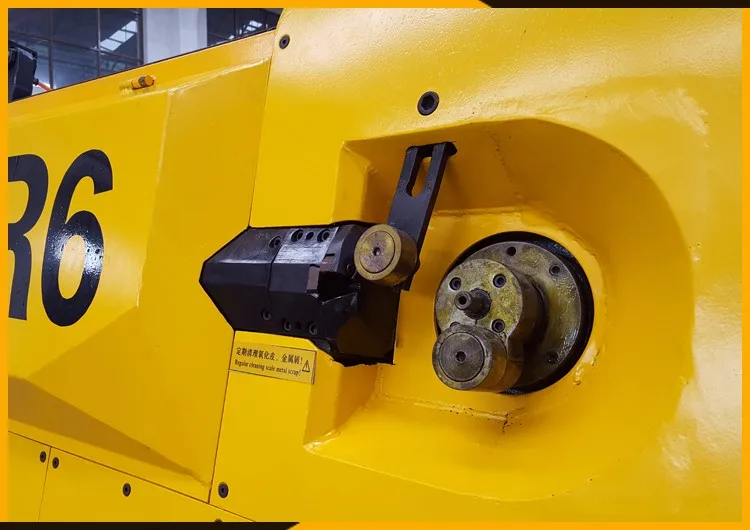

Name:steel rebar bending machine Bending device
High-strength material bending axis, is mainly responsible for the formation of stirrups, both positive and negative bending of steel, free to control the mandrel telescopic, up and down and replace the mandrel size



Machine Parts

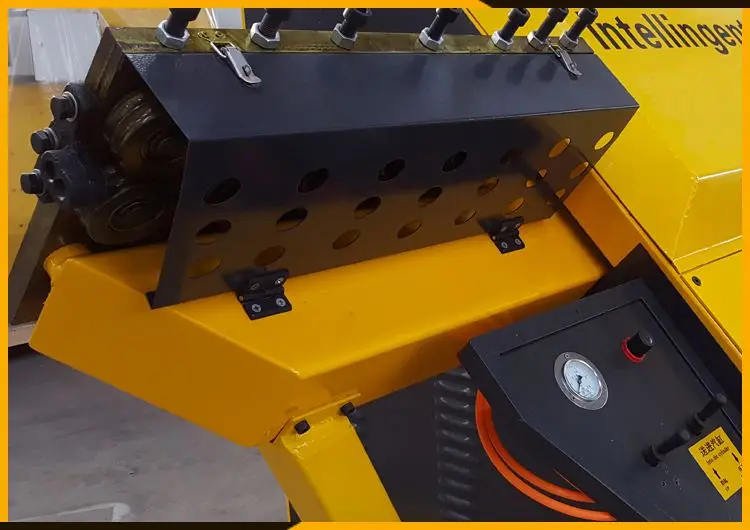

Name:  machine roller
Integral automatic wire feeding structure with high precision.
Double roller synchronous wire feeding device, into the wire is simple, easy to operate, easy to learn

Main Features

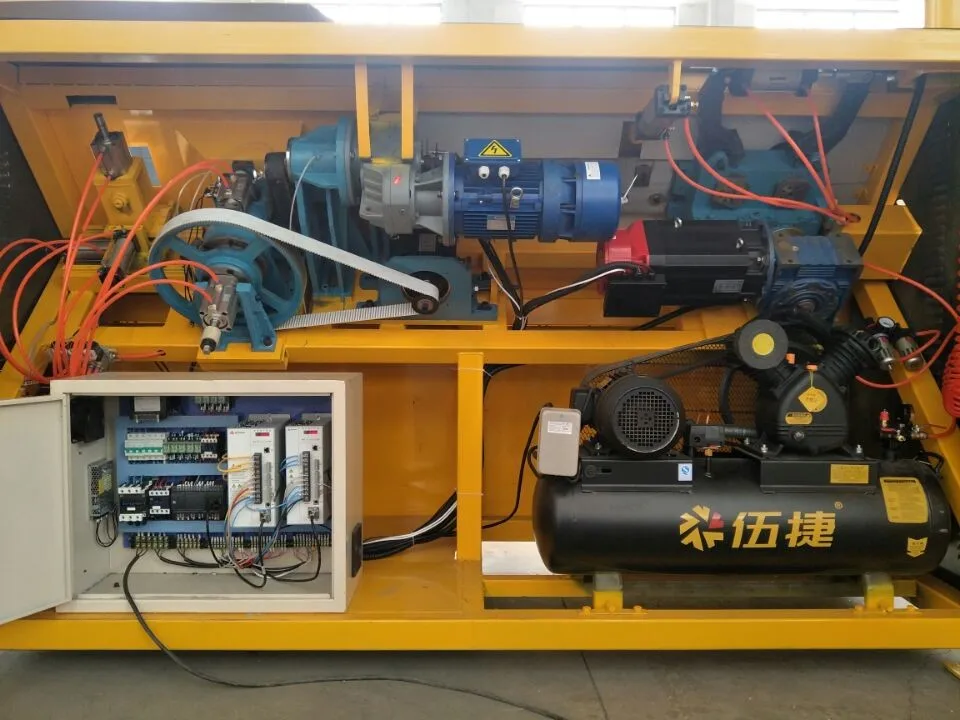

Name:  Internal structure
Space is large, free of charge with high quality air compressor. High quality hydraulic pumps and servo motors.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the steel rebar bending machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
3300 (L) * 1000 (W) * 1980 (D)
\t
Weight
\t
1980kg
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the steel rebar bending machine wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

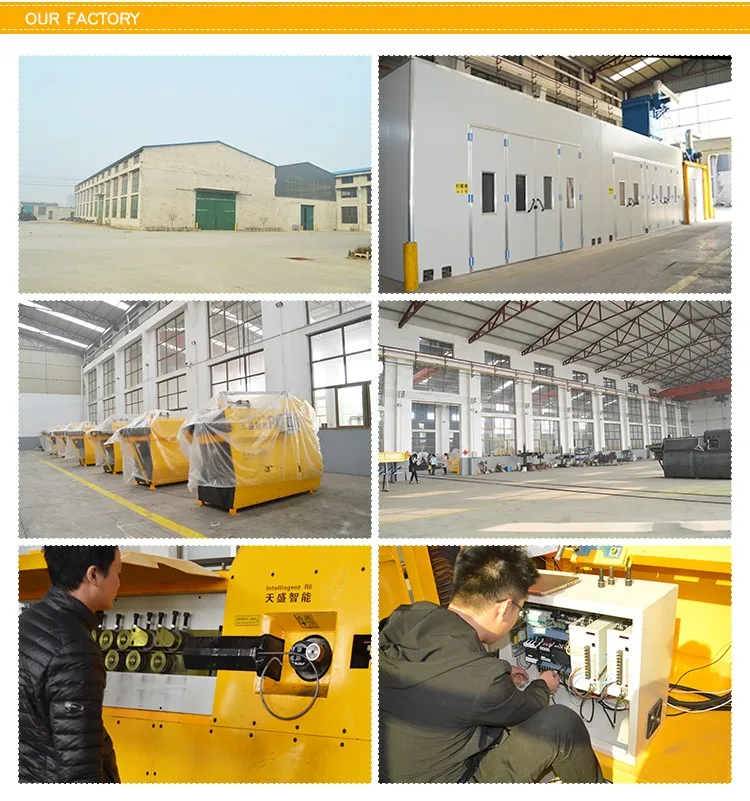

Our Company

Xingtai Judu technology Co.,ltd is located in xingtai city, hebei province which is the industrial zone of the machines. We are a professional manufacturer of steel rebar bending machine , With more then 20 years producting experiences, we adhere to innovation, self improvement, on the way to independent intellectual property rights as the core of the road of scientific and technologocal innovation.

Related Products

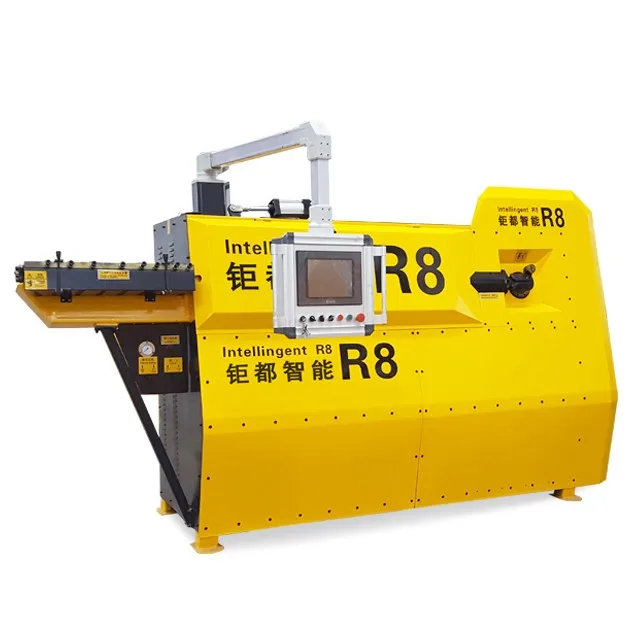

R8 rebar stirrup bending machine

95.8% Response Rate

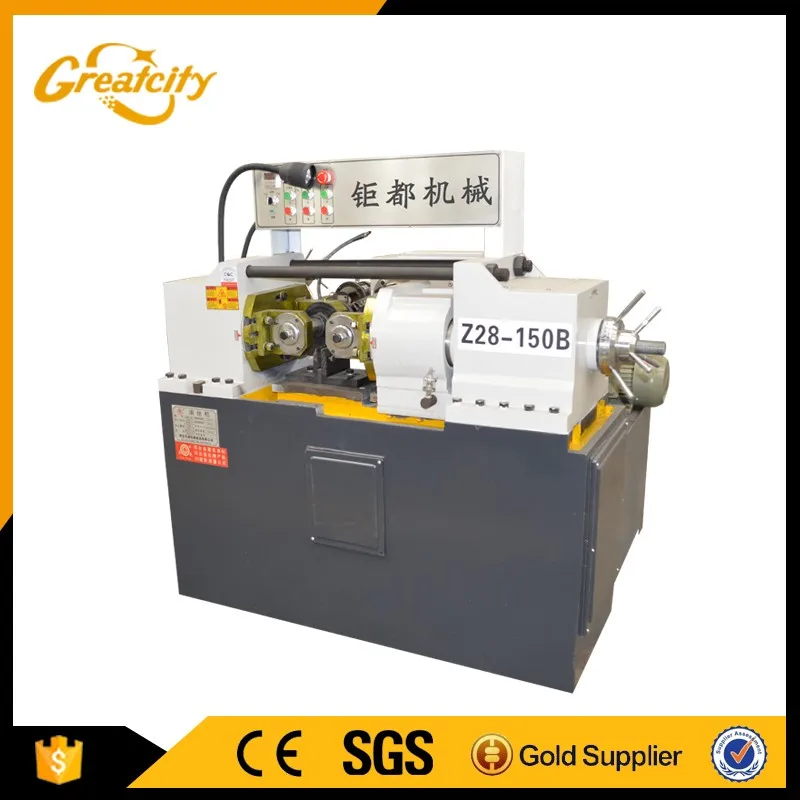

thread rolling machine

96.8% Response Rate

wire bending machine

97.8% Response Rate

Contact us

if any steel rebar bending machine question,feel free  contact me .
