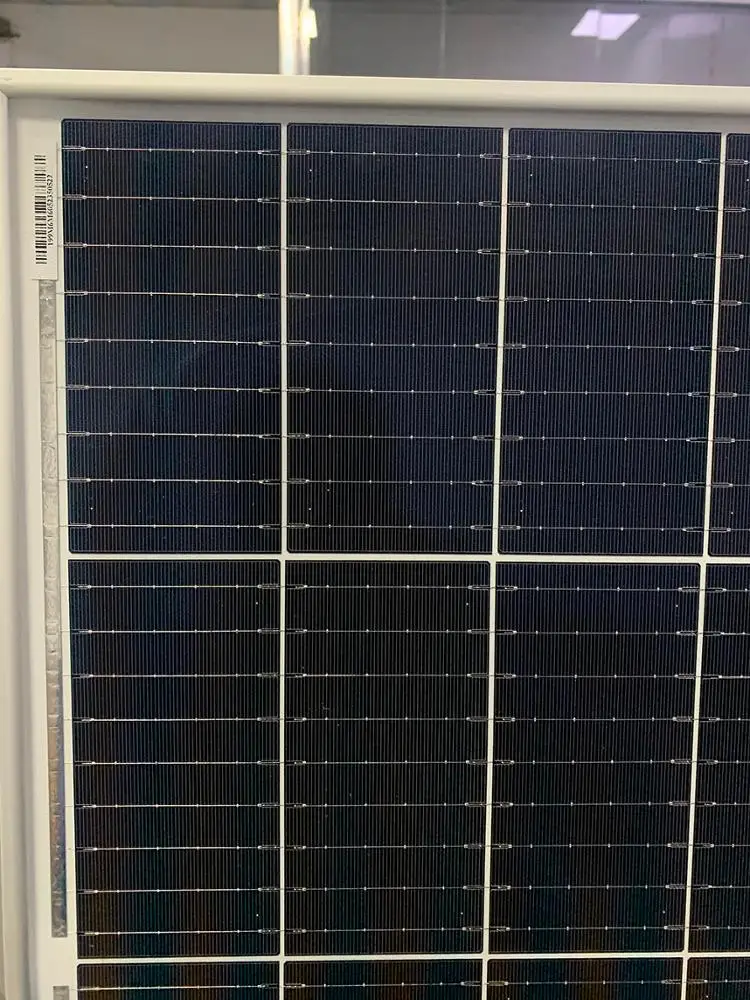

Risen JA Topsky Hot sale 9BB PERC Mono 330W 340W 400W 410W solar panel price
- Category: >>>
- Supplier: Shenzhen Topsky Energy Co. Ltd.
Share on (60801397073):
Product Overview
Description
Risen JA Topsky Hot sale 9BB PERC Mono 330W 340W 400W 410W solar panel price
| (60 cells Panel) Container | 20GP | 40GP | 40HQ |
| Pcs/Pallet | 30 | 30 | 30 |
| Pallets/Container | 12 | 28 | 28 |
| Pcs/Container | 360 | 840 | 924 |
| (72 cells Panel) Container | 20GP | 40GP | 40HQ |
| Pcs/Pallet | 27 | 27 | 27 |
| Pallets/Container | 10 | 24 | 28 |
| Pcs/Container | 270 | 648 | 756 |
| ELECTRICAL CHARACTERISTICS | |||||
| POWER CLASS | 320W | 325W | 330W | 335W | 340W |
| Rated Maximum Power(Pmax) [W] | 320W | 325W | 330W | 335W | 340W |
| Open Circuit Voltage(Voc) [V] | 40.60 | 40.87 | 41.08 | 41.32 | 41.55 |
| Maximum Power Voltage(Vmp) [V] | 33.73 | 33.97 | 34.24 | 34.48 | 34.73 |
| Short Circuit Current(Isc) [A] | 10.16 | 10.23 | 10.30 | 10.38 | 10.46 |
| Maximum Power Current(Imp) [A] | 9.49 | 9.57 | 9.64 | 9.72 | 9.79 |
| Module Efficiency [%] | 19.0% | 19.3% | 19.6% | 19.9% | 20.2% |
| Weight | 18.7kg | ||||
| Numbers of cells | 6 × 20 monocrystalline solar half cells | ||||
| Cell dimension(mm) | 158*158 | ||||

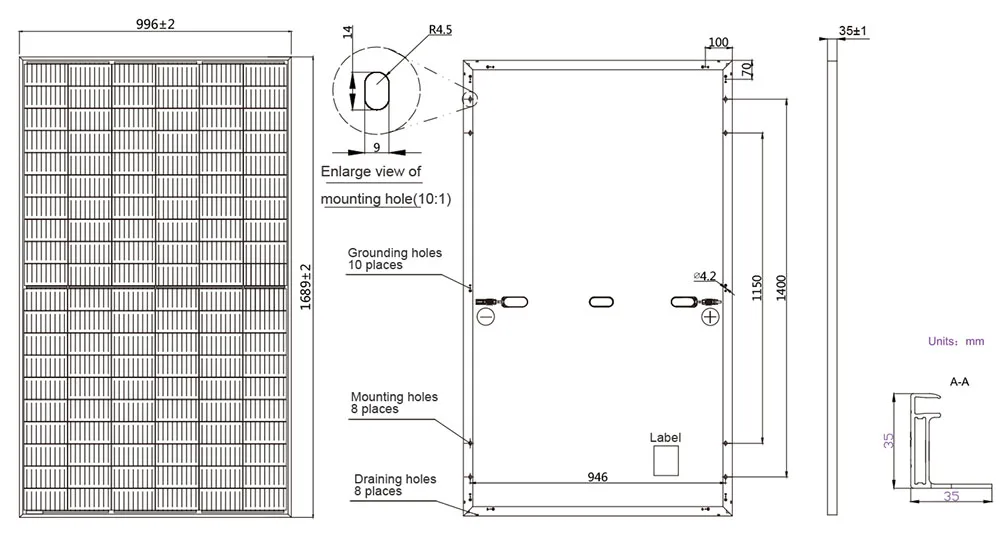

| Dimensions(mm) | 1689*996*35mm | ||||
| Standard test condition | Irradiance 1000W/m²,Module temperature 25℃, AM=1.5 | ||||
Pre sale:
1. Our sales representative and engineer work together to answer your questions and offer solution for free
2. We choose the best product for you to make sure it worth its real value
3. We design the best solution with good perfomance for you,manwhile save every cent of your money.
After sale:
1. We provide 10 years Warranty for the product, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
2. We Topsky Energy are authorized distributor of Suntech brand panels---one of the most famous tier-1 brand manufacturer in the world. We welcome your any inquiry.
