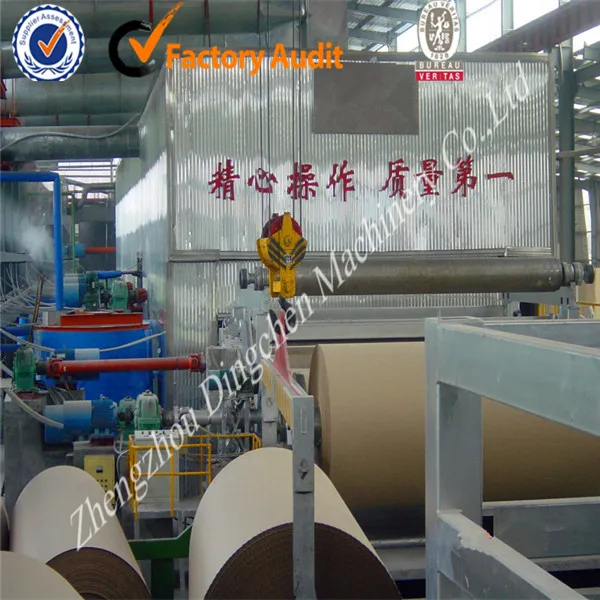

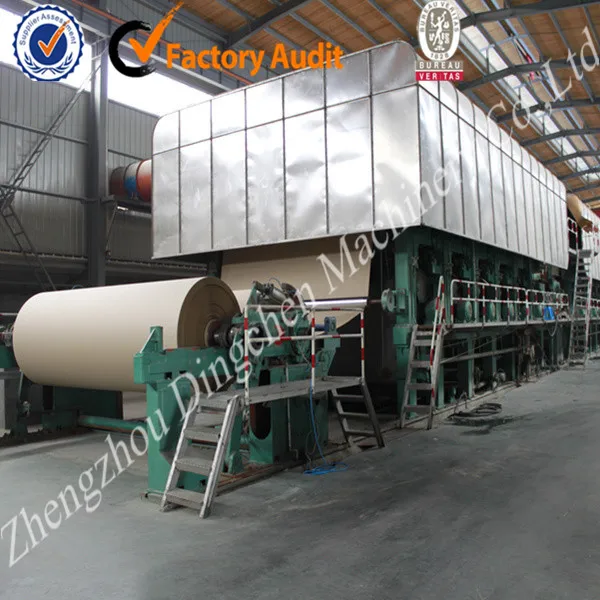

Zhengzhou Dingchen Machinery kraft paper making machine for capacity 30 tons per day

Share on (60801421892):


Price:

Quantity:


Product Overview

Description



Product Description

Product Description




Technical parameter




Raw material :waste paper.

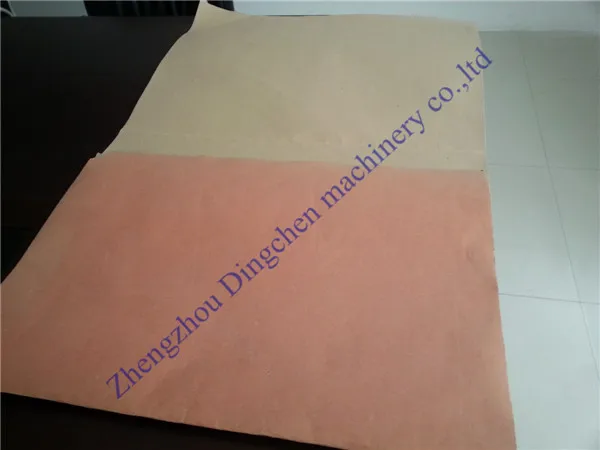

Output paper :kraft paper .


Capacity :30  tons /day


Net paper width :2200mm


Rail gauge :2900mm


Paper weight :140-190g/m2


Working speed :45-120m/min


Drive way :AC frequency converter speed adjusting ,section drive .


Layout type :left or right hand machine


Main structure






































product name


model


quantity


motor (kw)

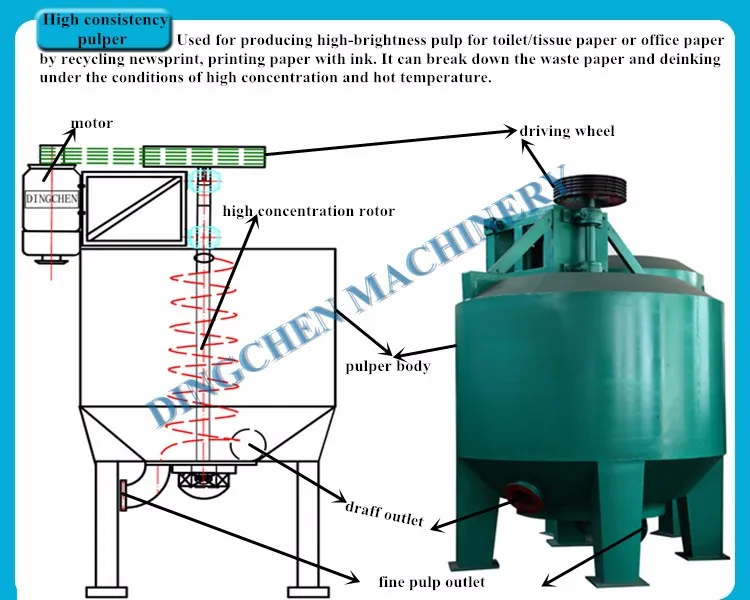

high concentration aquapulper


5m³


2 sets


30


high frequency vibrating screen


2m2


2 sets


3


efficient double disc pulp grinder


380 model


3 sets


37


































Pulp pump


4-8 inch


12 sets


18.5kw one, 5.5kw eight, 7.5kw two, 11kw one


Slag separator


606 model


6 groups



centrifugal screen


1.6m2


1 set


37


propeller


700 model


4 sets


15


































vacuum pump


15 model


2 sets


15

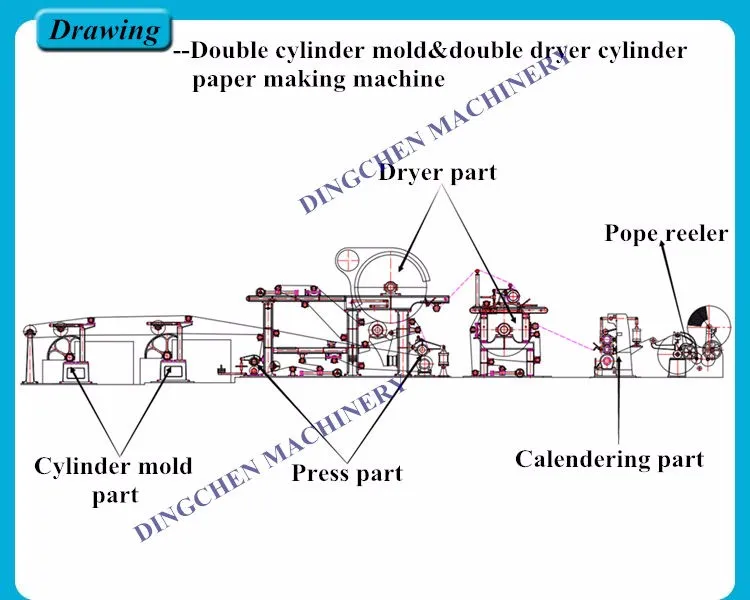

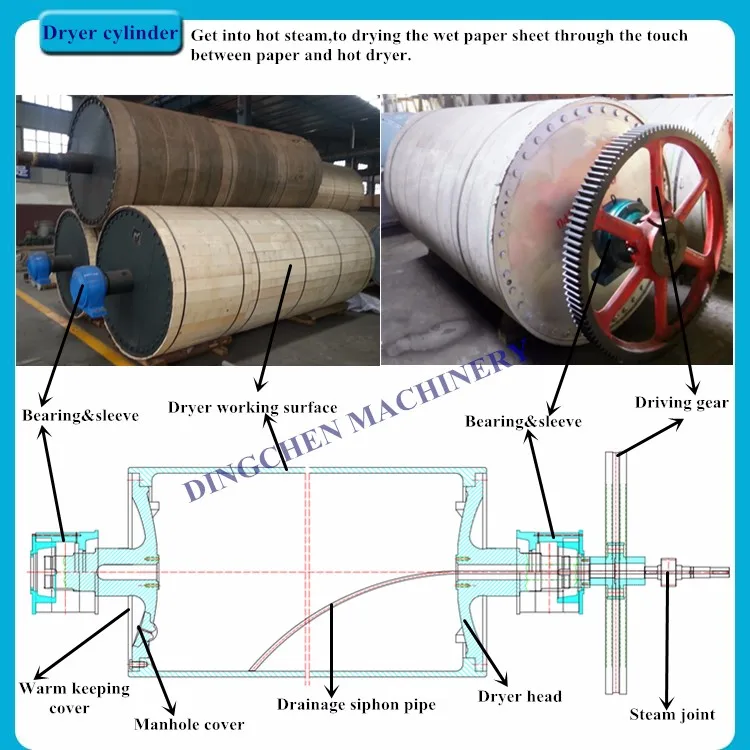

2200 model double-cylinder mould, one big dryer and five-small dryer carton paper machine


2200 model


1 set


15


calender


2200 model


1 set


15


Reeling machine


2200 model


1 set


5.5

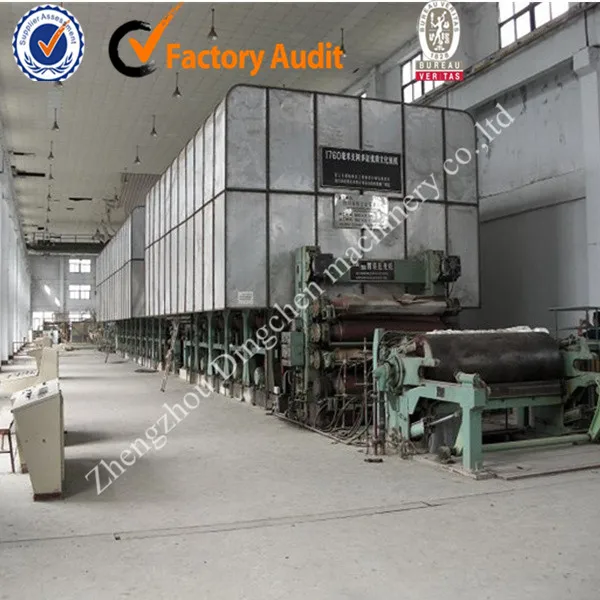

Detailed Images

Detailed Images

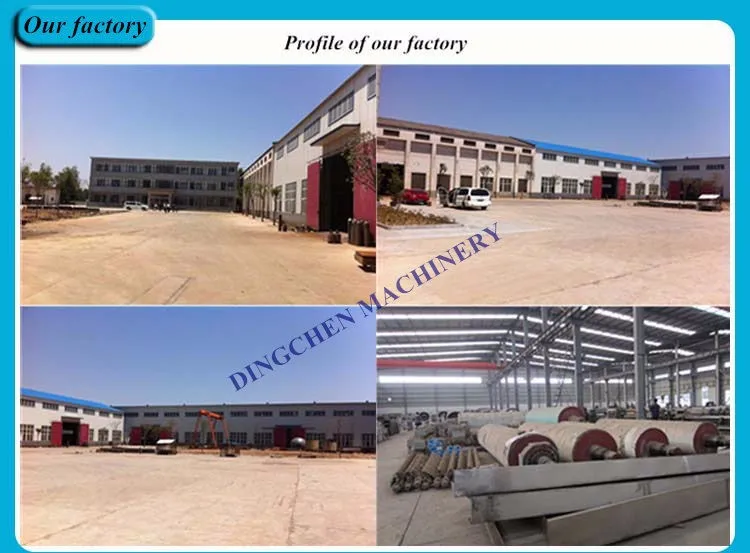

Our Company

Our Company

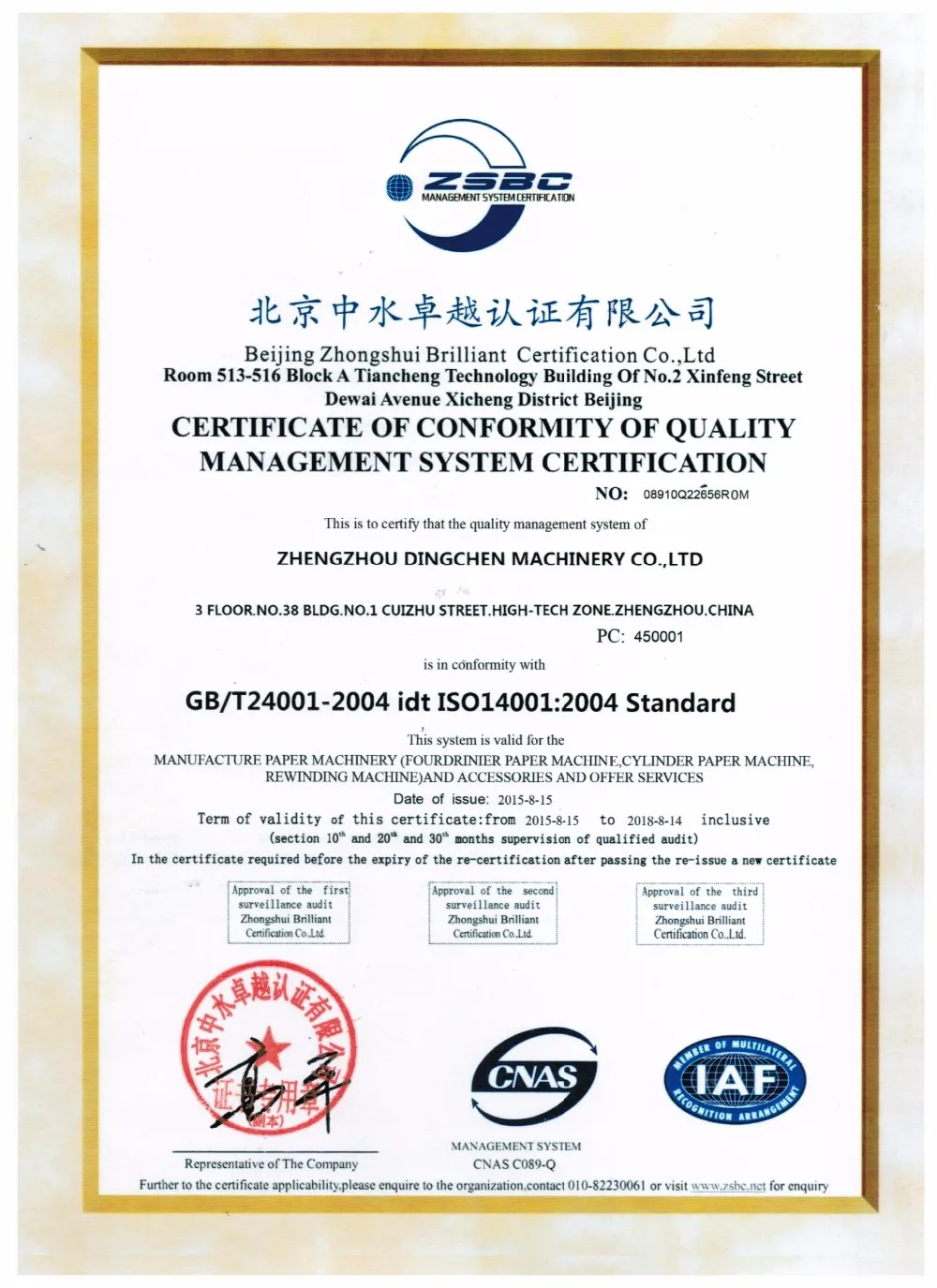

Certifications

Certifications












Our Service

Our Service

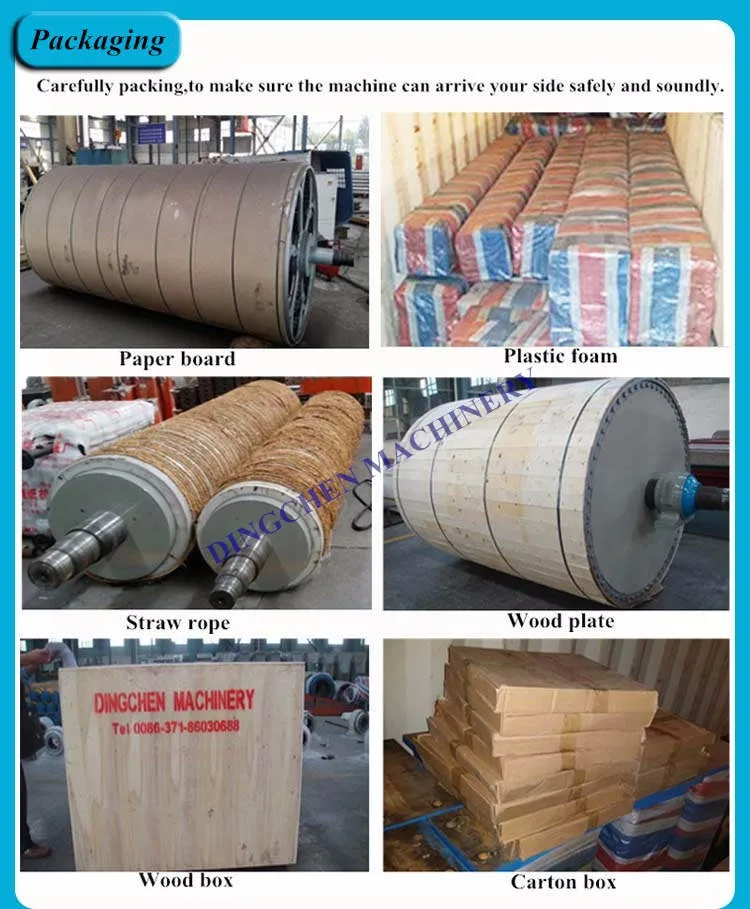

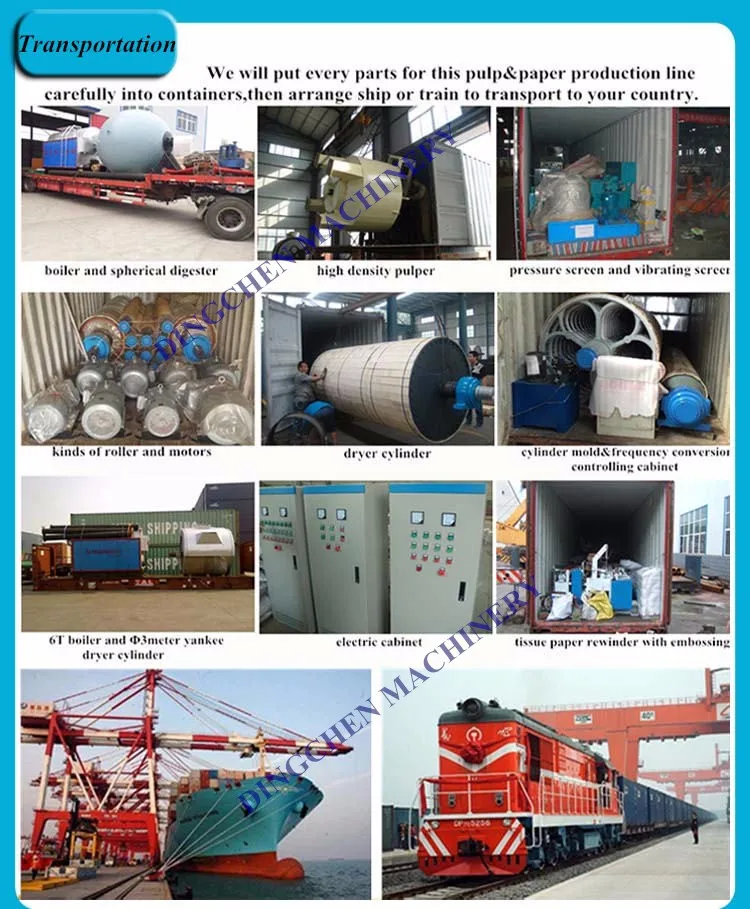

Packing & Delivery

Packing & Delivery














FAQ

FAQ








1.What information do you need,if i need to get a quotation from you?

Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.

2.How long is guarantee period for paper making machine?

Answer:12 months after formal operational

3.What is the delivery time if we make a order from you?

Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit, but for bigger machines,it will be longer to make sure the equipment quality.

4.What is your payment terms?

Answer:
(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.

(2). 30%T/T + 70%L/C at sight.

(3). 100%L/C at sight.

5.How is the quality of your equipment?

Answer:
(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience. To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.


(2).We have a technician team of engineers and experts.They mainly research the advanced paper making technology, to make sure our machines' design are newest.

(3). The machines will be pre-installed at workshop before delivery.

(4). All of our machines has audited the certificate of ISO 9001:2008 and SGS.
