178F Diesel road construction sacrifying machine with drum set free(JHE 200D)
- Category: >>>
- Supplier: Changzhou Jiehe Machinery Co. Ltd.
Share on (60801427642):
Product Overview
Description

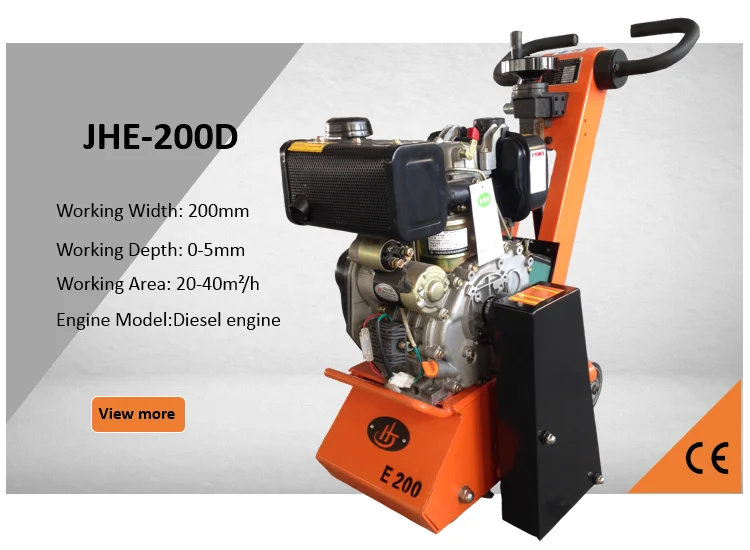

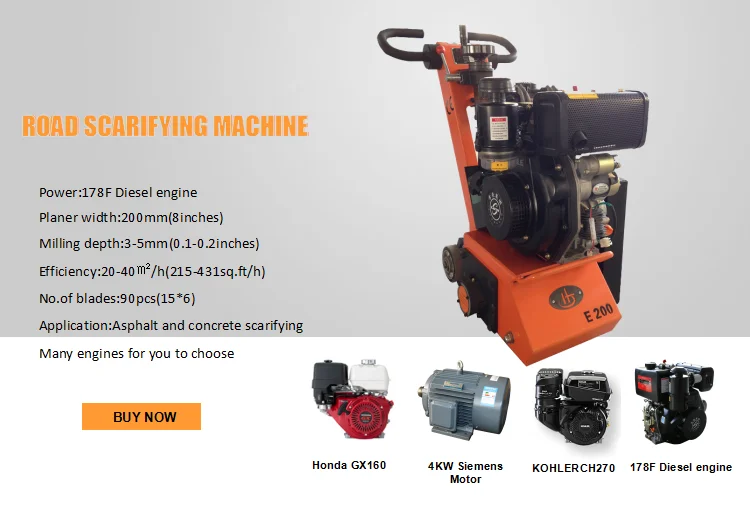

178F Diesel road construction sacrifying machine with drum set free(JHE-200D)
Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.
What's the Specifications?
4KW Siemens Motor engine and super four or six bearings;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;
With a dust-proof device?
Parameter

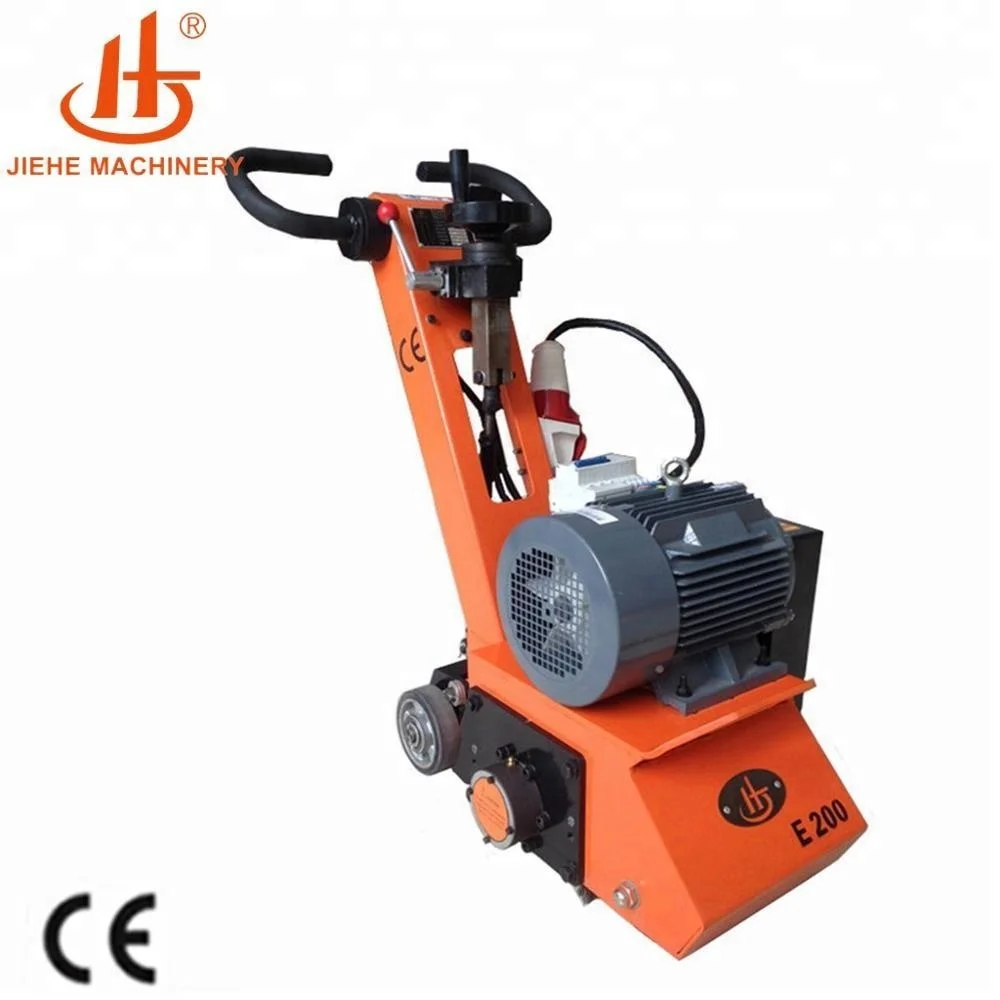

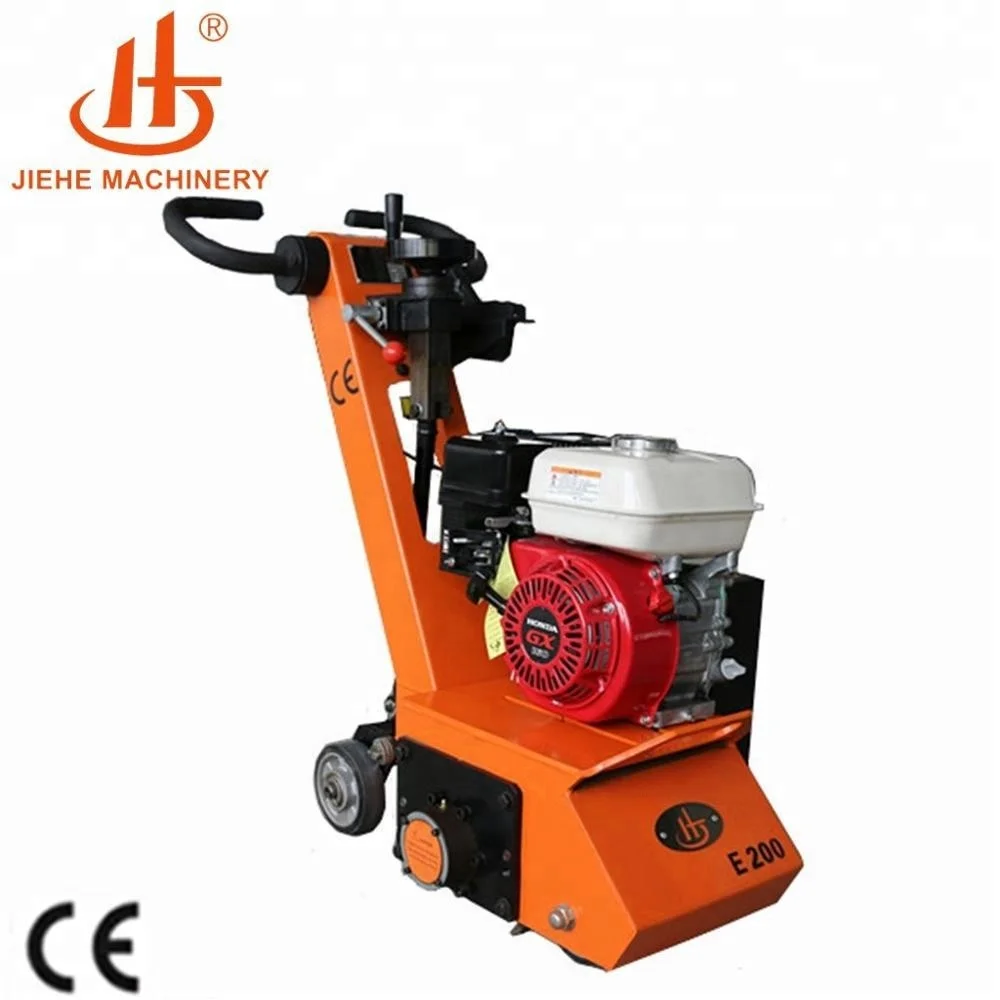

Model | JHE-200 | JHE-200E | JHE-200K | JHE-200D |
Power Source | GX160 Honda/ GX270 | Siemens Electrical motor | Kohler CH270/ CH395 | 178F Diesel engine |
Horse Power | 5.5HP | 4KW | 7HP | 5.5 HP |
Working width | 200mm | 200mm | 200mm | 200mm |
Working depth | 0-5mm | 0-5mm | 0-5mm | 0-5mm |
No. of shaft | 6pieces | 6pieces | 6pieces | 6pieces |
No. of cutter | 90pieces | 90pieces | 90pieces | 90pieces |
Power Drive | Manual | Manual | Manual | Manual |
Working area | 20-40 m2 / H | 20-40 m2 / H | 20-50 m2 / H | 20-40 m2 / H |
Net Weight | 105KG | 116KG | 132KG | 119KG |
L× W× H | 820×490×810mm | 820×490×810mm | 820×490×810mm | 820×490×810mm |
Drum Rotation | Down cut (clock wise) | |||
Milling mode | downward cut | |||
Depth Control | Adjustable | |||
Case
We have provided customized products for constructions of the Hong Kong-Zhuhai-Macao Bridge, including scarifying machines to ensure flatness of bridge joints as well as custom-made dust-free cutting machines to avoid secondary pollution to construction sites. They have tremendously saved construction time and perfectly coordinated with progress of the project.

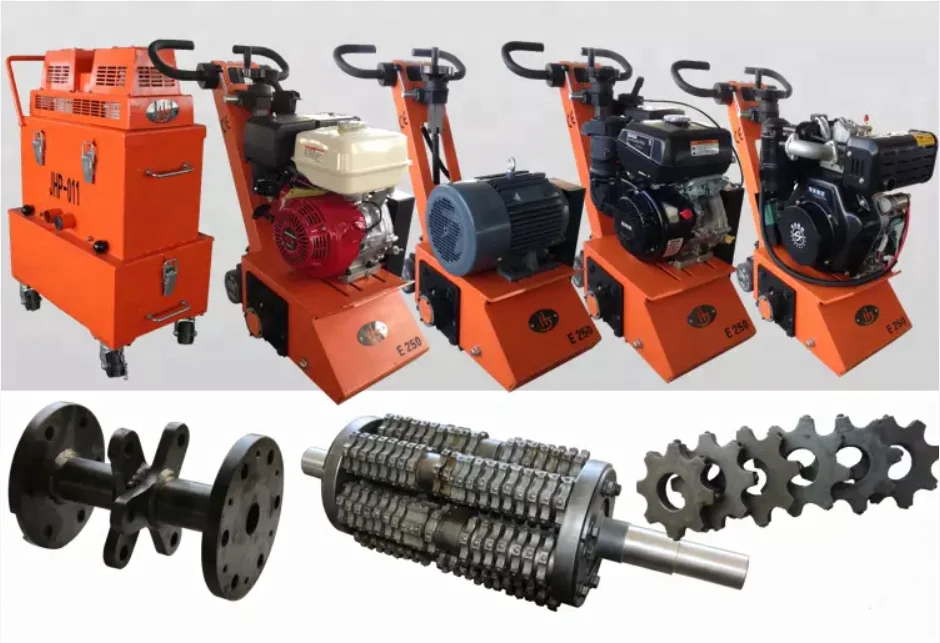

About our Drum and cuttrers
What's our road scarifier machine used for?roducts are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Why choose US? Send Inquiry Now<<<
1.We are factory,direct factory price.
2.Picture and videos can be provide to you to show how to use the machine.
3.7*24 hours Serve:we treat our clients as friends.
4.High quality:we have strict quality control system and enjoy a good reputation in the world.
5. With more than 19 years manufacturing experiences.
What's your Packaging & Shipping?
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-200 packaging dimensions(mm) is: 900*570*910.
30 sets 1 container normally.
