3 Phase Adjustable Electrical dw45 Air Circuit Breaker

Product Overview

Description

3 Phase Adjustable Electrical dw45 Air Circuit Breaker

dw45 air circuit breaker

Application:

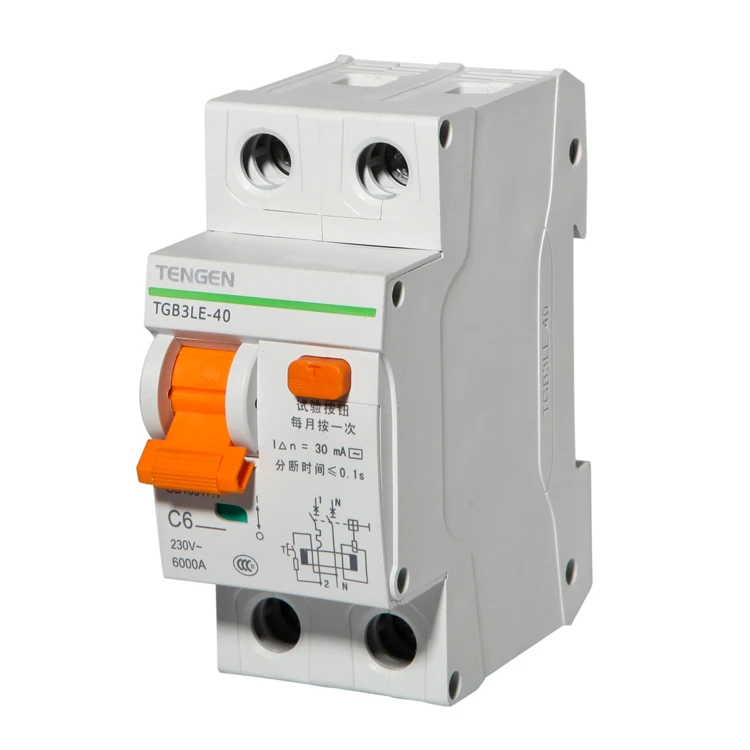

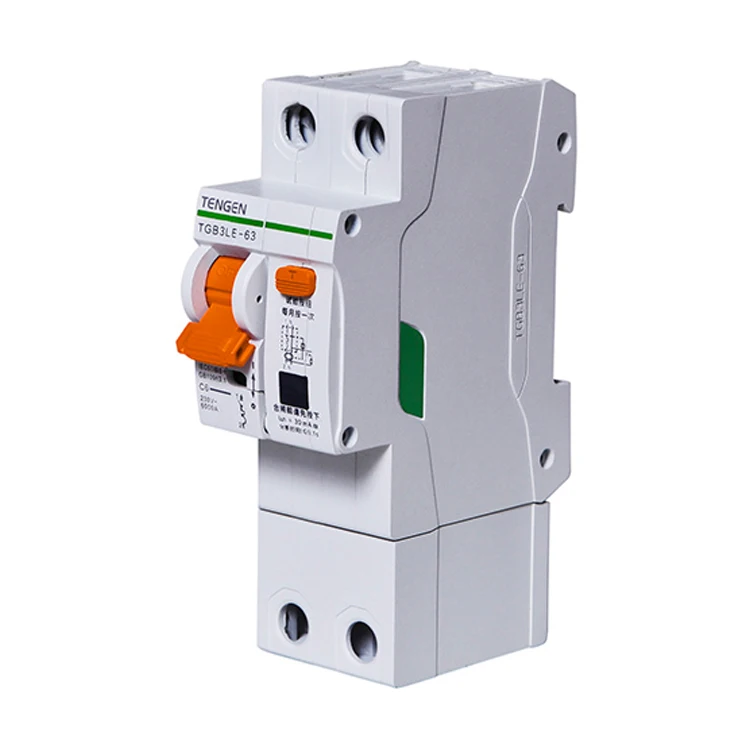

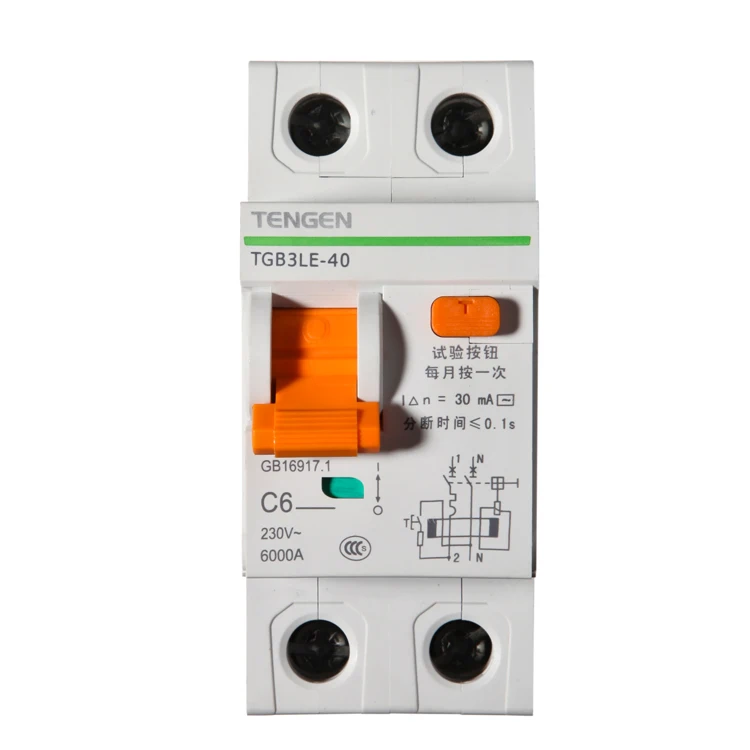

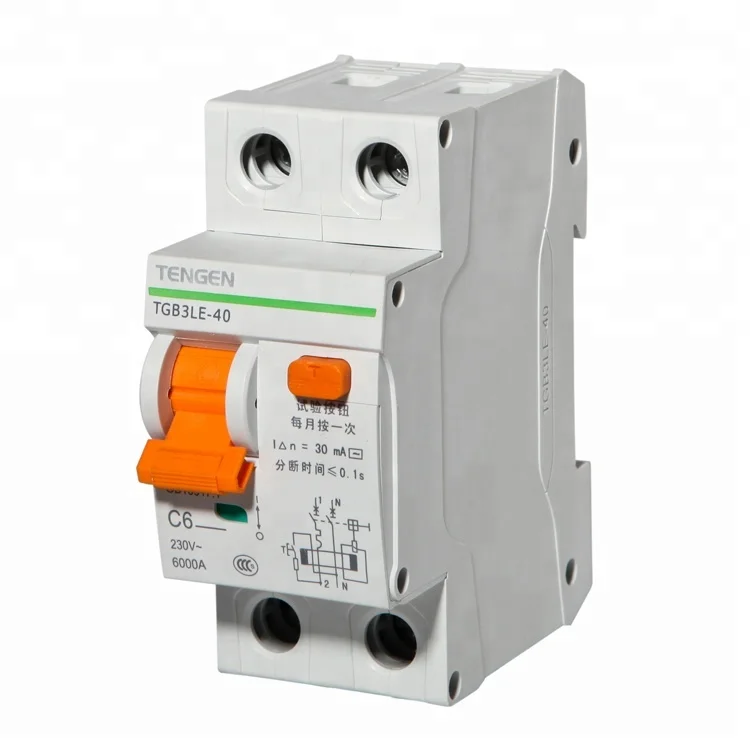

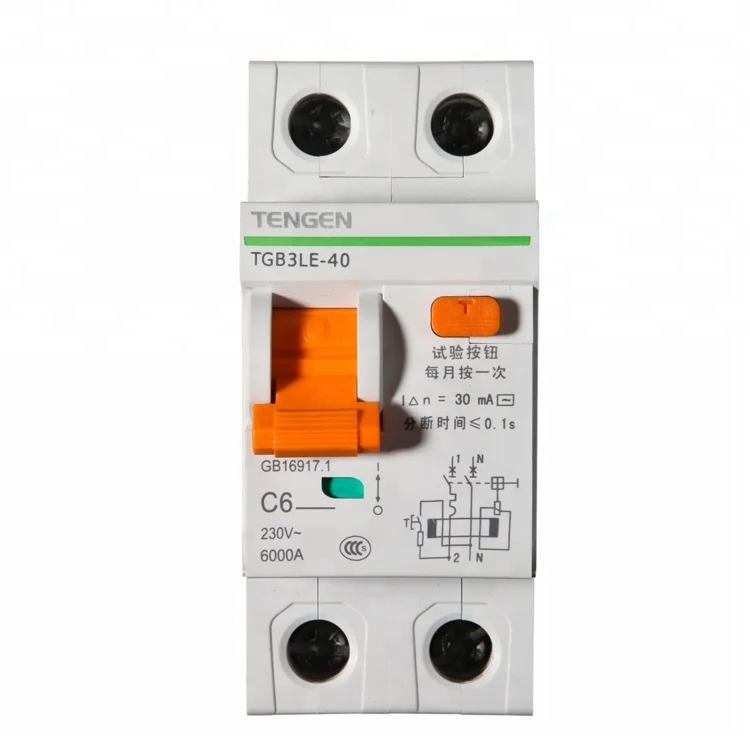

TGB1 LE-63 mini circuit breaker has novel structure, reliable performance, high breaking capacity, pleasing outlook and small size. Its case and items are adopted by high fire-resistant and shockproof plastic, It mainly used in the building office, house and similar building for illuminating at AC 50Hz or 6OHz,rated voltage 230V-400V,rated current 2A—63A, distribution circuit and equipment overload, short circuit protection. It can also be used for unfrequent switch over of the circuit under normal conditions.
This product conforms to the 1EC60898-1 and GB10963.1 standards
Rewards CCC certification.

Working and Installation Conditions
Ambient temperature: -5°C — +40CC and average temperature in 24 hours below 35C
Elevation of installation site: 2000
Classified as per pole no. and current loop:
1P for single pole residual current circuit breaker
2P for two poles residual current circuit breaker
3P for three poles residual current circuit breaker
4P for four pole residual current circuit breaker
According to instantaneous release type:
B type: (3—5 )ln
C type: ( 5—10 )ln
D type: (10—16 )ln
Life of electric machinery: 20000times
Installation: TH35-7.5 type rail
Installation condition: Installation place of the external magnetic field each direction
should be no more than 5times of Earth’s magnetic field, Residual current circuit
breaker should be installed vertically, handle up to position power supply is connected,
installation position should not be shaking and impulsing.

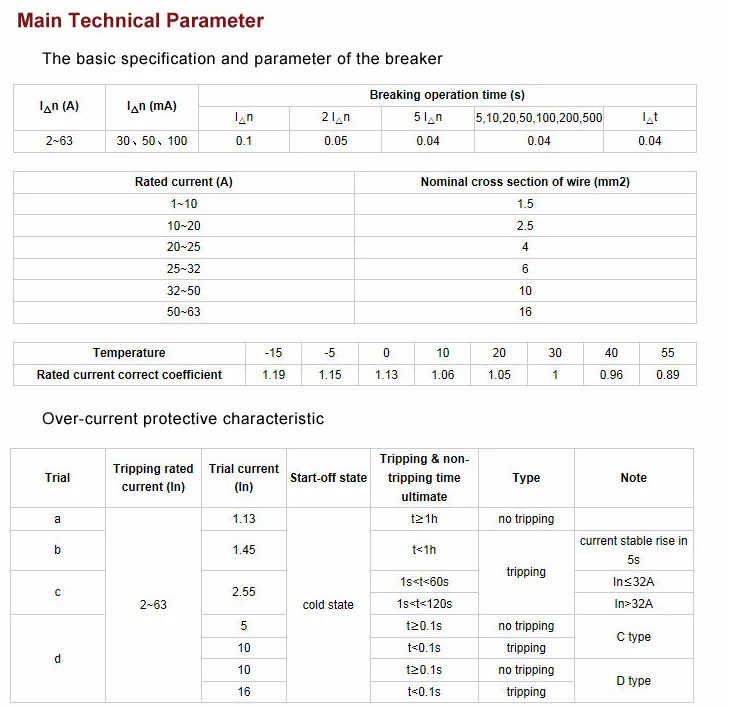

Note: coId state” means that there is no load before the trial and processed under the basics retification temperature.

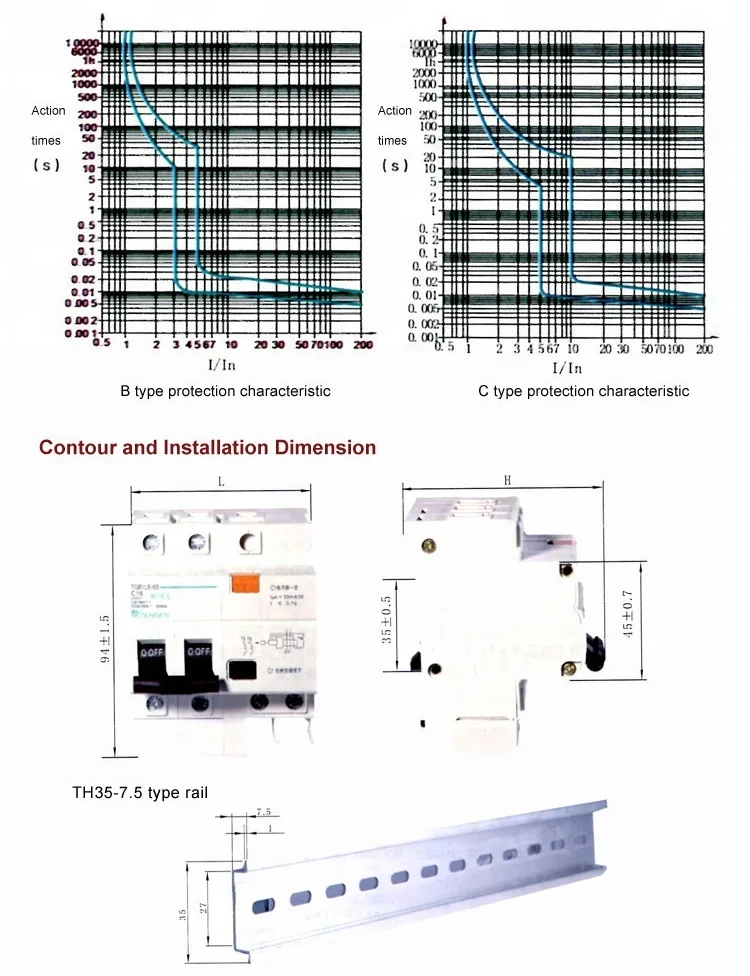

Tripping characteristic curve
The mechanical durability is 100000 times,including 5000 times electrical durability.









Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.

Q:What’s the payment terms?
A:We accept T.T, Paypal, Western Union, LC at sight.



Q:What’s the delivery time?
A:Usually it will take about three weeks for production.



Q:What’s the standard of package?
A:Export standard package or special package according to custome



Q:What kind of product quality your factory offer?
A:We offer most competitive prices with best quality.



Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southeas



Any problem, please don't hesitated to contact us!
