Fully automatic glass ampoule filling sealing machine

Product Overview

Description

AGL Series  Fully automatic glass ampoule filling and sealing machine

Introduction:

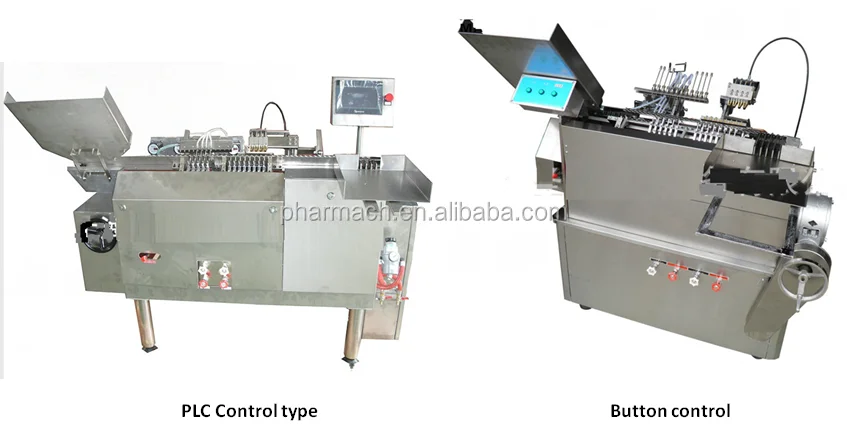

Button control: AGL Series Ampoule Filling and Sealing Machine apply to ampoule filling and sealing for different pharmaceutical factories. The construction of this equipment is simple and is easy to adjust and operate. The transmisson system adopts two bottles as a group, feeding bottles to each position, finishing the process that include nitrogen chare, filling, nitrogen charge preheat and sealing.



PLC control: This series of machine is new type of intelligent ampoule wiredrawing filling and sealing machine, which has recently been researched and developed by our company for meeting the requirements of abroad and domestic customers. This machine has all functions and performances of the new type and advanced ampoule wiredrawing filling and sealing machine. This machine has some excellent performances as high production efficiency, a good general utilization for many purposes, easy to adjust and test within working procedure. and with a good safety operation, this machine is the only machine type in our county. Besides some characters of an ordinary ampoule wiredrawing filling and sealing machine, for instance, conveying ampoule without machine halt, and also we have been adopting frequency changer and creeping pump and PLC touch-screen intelligent control system, these technologies can conveniently control and find out whole machine operation speed and filling amount according to the performance requirement of filling products.



PLC control

Technical parameters of PLC touch screen glass ampoule filing and sealing machine:

                                                   (One machine can filling and seal different size ampoule)

Type		AGL2	AGL4	AGL6	AGL8
Specification (ml)		1-20
Output (pcs/min)		40-60	85-120	130-200	175-240
Power (kw)		0.37	0.55	0.55	0.75
Fuel consumption	Pipe gas (m3/h)	1-1.5	2-2.5	3-3.5	4-4.5
	LPG (kg/h)	0.6	1	1.5	2
O2 consumption		4	7	10	13
Dimensions		1100x720x1400	1540x980x1500	1980x1000x1500	2300x1000x1500
Weight( kg)		250	350	470	650
Power supply		380V/50Hz   220V/50Hz





Button control: Technical parameter of glass ampoule

(One machine can filling and seal one or two size. Cant' use all )

1). Technical parameter of two filling needle ampoule sealer machine

Capacity	1-2ml: 1800-4200pcs/h 5-10ml: 2000-3800pcs/h	Power supply	0.37KW,380V
Weight	180kg	Dimension	1000*700*1200mm
Fuel and consumption	Liquefied petoleum gas\\pipelined gas1-1.5 cube/h
Combustion support and consumption	Oxygen 0.5-1 cube/h



2). Technical parameter of four filling needle ampoule sealer machine

Capacity	1-2ml: 6800-8000pcs/h 5-10ml: 3400-4000pcs/h	Power supply	0.55KW,380V
Weight	300kg	Dimension	1300*700*1350mm
Fuel and consumption	Liquefied petoleum gas\\pipelined gas2-2.5 cube/h
Combustion support and consumption	Oxygen 0.7 Pa/h



3). Technical parameter of four filling needle ampoule sealer machine

Capacity	5/10ml  10000-12000pcs/h 1/2ml   12000-15000pcs/h	Power supply	0.55KW,380V
Weight	400kg	Dimension	2100*1000*1350mm
Fuel and consumption	Liquefied petoleum gas\\pipelined gas2-2.5 cube/h
Combustion support and consumption	Oxygen 0.7 Pa/h



4). Technique parameters of 6 injection 20ml glass ampoule filling

Name	Ampoule filling and sealing machine	Model	ALG-20ml six injection
Capacity	130-140 bottles/min	Power	0.84KW,380V
Weight	380Kg	Dimension	1900*1000*1350mm
fuel and consumption	Liquefied petoleum gas\\pipelined gas2-2.5 cube/h
Combustion support and consumption	Oxygen: 0.2- 0.5 cube/h
