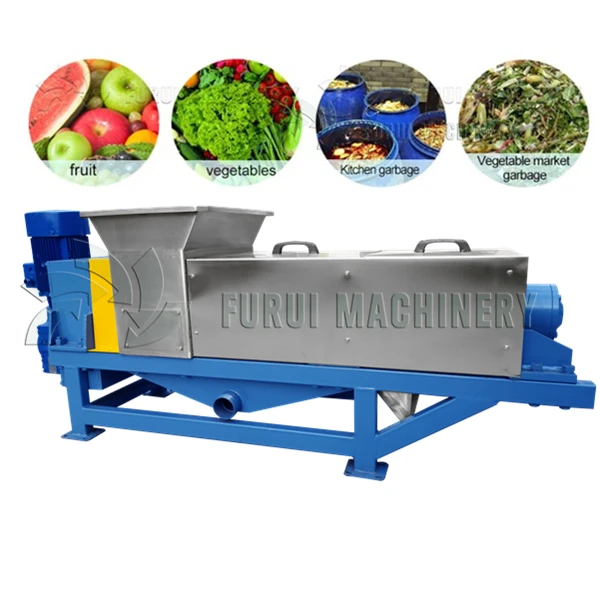

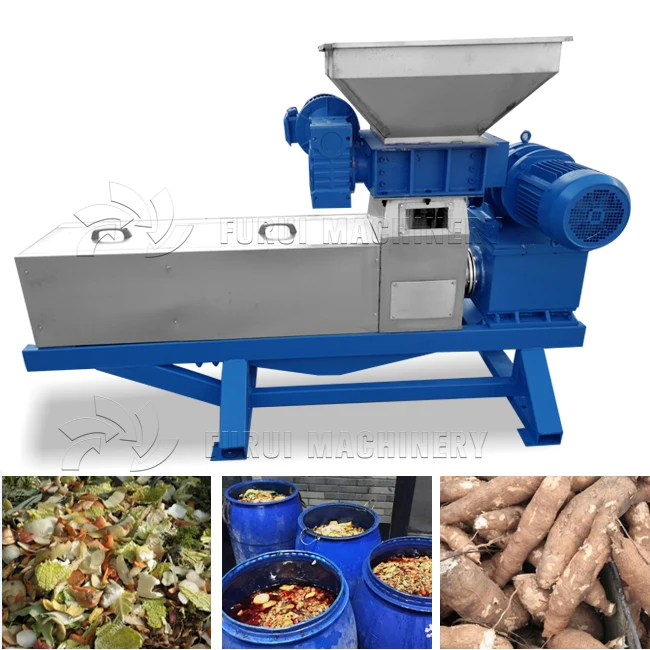

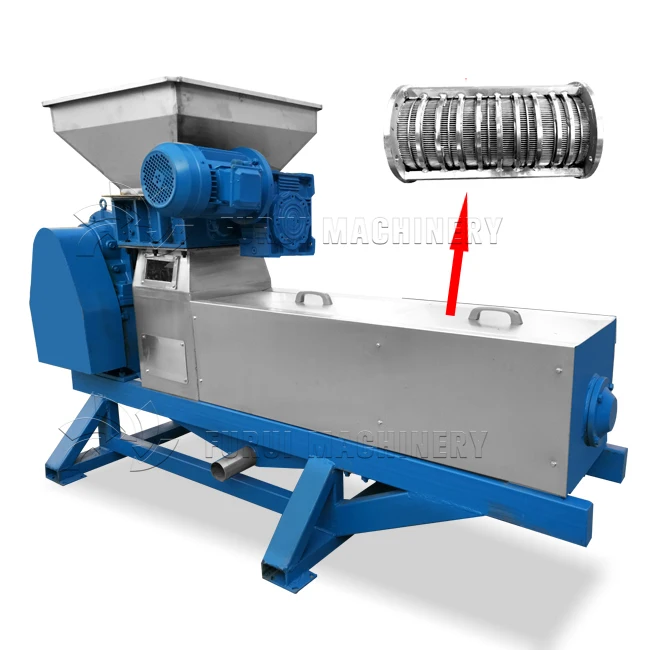

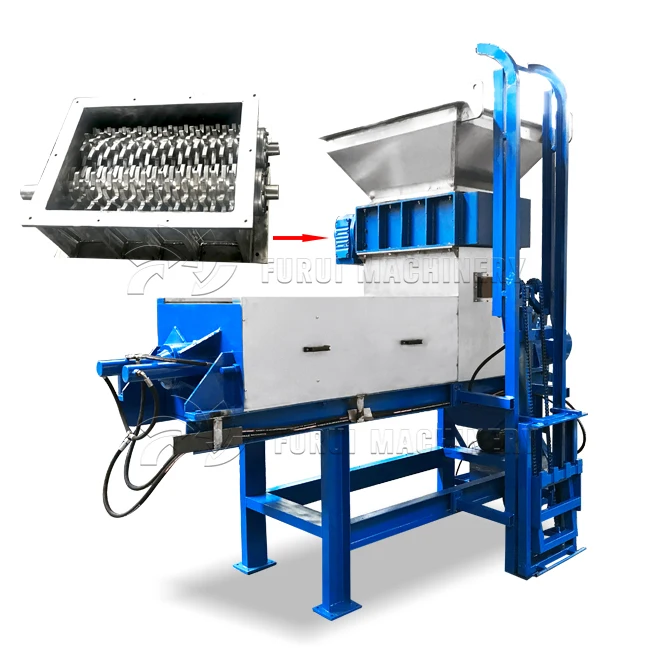

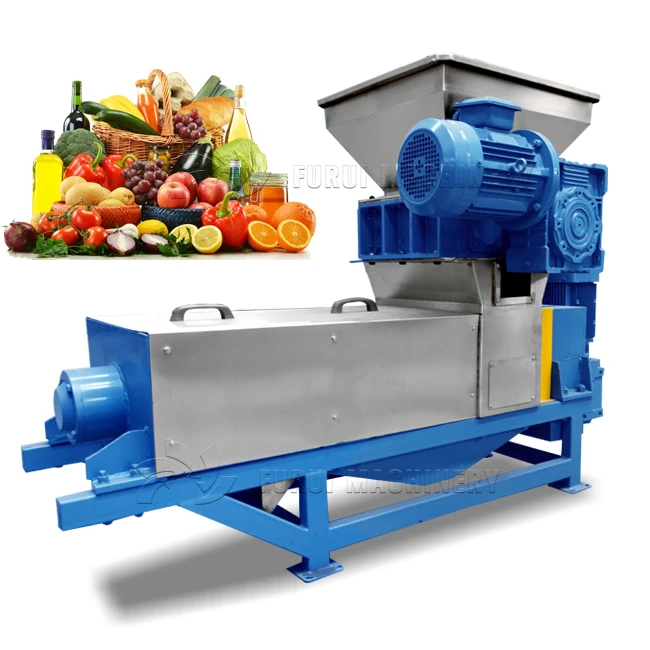

food waste dehydrator with shredder/cassava residue dewatering machine/vegetable waste screw press dewatering machine

Share on (60801434474):


Price:

Quantity:


Product Overview

Description


food waste shredder/cassava dewatering machine/vegetable dewatering machine

Product Description

 Introduction of cassava residue dewatering machine

Food waste recycling machine is widely used to press fibrous materials,such as fruit,

vegetablestraw,food kithen waste,DDGS,Grain,etc.It pressed by double screw,through different direction,screw press juice or liquid separate from solid.

01

Advantages of cassava residue dewatering machine

1.Slow juice machine with high pressure,better quality T shape or round hole stainless steel screen.
2.Screen quality is more better than speed one.
3.Adapt to more kinds of material than speed one.
4.Juice effect better than speed type.
5.Especially better for high fiber material,slide material,herbs,residues,etc

Technical data

 Technical parameter of cassava residue dewatering machine

dewatering machine FR-180FR-260FR-350FR-420FR-500FR-600
Capacity

0.2-0.5t/h

1-1.5t/h1.5-3t/h3-5t/h6-10t/h10-15t/h
Conveyor screwDia.180mm260mm350mm420mm500mm600mm
Screw distance100mm150mm200mm210mm280mm280mm
Speed5-15r/min5-15r/min5-15r/min5-15r/min5-15r/min5-15r/min
Press screwDia.180mm260mm

350mm

420mm500mm600mm
Speed5-15r/min5-15r/min5-15r/min5-15r/min5-15r/min5-15r/min
Hydraulic pressurespring adjustment<6Mpa/0.5kw<6Mpa/1.1kw<6Mpa/1.5kw
Dewatering machine Power3kw5.5kw7.5kw11kw18.5kw22kw
Dia.of screen190mm270mm360mm430mm510mm610mm
Dimension170*50*80cm220*60*90cm350*70*100cm358*100*147cm374*120*165cm430*130*165cm
Weight550kg900kg1300kg2600kg3050kg4300kg
Shredder motor power4kw4kw5.5kw11kw15kw11kw
Blade diameter160mm160mm180mm220mm260mm360mm
Blade thickness12-20mm12-20mm12-20mm14-20mm14-25mm14-25mm

Application:

1.Fruit juice extracting:

Fresh Grape,fermentation of grape pomace, sea buckthorn fruit, aloe (Black currants, red currants, gooseberries,sea buckthorn fruit) apples, pears, sweet potatoes, potatoes, pineapple, mulberry (a success), blueberries, sea red berries, red bayberry, kiwi fruit, pepper, aloe, papaya, juice of flowers (such as peony flower) and a variety of berries and other fruits and vegetables fermented berries slag, sludge secondary fruit winery press. Can totally replace the complex, cumbersome, failure-prone belt press machine; and not continuous frame.

2.Vegetables juice extracting

Ginger,celery,pepper,Chinese cabbate,carrots, garlic,onions,pumpkin, broccoli, cabbage, mushrooms,etc.

3.Kitchen food waste Residues dewatering

Cassava residues,wheat,grain,rice,residues,DDGS residues,wine waste,etc.

Coconut husk, dregs, rice lees, fine tea leaves, vinegar bad,starch or , and after coffee extraction residue, wheat bran, soybean residue, corncob residue after fermentation, cornmeal, corn residue,kitchen waste,various garbage dewatering and separate.03

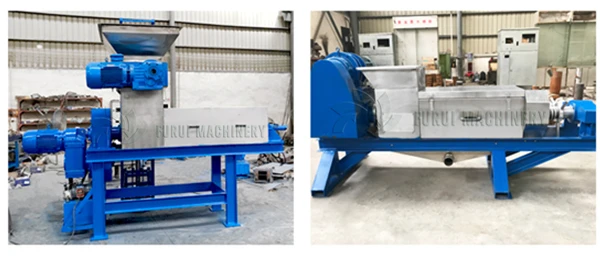

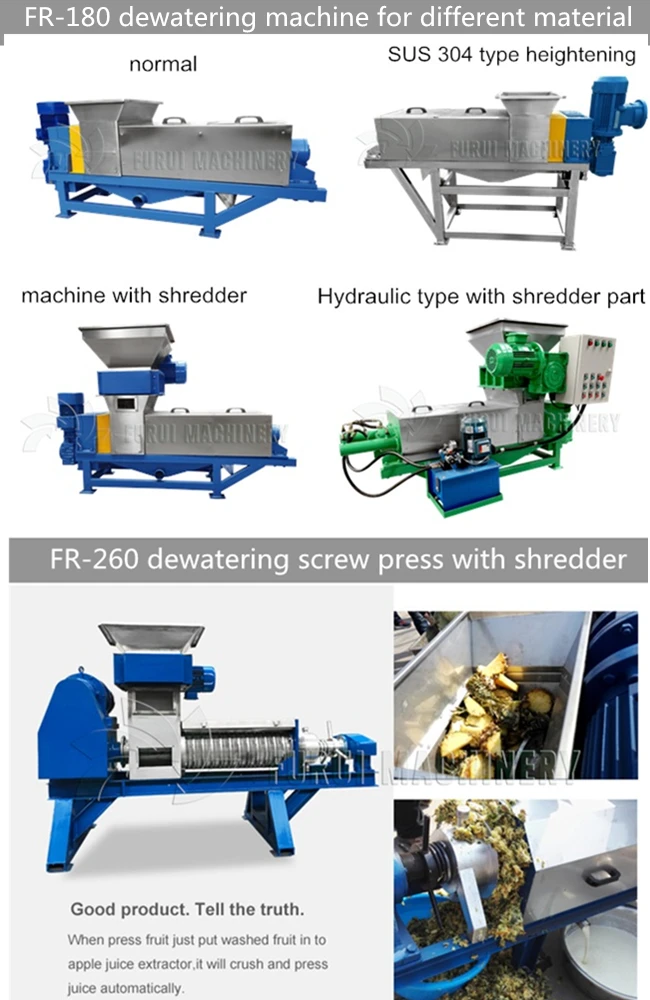

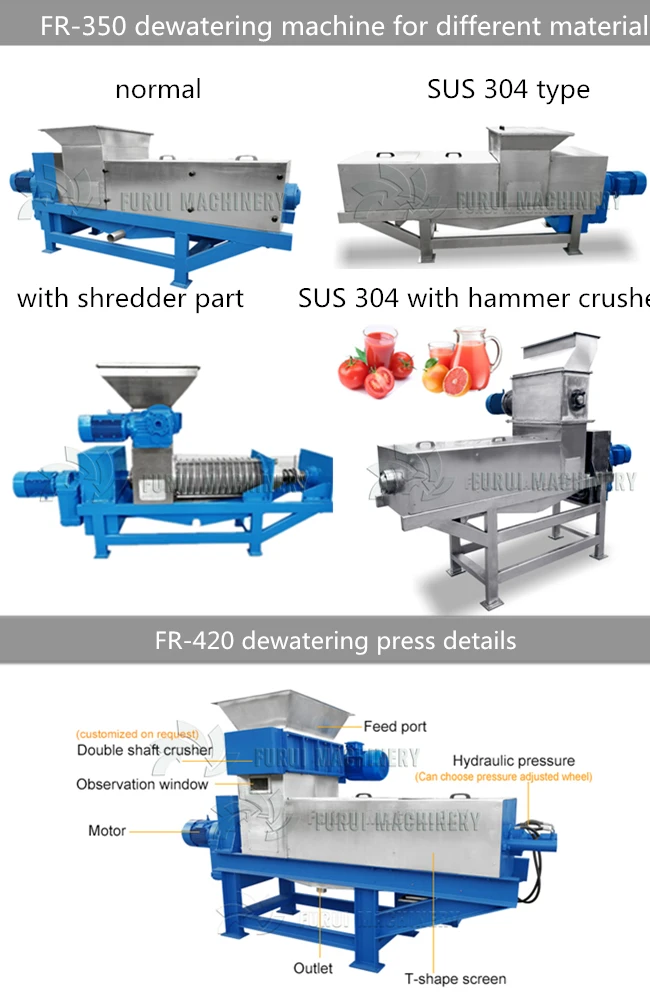

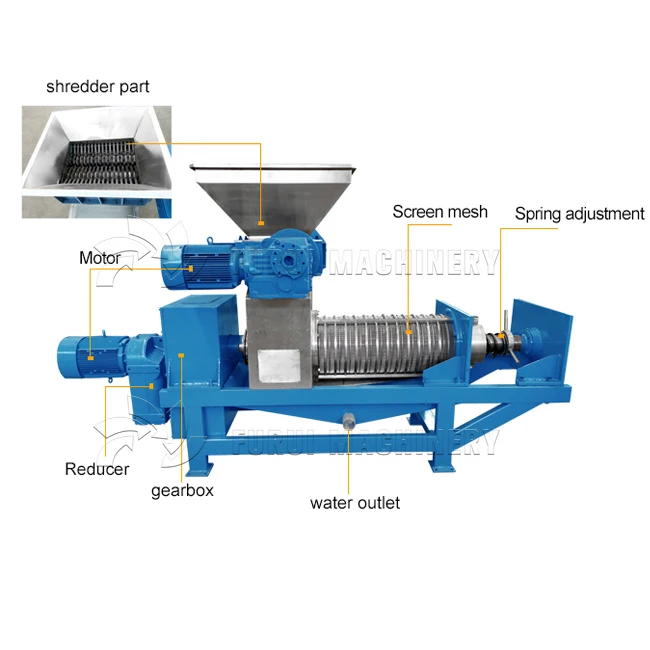

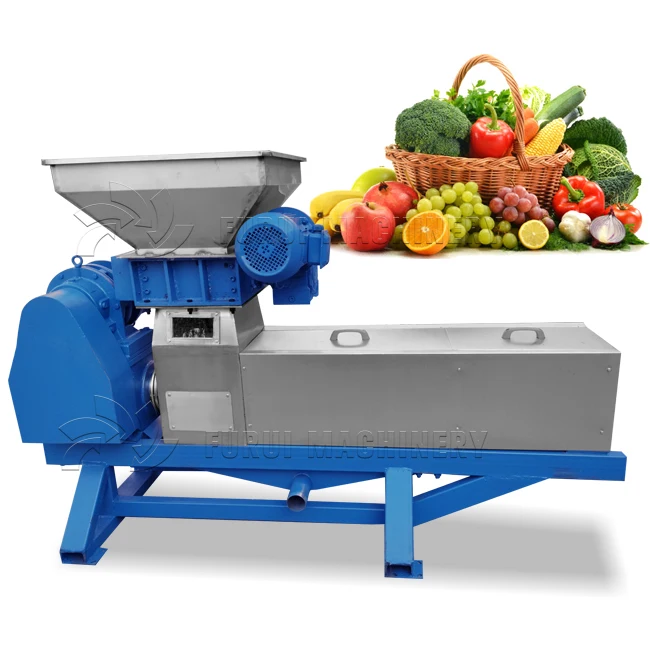

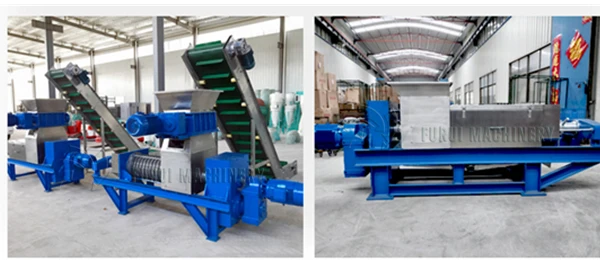

Detail photos

 Our company mainly produces single screw press dewatering machine, double screw press dewatering machine, double axle shredder, hammer crushing dehydrator. Food contact part is made of stainless steel, the fuselage can be divided into stainless steel and carbon steel
