Steel Slotted Angle Rack for garage stock

adjustable steel shelving storage rack shelves basic information

1) Material :High grad of cold rolled steel
2) Finish: deoiling --phosphating --plastic spraying
3) Loading capability: 80-150kg/layer
4) 3,4,5,6 layers is available, and the layer height could be adjustable by free.
4) Different dimension, weight capability are available for us
5) widely used in electrical,medicine,supermarket

adjustable steel shelving storage rack shelves advantages

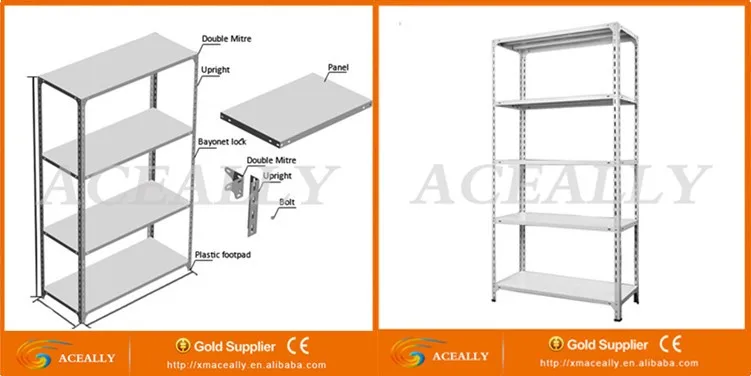

1) Cut-in composite beam structure, easy to install and disassemble
2) Height of each layer can be adjusted freely for convenient storage
3) Load capacity usually between 80-150kg per level
4) Connection of main and subsidiary frames for saving space and costs
5) Enables efficient storage of a wide range of goods
6) It can be used single or connected one by one freely
Ps: Light duty slotted angle shelving non-standard specifications available, if you have special requirements, pls contact me, it can be design as per your needs.

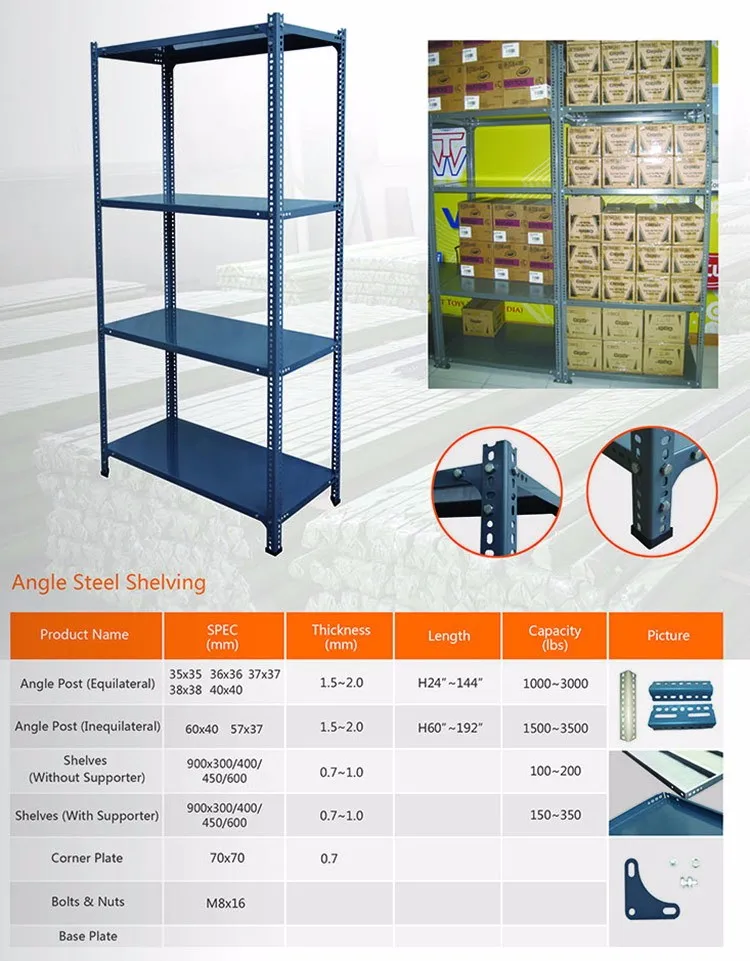

Storage rack shelves each parts technical parameters for reference

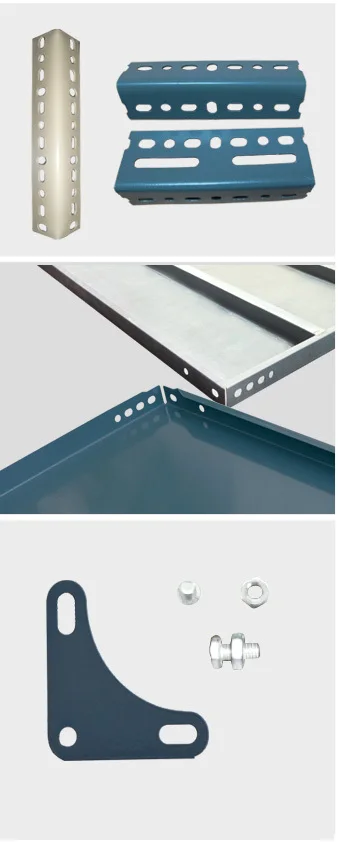

Product name	SPEC (mm)	Thickness (mm)	Length	Capacity (lbs)	Picture
Angle post (Equilateral)	35*35 36*36 37*37 38*38 40*40	1.5-2.0	H24”-144”	1000-3000
Angle post (Inequilateral)	60*40 57*37	1.5-2.0	H60”-192”	1500-3500
Shelves (without supporter)	900*300/400/450/600	0.7-1.0		100-200
Shelves (with supporter)	900*300/400/450/600	0.7-1.0		150-350
Corner plate	70*70	0.7
Bolts &nuts	M8*16
Base plate

The working flow of steel shelving, as follows

Remarks: Our storage racking are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it’s better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it’s one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.

adjustable steel shelving storage rack shelves Pre-sale service
We offer no obligation professional consultation and design. Allow our experienced staff to assist you in designing a storage system that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and requirements.

After Sale Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for
customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
record customer respond,suggestion,requirement.
