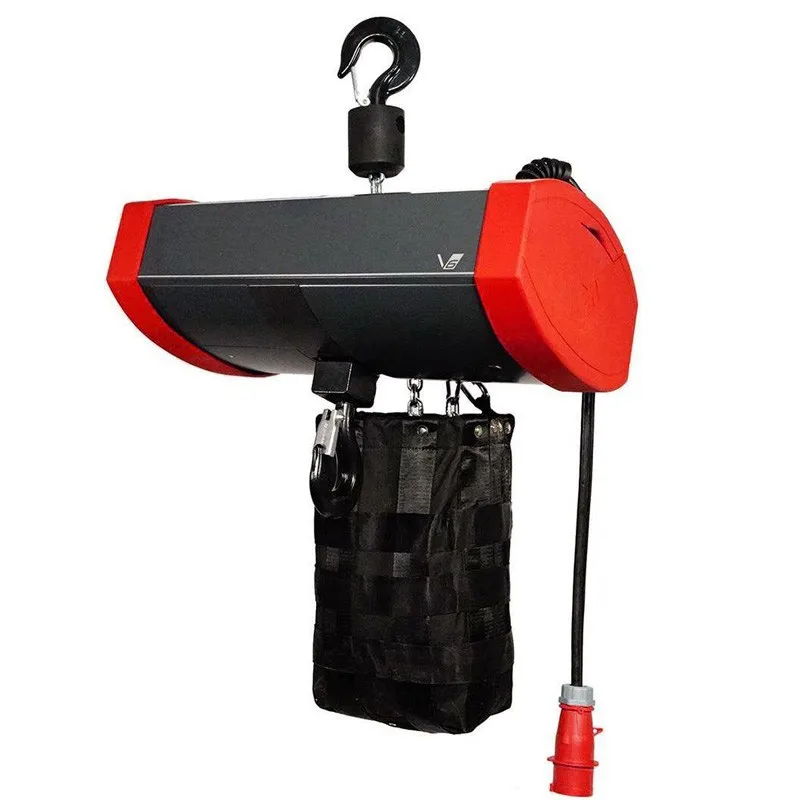

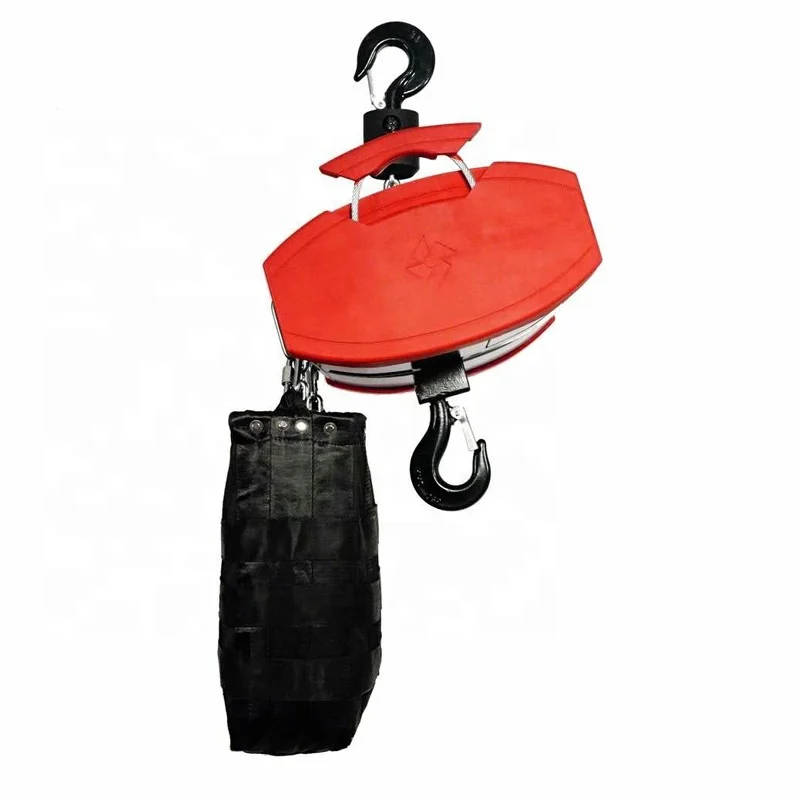

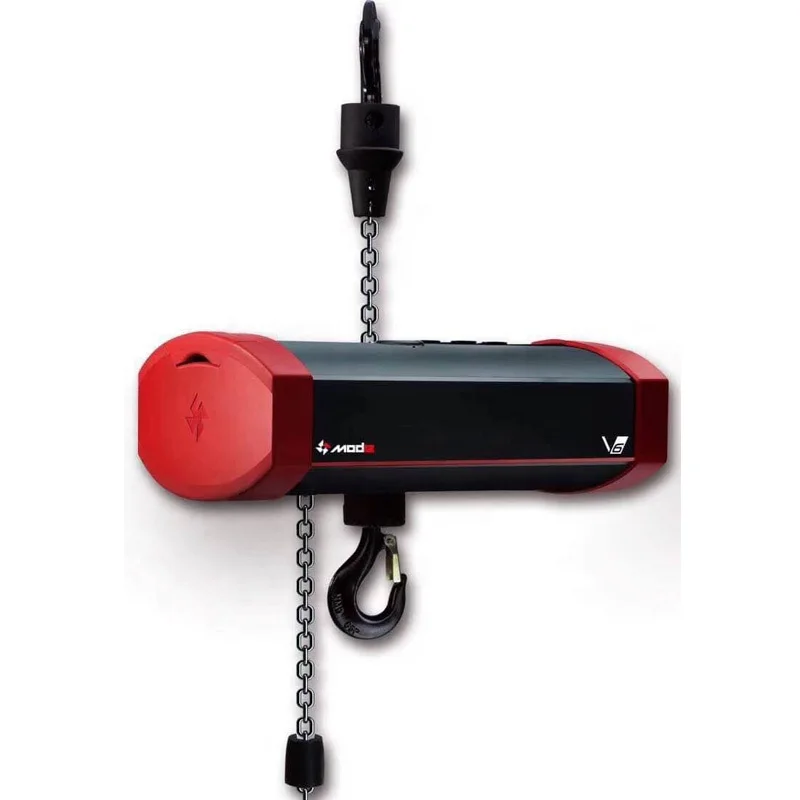

032 Mode V6R electric lift motor for events
- Category: >>>
- Supplier: Mode China
Share on (60801437439):
Product Overview
Description
Product Description
Product Application

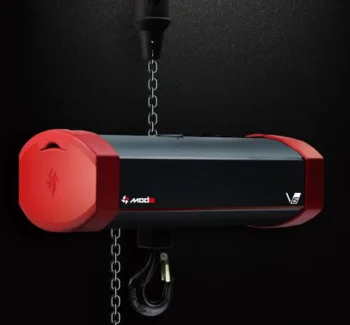

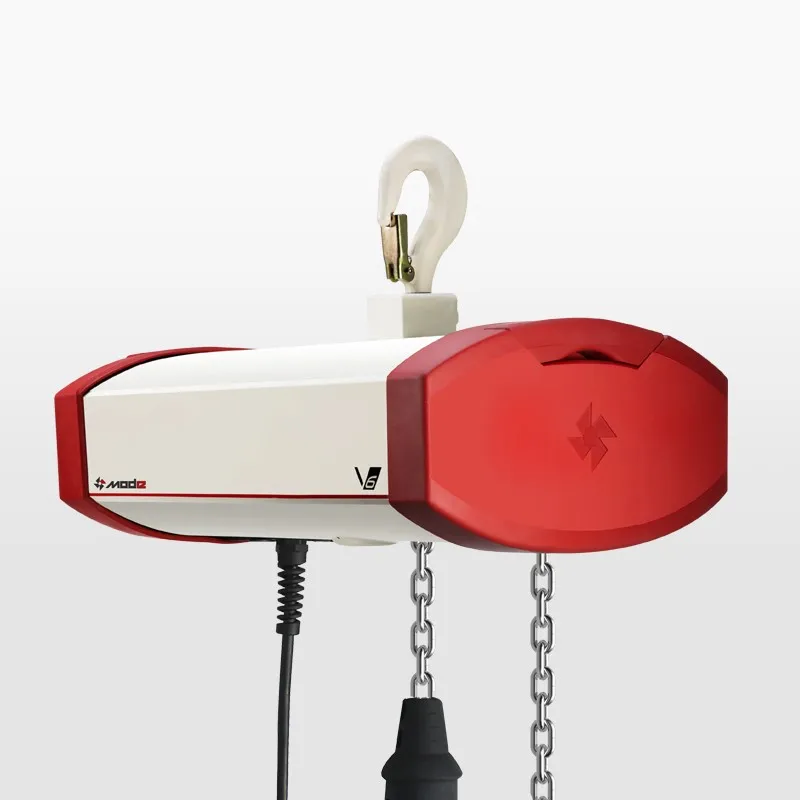

Mode V6 is our new generation of electrical chain hoist, with the continuity of reliability and safety, it has been redesigned for the body and the structure. With the load sensor being built inside, it's more safer for the stage using. Mode V6 meets a wide variety of usage scenarios. Chain hoists are load tested up to 125 percent of rated capacities & meet ISO, ANSI, CE & international standards.
Main Features
a)Aviation aluminium alloy material,light but compact resistance is great;
b)Build-in sensor,load monitoring system,lifting weight visualized;
c)Over loading protector, stop working when over loading;
d)Double electromagnetic brake system,double security for your project;
e)Motor protector system, protection level IP55,waterproof ,can use under normal open environment;
f)Security warning,color on the screen turn to be red when over loading;
g)New generation of chain guide reduce chain jam rate (patent of mode);
h)Galvanized chain,can bear 7 times breaking force;

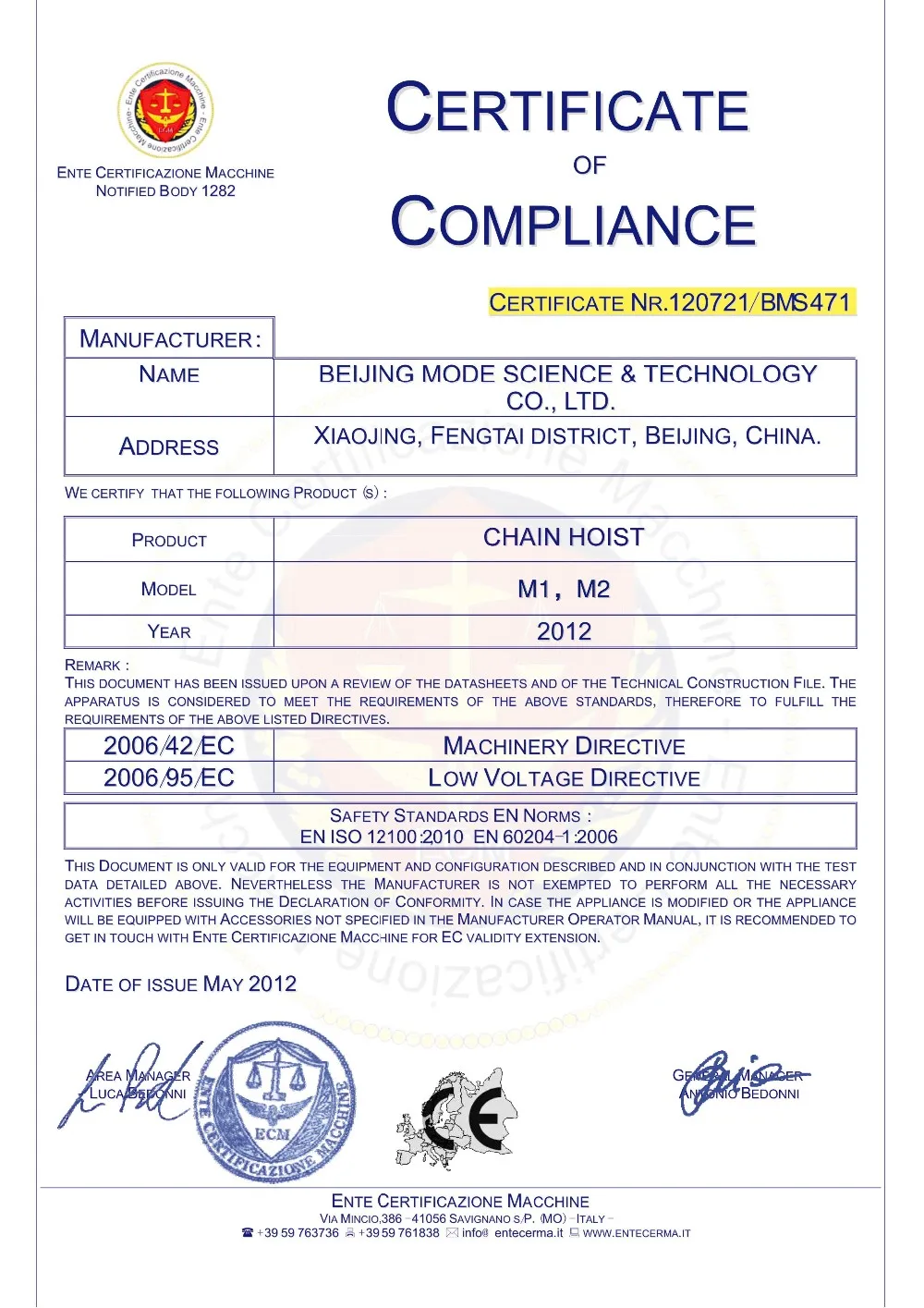

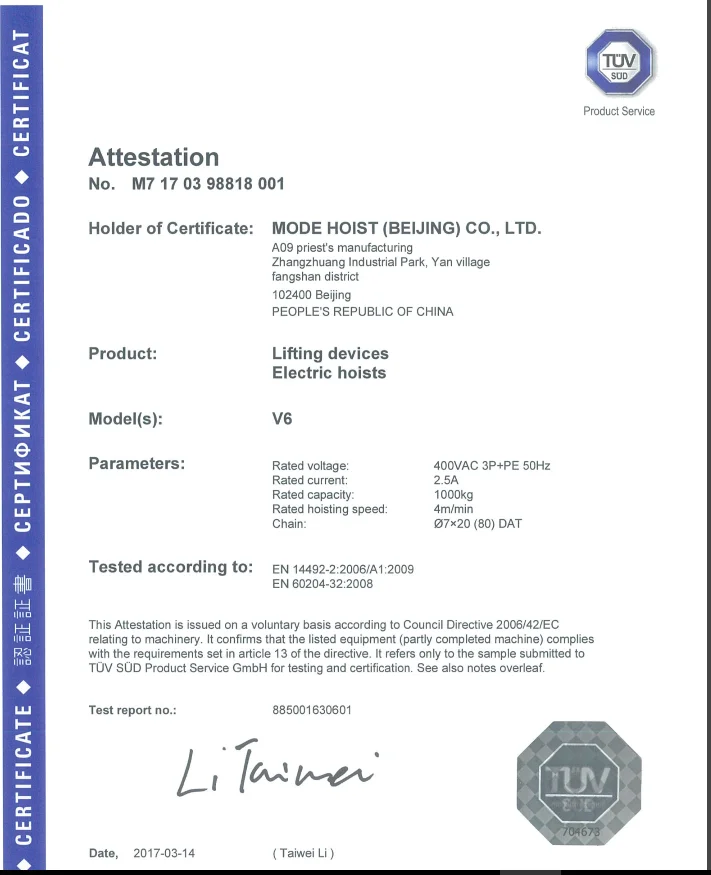

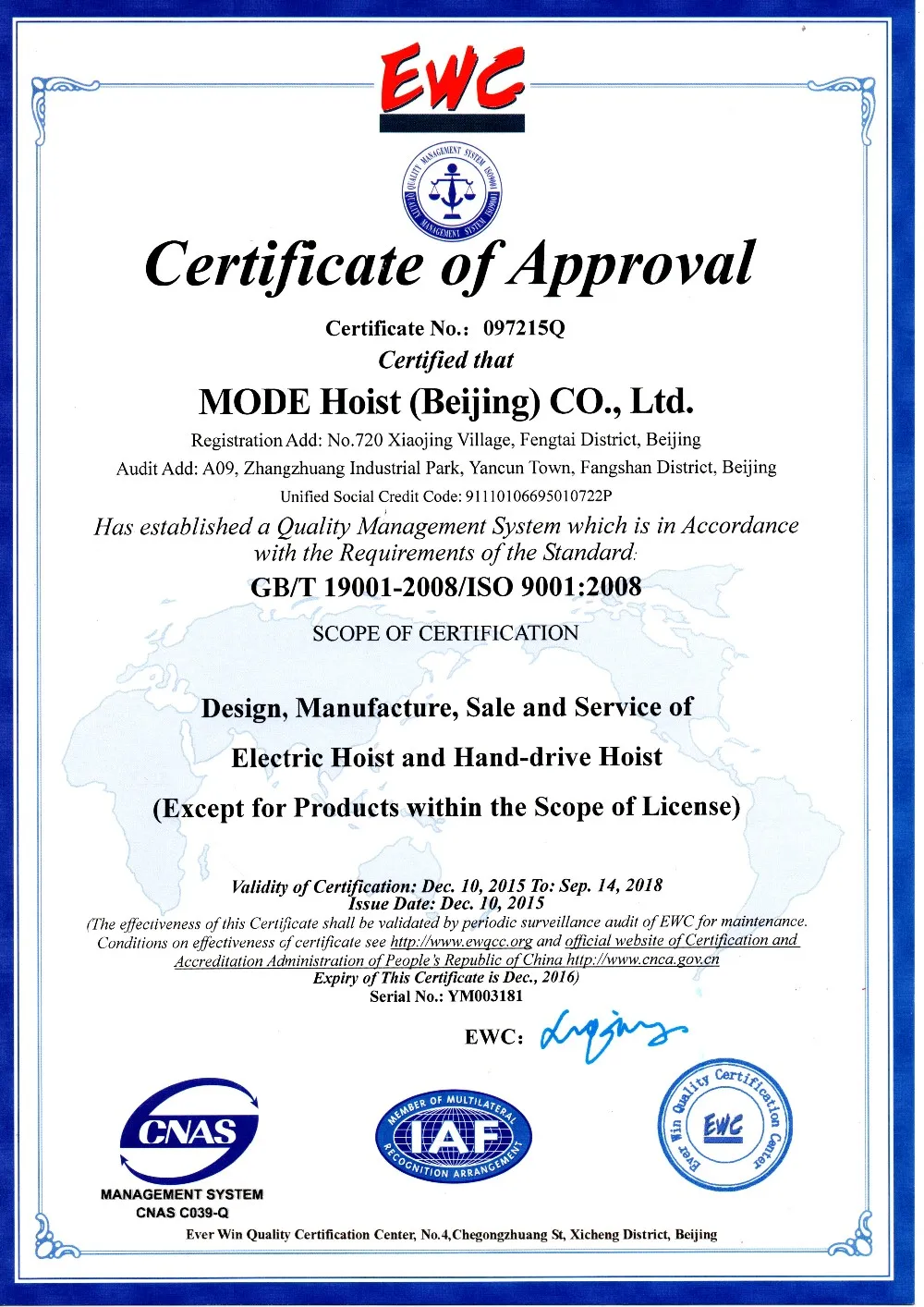

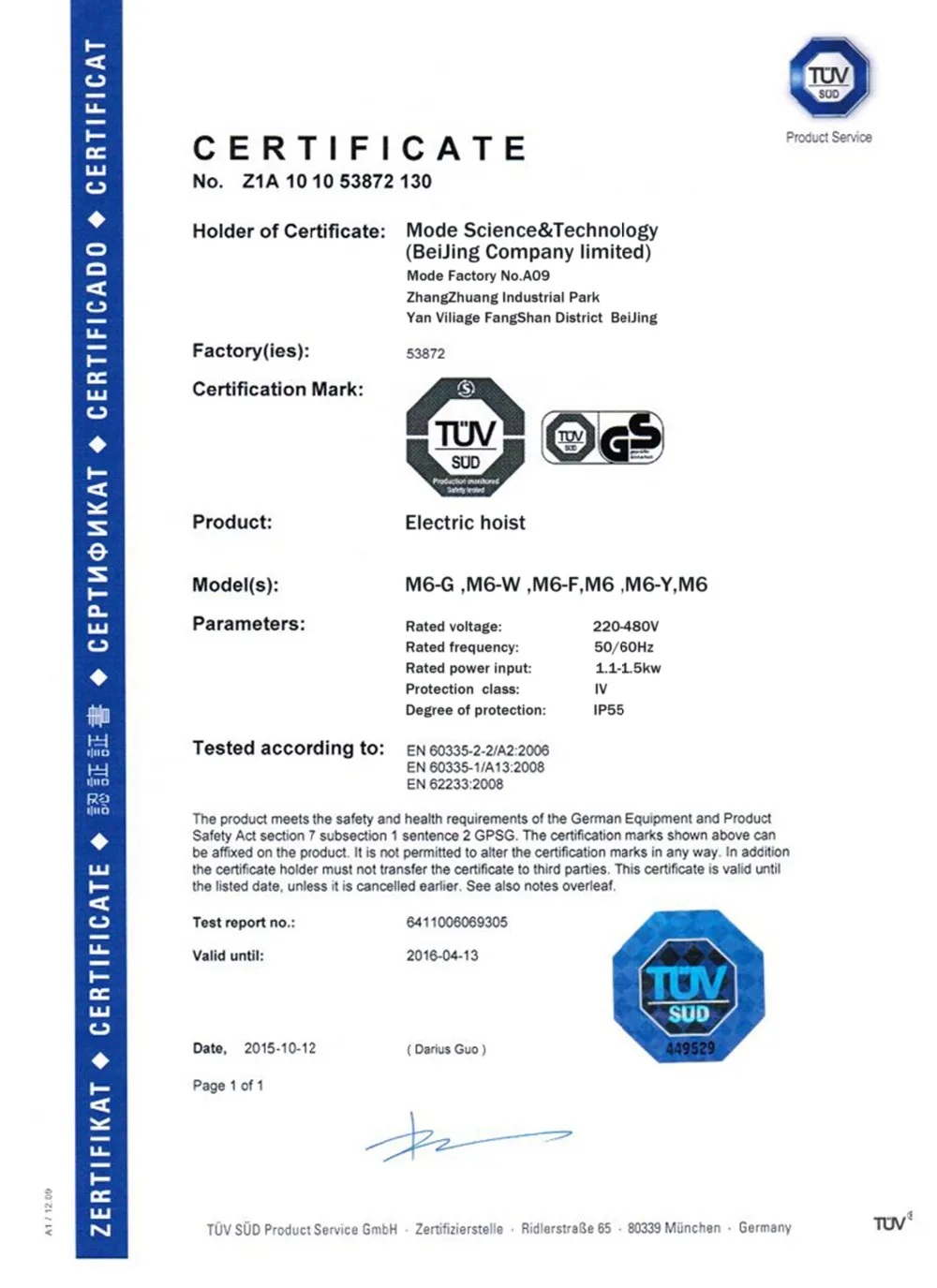

Certifications
Detailed Images
Name: New Generation Chain Guide
By carbonization treatment, its hardness is consistent with the lifting chain, which can effectively reduce the wear between them, and increase service life. It also helps to improve the operation stability.
Name: Body Material--Aviation aluminum
The surface is treated with Teflon coating technology, which makes the hoist more elegant. Perfect corrosion resistance. Easy to clean and maintain. Aviation aluminum reduces the weight and improves the usability of the product and has the features of light weight, corrosion resistance etc.
Name: Oily gear box
Closed oily gear box, lifetime maintenance-free. The closed oil bath lubrication system solves the problem of oil leakage.
3 grade gear box reduce the noise to 60FB.
Effectively provide lubrication for gear sets, delay gear wear, improve product service life.

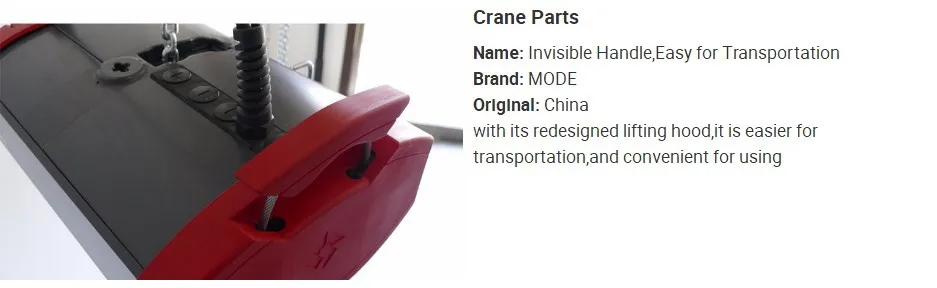

Name: Hiding handles
The human engineering-designed handles are easy to use and carry. Rubber material protecting cover, reduce the damage caused by the bump to the product, and also protect field staff from injury.
Lifting Hook
Forged alloy steel hook with dense internal structure, good ductility and 7.6 times breaking force.
Different from casting parts, if overload happened, it will not break at once. Just out of shape.

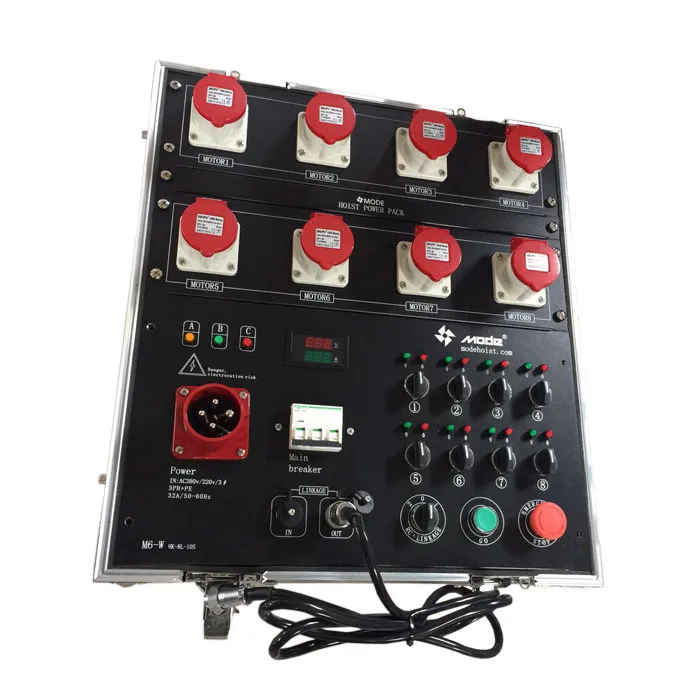

Flight case controller:
4 channel, 6 channel and 8 channel controller
It's convenient for moving with heavy duty wheels and foot brake.

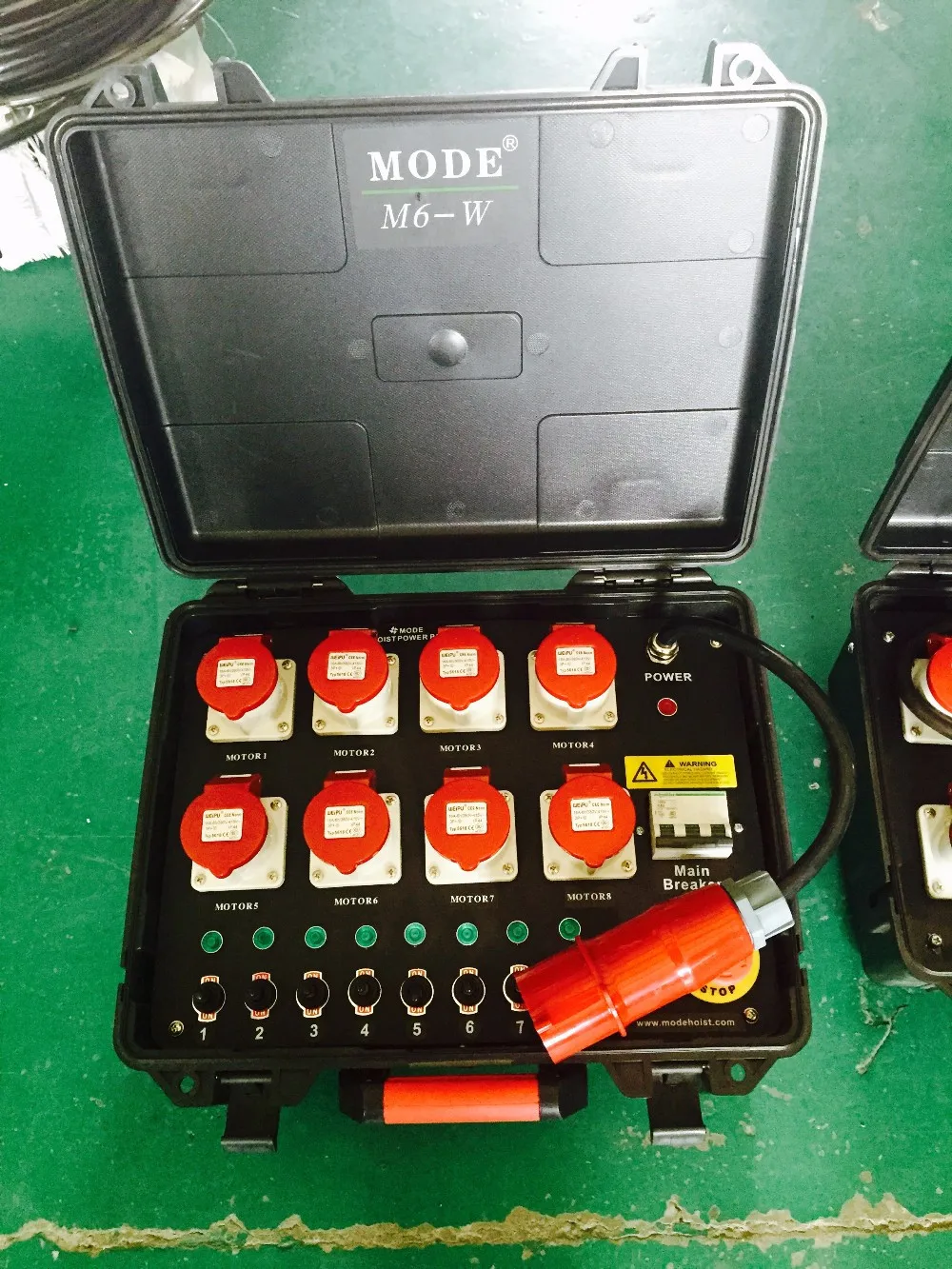

Portable controller:
4 channel, 6 channel and 8 channel controller
It's convenient for transportation, light and portable.

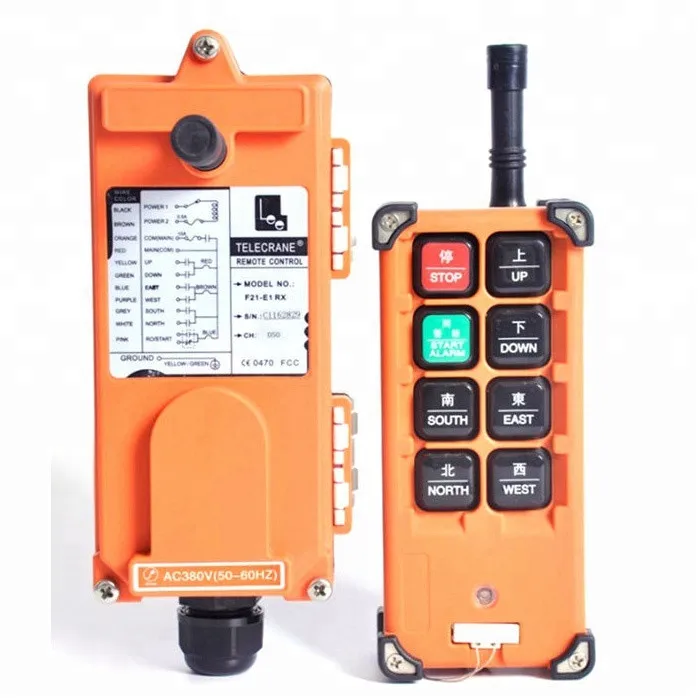

Wireless remote controller
4 channel and 8 channel controller
Max control distance is 100m. It's very convenient for controling.

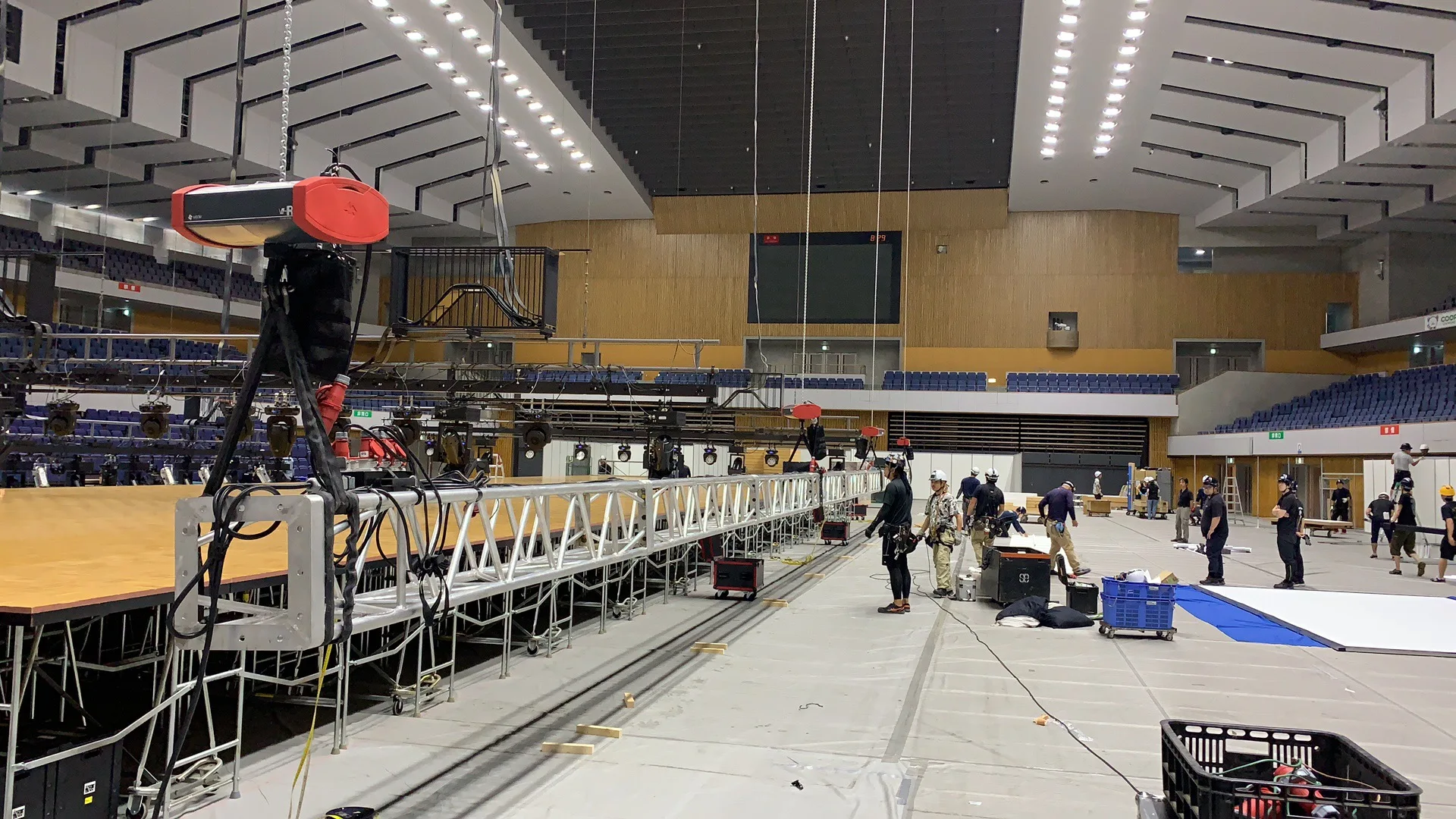

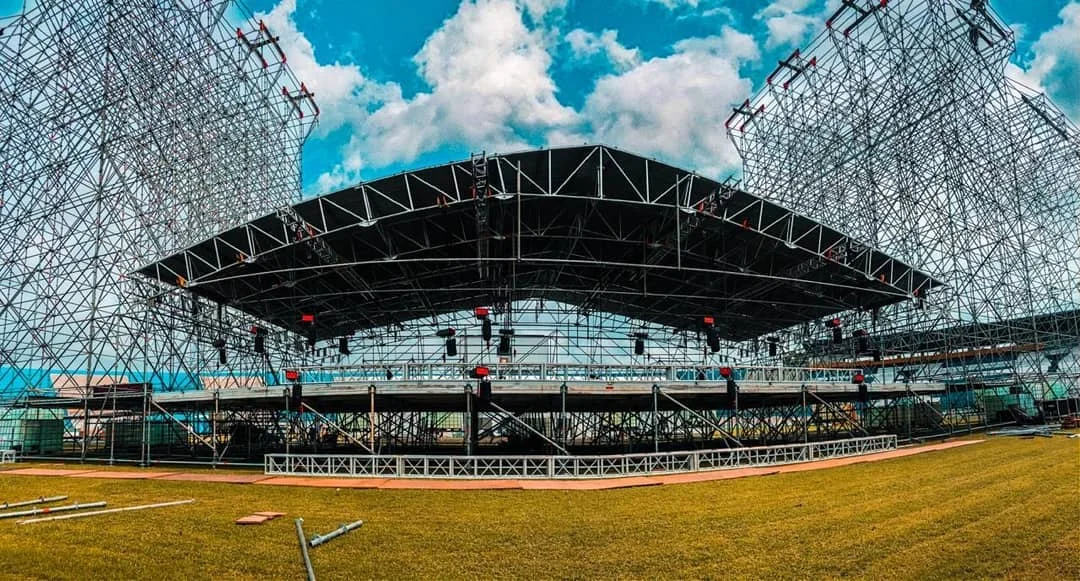

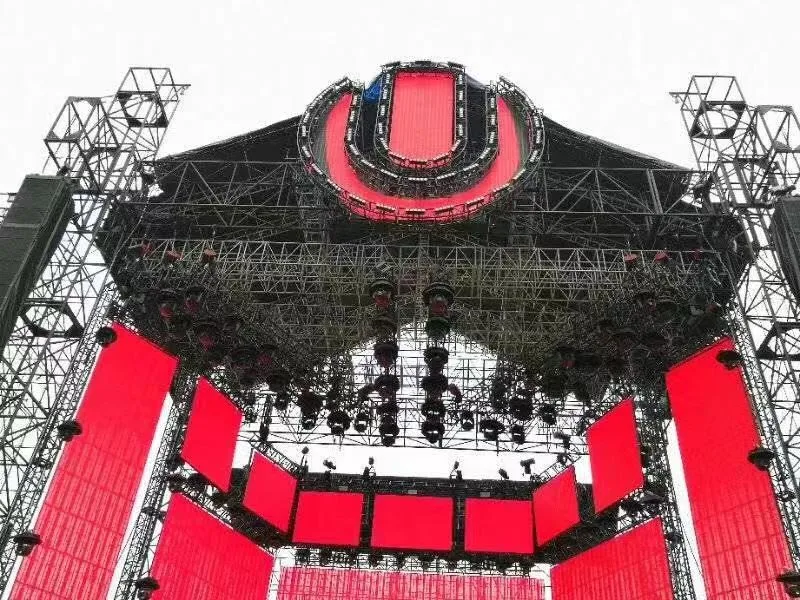

Customer feedback
Packing & Delivery
Packaging | ||
Size | 50 (L) * 25 (W) * 40 (D) | |
Weight | 15kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will not need fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 63 (L) * 58 (W) * 73 (D) | |
Weight | 40kg | |

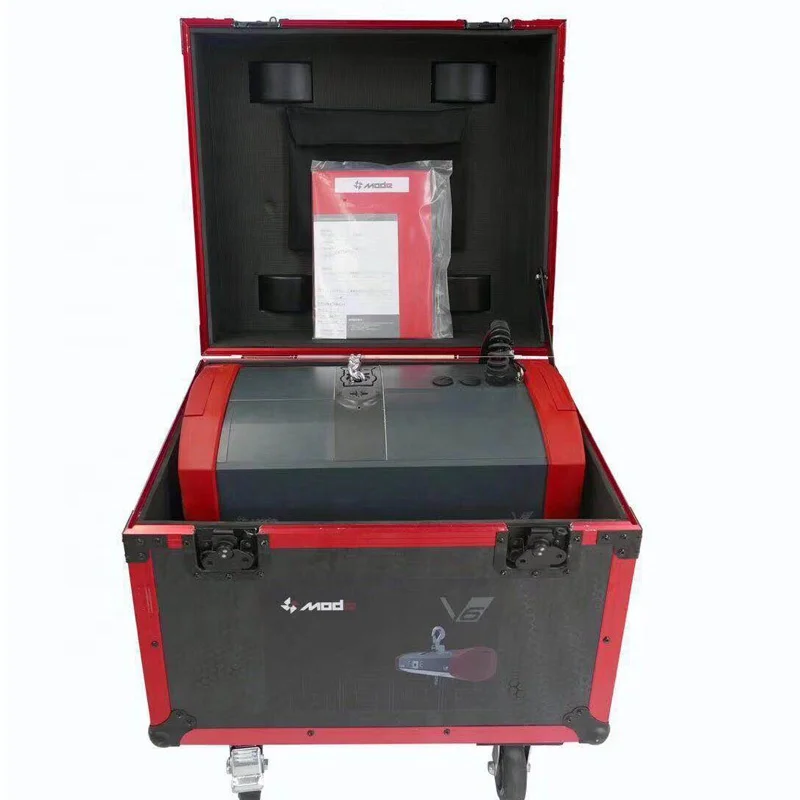

Packaging Details | The normal package is flight case (Size: L*W*H).MODE flight case is made by 9mm plywood posting ourtside the fire board,double glove box,front and rearcorners openings are high strength.mid-sized butterfly lock axis pumping hands,heavy duty wheel,foot brake ,accelerate type vover. | |
