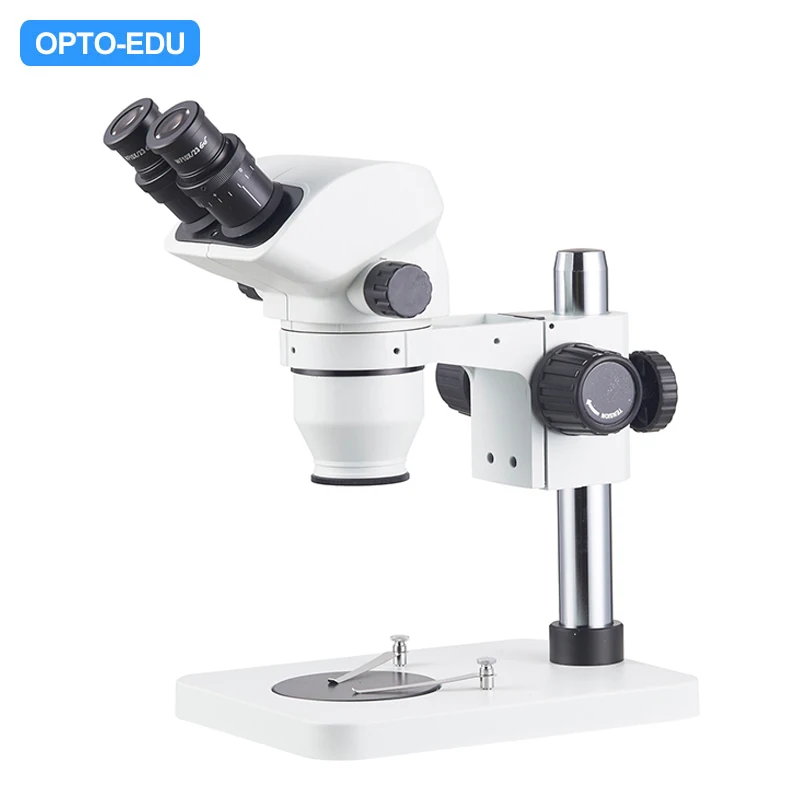

OPTO EDU A22.3670 B1 бинокулярный Полюс стенд Eyepiece WF10X23mm стерео микроскоп
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60801455692):
Product Overview
Description

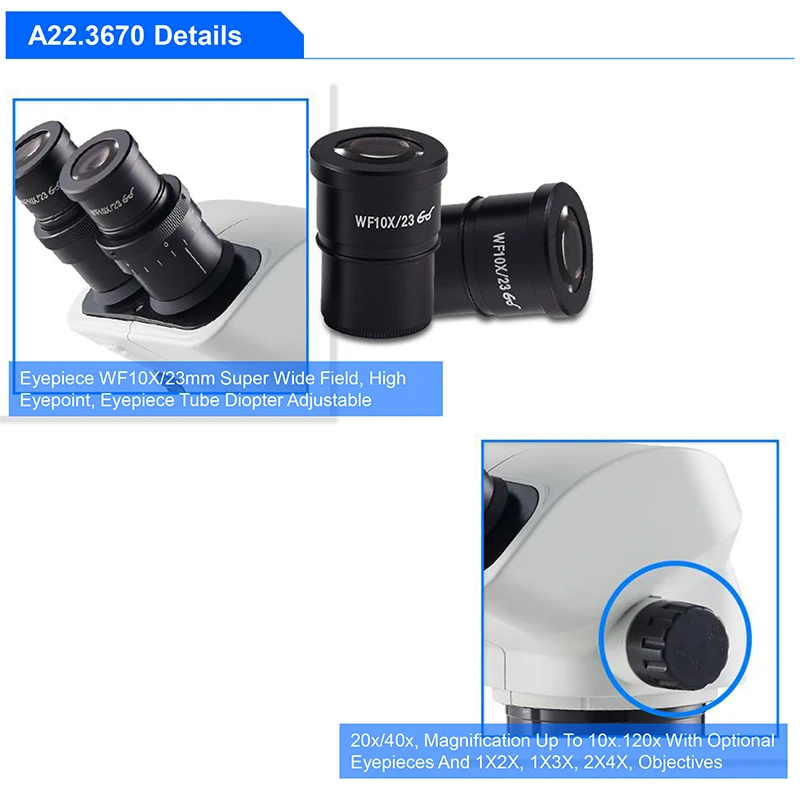

Eyepiece WF10X/23mm Super Wide Field, High Eyepoint, Eyepiece Tube Diopter Adjustable
20x/40x, Magnification Up To 10x.120x With Optional
Eyepieces And 1X2X, 1X3X, 2X4X, Objectives

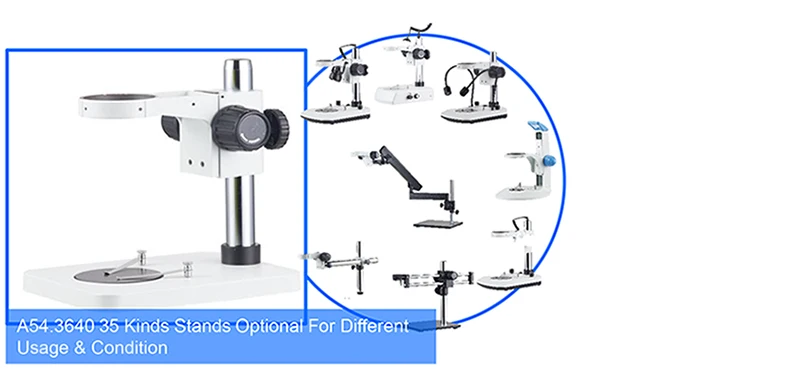

A54.3640 35 Kinds Stands Optional For Different Usage & Condition
20x/40x, Magnification Up To 10x.120x With Optional
Eyepieces And 1X2X, 1X3X, 2X4X, Objectives
A54.3640 35 Kinds Stands Optional For Different Usage & Condition
A22.3670 Series Zoom Stereo Microscope Speicification | ||||||||||

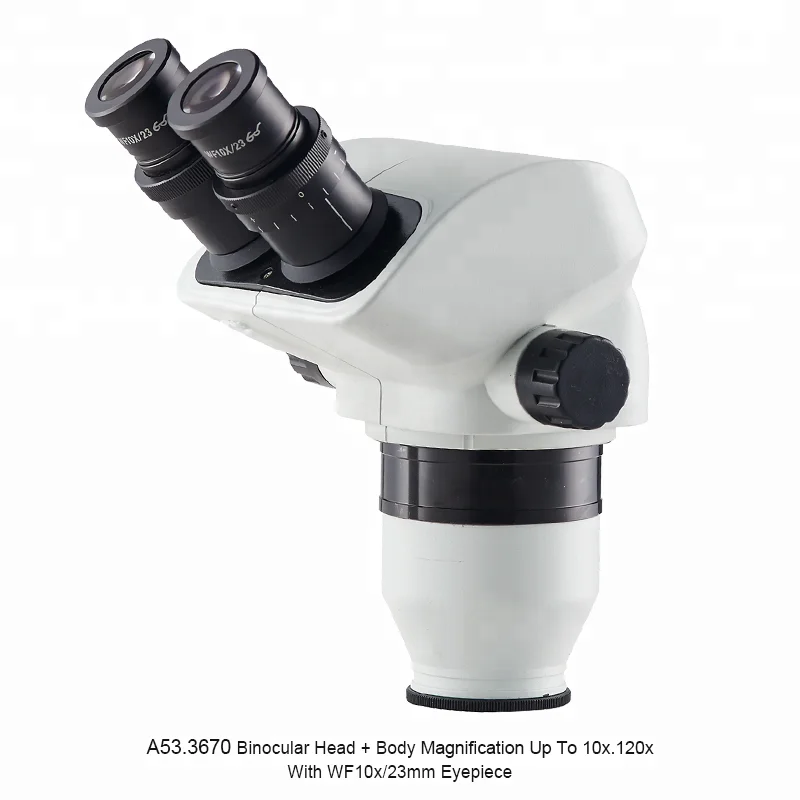

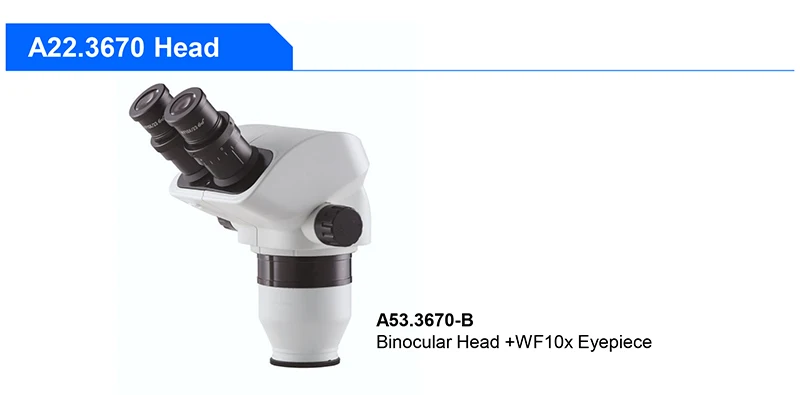

Head | Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Both Eyepiece Tube Diopter Adjustable +/-5° | |||||||||
Eyepiece | WF10x/23mm Super Wide Field, High Eyepoint | |||||||||
Objective | Turret Objective 2x/4x, Standard | |||||||||
Turret Objective 1x/2x Optional | ||||||||||
Turret Objective 1x/3x Optional | ||||||||||
Magnification | 20x/40x, Up To 10x-120x With Optional Eyepieces & Objectives | |||||||||

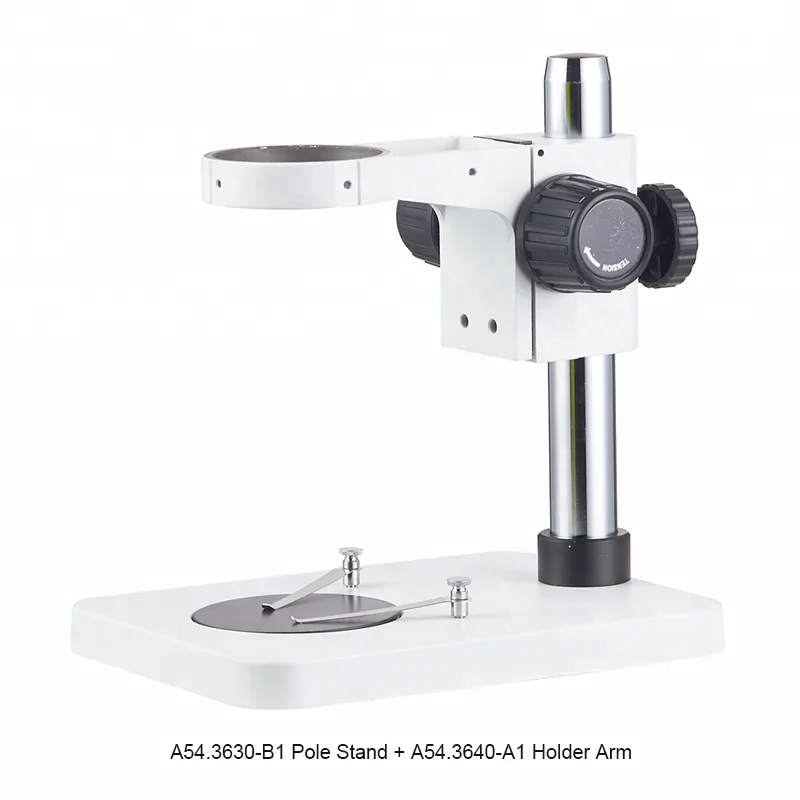

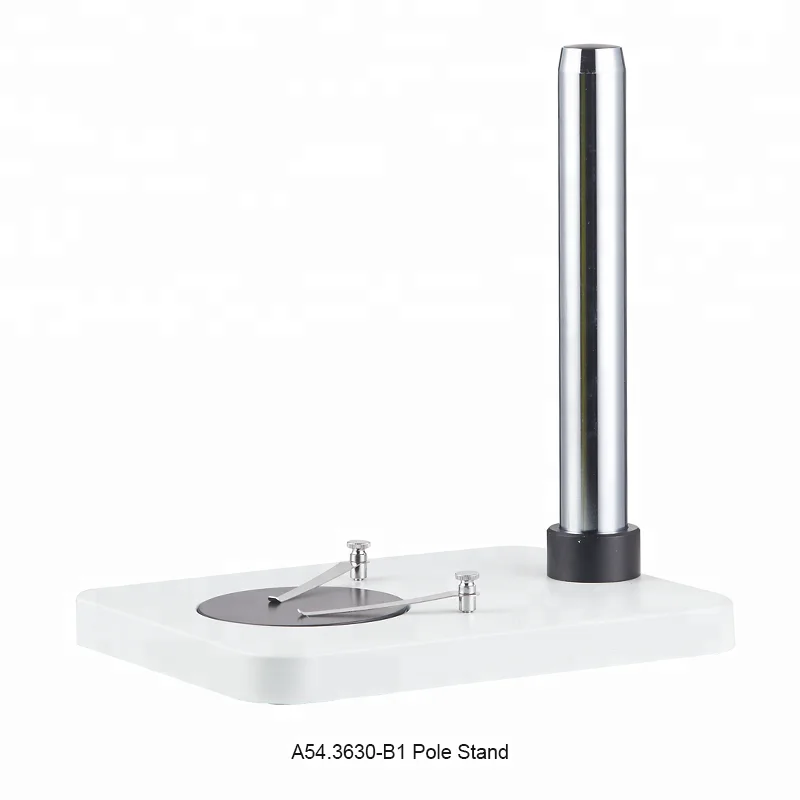

Focusing | Pole Stand Coarse Focusing Range 50mm, Tension Adjustable Track Stand Coarse Focusing Range 74mm, Tension Adjustable | |||||||||
Working Distance | 110mm | |||||||||
Stand | 35 Kinds Stand Optional, Details See A54.3630 Choose Model According To Cata. No. Like: A22.3670-B1 Means Binocular Head With B1 Stand | |||||||||
A33.3670 Optical Data Sheet | ||||||||||||||||
Working Distance 110mm | ||||||||||||||||
Objective | Objective 1x | Objective 2x | Objective 3x | Objective 4x | ||||||||||||
Eyepiece | Magnification | View Field | Magnification | View Field | Magnification | View Field | Magnification | View Field | ||||||||
WF10x/23mm | 10x | 23.0mm | 20x | 11.5mm | 30x | 7.8mm | 40x | 5.3mm | ||||||||
WF15x/16mm | 15x | 16.0mm | 30x | 8.0mm | 45x | 5.0mm | 60x | 3.3mm | ||||||||
WF20x/12mm | 20 | 12.0mm | 40x | 6.0mm | 60x | 3.3mm | 80x | 2.5mm | ||||||||
WF25x/9mm | 25x | 9.0mm | 50x | 4.5mm | 75x | 3.0mm | 100x | 2.3mm | ||||||||
WF30x/9mm | 30x | 8.0mm | 60x | 4.0mm | 90x | 2.7mm | 120x | 2.0mm | ||||||||

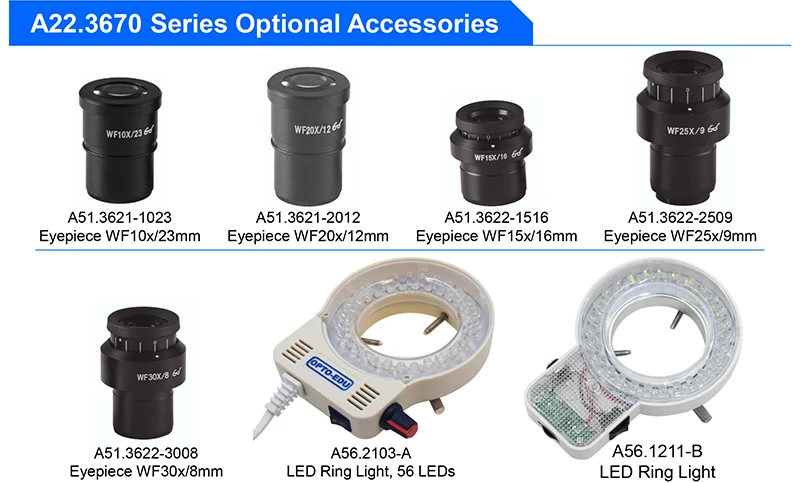

Optional Accessories | ||||||||||

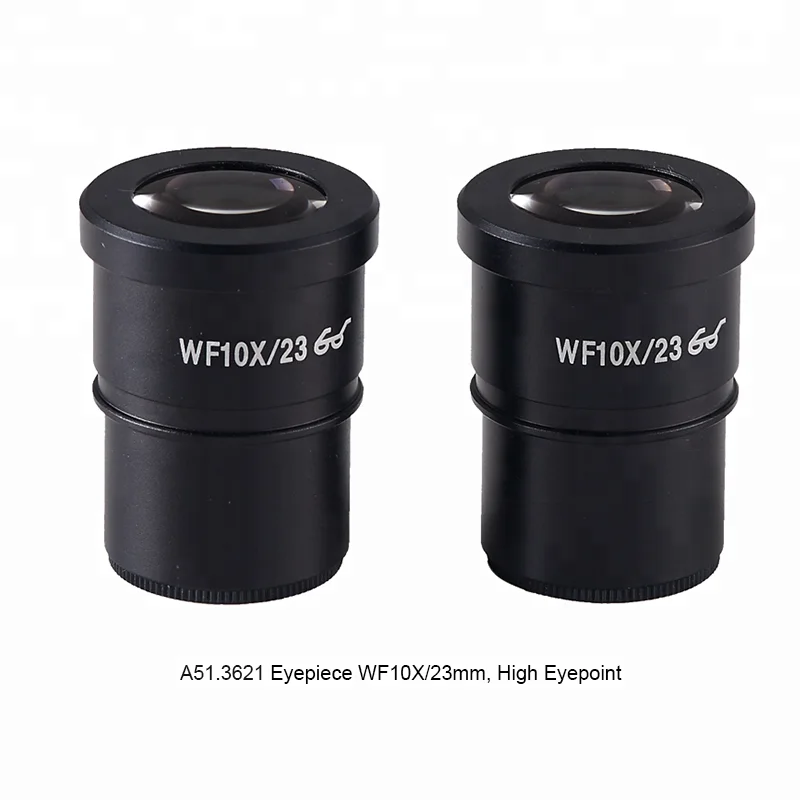

Eyepiece | WF10x/23mm, High Eyepoint, Dia.30mm | A51.3621-1023 | ||||||||
WF15x/16mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-1516 | |||||||||
WF20x/12mm, High Eyepoint, Dia.30mm | A51.3621-2012 | |||||||||
WF25x/9mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-2509 | |||||||||
WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-3008 | |||||||||
