HMI/автоматический домашний/атм/IOT встроенный 10,1 дюймов VGA DVI водонепроницаемый IP65 промышленный плоский TFT ЖК емкостный сенсорный экран монитор
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen,Le,Hua,Display,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

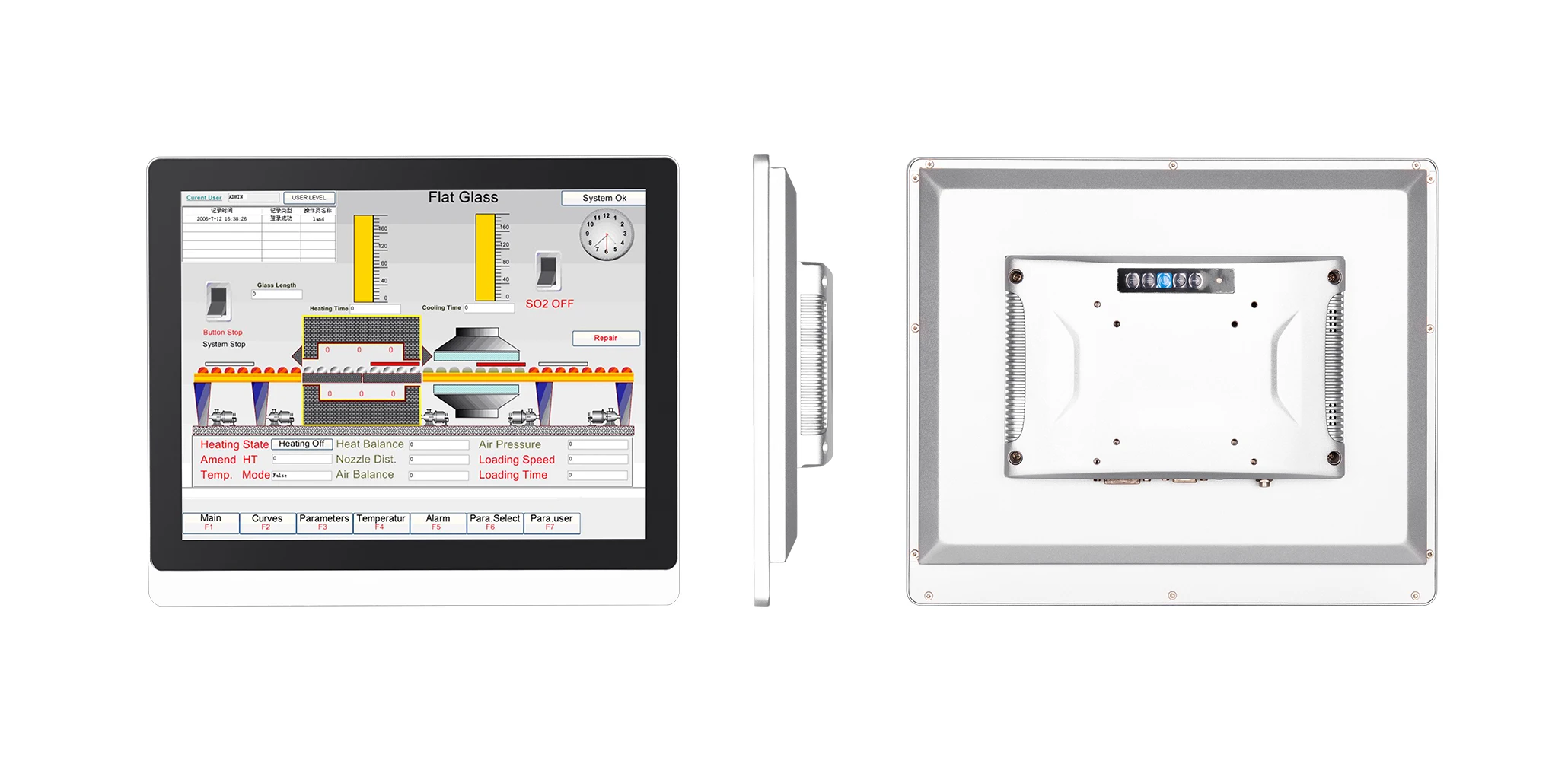

10.1 inch 3MM Ultra-thin Industrial Grade Touch Monitors
Features：
1) 7~23.8" optional
2) 300 to1500 nits sunlight-readable screens
3) IP65 waterproof and dust-proof sealed front panel
4) HDMI, DVI-D, VGA & Composite Video Input
5) DC12V/4A, Low power, long span life LED backlighting monitor
6) The industrial monitors are suitable for Windows, Android, or Linux systems for various terminal devices and compatible with Raspberry PI
7) All LHDE series industrial monitors adopt industrial grade driver board, compliance with standard flameproof, explosion-proof, and moisture-proof.
8) Support OEM/ODM

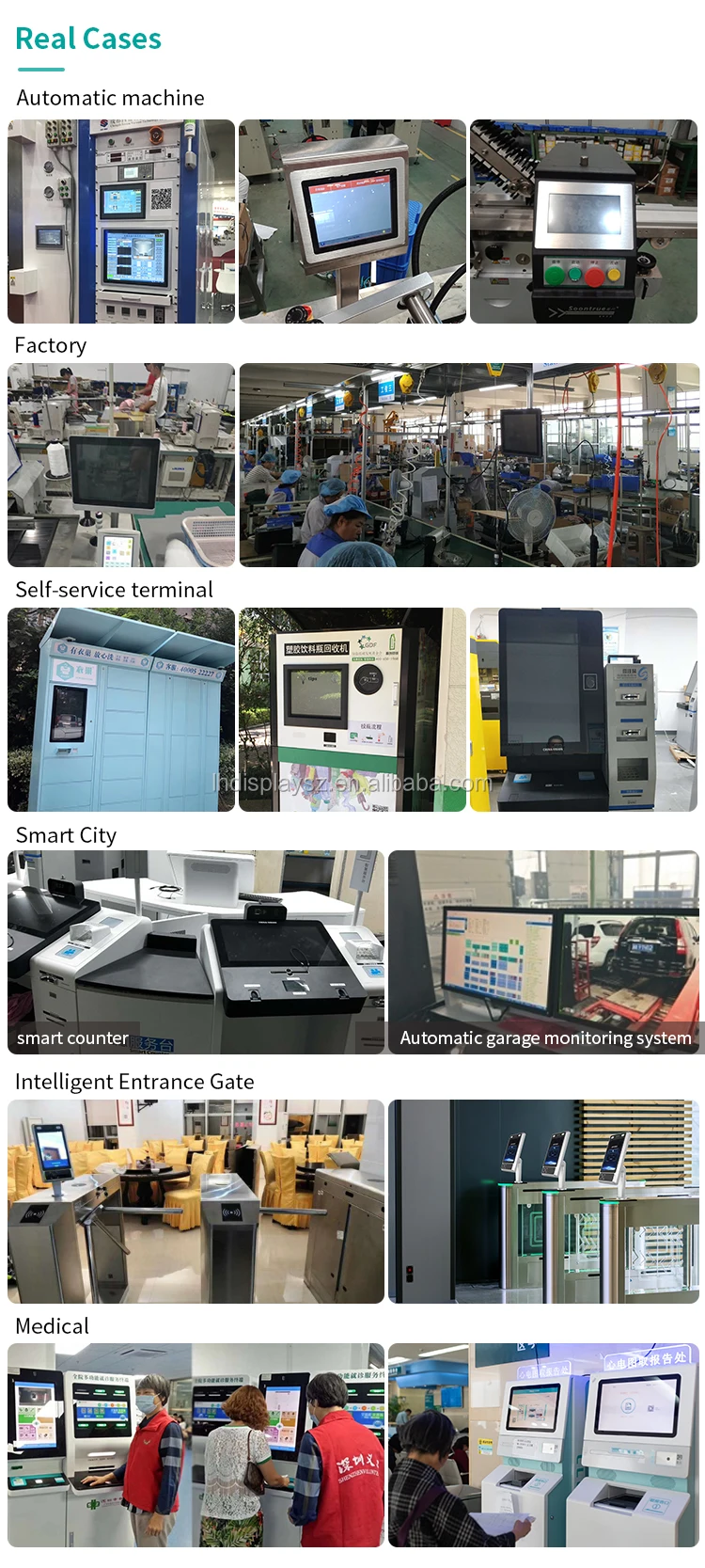

Industrial touch screen monitor can be used in industrial automation equipment control, military, communications, electric power, big data, Internet, self-service terminal equipment, artificial intelligence and other fields. Such as factory equipment control, ATM, POS, indoor or outdoor Kiosks, transportation, advertisement machine, gaming, medical, agricultural equipment, marine, online training, tractors, wrecker tow truck, welding machine etc.
Product Description
10.1'' | 1280*800(16:10) | 10.4'' | 1024*768(4:3) | |
11.6'' | 1920*1080(16:9) | 12'' | 1024*768(4:3) | |
12.1'' | 1280*800(16:10) | 13.3" | 1920*1080(16:9) | |
15'' | 1024*768(4:3) | 15.6'' | 1920*1080(16:9) | |
17'' | 1280*1024(4:3) | 17.3'' | 1920*1080(16:9) | |
18.5" | 1920*1080(16:9) | 19'' | 1280*1024(4:3) | |
19.1'' | 1440*900(16:10) | 21.5'' | 1920*1080(16:9) | |
23.8'' | 1920*1080(16:9) | |||
Installation Instructions
Specification
Size | 10.1 " | |
Resolution | 1280*800 | |
Perspective | 85/85/85/85(L/R/U/D) | |
Colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 600 :1 | |
Response time | 6.5 ms | |
Display area | 135.36(H) X216.576(V) mm | |
Pixel pitch (mm) | 0.1692(H) X 0.1692(V) | |
Touch screen type | Capacitive touch screen | |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
Calibration | stand by | |
CPU | RTD2483 | |
System language | English (English) ,Chinese (Chinese) | |
Video input | PC-RGB:Format (format) Up to 1920*1080@60HZ | |
PC-RGB:Color (color) 16bit, 24bit, 32bit | ||
Key Function | AUTO, MENU, POWER, LEFT, RIGHT (automatic, menu, switch , left, right) | |
HDMI | Support HDMI data output , maximum support 1080P | |
RJ45 | Touch interface | |
VGA | 1 | |
Headphone holder | 3.5mm standard interface | |
DC | 1*DC 2.0 | |
DVI | 1 | |
Operating temperature | -10 °C to 6 0 °C | |
Storage temperature | - 20 °C to 70 °C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
Power consumption (maximum) | 15W | |
Power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4 A |
Recommend Products
10MM bezel Industrial Monitor for options, better for desktop, wall mounted
Sizes: 7", 8", 10.1", 10.4", 11.6", 12", 12.1", 15", 15.6". 17", 17.3", 19", 19.1", 21.5"
Color：Silver or Black
Color：Silver or Black
Related Products

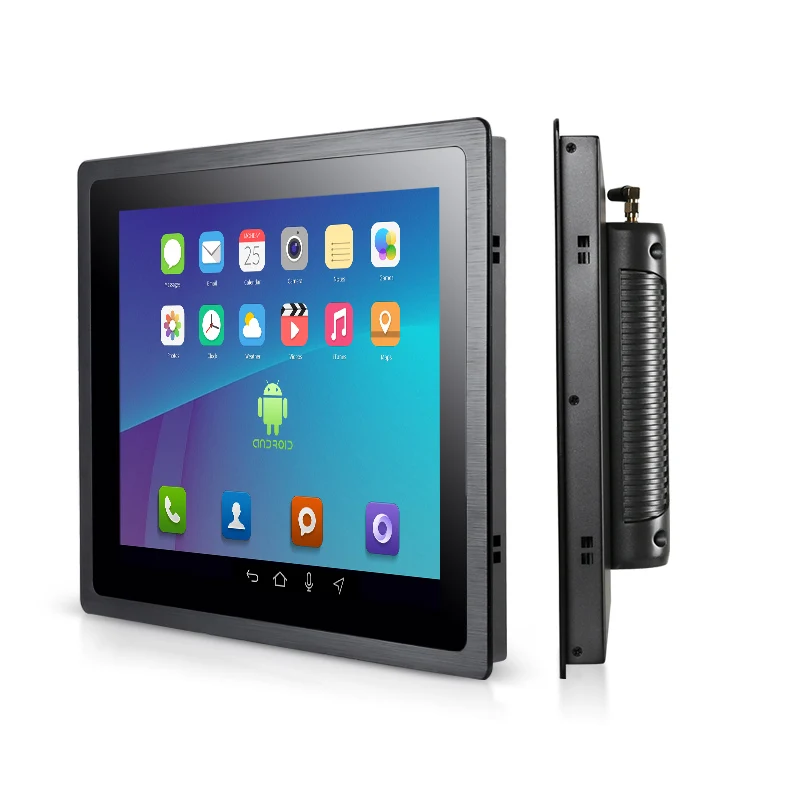

OS: Windows, Linux, Andriod System for options--Industrial Touch Panel PC
Company Profile
Shenzhen Le Hua Display Electronic Technology Co., Ltd. is a professional company engaged in independent R&D, manufacture, sale of industrial touch screen monitor, Android all in one panel PC, industrial Windows all in one panel PC, industrial mini box PC, and Android mainboard. Our company was established in 2013, our workshop covers 6000 square meters. We can offer product design, system integration, software test, ODM/OEM service, and a complete product line.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Packing & Delivery
Packing: Carton with pearl bag and cushion inside,pallet and wooden crate available for mass order.
Shipping: Shipping by express,by sea,by air,by railway.
Shipping: Shipping by express,by sea,by air,by railway.
FAQ
Q1: Can you accept sample order?
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: AlibabaTrade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial monitor support the OEM/ ODM?
A4: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness, etc.
Q5: Where is your industrial monitor apply?
A5: Restaurant, Advertisement,Gaming,Medical Equipment, Kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q6: What is the main size for your industrial monitor?
A6: 7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 13.3", 15'', 15.6'', 17'', 17.3'', 18.5", 19'', 19.1'', 21.5'', 23.8''.
Q7: Can we printing our logo on the housing? What is MOQ?
A7: We can do the silk-printing LOGO on the case with free charge.The MOQ is 2 pieces.
Q8: What kind of inspection you can provide?
A8: LeHua has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q9: What is your guarantee period?
A9: We provide 3 years warranty service,free repair for the first year, you can pay to extend the warranty. In the second and third year,we only provide the quality assurance service.
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: AlibabaTrade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial monitor support the OEM/ ODM?
A4: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness, etc.
Q5: Where is your industrial monitor apply?
A5: Restaurant, Advertisement,Gaming,Medical Equipment, Kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q6: What is the main size for your industrial monitor?
A6: 7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 13.3", 15'', 15.6'', 17'', 17.3'', 18.5", 19'', 19.1'', 21.5'', 23.8''.
Q7: Can we printing our logo on the housing? What is MOQ?
A7: We can do the silk-printing LOGO on the case with free charge.The MOQ is 2 pieces.
Q8: What kind of inspection you can provide?
A8: LeHua has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q9: What is your guarantee period?
A9: We provide 3 years warranty service,free repair for the first year, you can pay to extend the warranty. In the second and third year,we only provide the quality assurance service.
