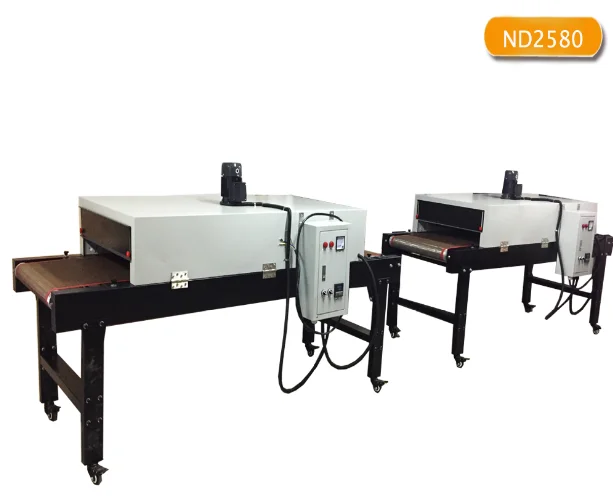

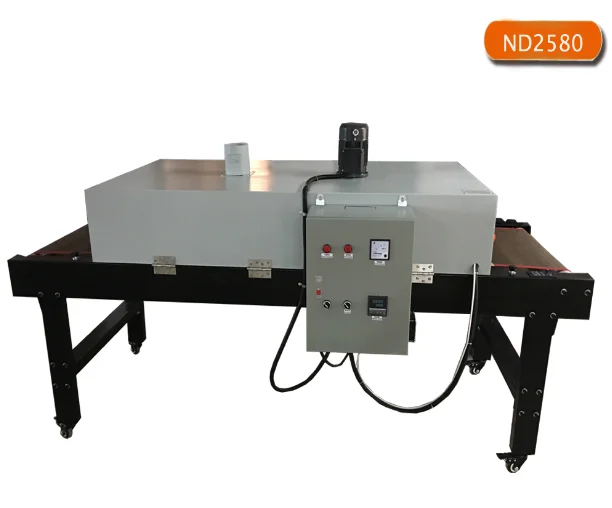

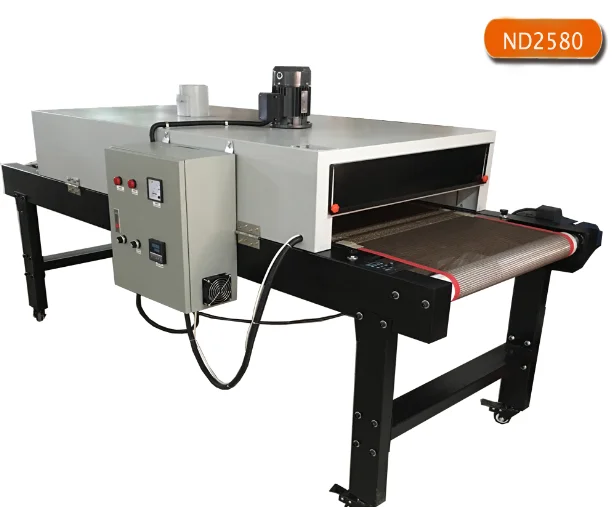

RUIDA ND2580 customized T shirt industrial microwave tunnel dryer

Product Overview

Description

This tunnel dryer is suitable for heating printing ink on clothes, even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant Teflon belt, efficient IR heating tube and constant heat circulation.

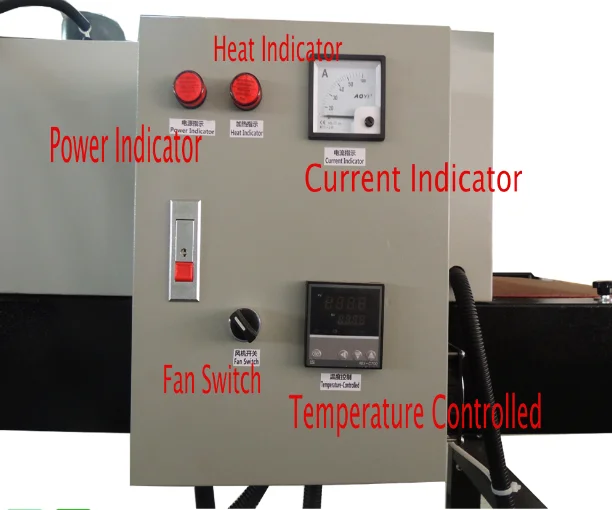

Adopting intelligent digital display temperature control system, temperature error within 1 centidegree.
Steady belt transport, little noise and stepless speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency



Main feature:

1.All machine size be customized,we only showing some simple photos.

2.Temperture and working speed are simply and easily adjustable.

3.Digital speed meter enables operator to adjust working speed accurately.

4.The heating element is sillicon carbide tube,which has high efficienty light source to dry clothes exhaust fan elininates the scrape outside.

5.It is suitbale for drying various kinds of textile printing ink,such as plastional ink,silica gel printing ink,paste, and water based ink.



Parameters:

Model	ND2580
Heating length	1500mm
Belt width	800mm
operating belt speed	1-5meter/minute
Total power	220V/380V 7.2KW
G.W,	319KG
Dimension	2500 X 970 X 1350 MM



1.Power:220V/8000W

2.Lamp: IR heating lamp.

3.Machine length:250CM

4.Heating area:150*80cm

5.Temp  range:0-250 degree

6.Pavking :1 plywood box

7.Gross weight:319KG

8.Packing dimension:260*122*80cm

9.Volume:2.73cbm









Package

Export Standard Wooden Case Package
