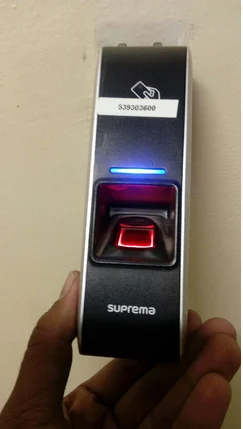

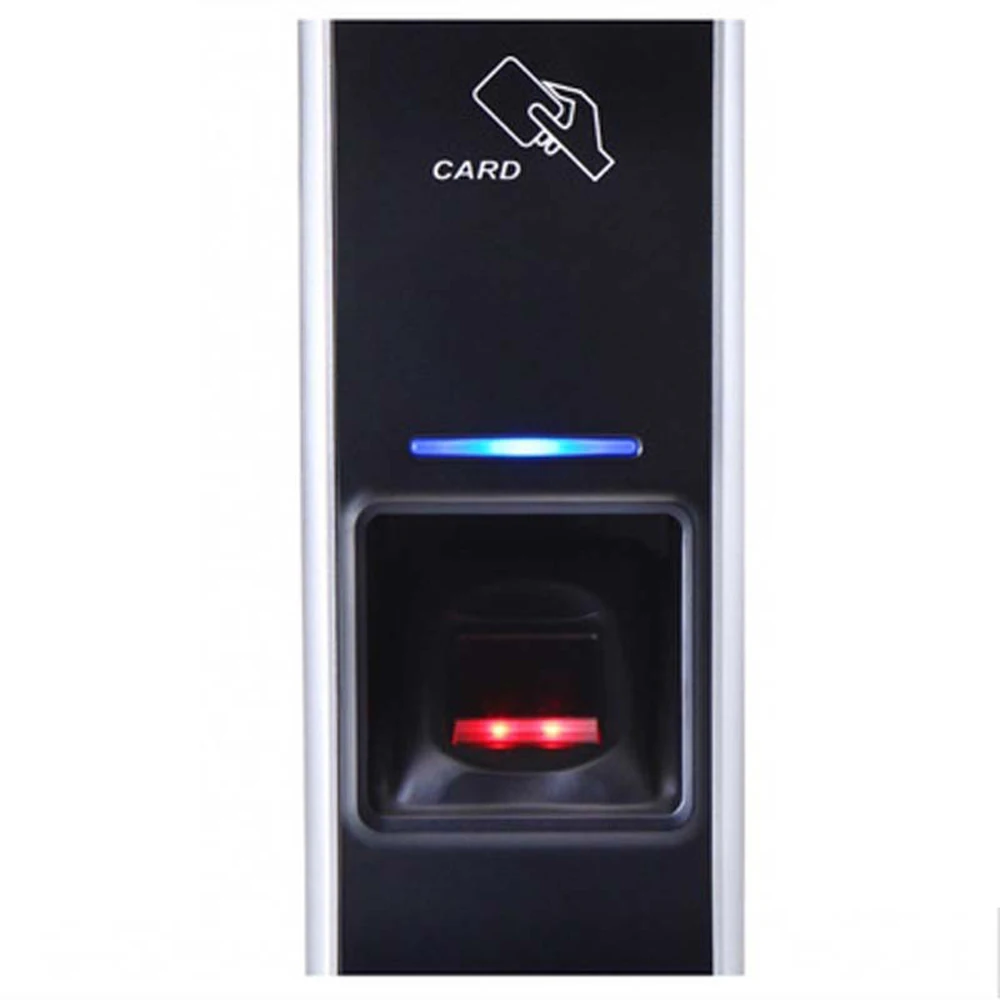

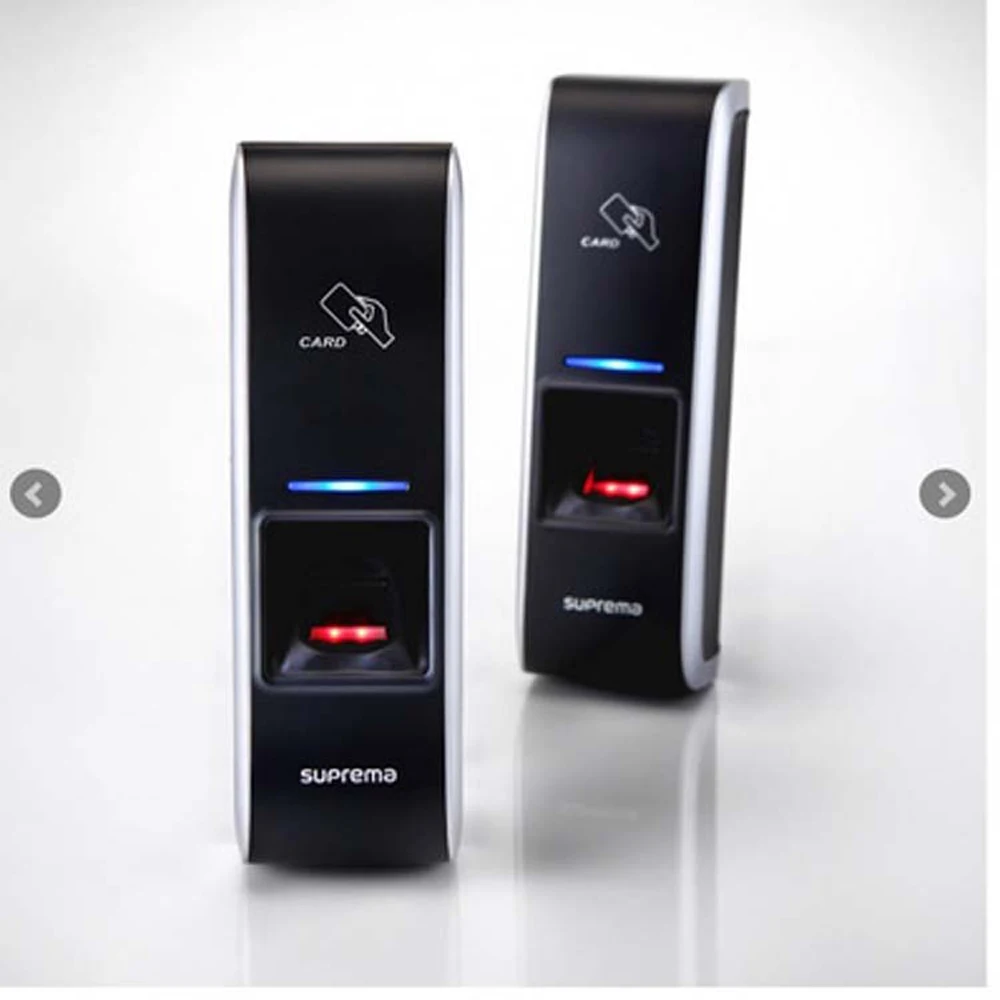

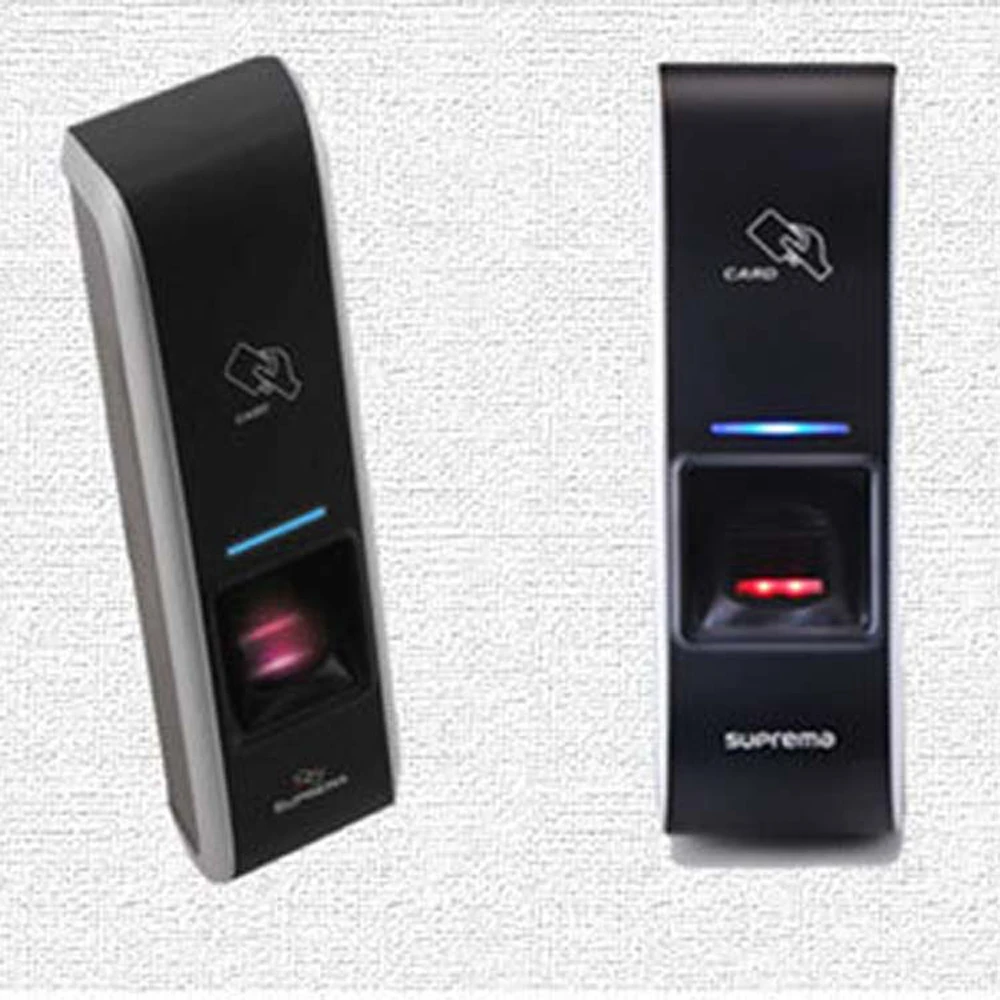

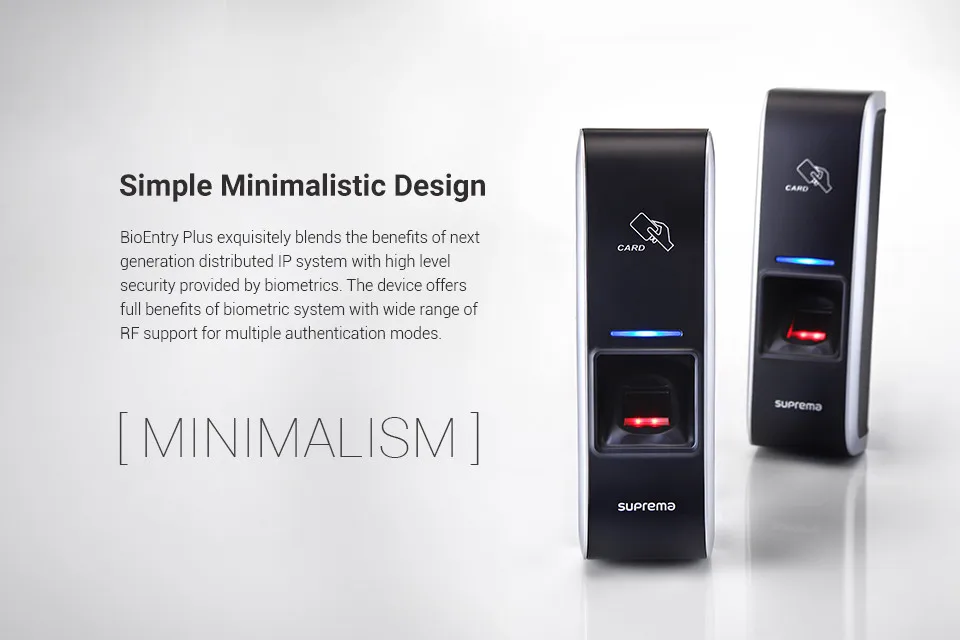

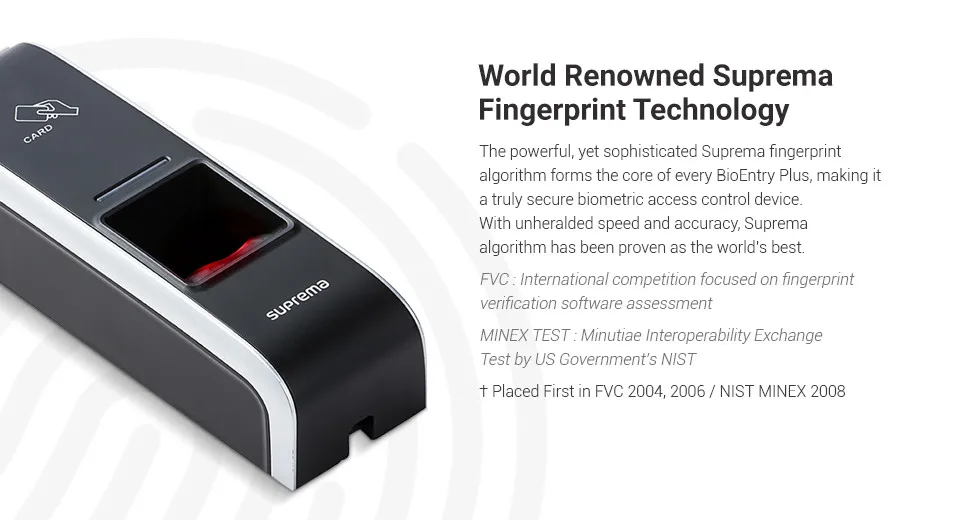

Suprema Original Bioentry Plus Biometric security Access control systems fingerprint access control with free software

Product Application

Applications:

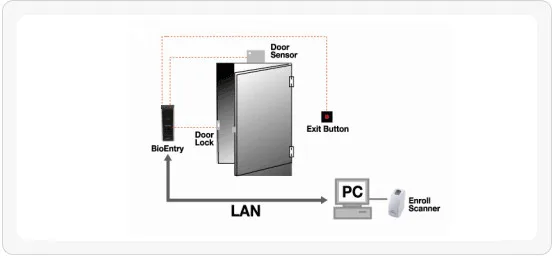

Standalone Access Control for Small Office

Networked Security for IBS Buildings, Financial and Research Institutes

Simple Time & Attendance for Offices and Factories

Data Collection for Customer Rewards Management

Biometric\tFingerprint

IP Rating\t-

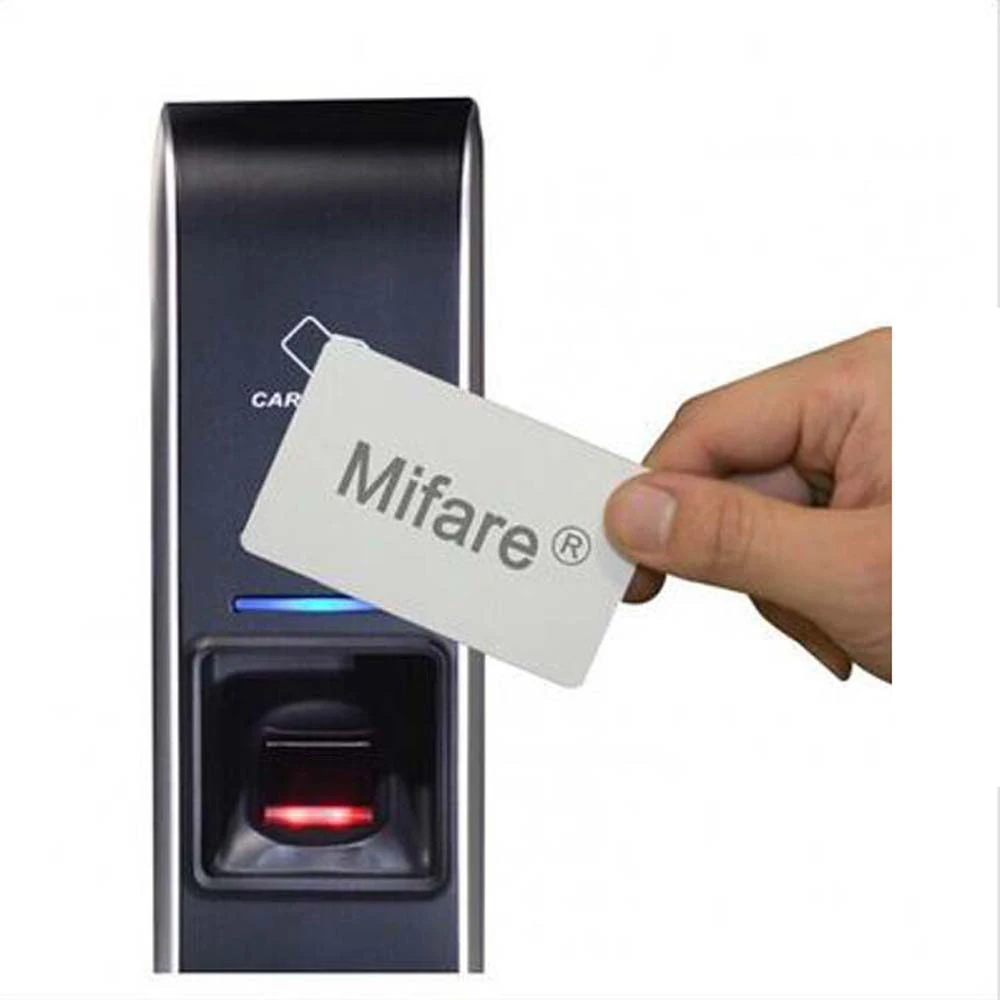

RF Option\t125KHz EM

125KHz HID Prox

13.56MHz IC/DesFire

13.56MHz iClass

Multi-Controller\tYes

Capacity\tMax. User (1:1)\t5,000

\tMax. User (1:N)\t5,000

\tMax. Template (1:1)\t10,000

\tMax. Template (1:N)\t10,000

\tMax. Text Log\t50,000

\tMax. Image Log\t-

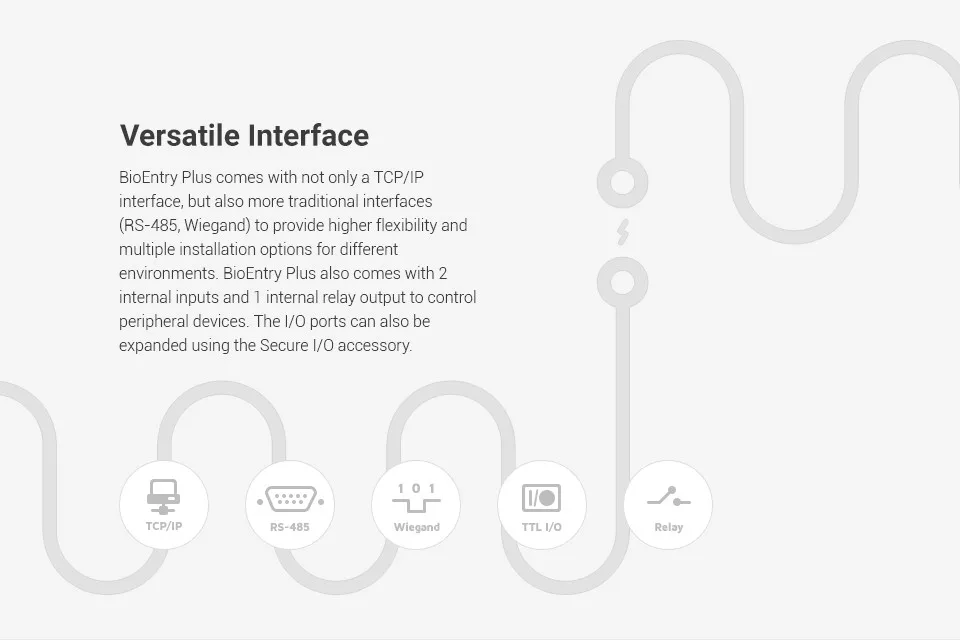

Interface\tWiFi\t-

\tTCP/IP\tYes

\tRS-485\t1ch Host or 1ch Slave

(Selectable)

\tRS-232\t-

\tWiegand\t1ch In or 1ch Out

(Selectable)

\tInput\t2 Inputs

\tRelay\t1 Relay

\tUSB\t-

\tSD Card Slot\t-

Hardware\tCPU\t533MHz DSP

\tMemory\t8MB RAM + 8MB Flash

\tLCD\t-

\tLED Indicator\tMulti-Color

\tSound\tMulti-tone Buzzer

\tOperating Temp.\t-20 to 50C

\tTamper\tYes

\tPower\t12VDC

\tPoE\t-

\tDimensions\t50 x 160 x 37 (WxHxD mm)

\tCertificates\tCE, FCC, MSIP(KCC), RoHS

Compatibility\tBioStar 1.x\tYes

\tBioStar 2\tYes
