CE thin in wall water closet concealed cistern tank for wall hung wc pan

Share on (60801574666):


Price:$70.00 - $90.00

Quantity:


Product Overview

Description





Product Description

Product Description

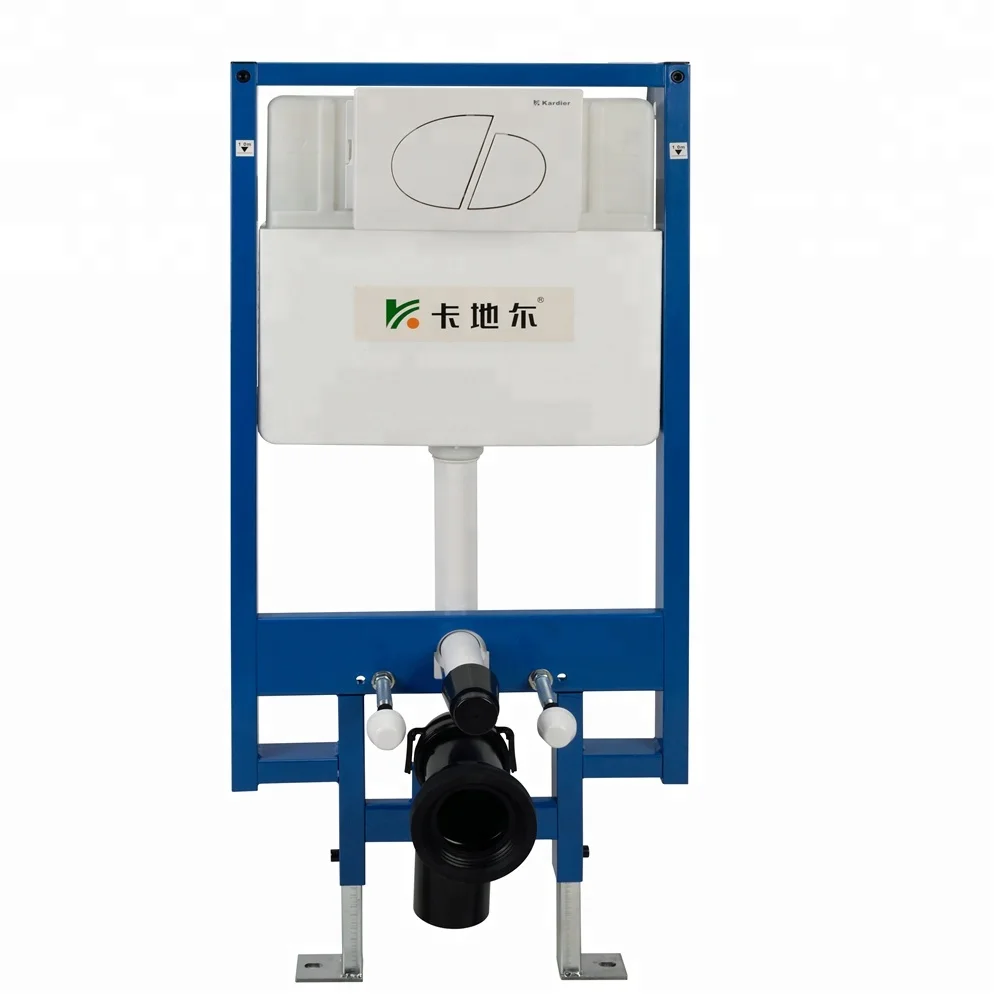

CE thin in wall water closet concealed cistern tank for wall hung wc pan




































































Item code.


011T


Certificate


CE


Dimension(mm)


525x96x1054mm


Flush pipe size


90mm


Panel size


250x165


Panel choices


all choices except O plate


Panel color


black/chrome/satin/white/gold/ silver etc


Flushing


Dual flush


Payment term


TT and LC at sight


Price term


LCL-EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA


Carton Size (mm)


542x105x1100


Suit for


Bathroom wall hung pan


Need wall thickness


≥125mm


Material


HDPE +metal frame T


For wall


dry wall;pre-wall and dry half wall;pre-half wall


Flushing volumn


3L/ 6L max. 8L


Frame undertake(kgs)


≥400kgs


Delivery Time


LCL 7-10 days ,20GP & 40HQ need 20-25days


MOQ


50 PCS


Port of loading


SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA






Packing



1. Common packing is without bubble bag packing.

2. Color box, blister packing also can be chose.

3. We also can accept customer's packing requirement and design, but MOQ is one container for packing.

4. Use strong export cartons.

Delivery

1. We will deliver goods within 25 days after confirm the order, it depends on order size.

2. We will arrange the order production as soon as possible so that the goods can be sent on time

Payment Items

 30% T/T deposit and 70% balance against B/L copy. If the amount cost is less than 10000USD, the payment would be 100% paid in advance.

Shipping

 We have the long-term cooperation shipping company, shipping is fast, safety, unbrokenly.

In general, we transfer goods by sea for save cost. If you are urgent , we can consider by air.







Product Details

Product Details

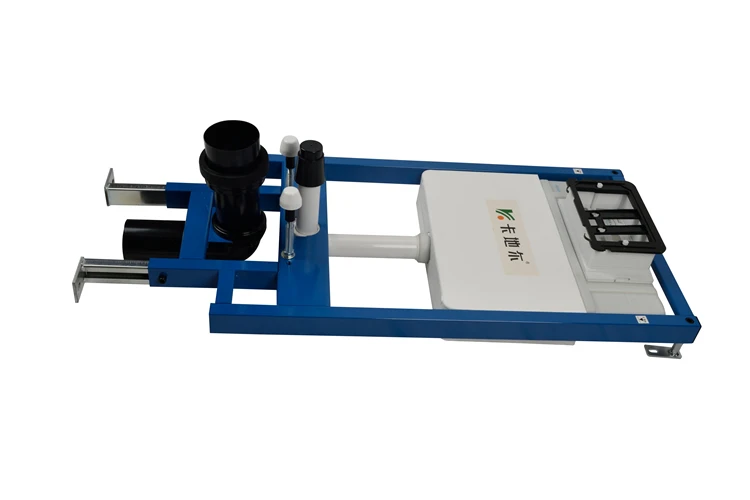

Metal frame installation guide

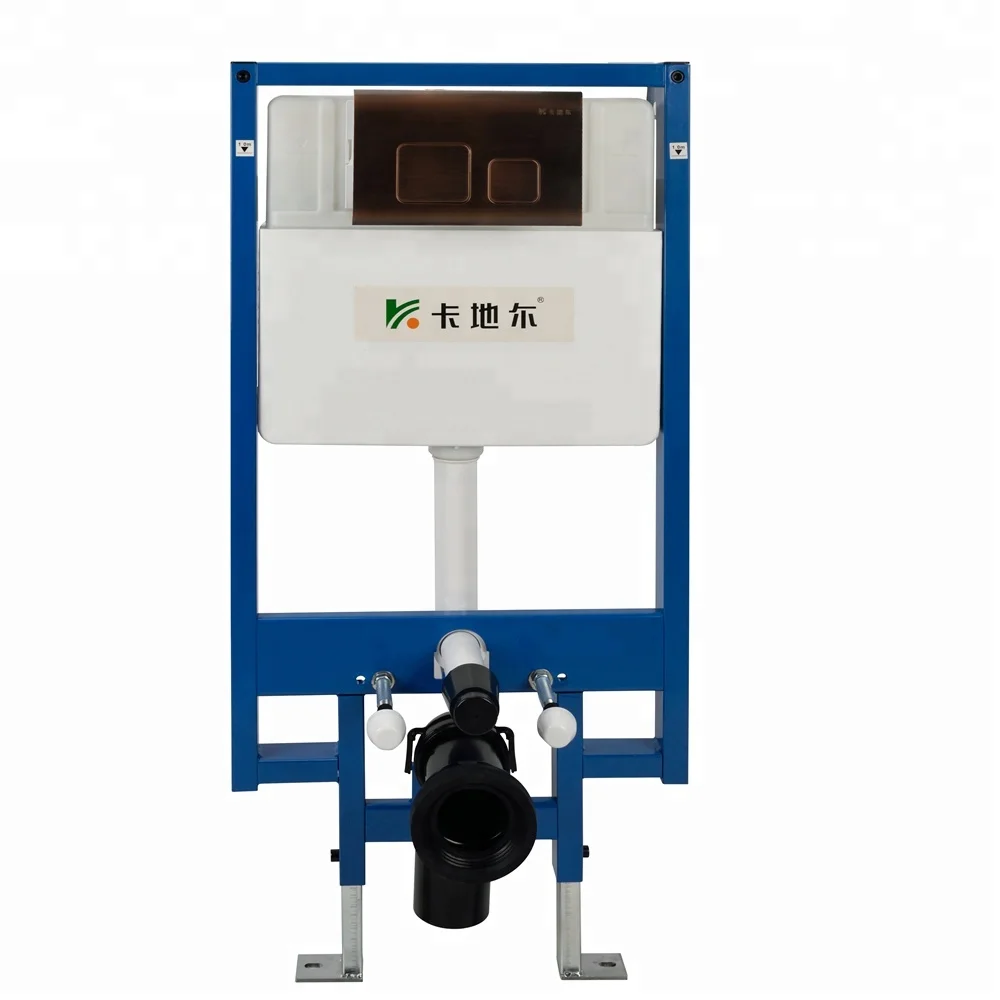

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

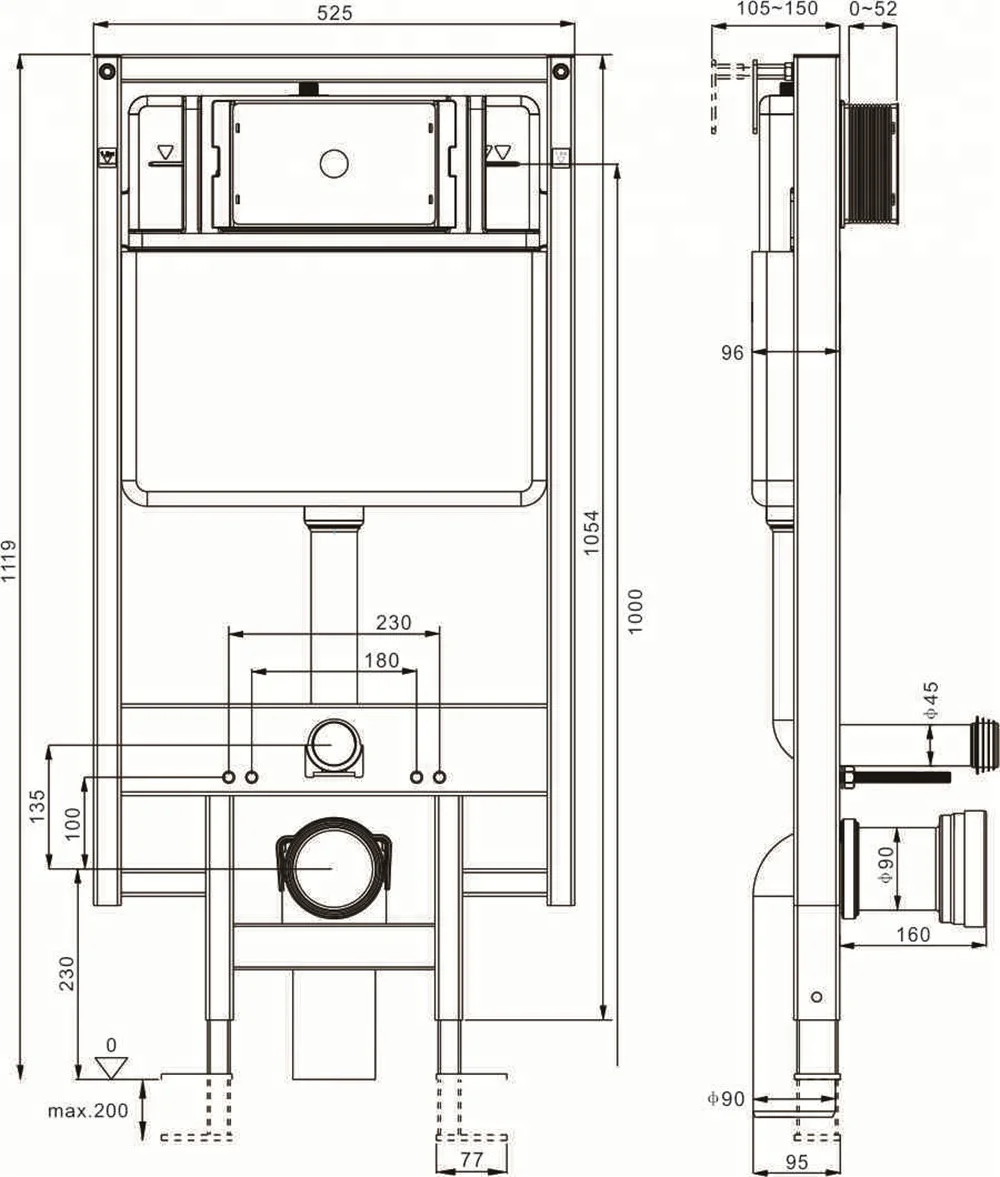

The Technical size standard requirement and installation guide of Wall hung toilet.












Factory Introduce

Factory Introduce




Kardier Advantage




1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .












Kardier New Showroom











Kardier Team
















Why choose us

Why choose us



Why to choose Kardier concealed cistern ?





1.Elegant: Multiple choices push panel decorate your bathroom.

2. Clean: Pretty easy to clean the bathroom without missing corner.

3. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

4. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.





5. Space-saving: 011 series cistern can be hidden in the wall of 110mm thickness.

6.Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes ,No trouble for installation

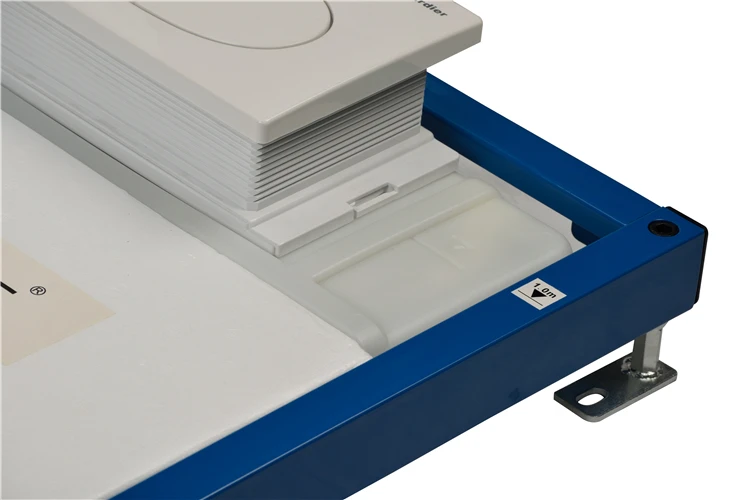

7.One meter line notice : Our frame have one meter height notice ,much more easy for plumber install our concealed cistern,seat cover after open will not touch the panel.








FAQ

FAQ



1. Can you provide the free samples?

A: If you are overseas buyers, and the price of the product is less than USD 50, we can provide a free sample, but you need to pay the freight .

2. What is the MOQ?

A: In general, up to 50 pcs.

3.Can i get better price ?

A: Yes ,there are different price for LCL,20GP and 40HQ qty .take more qty then with more discount ,pls kindly let us know your purchase qty for us give you the best price .





4. Do you offer OEM service?

A: Yes, but you need provide certification of trademark authorization and trademark registration certificate.

5.Do you offer ODM service ?

A: Yes ,but you need to provide a stable certain annual purchase qty ,and we will charge you mold fee first and return back continually till all fees returned .
