Frsky R9M lite Transmitter Module with R9 mini Receiver Board Combo For Taranis X-Lite and 900MHz long range RC system module

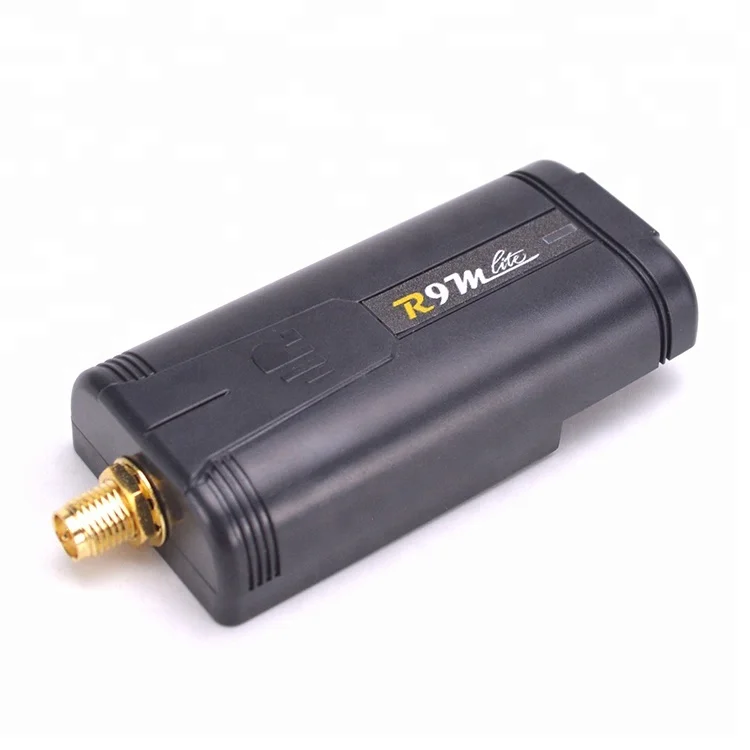

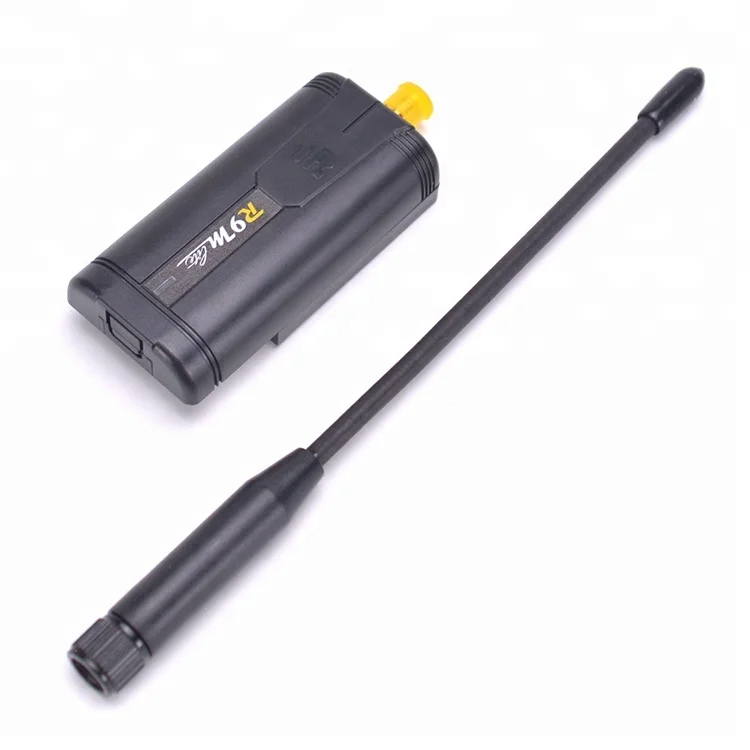

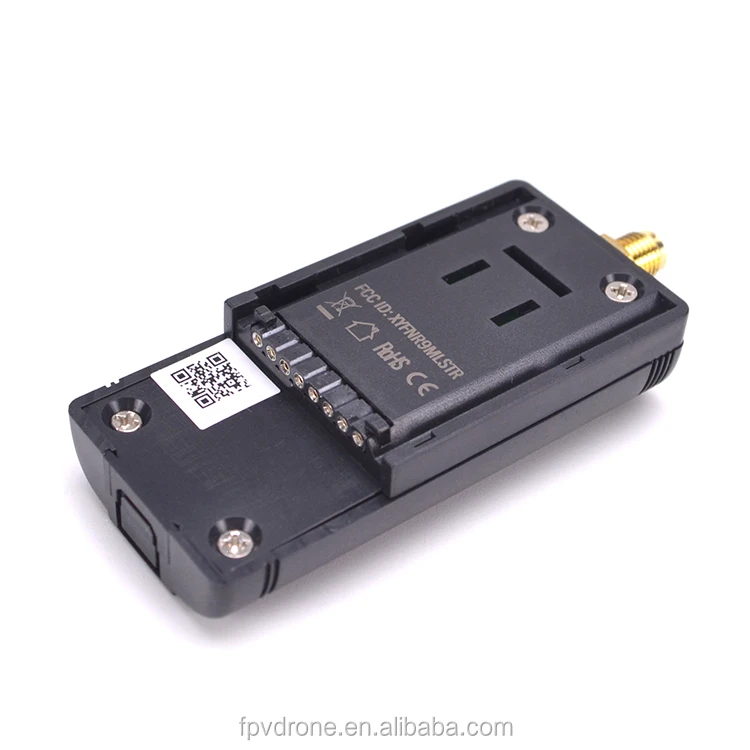

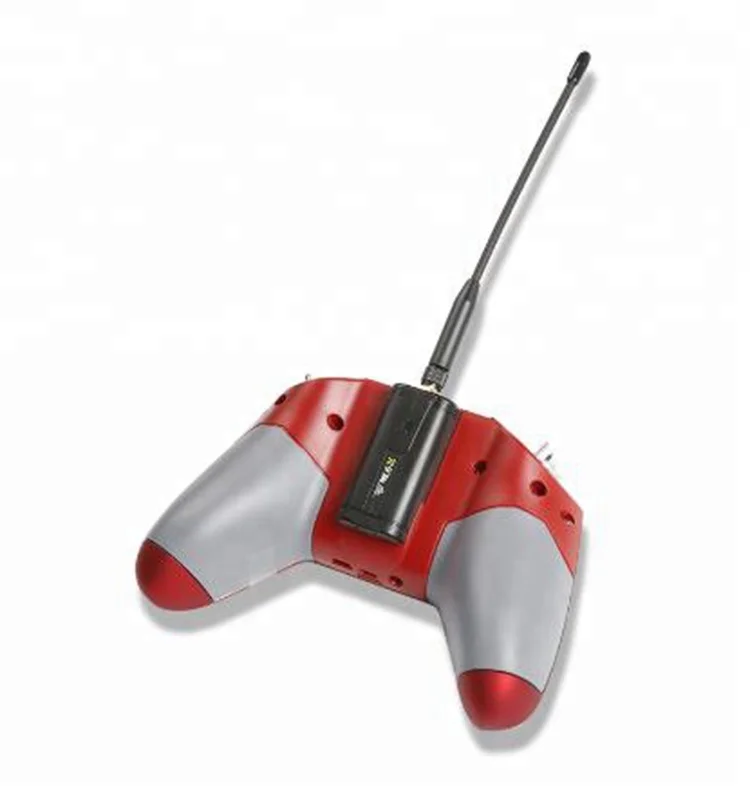

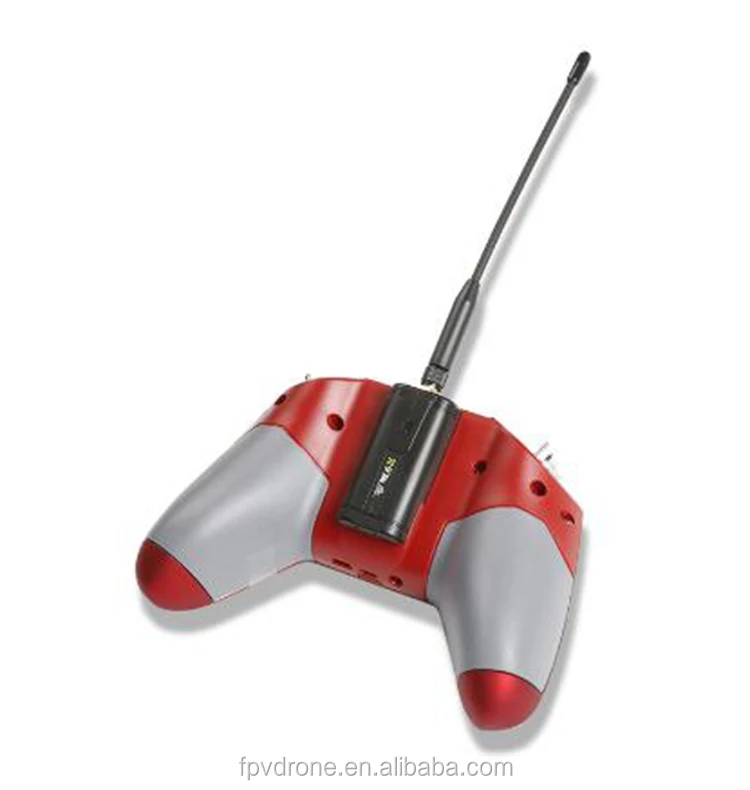

R9M Lite module is a 900MHz frequency system which is specially designed for FrSky Taranis X-Lite transmitter. This being the "Lite" version of the R9 series works perfectly with all receivers in the R9 series. In addition, it gets super low latency and high precision thanks to the upgraded digital interface and high-speed data transmission. The R9M Lite has the extreme performance with the ability to achieve long distances with one RF power output at 100mW.
SPECIFICATION:
Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
Weight: 20g
Number of channels: 16 channels
Operating Current: 100mA @ 7.2V
RF Operating Frequency: 900MHz (915MHz/868MHz)
RF Power (Non-EU): 100mW (with telemetry)
RF Power (EU): 25mW (with telemetry) /100mW (without telemetry)
Compatibility: R9 series receivers
FEATURE:
Firmware upgradable on Taranis X-Lite
Telemetry data transmission supported
Long Range, Low Latency and High precision RC system

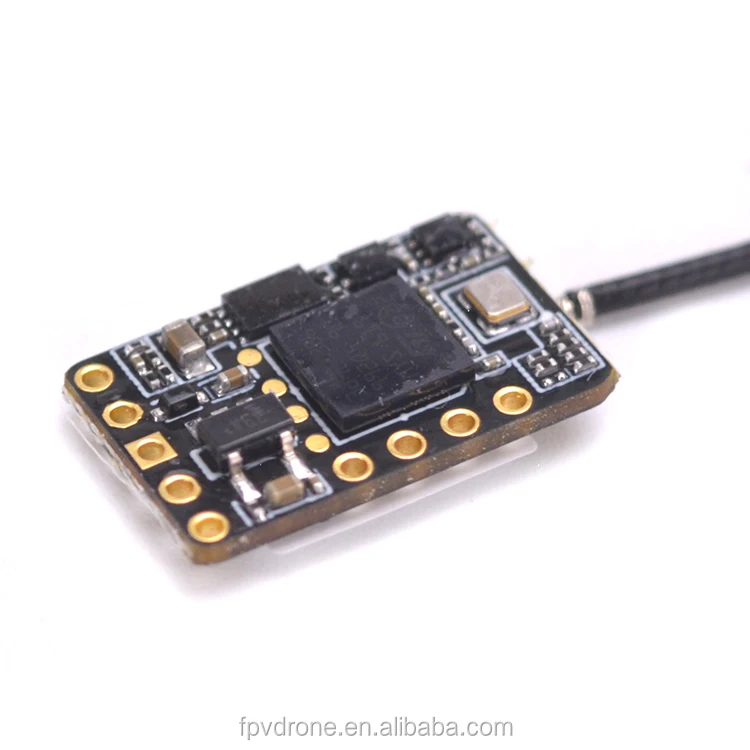

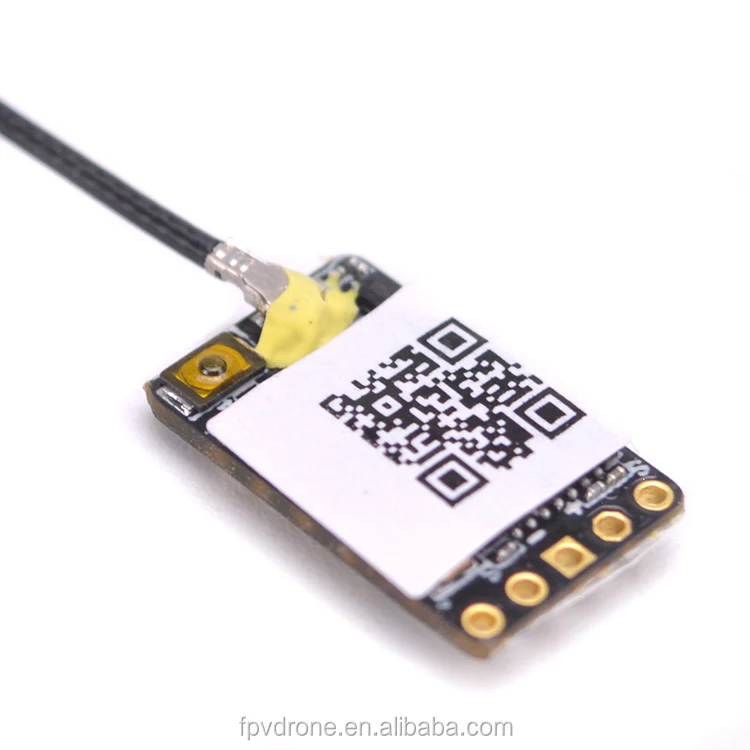

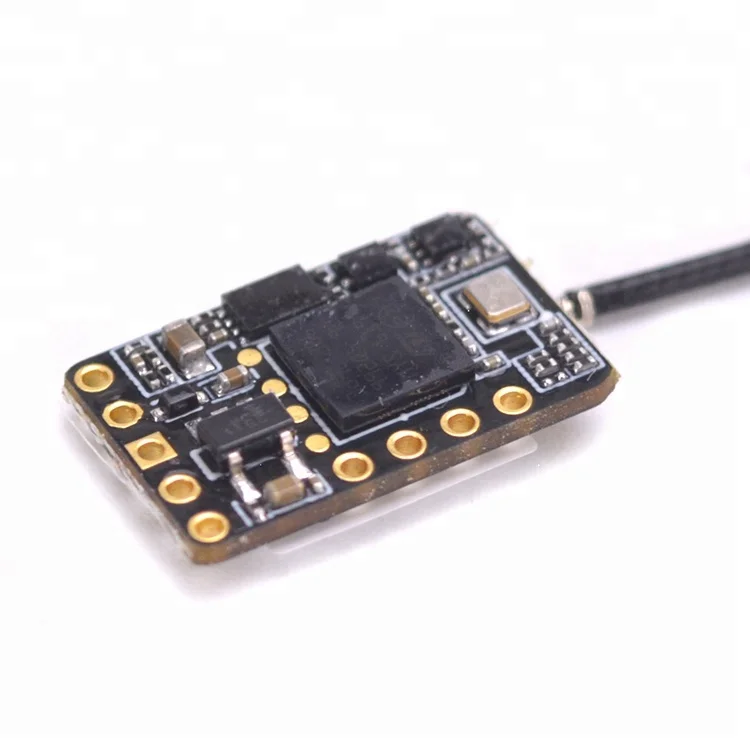

The latest 900MHz receiver from FrSky the R9 Mini. This receiver brings forth all the features of previous R9 receivers in an extremely compact and lightweight design. Super low latency and it supports the redundancy function to ensure your aircraft's safety. Ipex antenna connector makes it easy and quick to replace damaged antennas.
SPECIFICATION:
Dimension: 16*10mm (L*W)
Weight: 1.1g (including antenna)
Numbers of channel:
Non-EU Version: 4/16CH (Telemetry)
EU Version: 4/8CH (Telemetry) / 4/16CH (Telemetry) / 4/16CH (No Telemetry)
Operating Voltage Range: DC 3.5V -12.6V (3s Li-Battery)
Operating Range: Up to 10km or above
FEATURE:
915MHZ (Non-EU Version)
Mini size and superlight weight
S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
Supports redundancy function
Low latency and high precision
With RSSI output in SBUS
Detachable Ipex connector antenna
Package including :

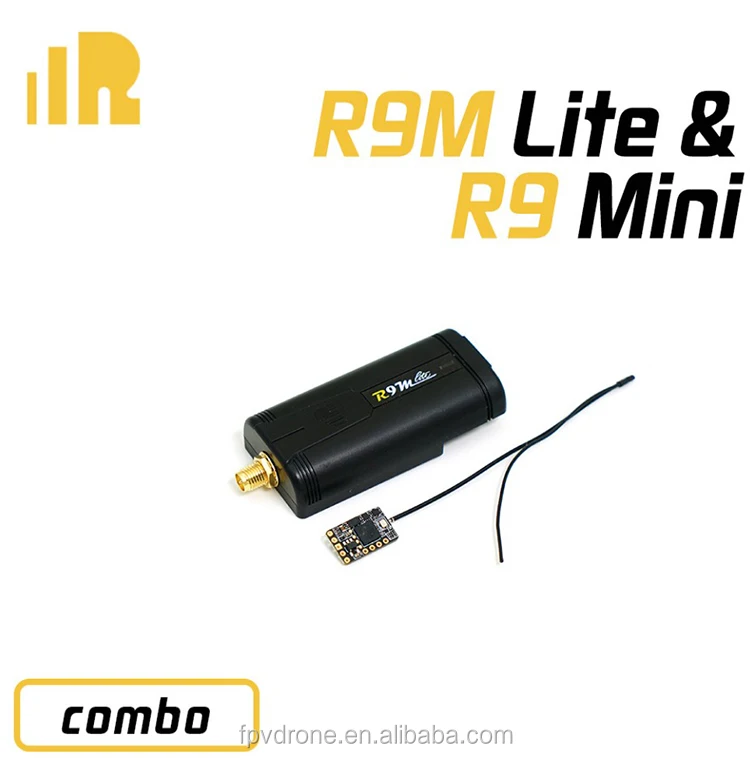

1x FrSky R9M LITE +R9 MM
1x FrSky R9M LITE +R9 MM
