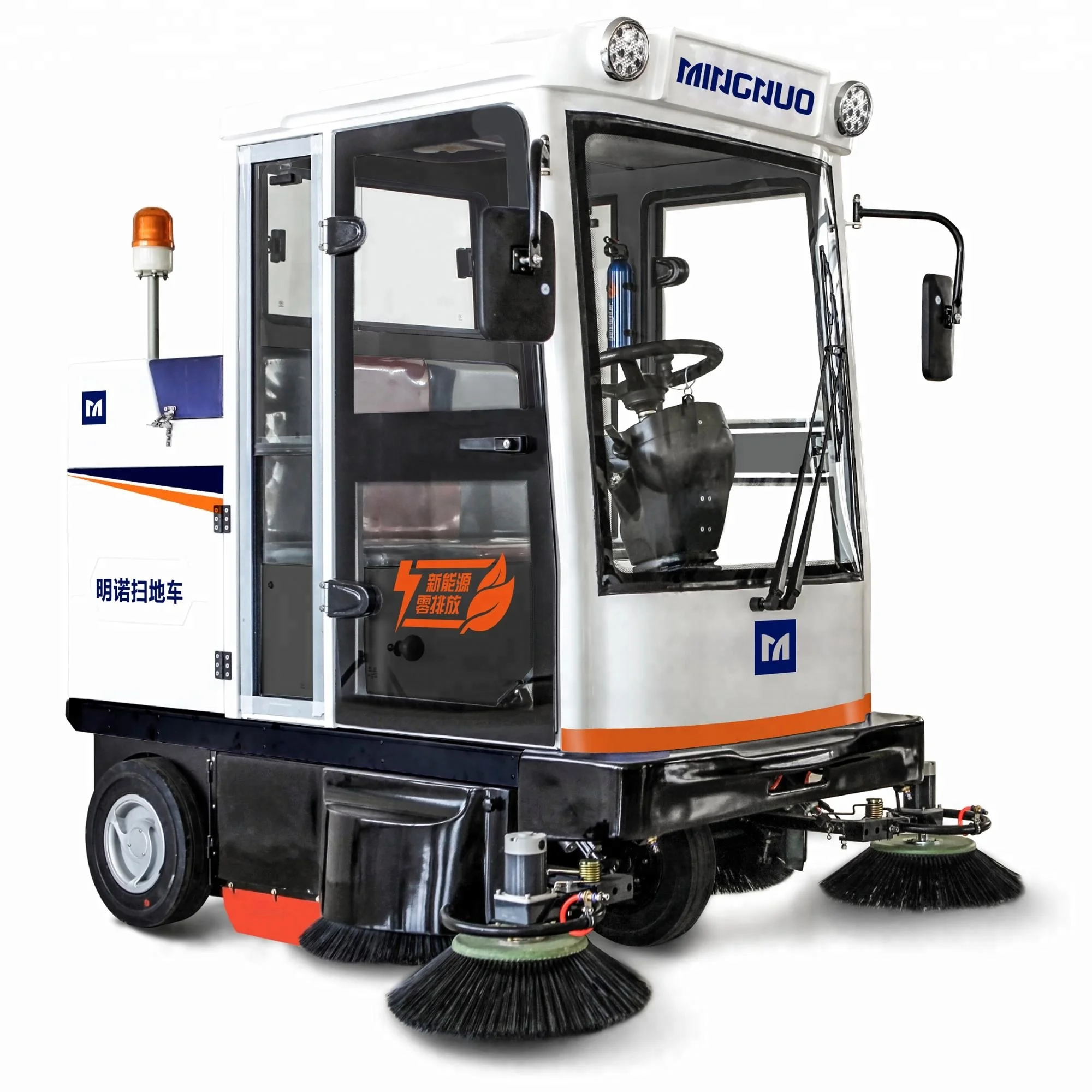

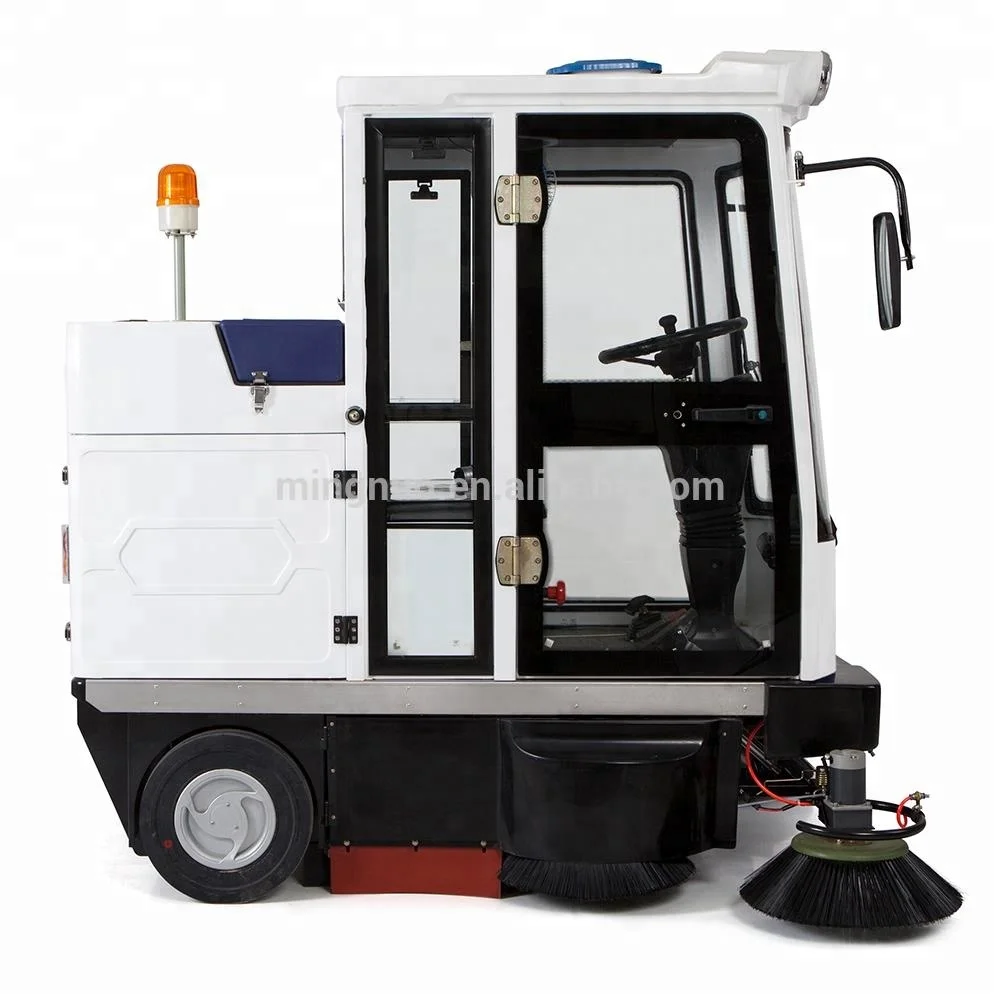

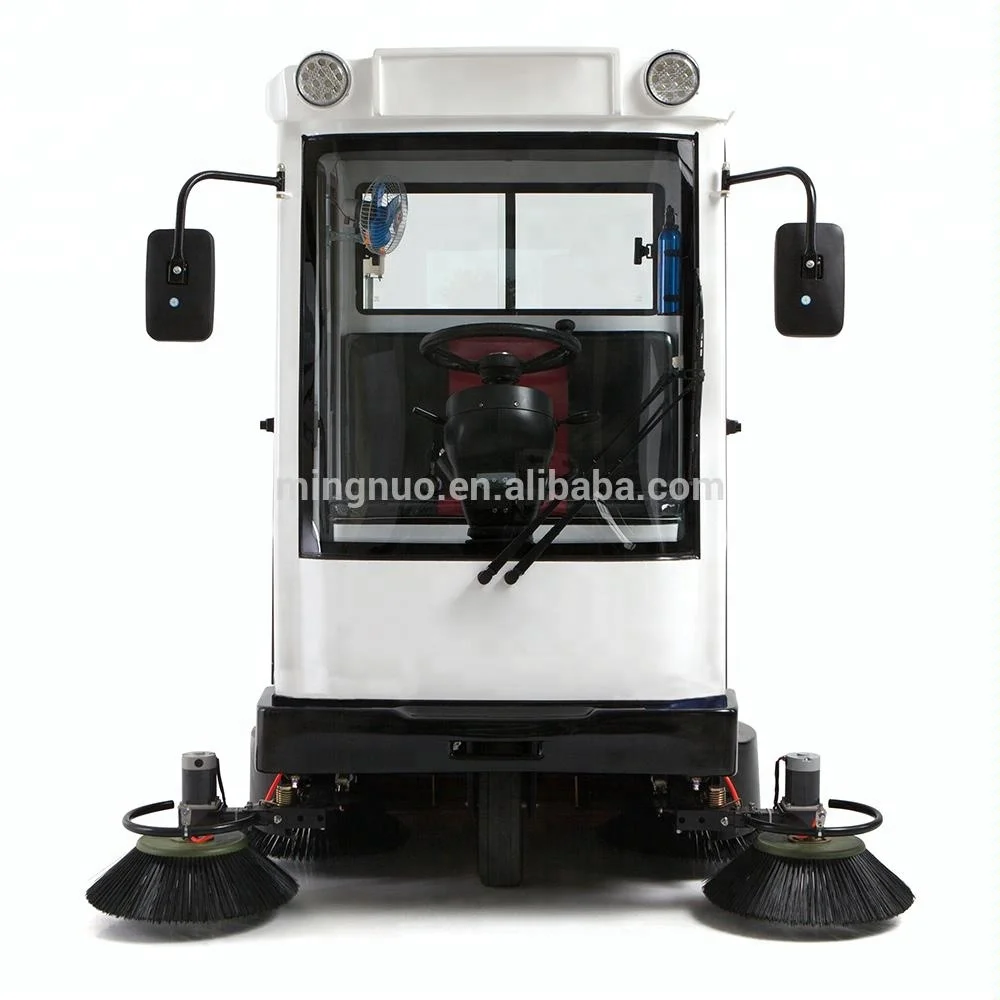

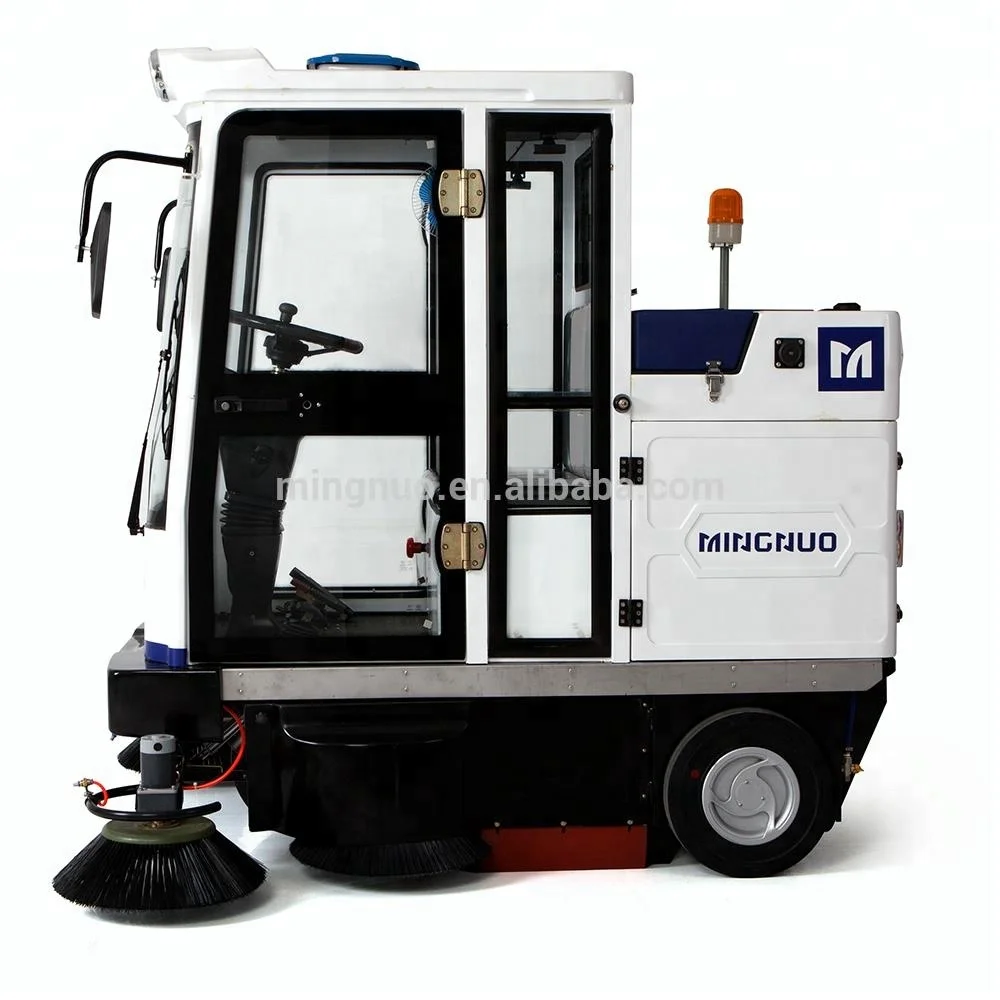

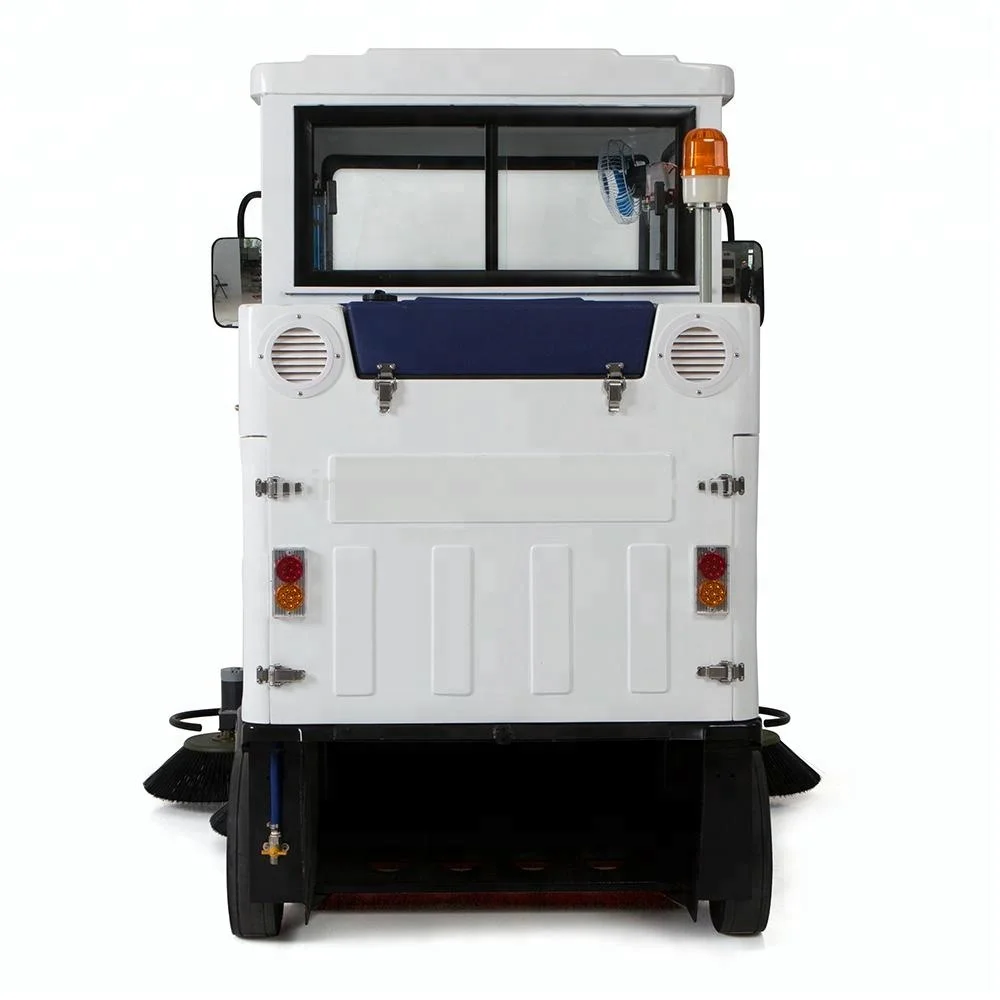

heavy dust cleaning all closed type with air condition 48V lead acid batteries multi function electric sweeper

Product Overview

Description

 MN-E800FB is featured with the enclosed cab, suitable for use in cold and harsh environment.

PARAMETERS

S/N	IITEM NO.	UNIT	SPECIFICATION
1	Sweeping width	mm	≥1900
2	Cleaning efficiency	m²/h	>13000
3	Max gradeability	%	25
4	Main brush’s length	mm	800
5	Side brush’s diameter	mm	500
6	Power supply	v	48
7	Working time	h	6~8
8	Water tank capacity	L	100
9	Dustbin capacity	L	180
10	Driving power	W	2500
11	Working power (motor) Main brush+fan+side brush+vibration	W	800+700+80×4+50
12	Working speed	km/h	7
13	Driving speed	km/h	9.8
14	Filtering area	m²	8
15	Turning radius	mm	1200
16	Dimensions(L/W/H)	mm	2100×1900×2040
17	Weel diameter	mm	400
18	Net weight	kg	900



PERFORMANCE FEATURES:

l Featured with first national advanced extra-large filtration system for three-wheel sweeper, offering larger filtration area, and stronger vacuuming ability.

l Water tank capacity of 100L, largest of its kind in three-wheel electric sweeper.

l Designed with fully enclosed cab, avoiding affecting on the cleaning due to the harsh conditions of weather, noise, etc. The double door design is convenient for disassembly in summer.

l The humanized design concept provides the user with a safe and comfortable operating environment.

l Featured with 48V maintenance-free battery, energy saving and environmentally friendly, longer continuous use, optional battery.

l Sweeper wiring harness conforms to TS16949 Standard with reliable power supply, all key connectors are retardant and waterproof.

l Core motor of sweeping system: main brush motor. Featured with self-developed rare earth motor (advantages: long life, stable performance, high speed adjustment precision, large speed ratio, hard output characteristics, and smooth running.)

l Optional PFC charger.
