New Automatic Stationery Blister Packing Sealing Machine for Battery
- Category: Blister Packaging Machines >>>
- Supplier: Wenzhou Anchuang Machinery Technology Co. Ltd.
Share on (60801645073):
Product Overview
Description

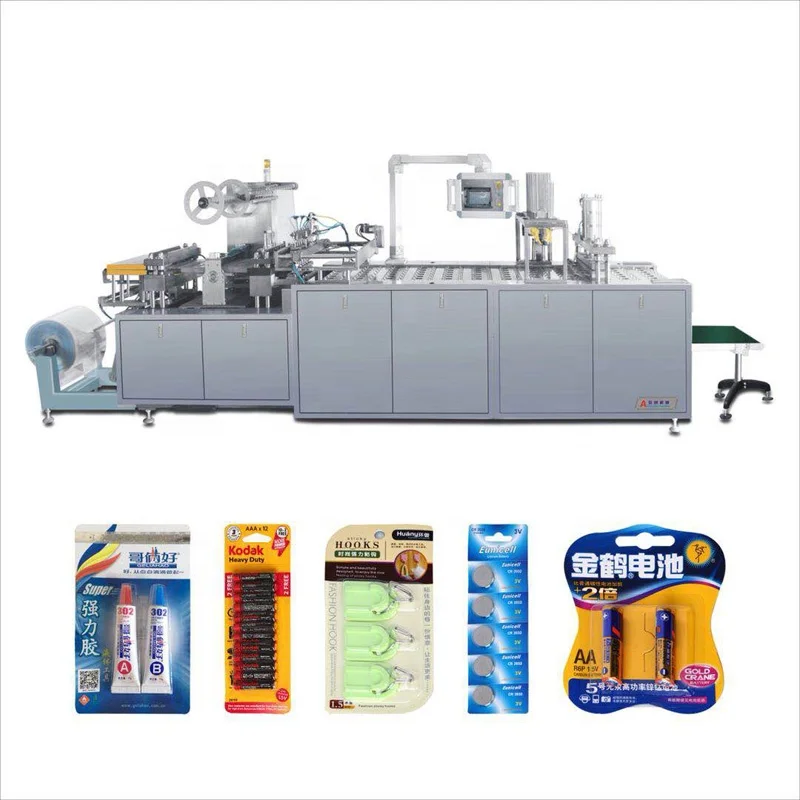

AC-600 Blister Card Packing Machine

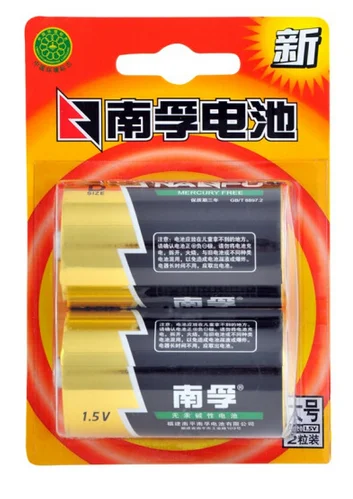

AC-600 is Suitable for half-sealing paper-plastic packaging, such as daily commodity (toothbrush, razor, rubber nipple,hook), small hardware (battery, electronics, glue), stationery (pencil, eraser, correction fluid, solid glue), auto part (brake pads, spark plugs), cosmetics (lipsticks), medicines (safflower oil, essential balm), toys (small cars), medical instruments, food etc.
Product Paramenters
Production speed | 15-18 molds/min |
Stroke range | 30mm-260mm |
Max forming area | 500mm*180mm |
Max forming depth | 35mm |
Forming heating power | 3.5kw(*2) |
Heat sealing power | 4.5kw |
Total power | 13kw |
Worker | 2 person |
Air consumption | ≥0.5m³/min |
Air Pressure | 0.5-0.8mpa |
Packing material（PVC）(PET) | thickness 0.15mm-0.5mm |
Max paper dimension | 600mm*200mm*0.5mm |
Total Weight | 2500kg |
Machine dimension(L*W*H) | 6200mm*800mm*1880mm |
Machine dimension(L*W*H) | 5000mm *1100mm*1800mm |
Production Process &Detial

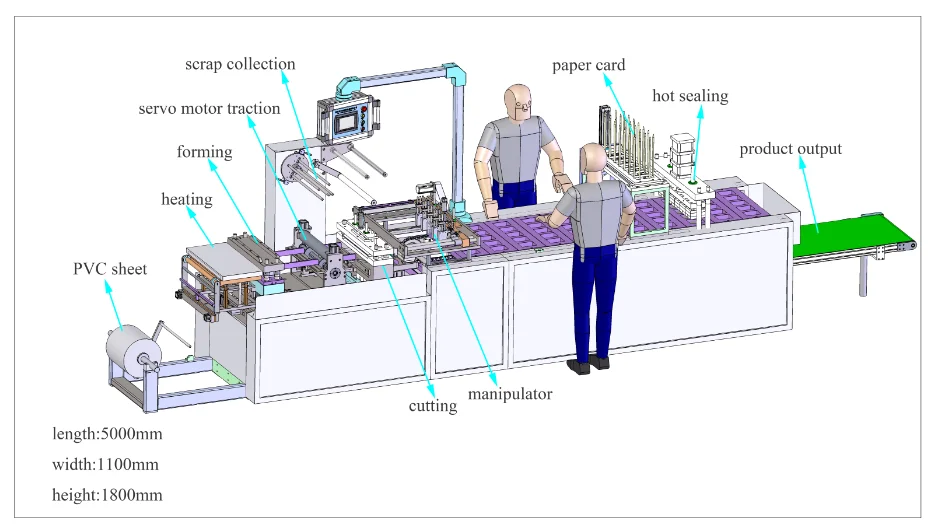

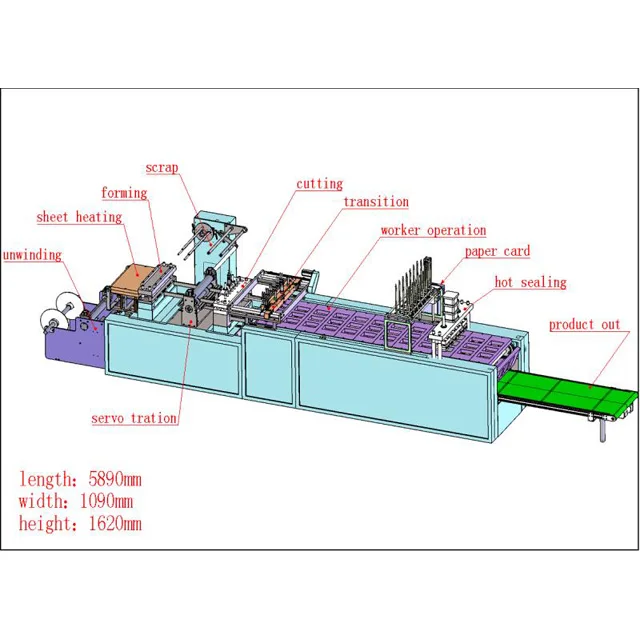

The production process is PVC heating---Blister card forming---servo motor traction---scrap collection---blister cutting-manipulator grap the blister to the tray--manual place product ---paper card lay down ---blister and paper card hot sealing---product output
Optional: Euro-hole device, labeling machine

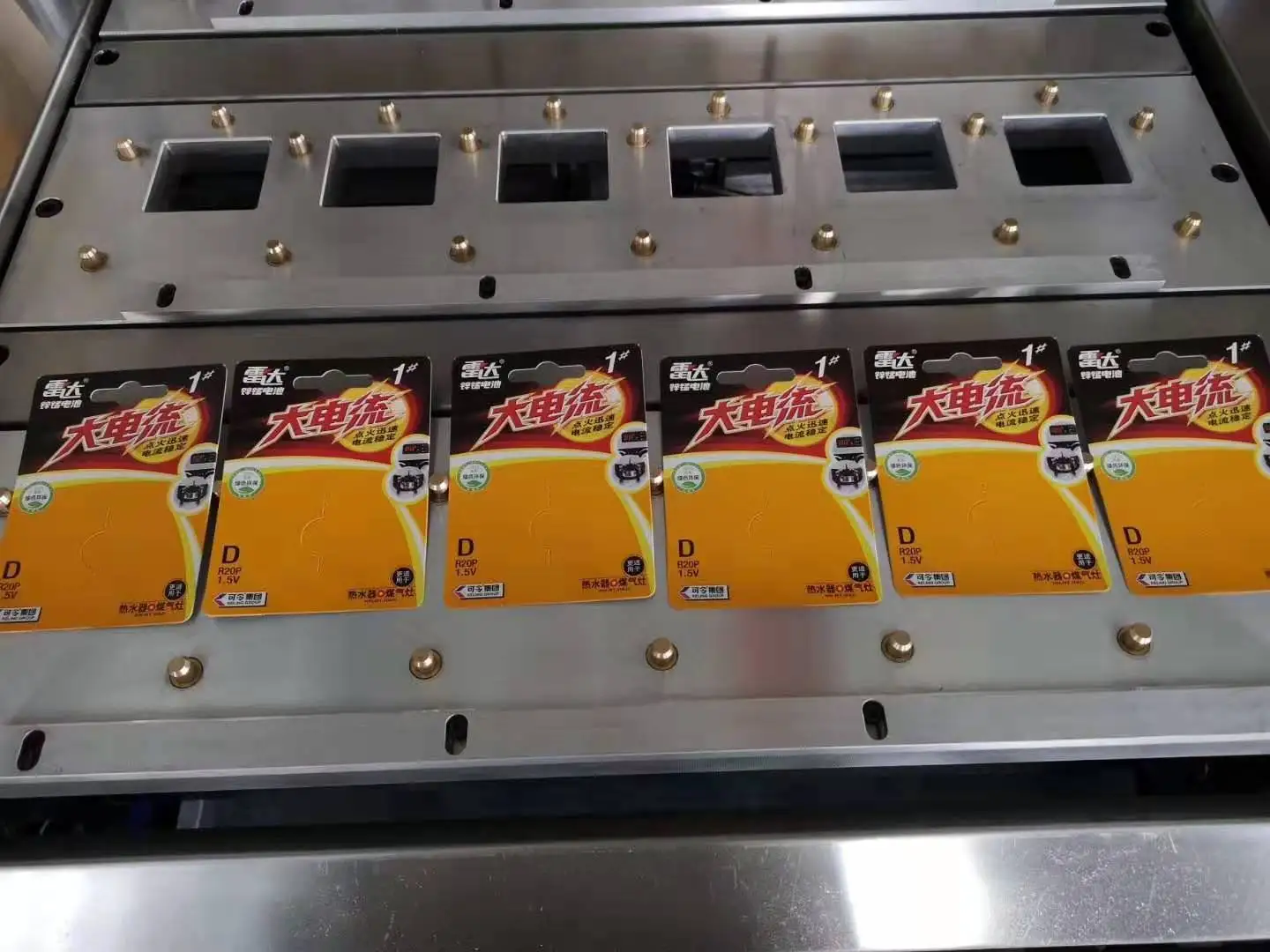

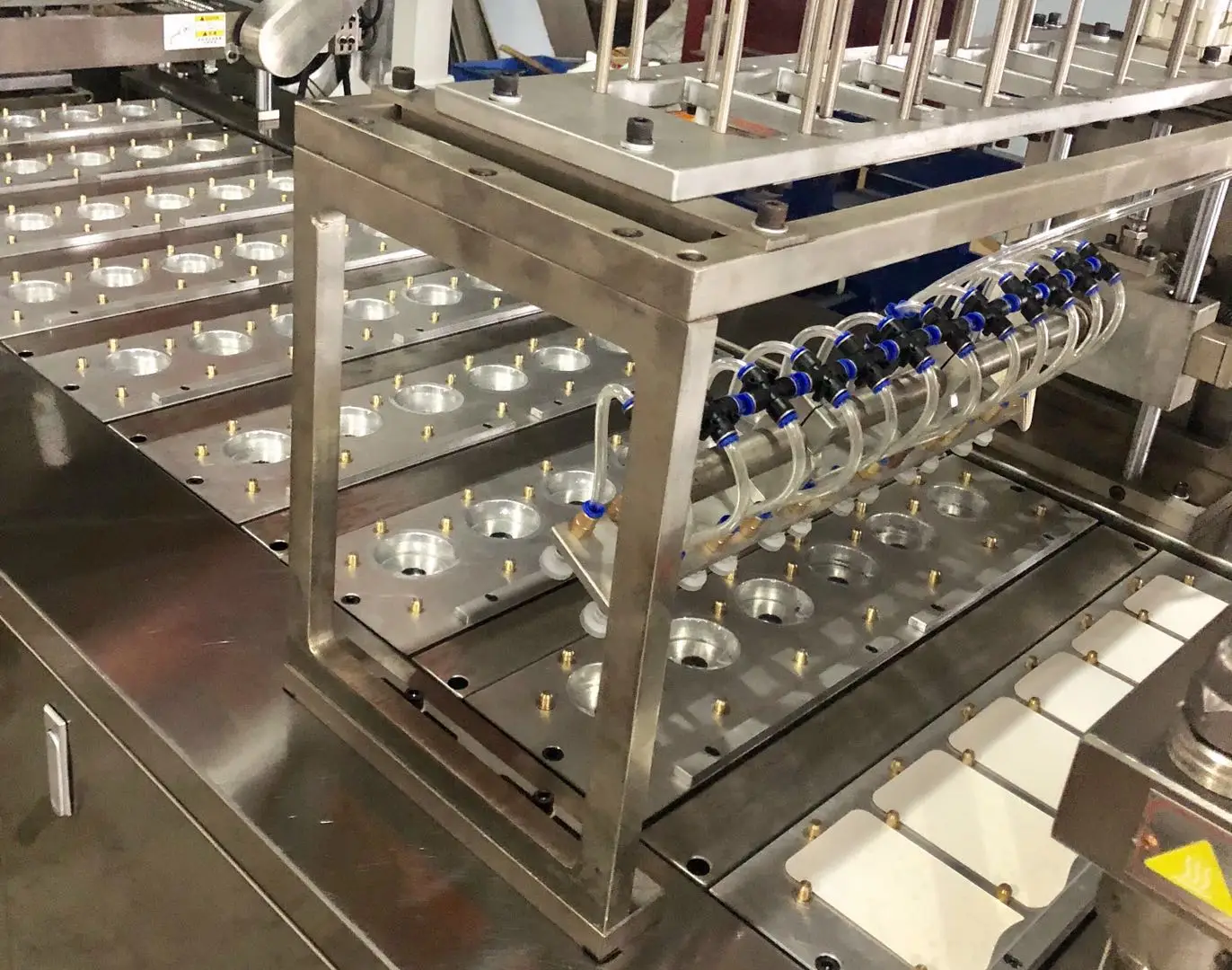

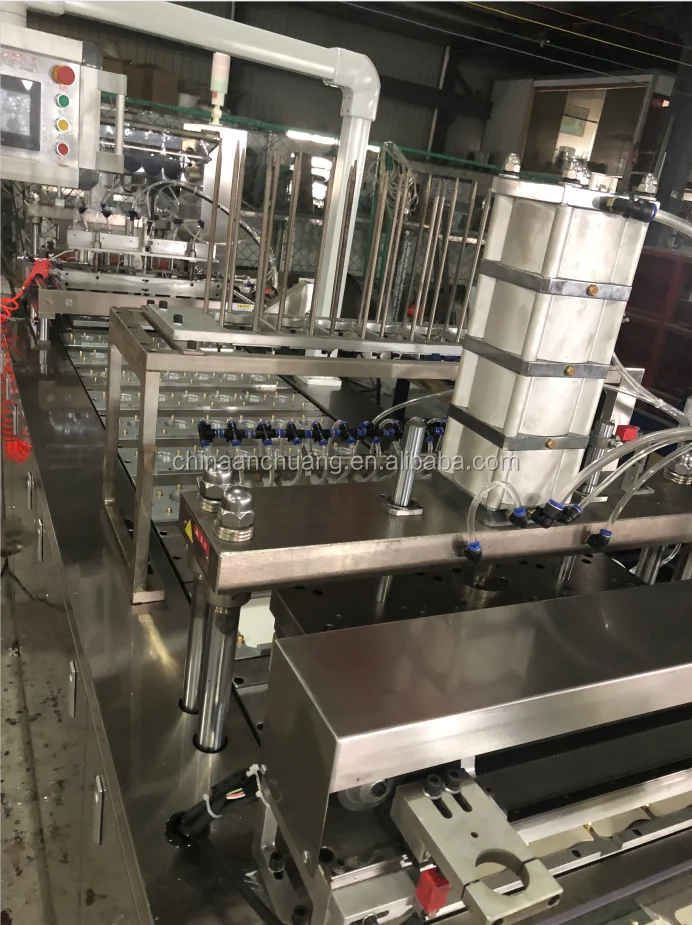

Machine real shot detail as below:
Recommend Products

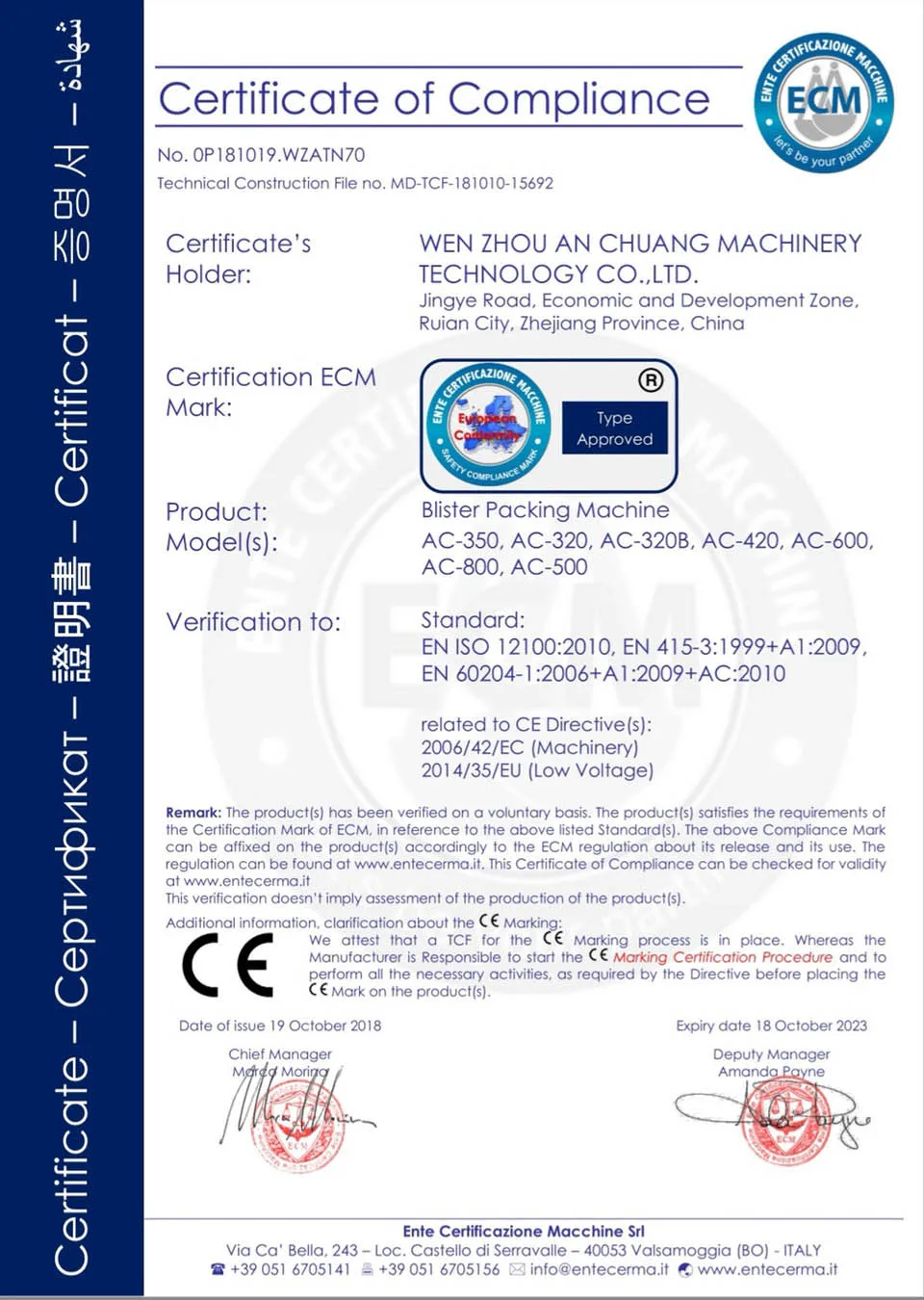

Certifications

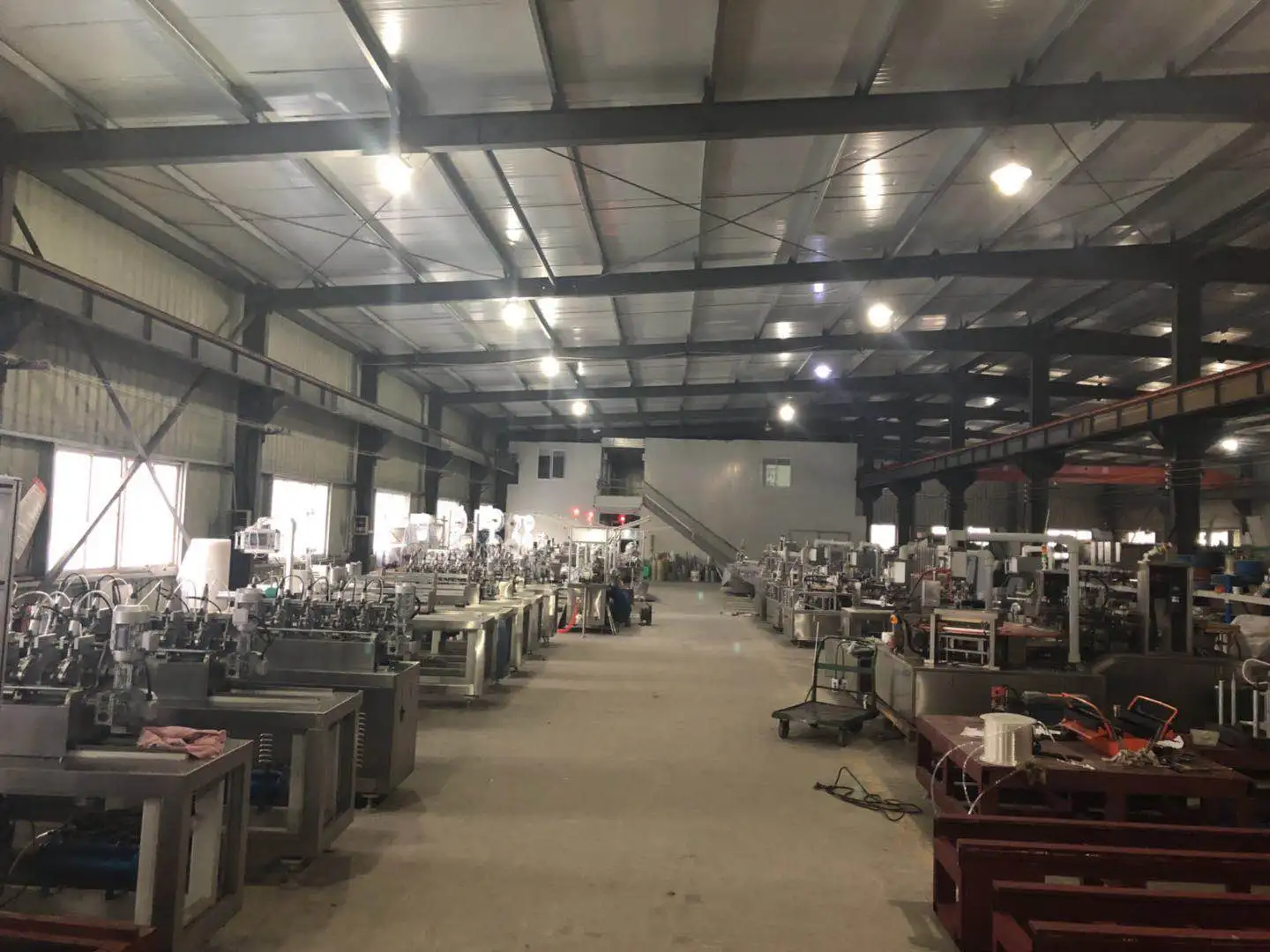

Company Profile
Wenzhou Anchuang machinery technology Co., Ltd.
Anchuang is a manufacturing & technology company which is specialized in processing and distribution of packing related machinery.In the ever competitive market through long term cooperation,, Anchuang performs like its name, adheres to the principles of high quality, low prices, quick reaction and flexibility to build business partnerships. Through the continued support of old and new clients, we are certain the future holds great success for us

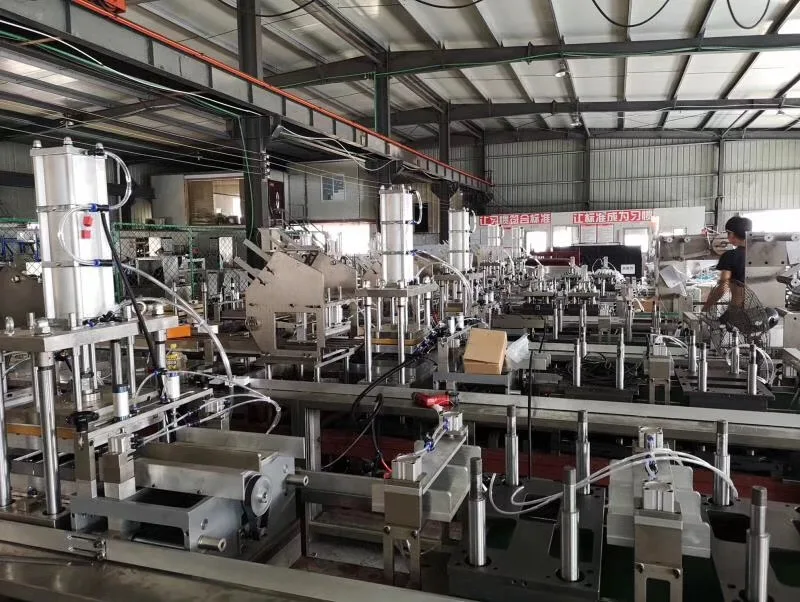

Exhibition
Product packaging&Shipping
FAQ
1. What can your machine do?

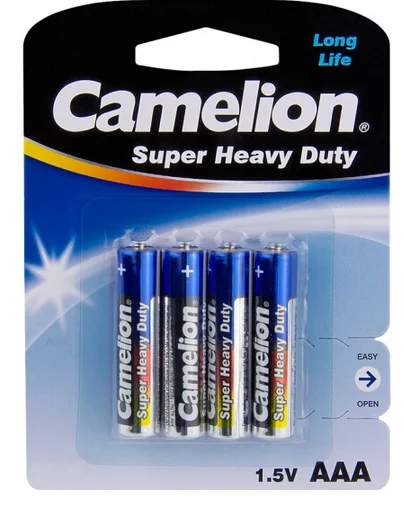

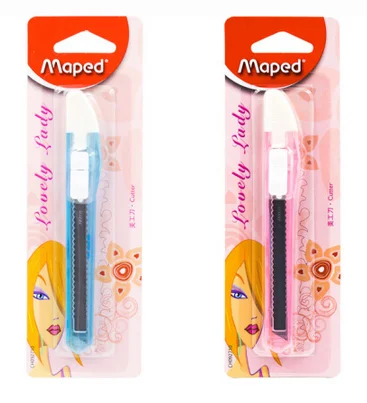

Our machine can pack all kinds of blister and paper cards package that you can see in the supermarket,like the
battery,stationery,small products and etc.
2.What size of the package you can make?
The forming area is500*180mm,,the depth is 35mm and
other different sizes according to customer's requirements.
3.What information should I offer if I want to get a quotaion?
- Speed requirement
- machines requirement
-it is better you can show us the pictures of your sample
4.how to get to your factory?
Our factory is located in No.8 Jingye road developed zone of ruian city
Zhejiang province china,and we can pick up you from wenzhou airport
and ruian railway station.
Our machine can pack all kinds of blister and paper cards package that you can see in the supermarket,like the
battery,stationery,small products and etc.
2.What size of the package you can make?
The forming area is500*180mm,,the depth is 35mm and
other different sizes according to customer's requirements.
3.What information should I offer if I want to get a quotaion?
- Speed requirement
- machines requirement
-it is better you can show us the pictures of your sample
4.how to get to your factory?
Our factory is located in No.8 Jingye road developed zone of ruian city
Zhejiang province china,and we can pick up you from wenzhou airport
and ruian railway station.
