Certified explosion proof IP65 high quality industrial electrical control box

Technical parameters

Main technical data

Intended use: zone0, 1&2 or zone 20,21,22
Ambient temperature use:-55---60
Degree of protection:IP65
Rated voltage:max 380V Rated current:max 16A
Terminals:2*2.5mm²  PE terminals:3*4mm²
Material of enclosure:Alloy plastic of static resistence
Meet the standard: IEC60079 EN61241
Cable entry:
                  standard configure:
                                  molded plastic 1.5*M20,cable outer diameter φ 5.5-13mm

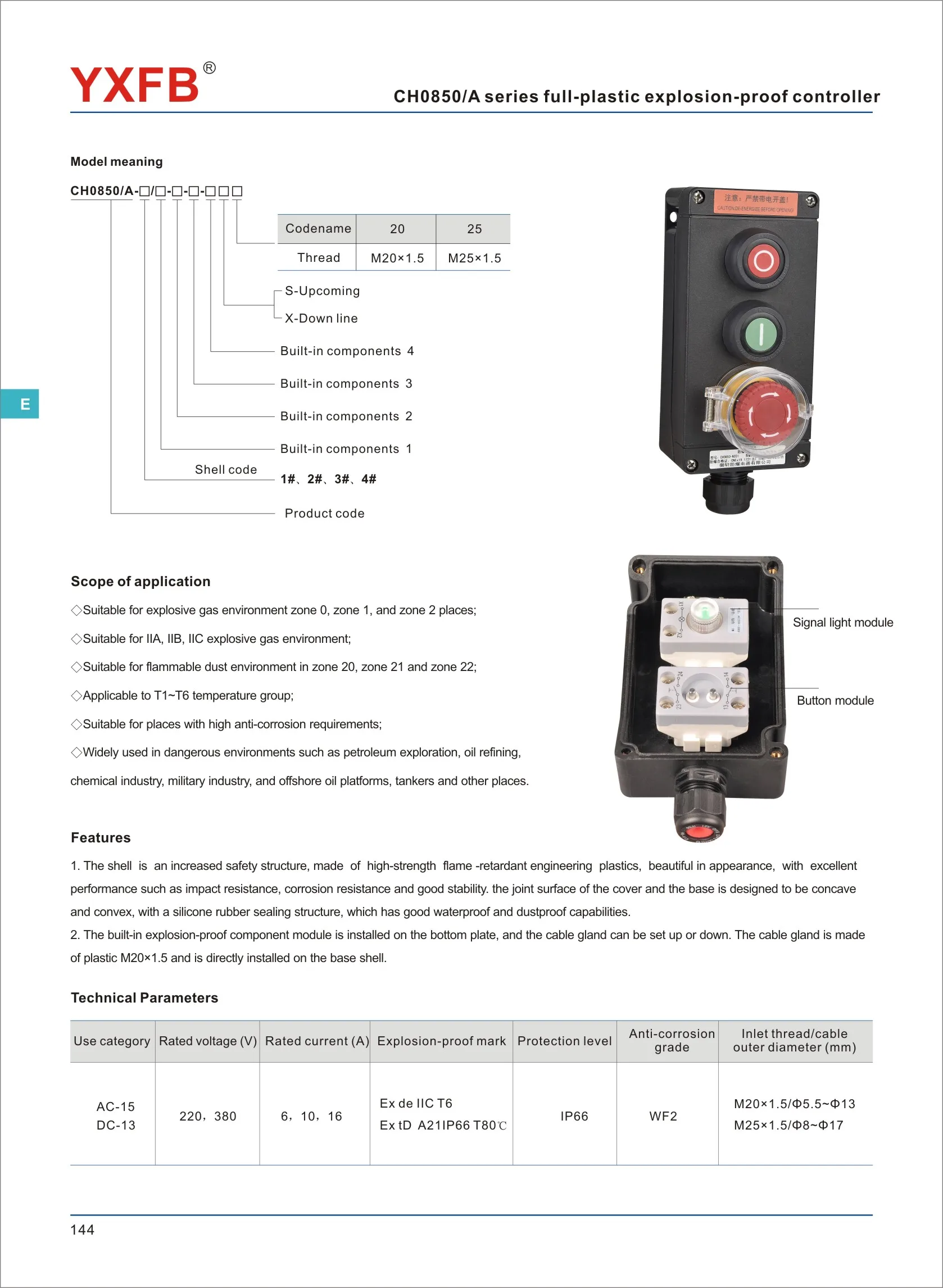

Intend use:
1,Suitable for explosive atmospheres: zone0, zone 1 and zone 2.
2,Explosive atmosphere: class IIA, class IIB and class IIC.
3,Suitable for flammable dust atmosphere: zone 20, zone21 and zone 22.
4,Suitable for temperature classes: T1-T6.
5,Suitable for high corrosion resistance place.
6,It is widely used in oil exploration, oil refining, chemical industry, military, other hazardous environment, offshore oil platform, oil tanker and other place.

Features:
The shell is increased safety structure, made of high strength refractory engineering plastic. It has good appearance, impact resistance, corrosion resistance and good stability. The concave-convex joint is designed between the cover and body which the silicon rubber bar is sealed between them, it has good waterproof and dust proof ability.
