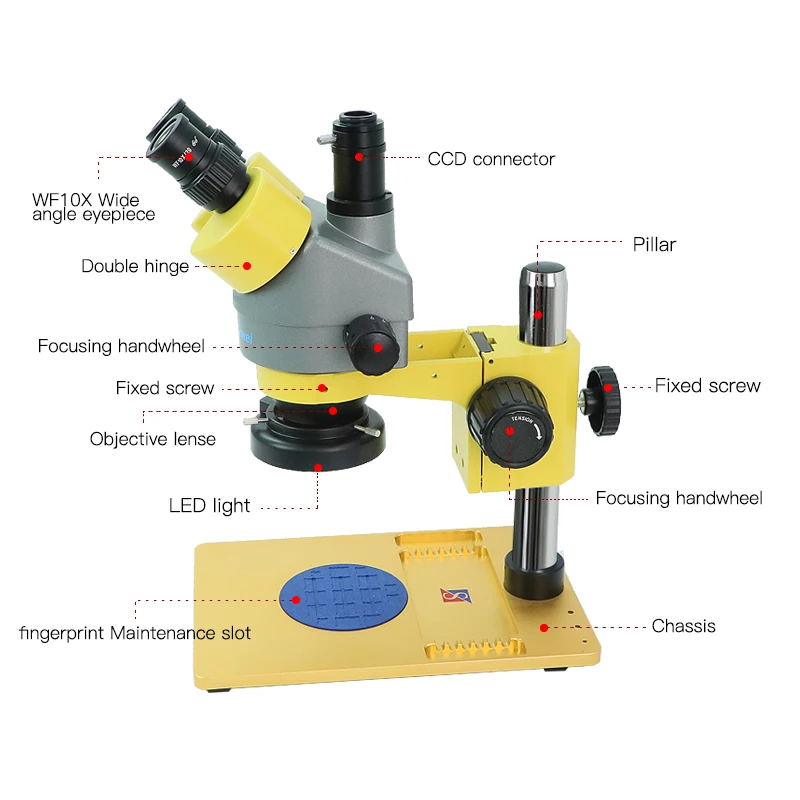

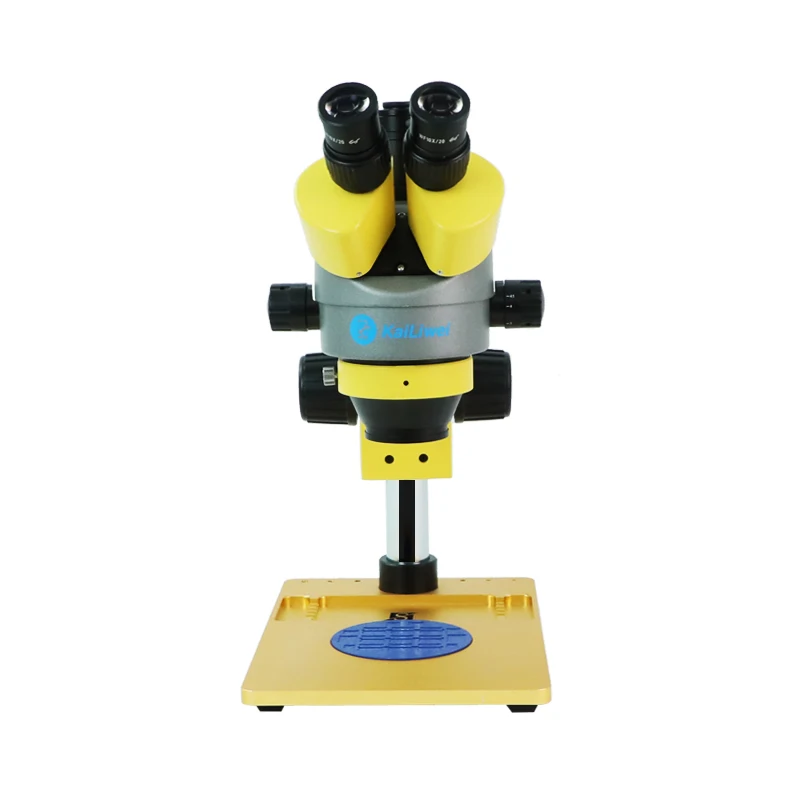

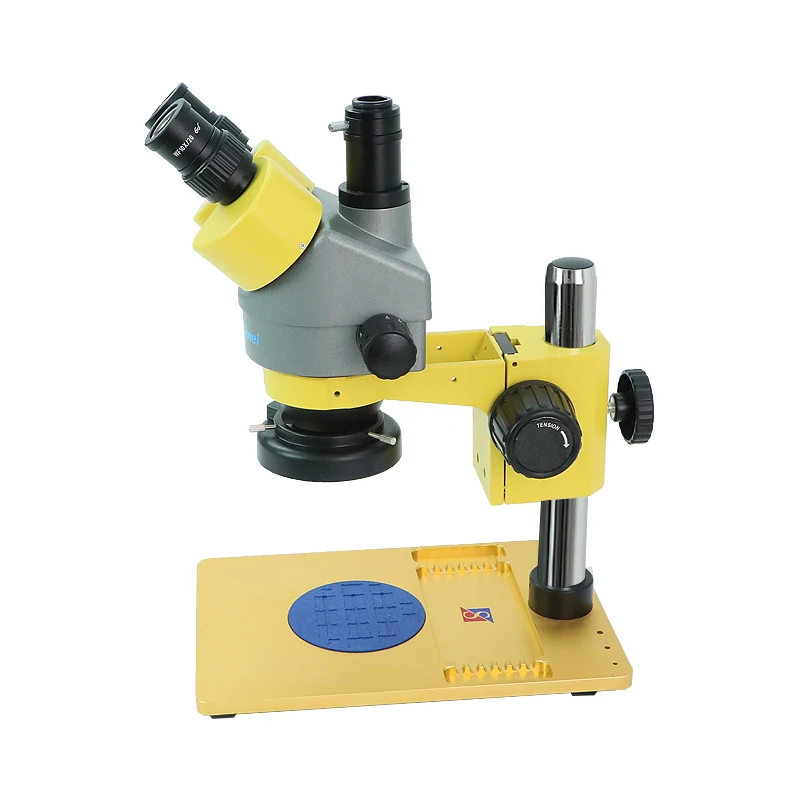

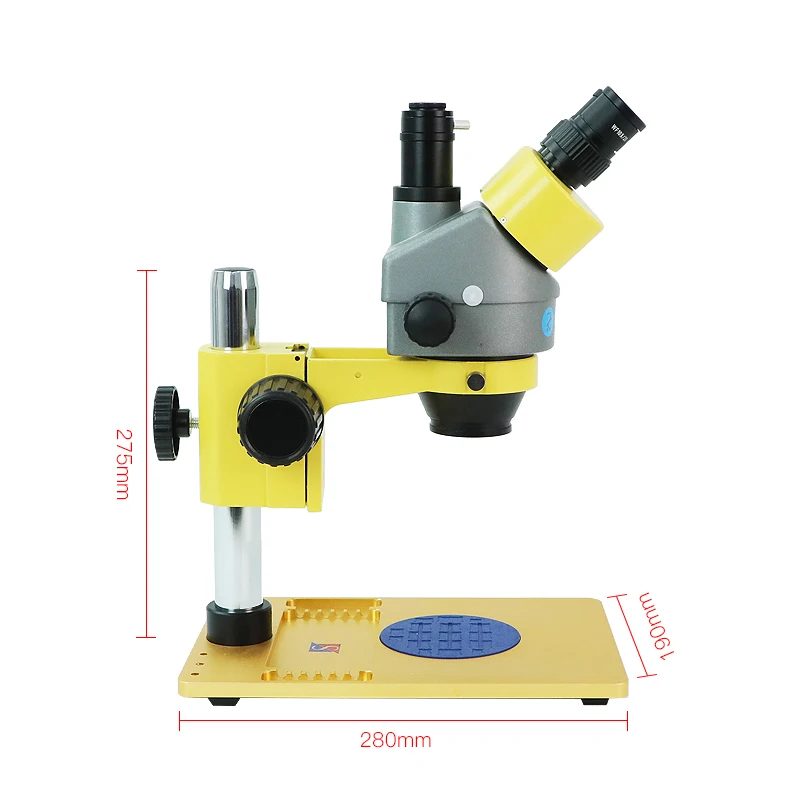

Metal Anti Temperature Working Base Trinocular Simul Focal PCB Repair Microscope

Kailiwei Electronic Repair Trinocular Stereo Microscope For Mobile Phone

1. This is a 7X-45X continuous-zoom trinocular stereo microscope head with a simultaneously-active photo port.
2. This design removes the need to disable an ocular port to use the photo port, instead routing the image continously to your imaging system.
3. It includes a pair of focusable 10X high-eyepoint, super wide-field eyepieces.
4. It is simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port Have well-focused, clear images on your PC or video Screen and through the microscope eyepieces at the same time

5. Equip with the allumium alloy metal repair base and anti temperature working plate,  perfect for repair work

1) Head:45°Inclined 360°rotatable Trinocular Stereo microscope;

2) Eyepieces: wide field WF10X/20;
3) Zoom range:6.5:1;
4) Objection zoom: 0.7x-4.5X;
5) Total magnification: 7x~45x;
6) Both ocular tubes have diopter adjustment ±5dp;
7) Interpupillary distance:2-3/16″~2-15/16″(55~75mm);
8) Working distance: 100mm;
9) Focus adjustment stroke:2-3/8″(50mm);
10) White/black plastic stage plate:3-3/4″(95mm) in diameter.

 Metal Allumium Alloy Working Base With anti temperature working plate

     1. Metal Base For trinocular Stereo microscope, More stable and Durable

     2. for sort out the screwdriver , tweezers and other tool, make desk clean

     3. improce the working efficent of work

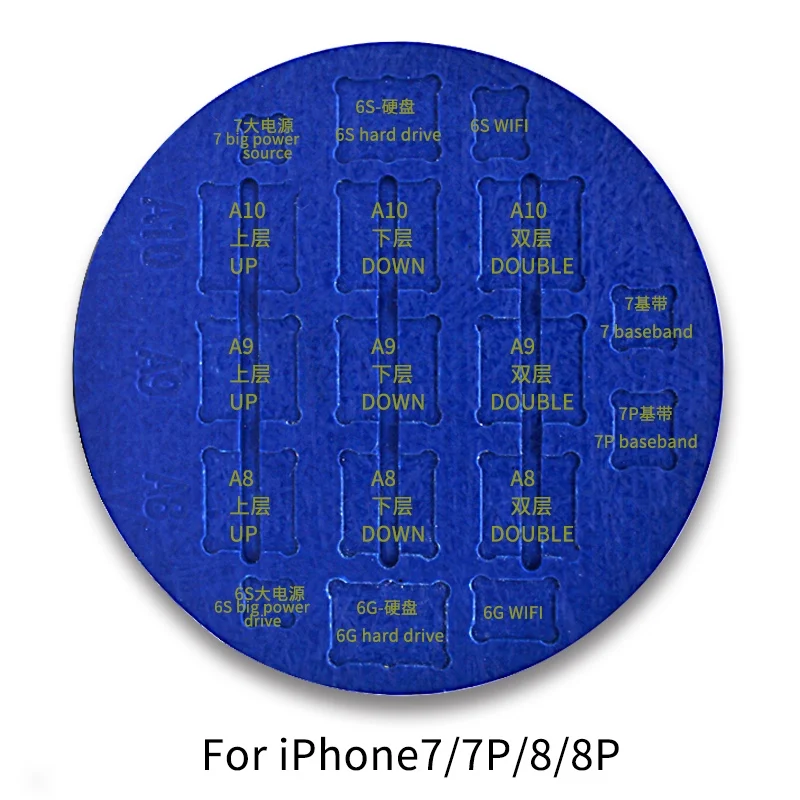

This product is used for IC repair Location under the Binocular Microscope, Operation convenient.
it's made of composite stone, high temperature Resistant,
It's easy to remove IC glue and do soldering work.

Packing list of the pcb repair microscope

1.One  7x~45x Zoom Stereo Trinocular Microscope Head
2.One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
3.One metal repair pad with anti temperature round table
4.One Focusing Rack
5.One Pair of Eye-guards
6.One Dust Cover

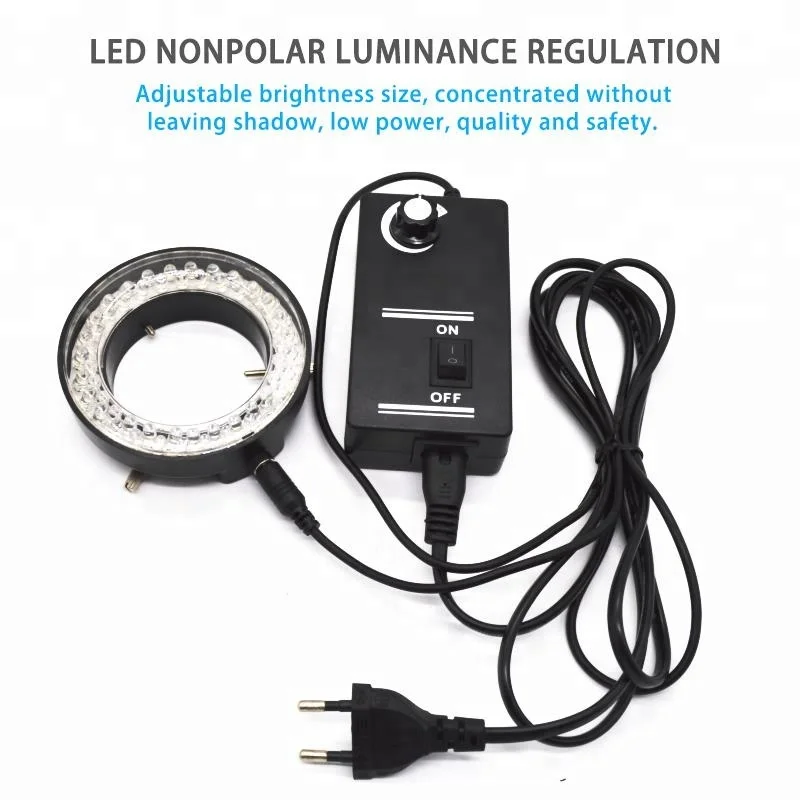

7.56 brightness adjustable led ring light
