Building Ceiling Tile T Bar T Grid System Roll Forming Making Machine

Structural concept: Multi-storey buildings in the light steel structural system most commonly used as a framework structure,according to the needs of the construction concept is sometimes also used suspension system. Column and Beam used Hot roller or welding shaped H section and sometimes it can be box-section column. Due to limited section of H beam , mainly use of welded Beam . Framework structure in flexible layLayout , every parts stiffness is relatively uniform , simple structure, easy construction.simple structure, easy construction. Its Its natural cycle is longer, lighter weight, for earthquake-insensitive.

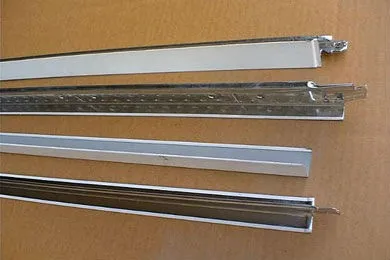

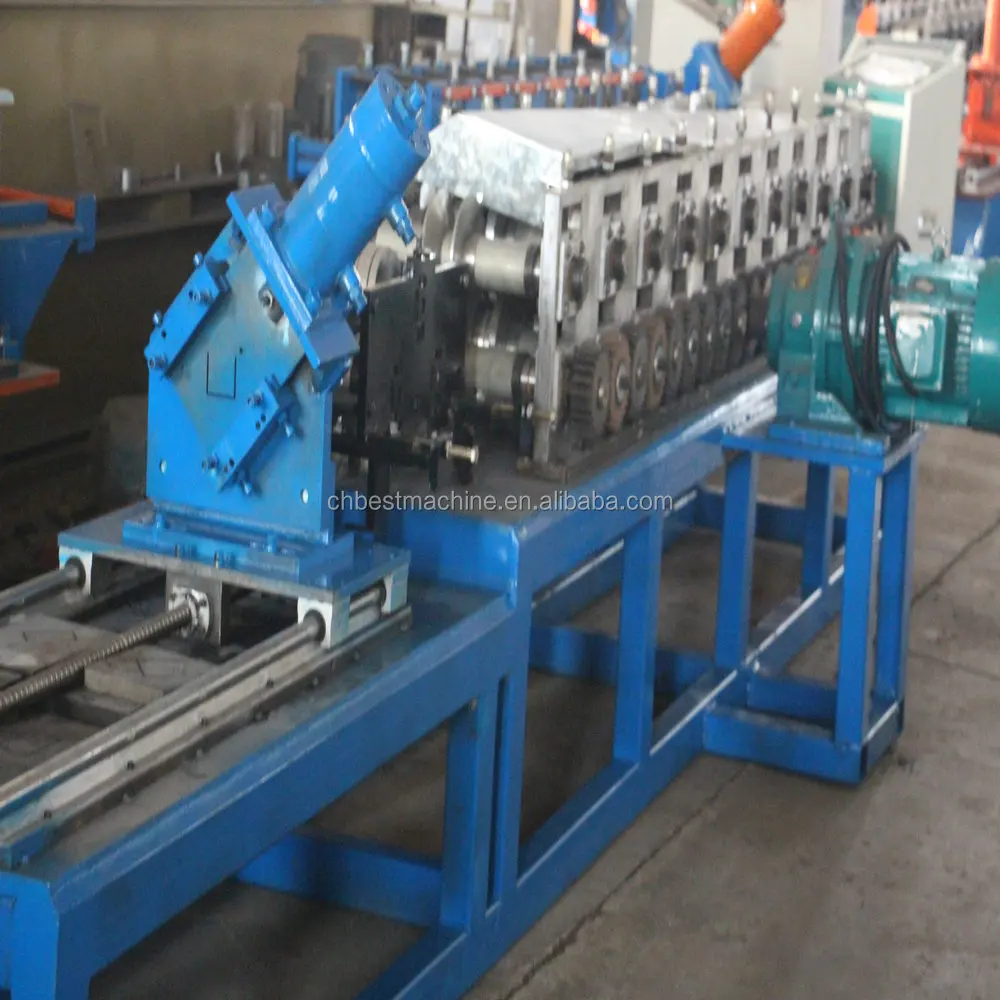

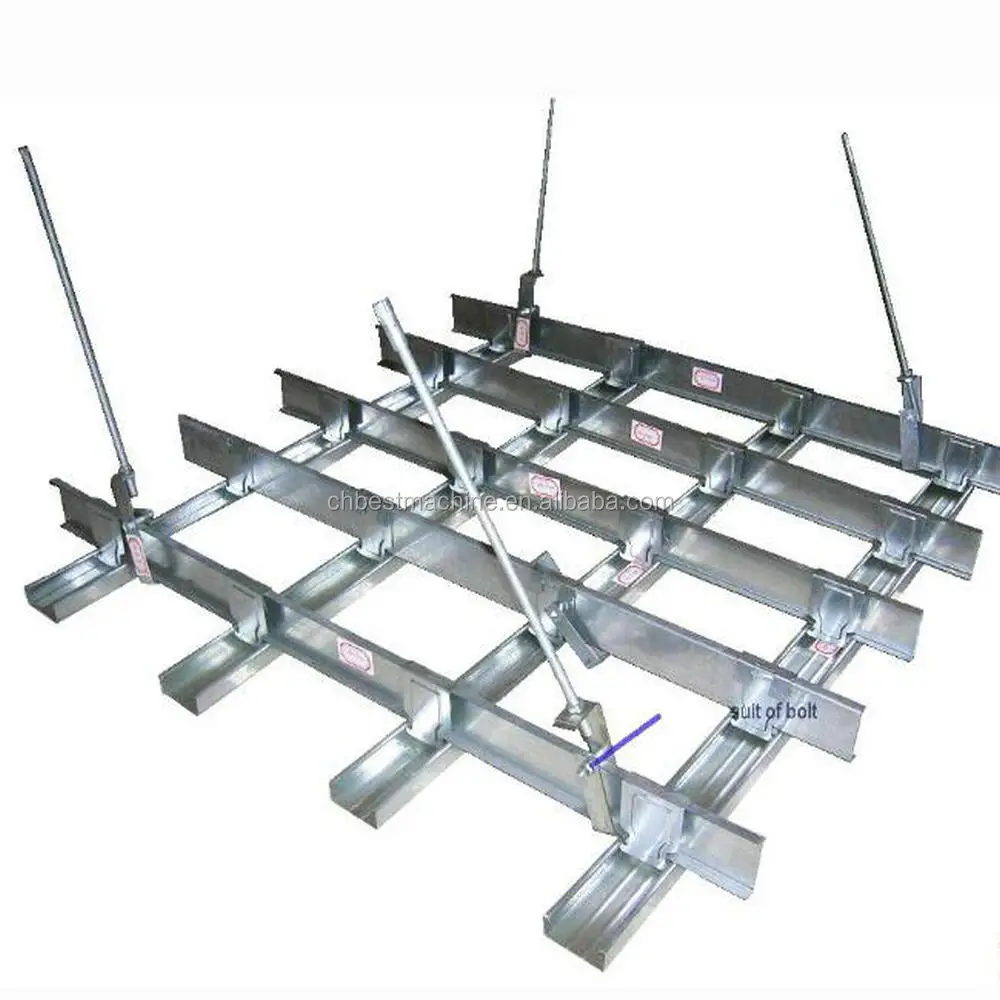

Product photo:

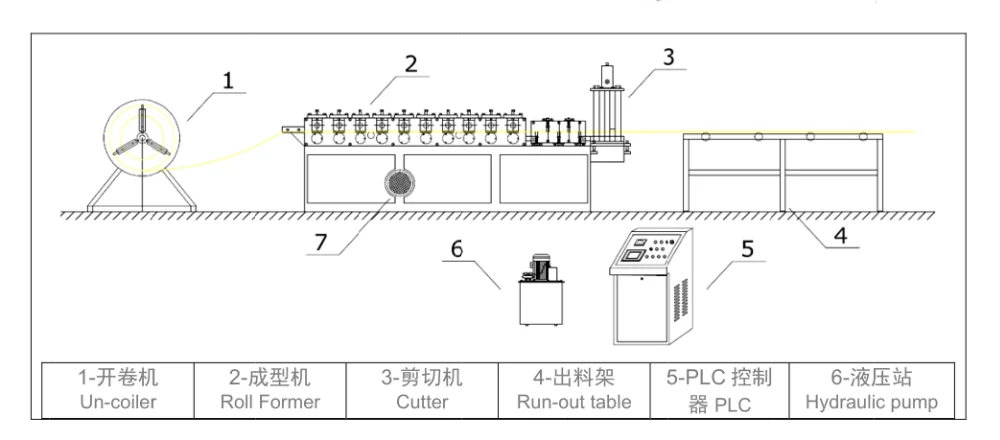

1. The ChartofProcessFlow

decoiling--active feeding--roll forming--measuring length--cutting to length--product to stand

2. Main Equipment

decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.

Parameter
Decoiler	Capacity	5000kgs
	Inner diameter	450mm-550mm
	Type	manual for free, hydraulic option
Roll forming machine	Material thickness	0.5mm-1.2mm
	Roller station	11-15groups
	Roller material	Cr 12 steel
	Shaft material	#45 steel
	Transimssion	chain
	Speed	8-12m/min
	Power	5.5kw+3kw
Control  system	PLC brand	Delta
	Language	English and Chinese
	Encorder brand	Omron

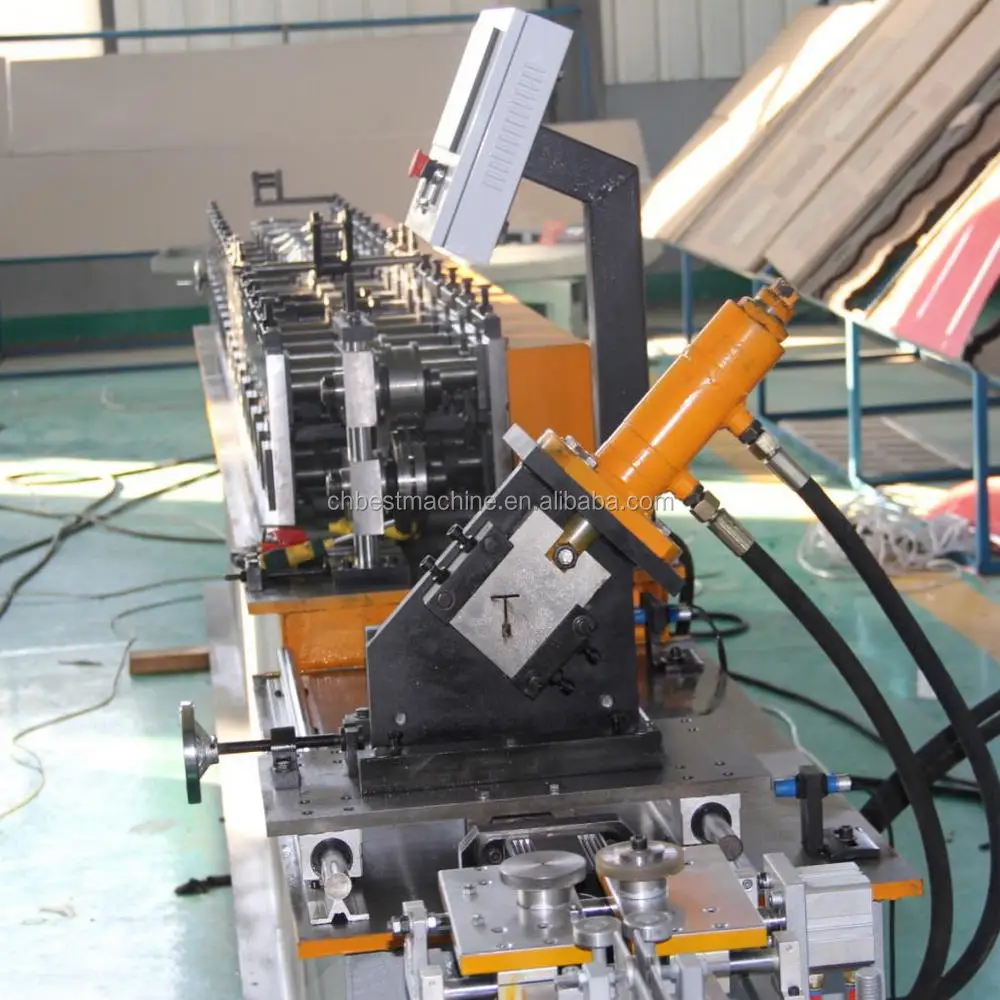

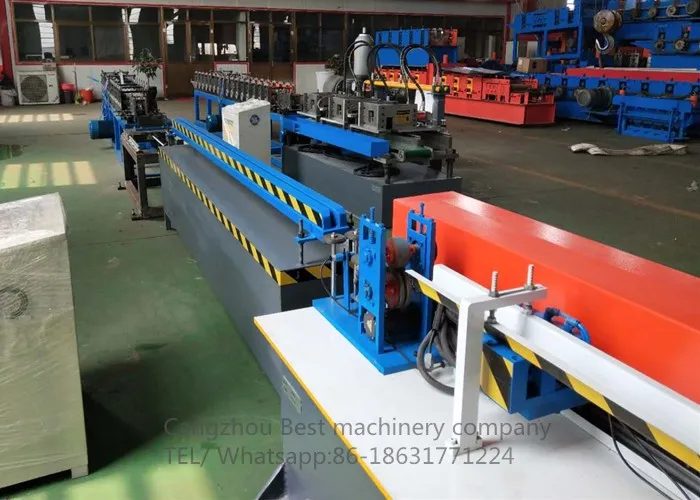

Detailed Images

Decoiler

(1) Max. Width: 500mm

(2) Inner Diameter: Φ450 – Φ550 mm

(3) Out Diameter: 1500 mm

(4) Max. Loading Capacity: 5000 kgs

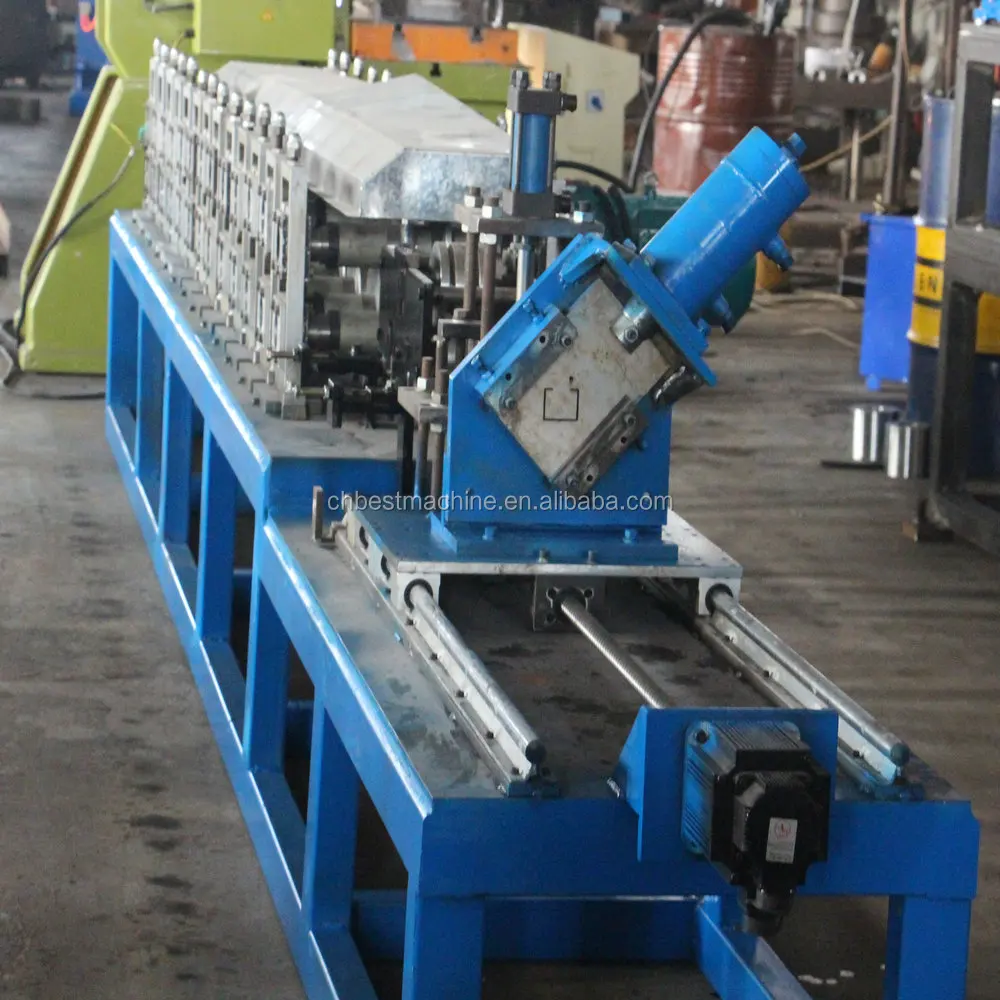

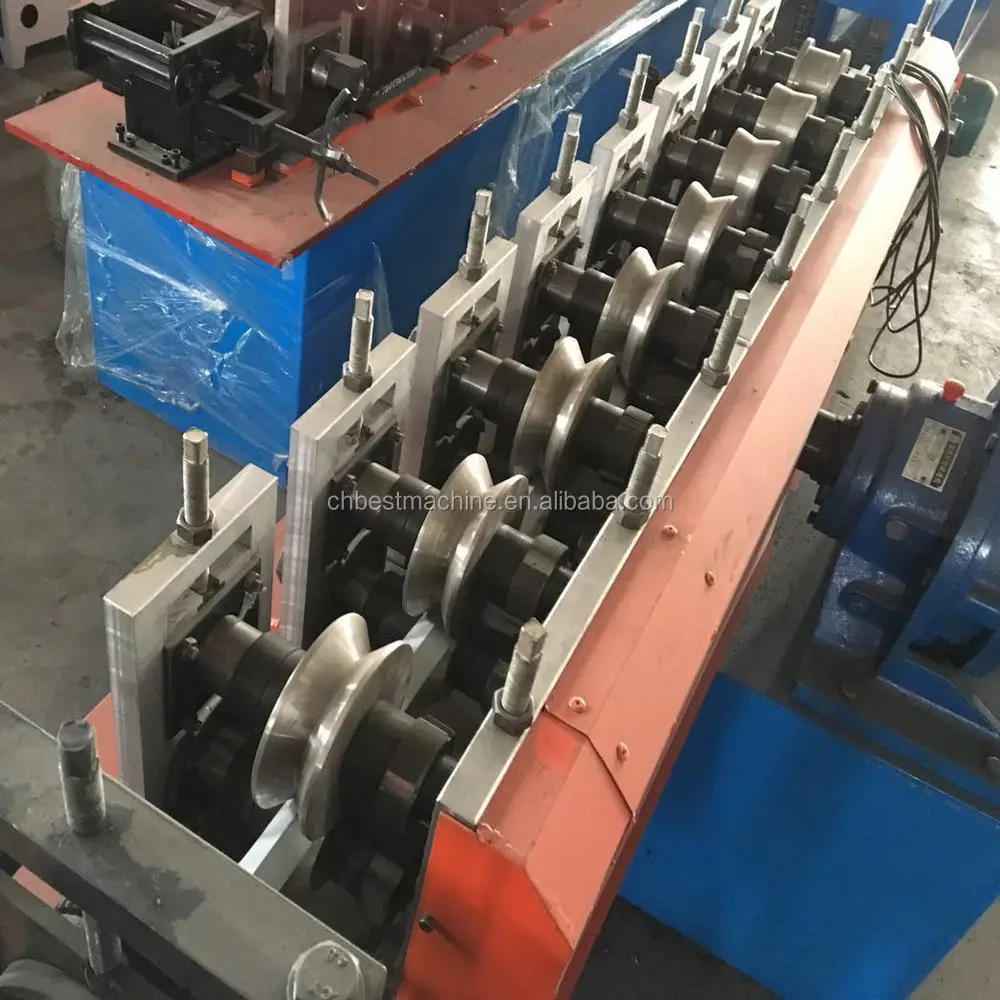

ROLL FORING MACHINE

(1)Rolled Material: Galvanized steel
(2)Material Thickness: 0.6-1.2mm
(3)Rollers: 11Groups
(4)Material for Rollers: Cr12 steel after treatment
(5) Hardness for Heat Treatment: HRC55 – 60
(6)Frame panel thickness: 20mm
(7)Bottom frame: 36# H-section steel
(8)Motor Power: 5.5kw
(9)Rolling Speed: 15m / min(don't include punching)
(10)Driven type: double sides double row 1"Chain

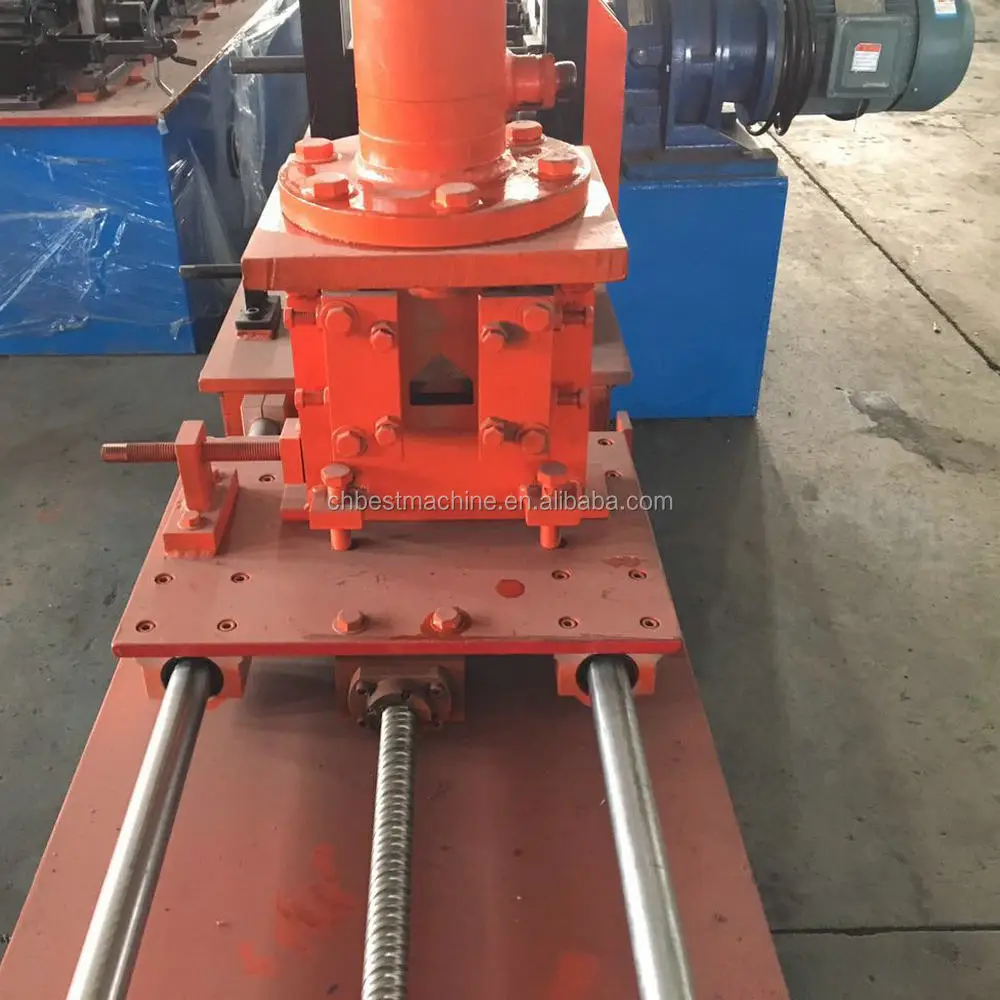

(11)Hydralic cutting type

Control system

(1) Type: PLC Frequency Control System with double touch screen
(2) PLC Brand: DELTA
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5) Transducer: Changzhou TongLi
(6)Language: English and Chinese
(7)Voltage: 380v/50HZ, 3Phases (it depends on customer requirement)

Hydraulic oil pump

(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

Packing & Delivery

Packaging
Size	according to machine size
Packaging Details	will package by film and fixed by steel wires

Packaging
Packaging details	will package by film and fixed by steel wires

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
