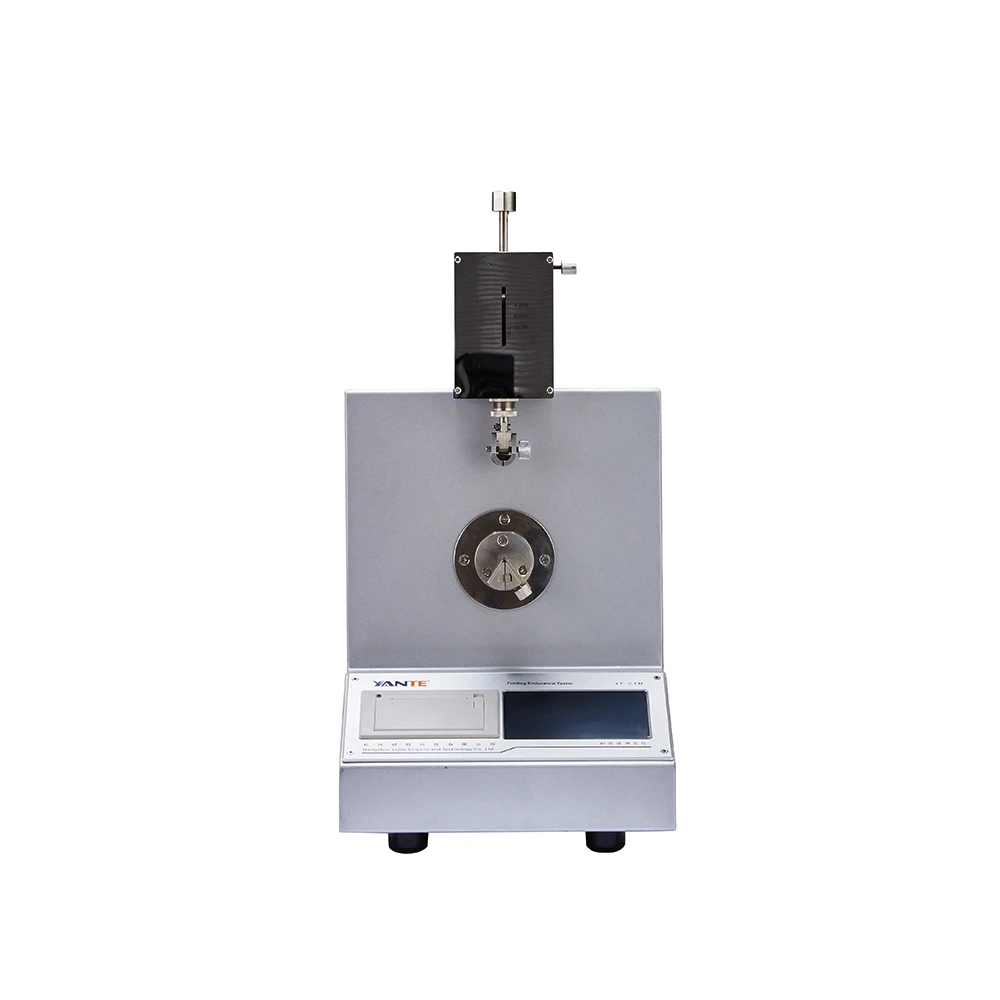

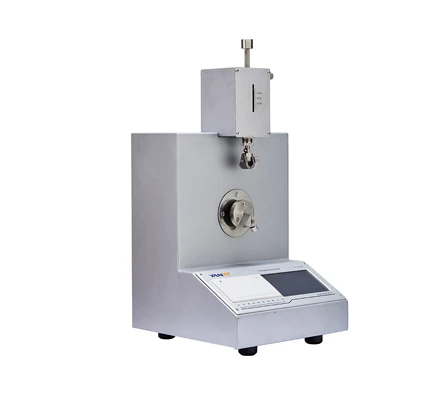

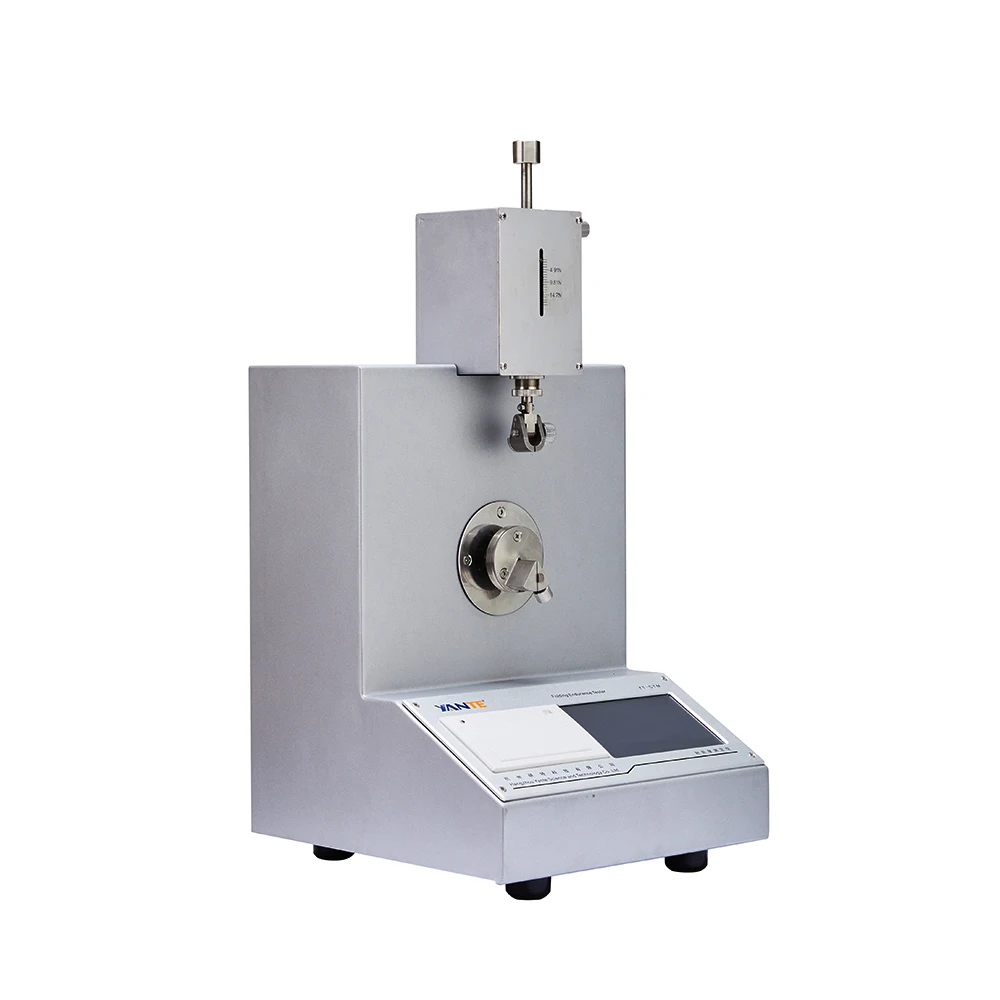

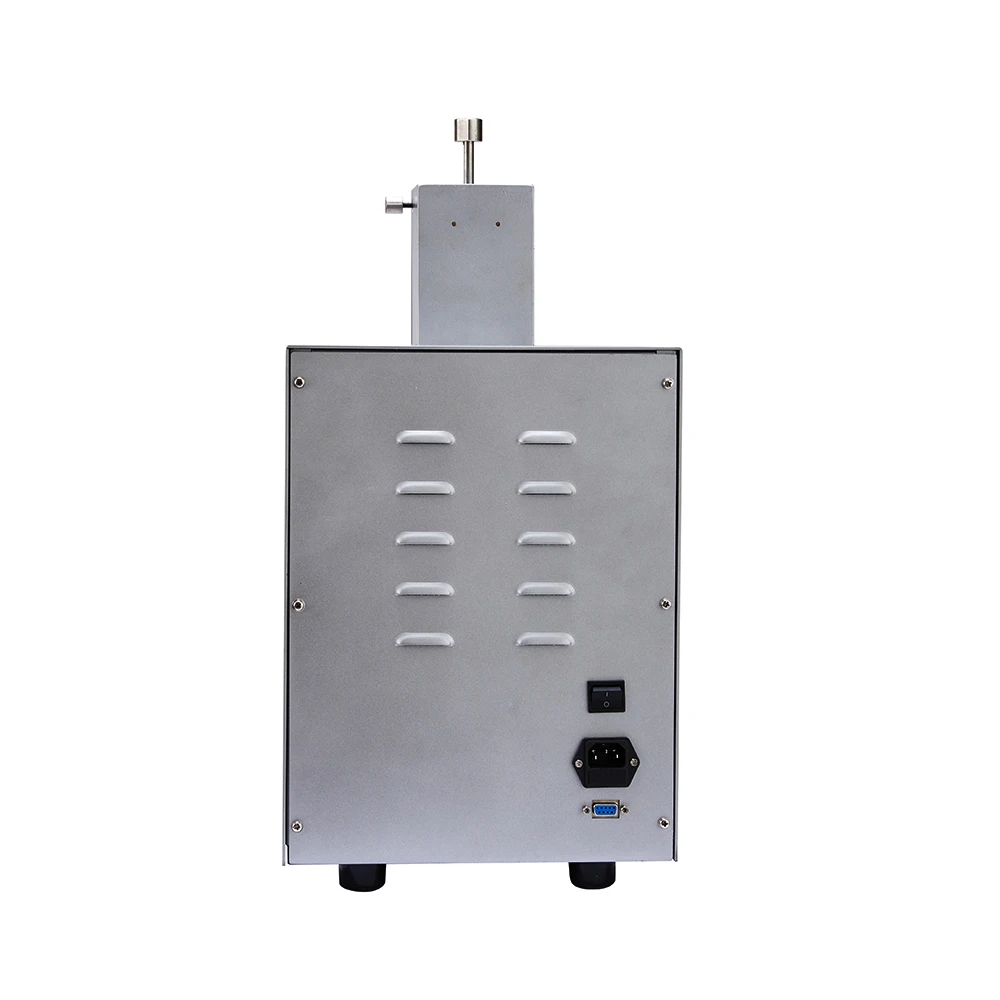

YT CTM paper and packaging MIT folding machine
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (60801740541):
Product Overview
Description
Product Overview
Folding Endurance Tester is a testing tool used to test the flexural fatigue resistance of thin materials such as paper. This testing instrument can test the number of folds and the degree of foldability.
Features At A Glance
Using high closed loop stepping motor, the rotation angle and folding speed are accurate and stable.
ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly.
Automatic measurement, statistics, and printing of test results, and has the function of data storage.
Standard RS232 interface, with computer software for communication (purchased separately)
ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly.
Automatic measurement, statistics, and printing of test results, and has the function of data storage.
Standard RS232 interface, with computer software for communication (purchased separately)

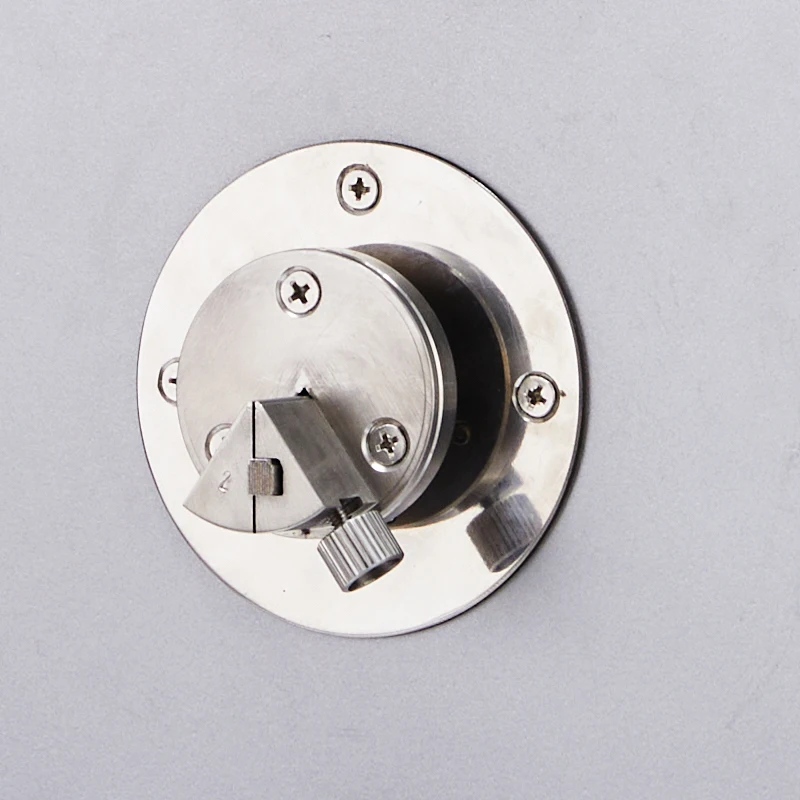

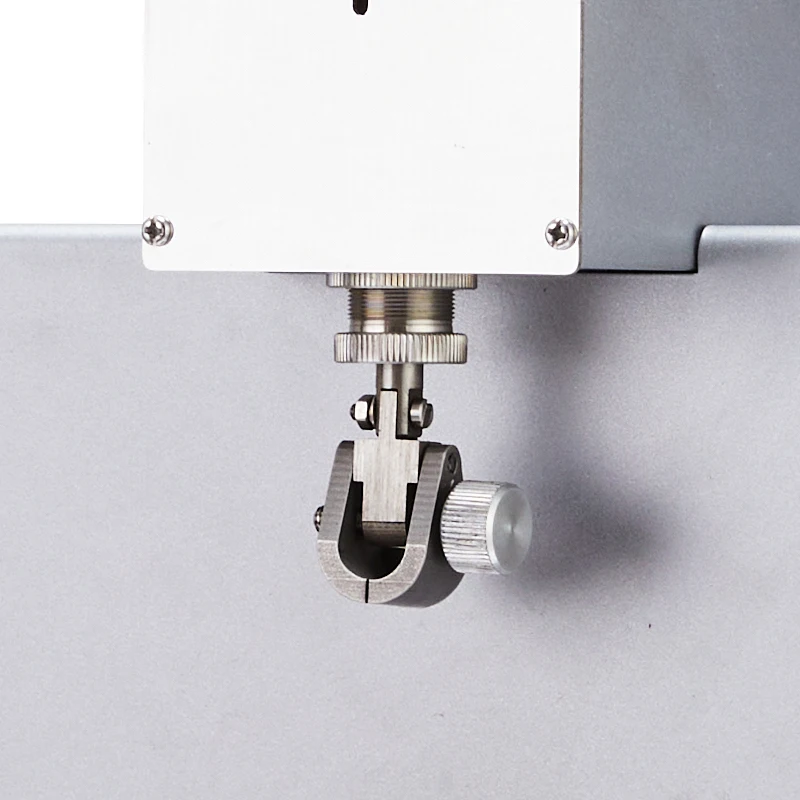

Details Images
Application Range
0-1mm Paper,paper jam, cardboard
0-1mm Glass fiber, film, circuit board, copper foil, cable, etc.
0-1mm Glass fiber, film, circuit board, copper foil, cable, etc.
Execute Standard
GB/T 457，QB/T1049，ISO 5626，ISO 2493
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 5 inch color touch screen |
4 | Measuring range | 0-99999times |
5 | Fold radius | 0.38±0.02 mm |
6 | Folding angle | （135±2）° |
7 | Spring tension | 4.91/9.81/14.72 N |
8 | Folding head gap | （0.25/0.50/0.75/1.00）mm |
9 | Print | Built-in thermal printer |
10 | Built-in thermal printer | RS232(Default) (USB, WIFI optional) |
11 | Dimension | 260×275×530 mm |
12 | Net Weight | 17kg around |
