  • rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100
rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100

rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100

Share on (60801756764):


Price:$33,200.00 - $33,800.00

Quantity:


Product Overview

Description


Product Description

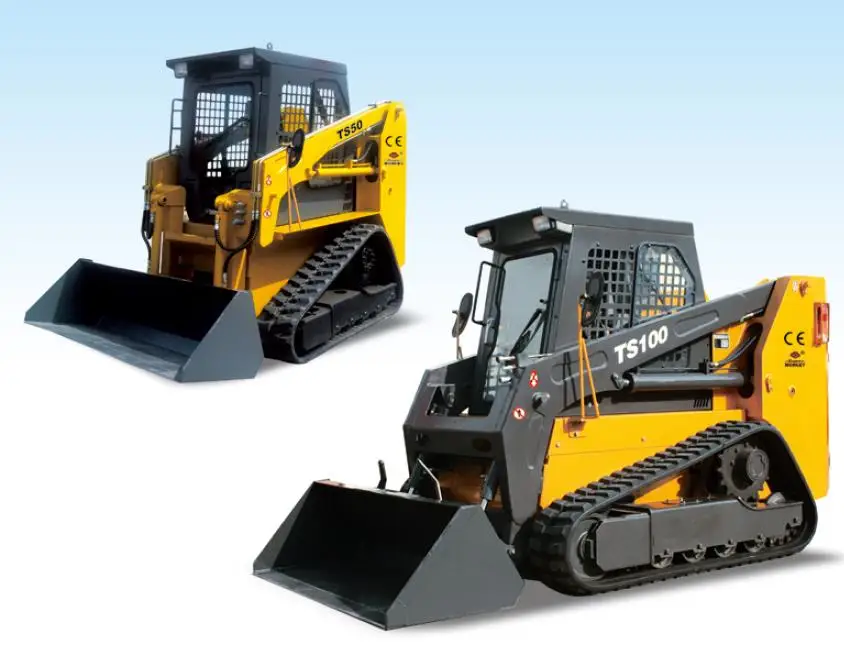

rubber track crawler skid steer loaders 1200kg 0.55cbm bucket with kinds attachments CE TS100


1.Compact structure,maneuverable movement suitable for narrow space operation

2.Luxury close cabin with joystick control system

3.Double accelerograph control

4.Auto-leveling system

5.Multi-function with a wide range of attachments

6.Hydraulic brake

Main Features

1) Long wheelbase rubber track

2) Geman and Japanese hydraulic parts

3) Rops/Fops cabin with easy maintenance design

4)Standard quick hitch


Main Parameters
\t
SPECIFICATIONS FOR 1200KG CRAWLER SKID STEER LOADER
\t
1
\t
Rated Operating Capacity
\t
kg
\t
1200
\t
2
\t
Tipping load
\t
kg
\t
2400
\t
3
\t
Bucket Capacity
\t
m3
\t
0.55
\t
4
\t
Lifting Force
\t
kg
\t
3500
\t
5
\t
Hydraulic Pump Flow
\t
L/min
\t
88/122
\t
6
\t
Engine power
\t
HP
\t
100
\t
7
\t
Weight
\t
kg
\t
4280
\t
8
\t
Max.Travel Speed
\t
km/h
\t
12/18
\t
9
\t
Grade ability
\t
°
\t
20
\t
11
\t
Fuel/hyd.oil capacity
\t
L
\t
90/90
\t
12
\t
A-Height to top of ROPS
\t
mm
\t
2160
\t
13
\t
B-Ground clearance
\t
mm
\t
200
\t
14
\t
C-Max.lift height
\t
mm
\t
4070
\t
15
\t
D.Hinge Pin Height
\t
mm
\t
3150
\t
16
\t
E-Length of undercarriage
\t
mm
\t
1938
\t
17
\t
F-Machine length without bucket
\t
mm
\t
3000
\t
18
\t
G-Machine length with bucket:
\t
mm
\t
3700
\t
19
\t
H-Machine width
\t
mm
\t
2030
\t
20
\t
I-Track width
\t
mm
\t
320
\t
21
\t
L.Dumping Height
\t
mm
\t
2450
\t
22
\t
K-Length of track on ground
\t
mm
\t
1500

Weichai WP4.1 engine, Germany Rexroth main pump, Sino-Italian joint venture motor, American Pomke large flow gear pump, domestic cylinder, Italian BP multi-way valve, Italian pilot valve, leveling valve, fully enclosed cab, hydraulic control ( Shuttle valve), crawler type, liquid brake, Italian fast quick change joint

Detailed Images

Machine Parts

Name: attachments

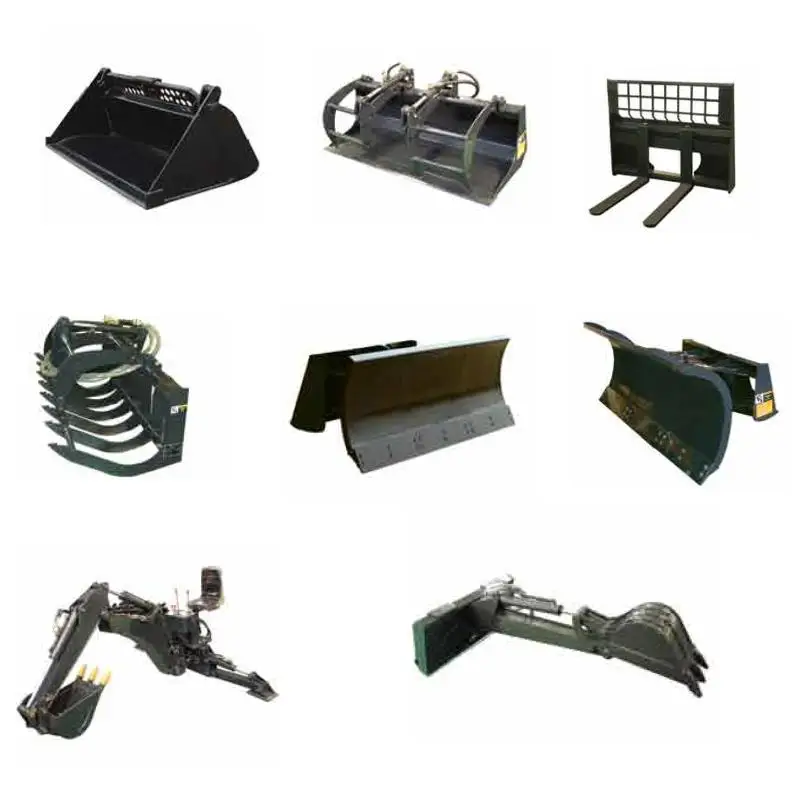

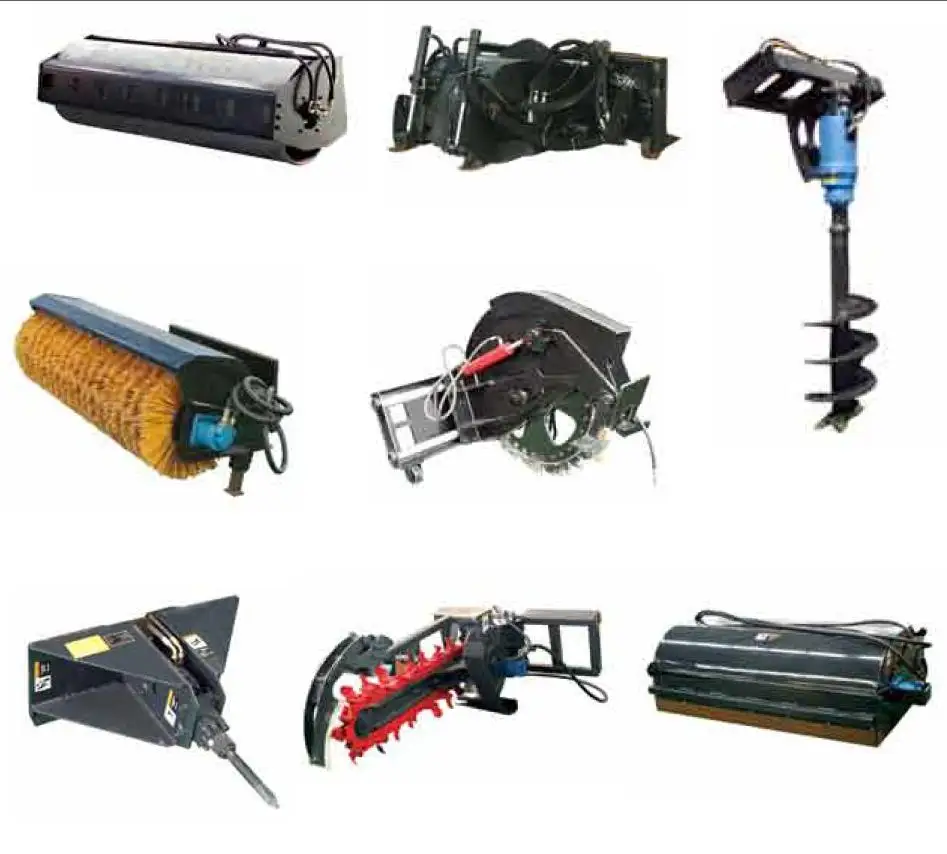

Kinds of attachments available

Main Features

Name: attachments
Kinds of attachments available


4 in 1 bucket

pallet fork

dozer blade

snow blade

grapple bucket

fork grapple

backhoe

drum scraper

rock grapple bucket

bucket mixer

sweeper

angle broom

breaker

planer

trencher

auger

vibratory roller

disk type trencher

multi direction grass cutter

roto tiller

mixer

snow blower

grass cutter

rock bucket

bale handler

utility fork

tree spade

scraper

tire chain

hedge trimmer
