economic IIoT Kit V BOX easy for webscada and remote download in iot home automation solutions wifi products smart iot device
- Category: >>>
- Supplier: FUJIAN FUCAN WECON CO LTD
Share on (60801770937):
Product Overview
Description
Main Features:

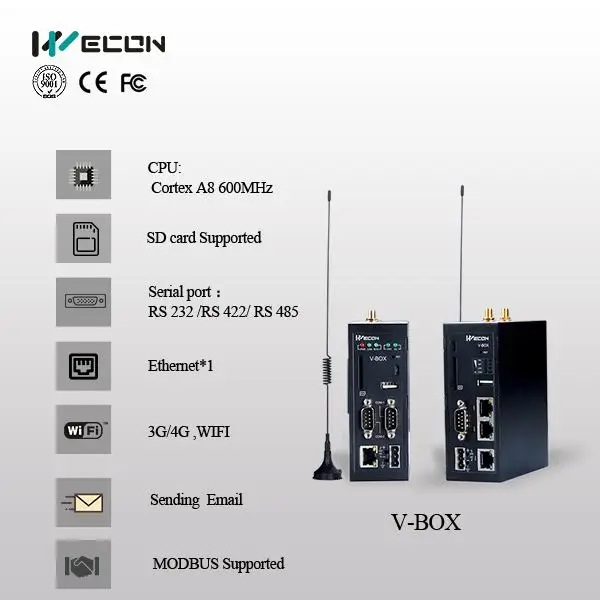

V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.
1. To obtain data through Serial communication (RS232/RS485/Ethernet) from device controllers.
2. It supports Communication protocols of all major brands' PLCs and controllers.
3. It connects to cloud platform through Ethernet/WIFI.
4. OPC access, HTTP developer interface.
5. PLC remote monitoring and remote program download.
6. Android/ios App access, desktop browsing.
Specification:
Model | V-BOX E-00 | V-BOX E-2G | V-BOX E-4G | ||||
Hardware | OS | Linux | |||||
CPU | ARM9 300MHz | ||||||
Storage | Flash | 128MB | |||||
RAM | DDRIII 128MB | ||||||
SD Card | YES | ||||||
I/O Ports | USB | OTG USB / DEVICE USB | |||||
Serial Port | COM1:RS232,RS422/RS485 | ||||||
Internet Port | 1 | ||||||
WIFI Module | N/A | ||||||
2G/4G Module | N/A | 2G | 4G | ||||
Power | Power Supply | 24VDC(12~28VDC) | |||||
Power Consumption | <10w | ||||||
Dimension | Enclosure | Cold Rolled Plate | |||||
Dimension(W*H*D) | 118.6mm*87.0mm*26.8mm | ||||||
Wall Hanging Dimension | 110.0mm*15.6mm | ||||||
Weight(KG) | 0.26 | ||||||
Environment | Vibration Resistance | 10~25Hz(X,Y,Z direction 2G/30 minutes) | |||||
Storage Temperature | -30°C~70°C | ||||||
Working Temperature | -10°C~60°C | ||||||
Relative Humidity | 10~90%RH(Non-condensing) | ||||||
CE Certification | CE marked | ||||||
FCC Certification | FCC Class A | ||||||
Software | Real-time Monitoring Points | 200 | 230 | 230 | |||
Alarm Monitoring Points | 50 | 60 | 60 | ||||
History Monitoring Points | 20 | 30 | 30 | ||||
History Storage Days | 60 days | 90 days | 90 days | ||||
Normal Pass-through | YES | N/A | N/A | ||||
VPN Pass-through | N/A | ||||||
HTTP Interface | YES | ||||||
Remote Update | YES | ||||||
Configuration Backup | YES | ||||||
Off-line Transmission | YES | ||||||

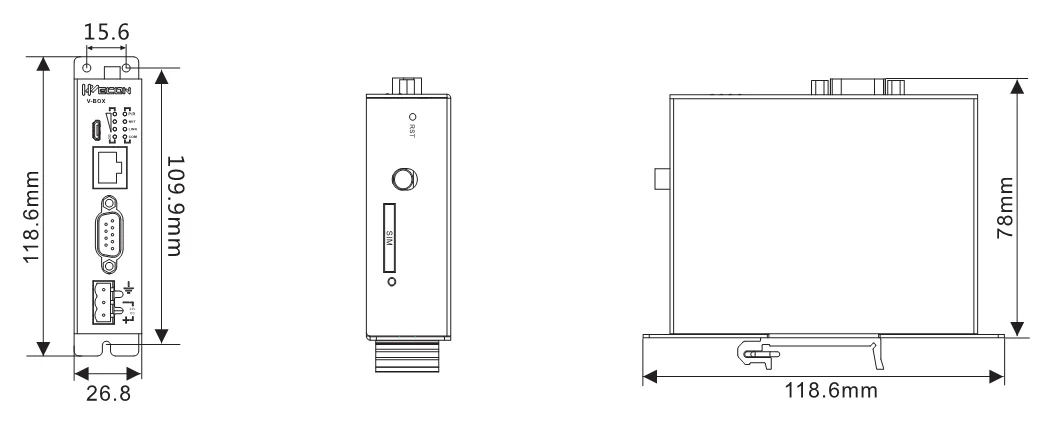

INSTALLATION:
