Factory Directly POM OPB flush grid Modular Conveyor Belt for beverage
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (60801781578):
Product Overview
Description
Short Description
OPB modular plastic flush grid conveyor belt with high strength acid and alkali resistance, corrosion resistance, oxidation resistance and wear resistance, low noise, light weight, non-magnetic, anti-static, adapt to a wide range of temperature, anti viscosity, can be added to the plate, lifting Angle, easy to clean, simple maintenance, high temperature resistance, large tension, long service life et characters.

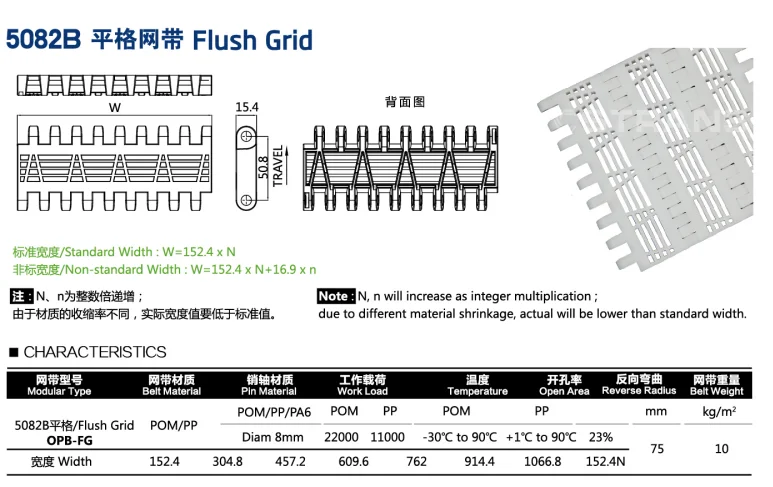

Product Parameters
Modular Type | OPB-FG | ||
Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) | |
Non-standard Width | W=152.4*N+16.9*n | ||
Pitch(mm) | 50.8 | ||
Belt Material | POM/PP | ||
Pin Material | POM/PP/PA6 | ||
Pin Diameter | 8mm | ||
Work Load | POM:22000 PP:11000 | ||
Temperature | POM:-30°~ 90° PP:+1°~90° | ||
Open Area | 23% | ||
Reverse Radius(mm) | 75 | ||
Belt Weight(kg/㎡) | 10 | ||

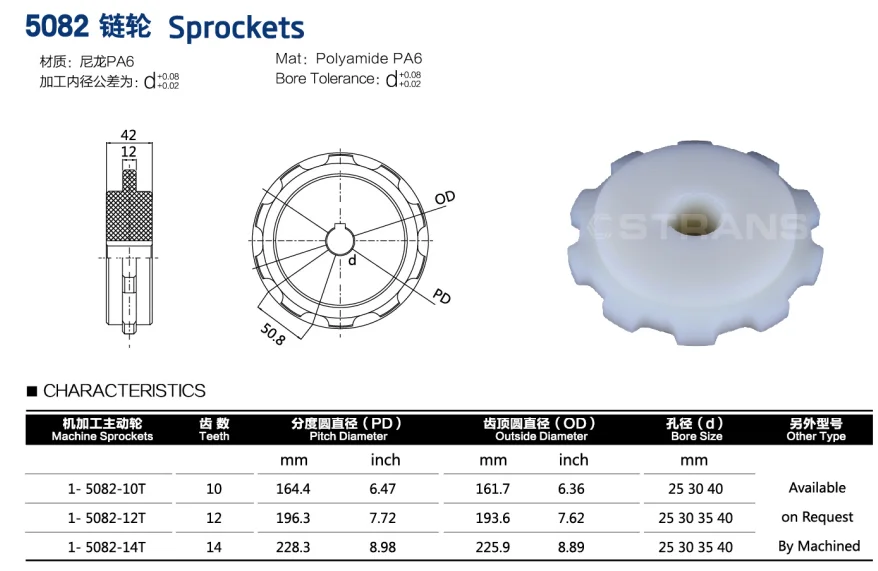

Machined Sprockets
Machine Sprockets | Teeth | Pitch Diameter | Outside Diamter(mm) | Bore Size | Other Type | ||||
mm | inch | mm | inch | mm | Available on Request By Machined | ||||
1-5082-10T | 10 | 164.4 | 6.36 | 161.7 | 6.36 | 25 30 40 | |||
1-5082-12T | 12 | 196.3 | 7.62 | 193.6 | 7.62 | 25 30 35 40 | |||
1-5082-14T | 14 | 225.9 | 8.89 | 225.9 | 8.89 | 25 30 35 40 | |||
Application Industries
1. Fruit and vegetable lifting, washing, climbing.
2.Conveying for poultry slaughtering
3.Other Industries
2.Conveying for poultry slaughtering
3.Other Industries
Advantage
a.Varity complete
b.Customization is available .
c.Competitive price
d.High quality and reliable service.
e.Short Lead time
b.Customization is available .
c.Competitive price
d.High quality and reliable service.
e.Short Lead time
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
ABOUT US

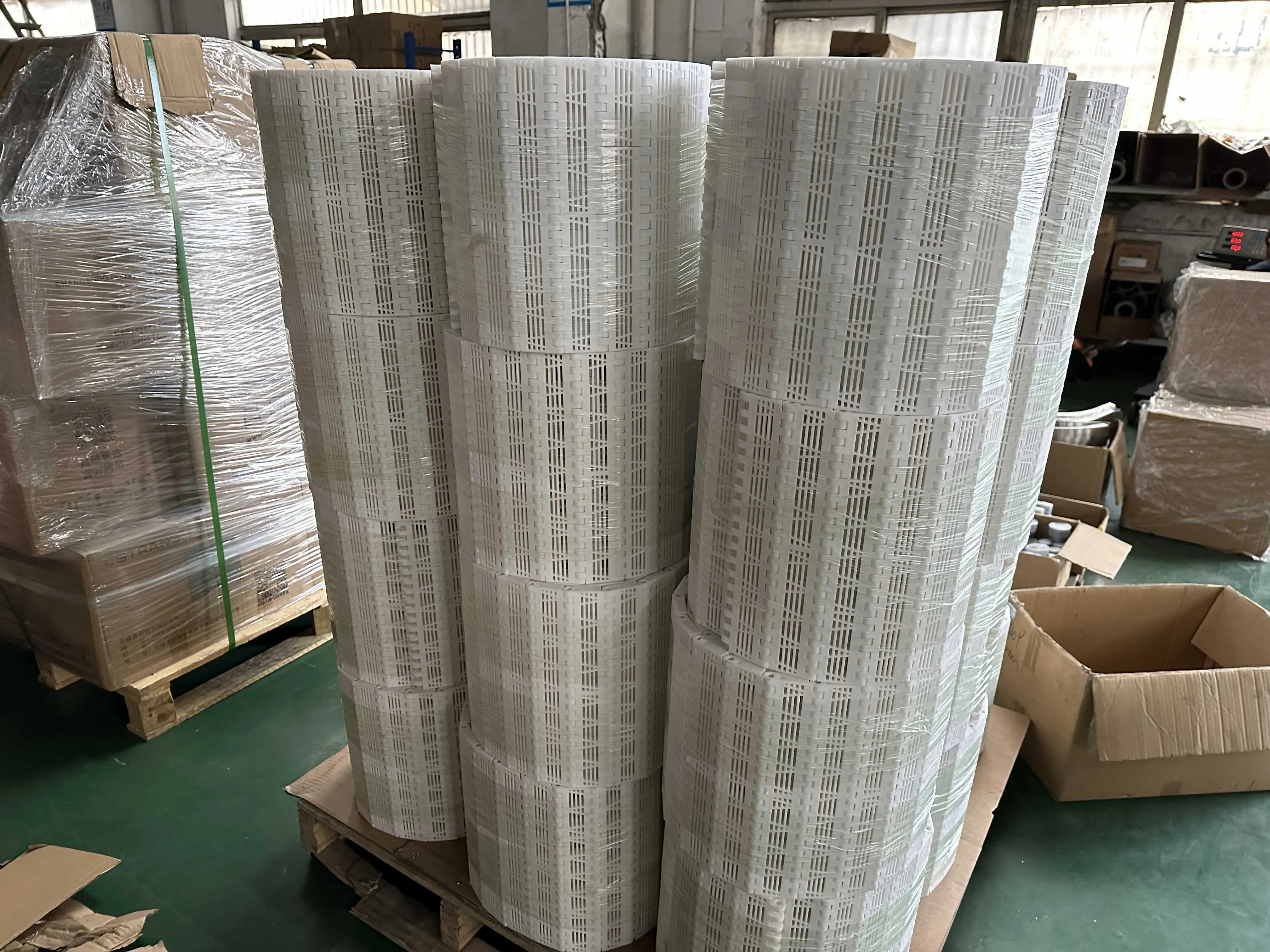

Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
