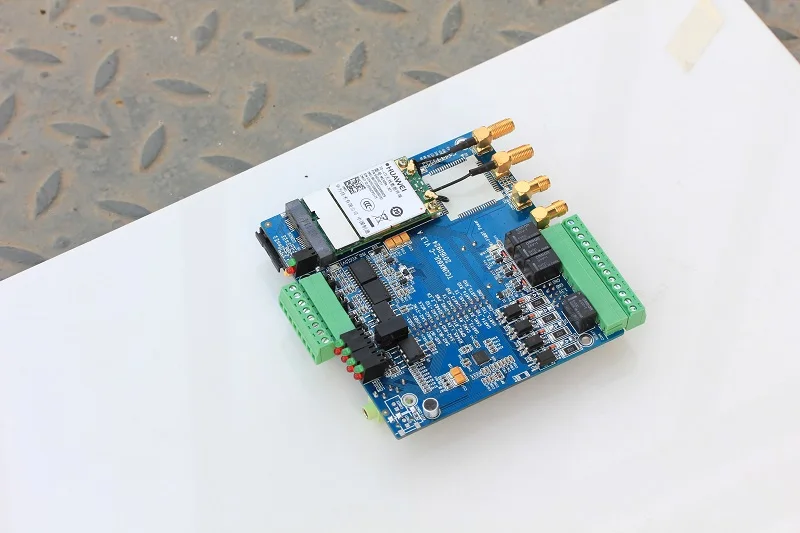

i.MX6UL Linux Development Board iMX6UL With 4G Module ME909S 821

i.MX6UL Linux Development Board iMX6UL With 4G Module

Features

1. Designed based on Freescale i.MX6UltraLite processor, high performance, ultra low power;

2. Open source code makes it more convenient for users to do hardware designing and software tailoring;

3. CPU is with native supporting and complying with ISO7816 protocol, users could work it with encryption module;

4. Power fail safeguard to allow the system continue running for 15 seconds to avoid critical data loosing;

5. On-board ready-to-use connectors: 4x DI, 4x DO, 2x RS485, 2x CAN, 1x Ethernet (could be expanded to 2-ch), all are designed with isolated protection circuit;

6. Status LED indicator, make it convenient for users to know about system running, network communication and hardware interface working status;

7. Multiple communication types: on-board Ethernet (100M), WIFI&BT, 4G or GPRS modules;

8. Standard SD card slot, compatible with SD, SDHC and SDXC card, capability up to 64G;

9. Standard 3.5mm stereo earphone jack, builtin micphone, and users could also expand with 1Wx 2 speaker or 3.5mm single track micphone;

10.a 7'' LVDS display is supported;

11. Users could upgrade OS kernel by SD card;

12. Wide voltage range: system running stable from 9V to 15V to avoid system failure by voltage fluctuation;

13. External case designed by aluminium alloy and the case is with mounting holes, dimensions with 147 x 103 x 42mm,

Multiple network communicaton options

GPRS, WIFI&BT, Ethernet are all optional to users

Standard 3.5mm stereo earphone jack with builtin micphone

users could also mounting with 1W x 2 speaker or 3.5mm single track micphone, 7'' LVDS display, annd DVI-I interface

This unit can meet users' all demand for power charging metering.

one piece a box, box dimensions: 24*19*10cm

parcel could be sent out by express or air solution within 5 working days after receipt of full payment.

both freight prepaid and collected are optional

Below pictures will show you how we generally pack a board
