Standard Network Power Over Ethernet Input And Output Splitter Adapter Enables POE Splitter Cable Adapter IEEE802.3af 12VDC 1A
- Category: Ethernet & Communication Modules >>>
- Supplier: Shenzhen Caratar Technology Co. Ltd.
Share on (60801877109):
Product Overview
Description
IEEE 802.3af Active PoE Splitter Power Over Ethernet 48V to 12V 2A ...
Product Description
Supply power and transfer data via a single Ethernet cable remotely to non-PoE devices like some IP cameras, wireless access points and VoIP phones which need 12V DC input in a 2.1mm x 5.5mm barrel jack.
Features:
Name:Active Gigabit PoE Splitter Adapter, IEEE 802.3at compliant, Up To 100 meters, 5V / 12V /18v Output
Compliant with IEEE 802.3af
Isolation: 2.5kV
Power Input: DC48V
Power Output: DC12V 2A
Data Output Port: RJ45 Male
Power Output Port: 5.5x2.1mm DC Power Supply
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
| Voltage | Popular V | Current | Work Amp | Overload Amp | Non-Loading Amp |
| 44-57V | 48V | 500-550mA | 10-350mA | 350-500mA | Max 5mA |
| Mark: PD device ask 3.84-12.95W , Max 13W | |||||
48V to 12V Active PoE Splitter
- Deploy remote non-PoE devices with no nearby AC outlets and upgrade them to PoE from up to 400 feet.
- 2.1mm x 5.5mm 12V DC barrel jack for IP camera, wireless access point and VoIP phone, supplies up to 2A.
- Power over Ethernet IEEE 802.3af/at compliant, compatible with 44-57V DC voltage, overvoltage protection.
- 10M/100M data transfer rates, an 802.3af compliant PoE injector or PoE switch is required (not included).
POE Splitter Cable Adapter IEEE802.3af 12VDC 1A For IP Cameras
Main Features:
- RJ45 female INPUT Port:
- Support the IEEE 802.3af the Power over Ethernet PoE Switch
- Support 48V Unsolicited Power Over Ethernet PoE Switch
- Support 48V Unsolicited Power Over Ethernet PoE Adapter
Specification:
- Compliant with IEEE802.3af 15.4W
- Power Input: DC44~57V
- Power Output: DC12V, max 1A
- Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
- Data & Power INPUT Port: from RJ45 female
- Data Output Port: RJ45 Male
- Power Output Port: 5.5x2.1mm DC Power Plug
- Data Transfer Rate: 10/100Mbps
- Devices will be detected before poe input

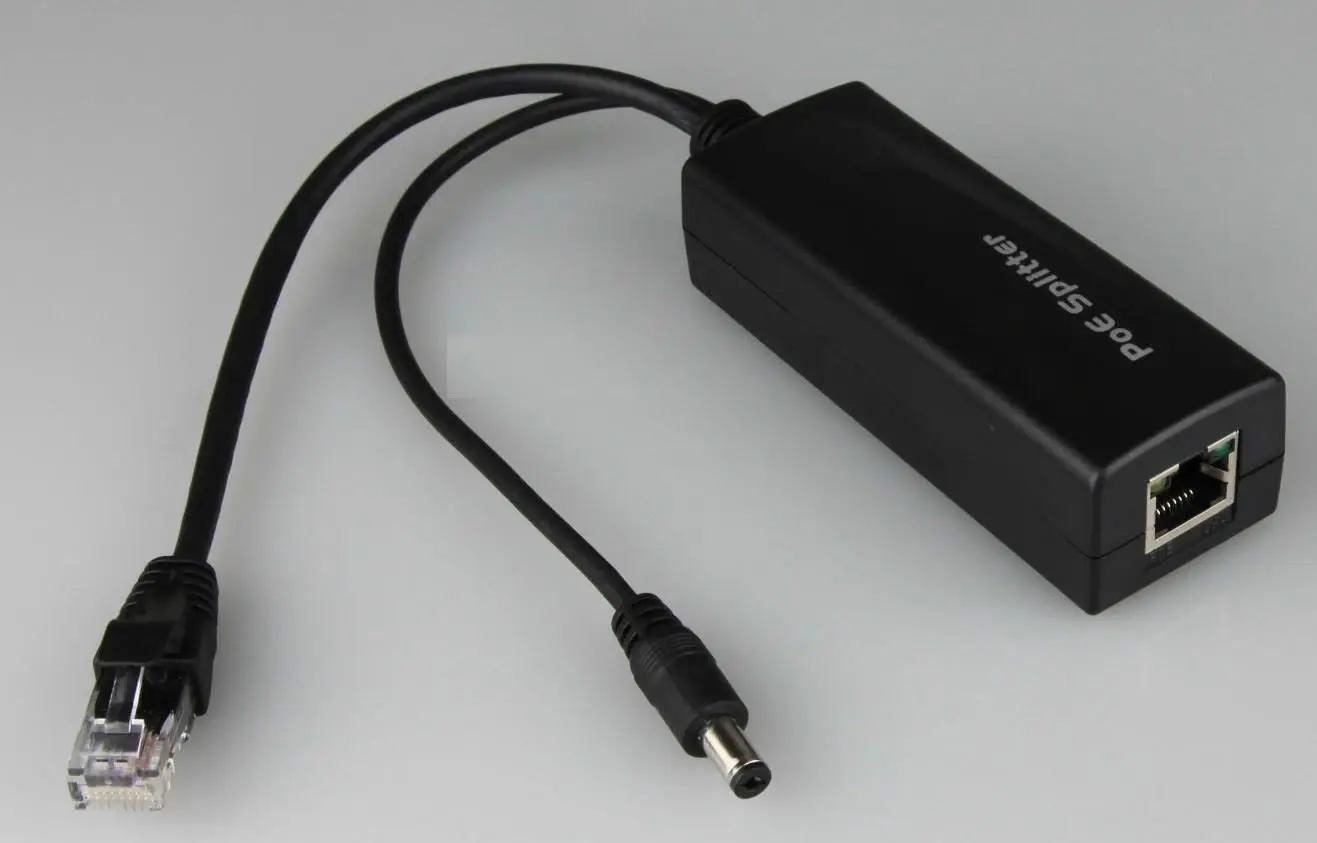

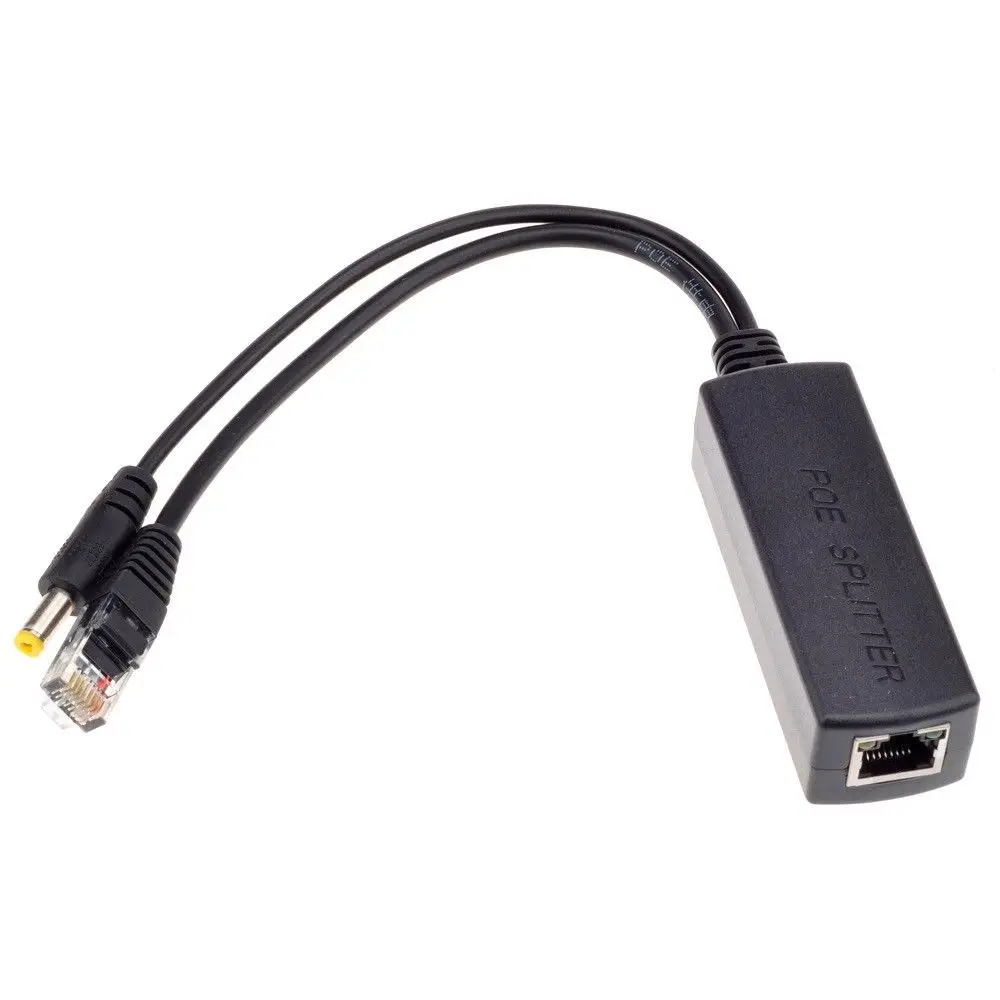

Detailed Images

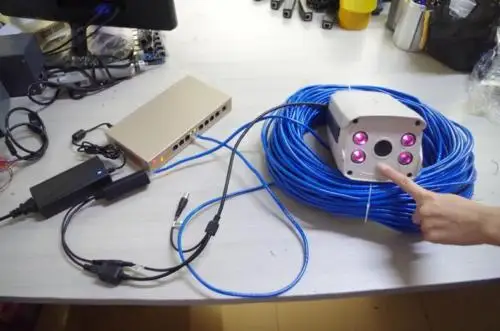

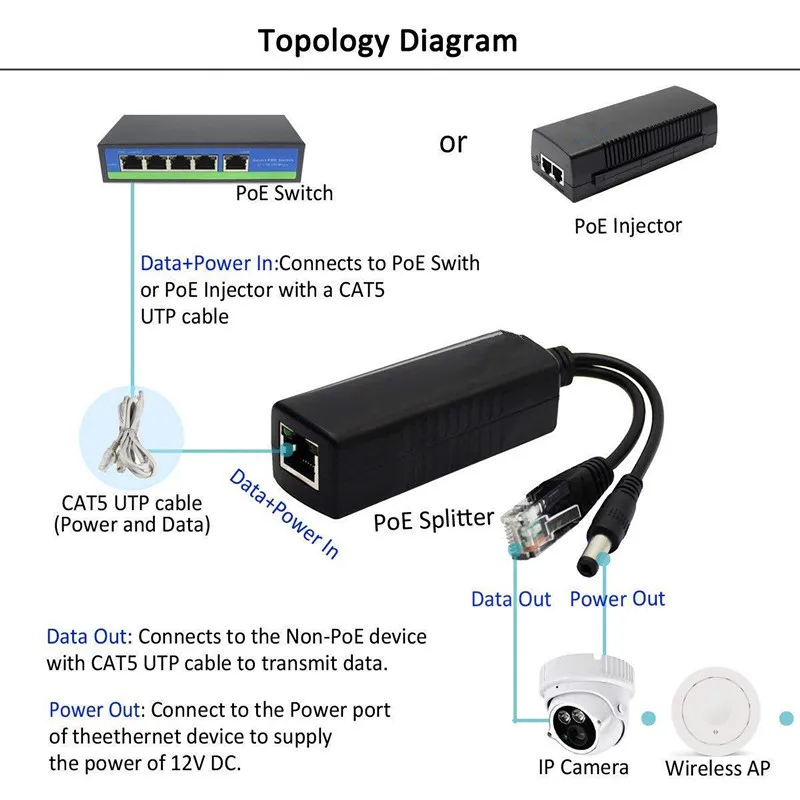

Product Application
Smilar Model:
***Standard Network Power Over Ethernet Input And Output Splitter Adapter Enables ***
Description:
- Power 15.4W
- Output : 12V
- Input : DC48V
- Support 10/100Mbps
- IEEE802.3af standard
- Size: 84x 23 x 24mm
- Power in support: 1236 pin
Features:
- Support the IEEE 802.3af the Power over Ethernet standard.
- Support 10/100Mbps data transmission.
- PoE Splitter receiving end supports variety of voltage of 44V-57V transfer.
- Provide 12V 1A power to adapt to a variety of small network equipment.
- Circuit isolation protection, effective protection of electrical equipment.
- High quality design guarantees the stability and reliability of the equipment in work.
Technical Specification:
POE Parameters:
- Maximum Power: 15.4W (IEEE 802.3af)
- Input voltage :40-57V
- Output voltage: 12V
- Input: an input RJ45 interface
- Output: an output RJ45 connector and a DC output interface
- Data transfer rate: 10/100Mbps
- maximum transmission distance: 100 meters
- IEEE802.3i 10 BASE-T,
- IEEE802.3i 100 BASE-TX,
- IEEE802.3x flow control
- IEEE802.3af /IEEE802.3at
