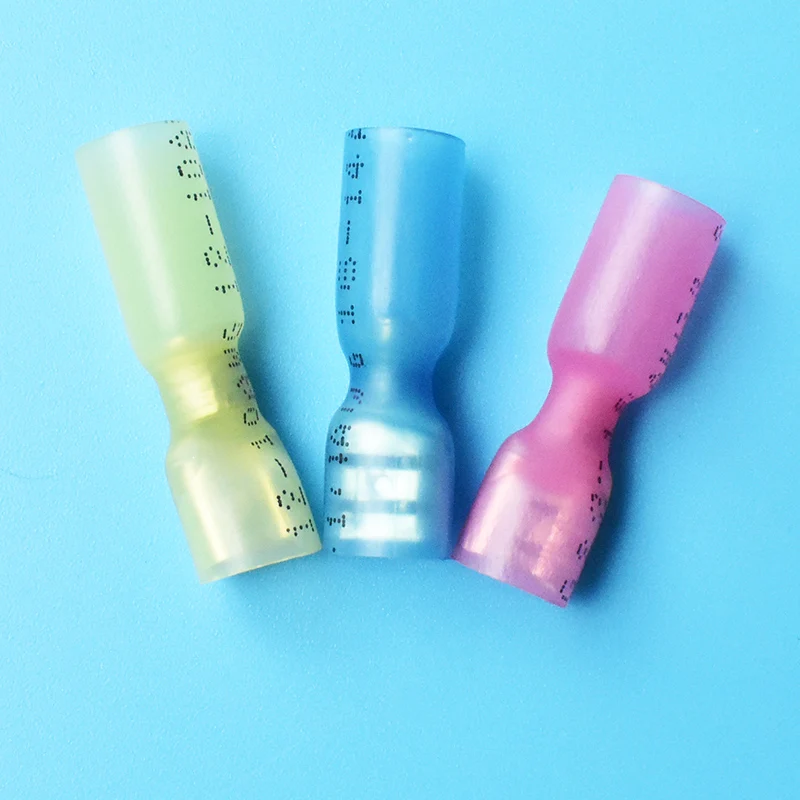

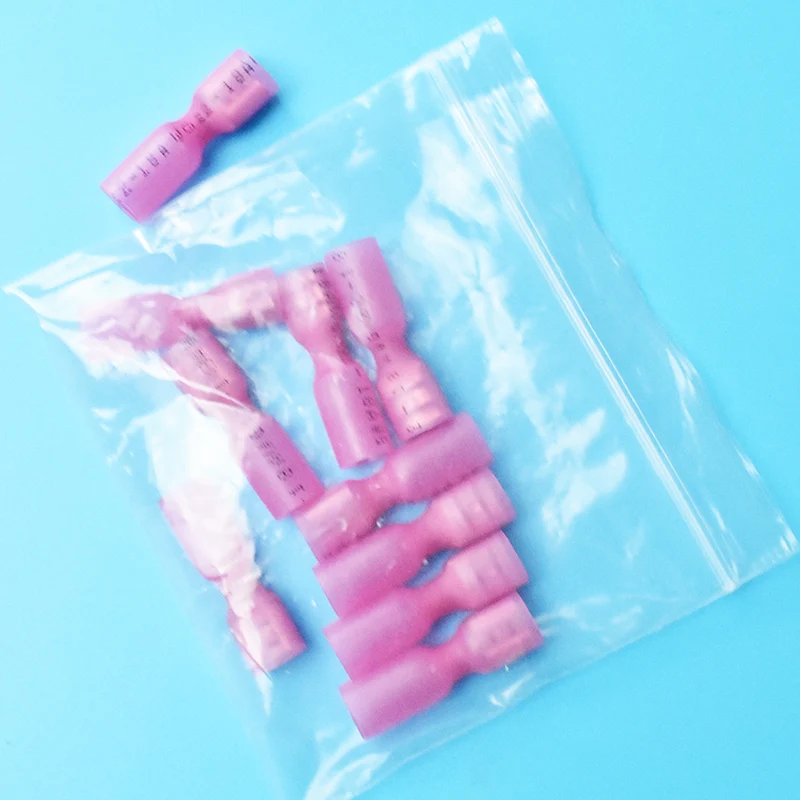

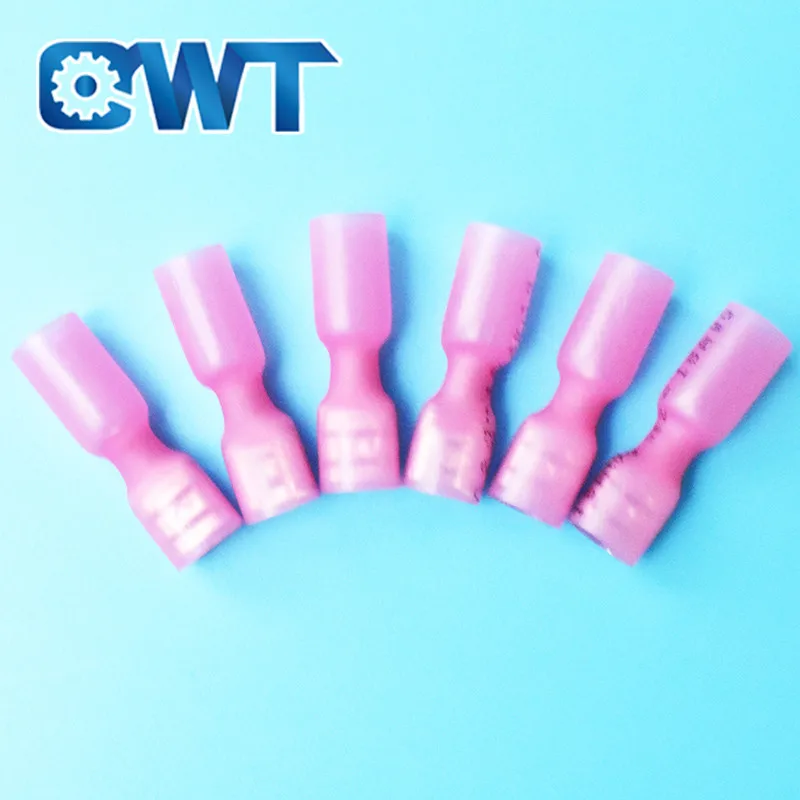

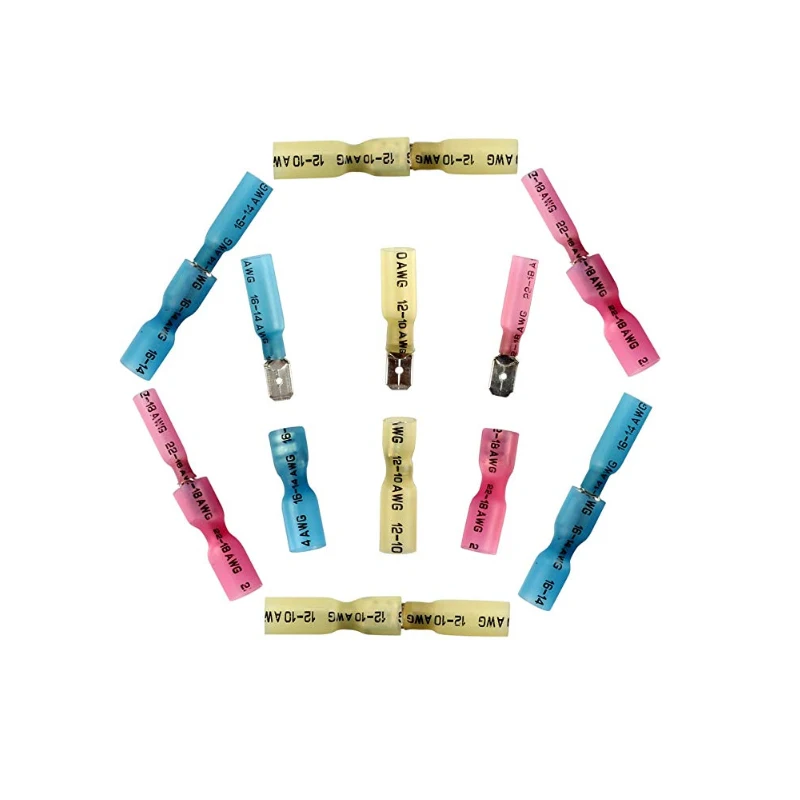

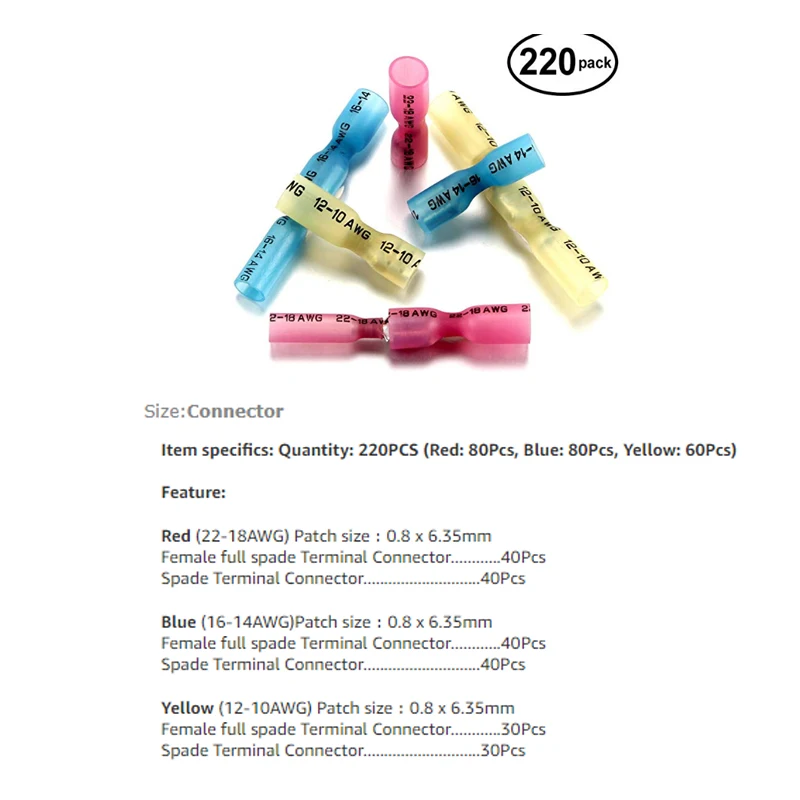

QWT 220pcs Fully Insulated Electrical Crimp Heat Shrink Female And Male Terminals Waterproof Splice Butt Connectors Kit
- Category: >>>
- Supplier: Dongguan Qianwei Hardware Co. Ltd.
Share on (60801910971):
Product Overview
Description
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break(Room temp.) | Min.200% | UL224 | 280% |
| Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 200% |
| Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
| Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | pass |
| Copper corrosion(158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stabiity(158℃ 168hrs) | No sign of degradation (min.elongation 100%) | UL224 | pass |
| Cold blend(-30℃ 1hrs) | No crack | UL224 | pass |
| Maximum secant modulus(2%) | 173Mpa | UL224 | pass |
| Volume resistivity | Min.1014Ω.m | UL224 | pass |
| Heat shock(250℃ 4hrs) | No crack | ASTM D2671 | pass |
| Dielectric strength | >15.8kv/mm | ASTM D2671 | >25kv/mm |
