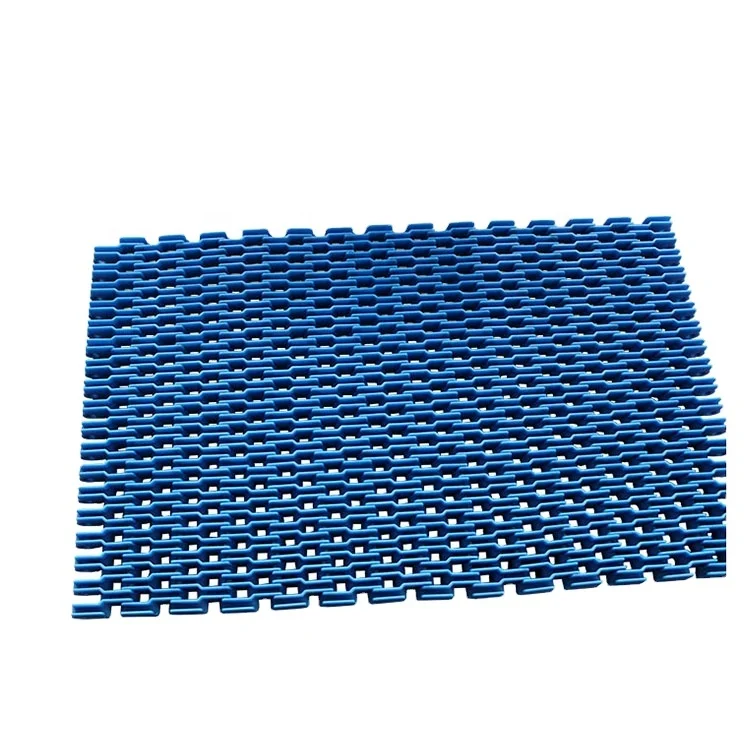

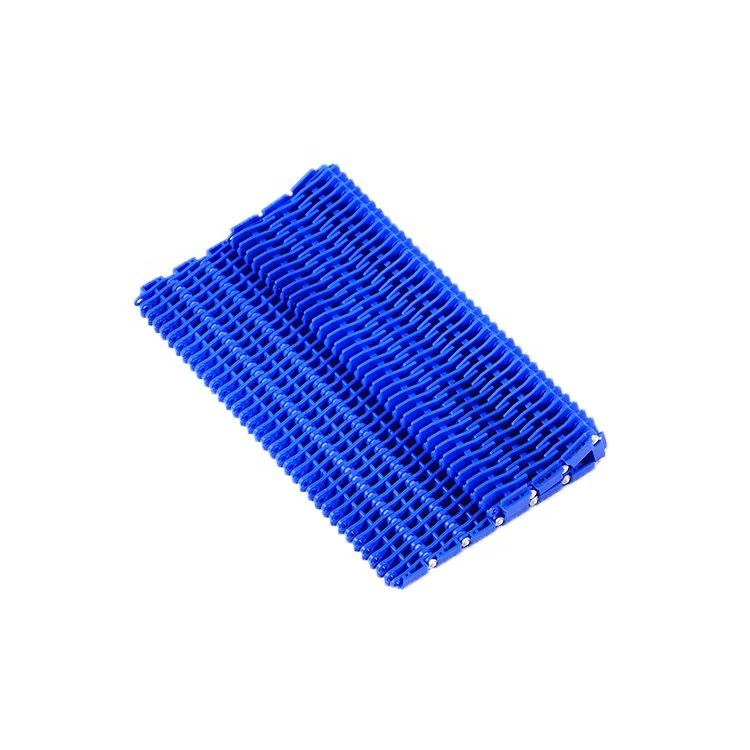

Factory Directly SNB plastic raised rib Modular chain belt Conveyor Transmission belt
- Category: Other Power Transmission Parts >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (60801917017):
Product Overview
Description
Short Description
SNB flat top modular plastic conveyor belt can avoid the can tipping over and clogging at the transition transfer point.

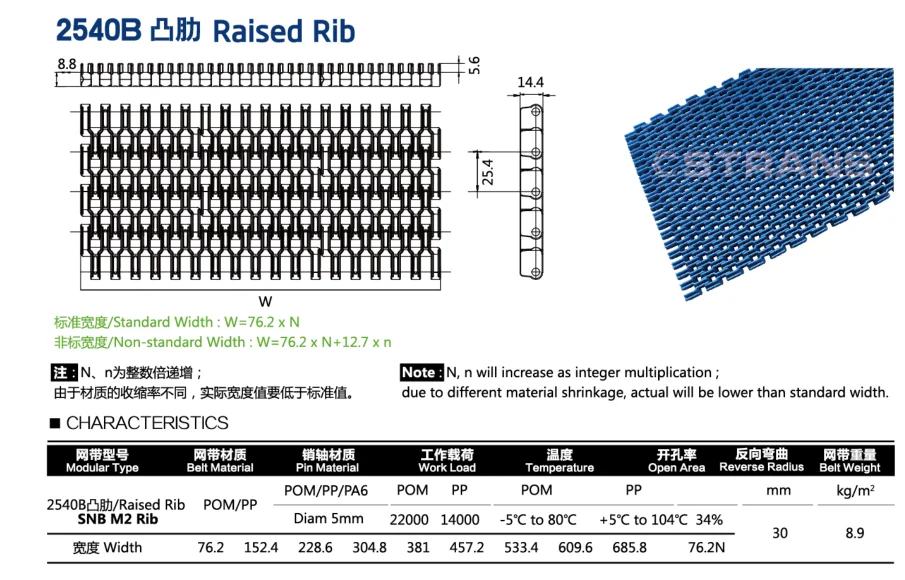

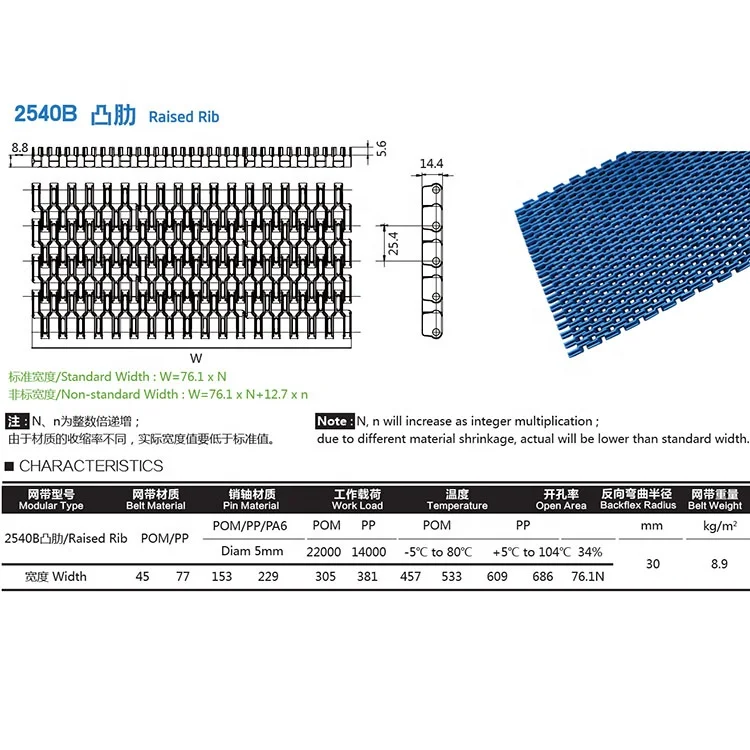

Product Parameters
Modular Type | SNB M2 Rib | ||
Standard Width(mm) | 76.2 152.4 228.6 304.6 381 457.2 533.4 609.6 685.8 | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) | |
Non-standard Width | On Request | ||
Pitch | 25.4 | ||
Belt Material | POM/PP | ||
Pin Material | POM/PP/PA6 | ||
Pin Diameter | 5mm | ||
Work Load | POM:15000 PP:13200 | ||
Temperature | POM:-30℃~ 90C° PP:+1C°~90C° | ||
Open Area | 0% | ||
Reverse Radius(mm) | 16 | ||
Belt Weight(kg/㎡) | 6.8 | ||
Application Industries
1. Standard 1505 flat top modular plastic conveyor belt suitable beverage industry
2. Antibacterial material suitable for food processing
3. Surface closure is suitable for the conveying of glass and other fragile products
2. Antibacterial material suitable for food processing
3. Surface closure is suitable for the conveying of glass and other fragile products
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
Advantage
1.convenient to assembly and maintain
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely useage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely useage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
Related
ABOUT US
What we do
With 17 years of production and R&D experience in the conveyor industry, We have 10 R&D teams and nearly 500 existing molds set.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
History of the company
exhibition
Cooperative enterprise
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
