IN DL109 литой угол обзора Регулируемый жизни местный Конференц зал офис COB Встраиваемые 5 Вт 10 Вт 15 Вт 20 Вт светодиодный потолочный светильник

Share on (60801930503):


Price:2,52 $ - 3,12 $

Quantity:


Product Overview

Description


 banner001

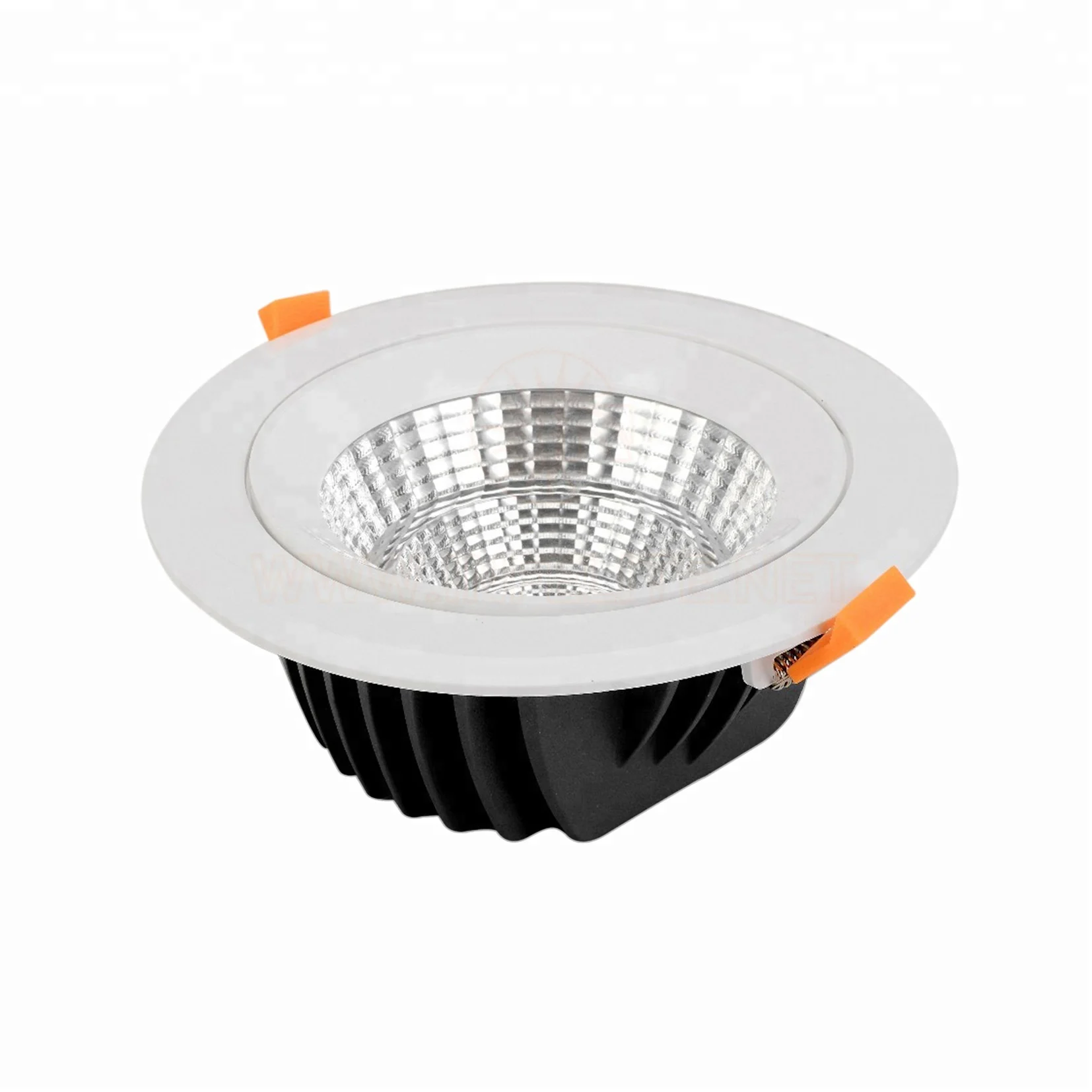

IN-DL109 Die Cast View Angle Adjustable Living Bed Meeting Room Office Recessed 5W 10W 15W 20W COB LED Ceiling Downlight Down light



Product Overviews
DL109 View Angle Adjustable Round Recessed COB LED Downlight Parameters:
 Product Model:Power(w)Lumen(lm)LED Qty.(cob)Opening(mm)Unit Size(mm)
 IN-DL109-05W5 Watts500lmCOB/1pcD:80mmD:90*H:50mm
 IN-DL109-10W10 Watts1000lmCOB/1pcD:105mmD:120*H:68mm
 IN-DL109-15W15 Watts1500lmCOB/1pcD:130mmD:150*H:70mm
 IN-DL109-20W20 Watts2000lmCOB/1pcD:160mmD:180*H:70mm
Voltage Input:AC85-265V, 50/60HZ
Lumen Intensity:80lm/W, 90lm/W, 100lm/W, LM-80 Listed COB LED Chip

PF/CRI/THD:

PF>0.90, Ra>80, THD<15%
Viewing Angle:Beam Angle:30 Degrees, Reflector Rotating:60 Degrees
CCT:WW:2700-3300K, NW:4000-4500K, CW:6000-6500K
Light Decay:<3%@3000 Hours
Working Temp.: -22°F-+140°F(-30℃-60℃, Work Humidity:5-95% R.H.)
Driver Type:External Constant Current intelligent IC Driver, Dimmable Is Available
IP Rating:IP44 Grade
Lamp Installation:Recessed Installation, Need To Open Cut Hole at Ceiling Or Wall
Prodoct Material:Die Casting Aluminum +Reflector + Glass
Lamp Life Span:Over 50,000 Hours, 3 Years' Quality Warranty
Body Color:Grilled White Shell+Black Radiator, Support Your Logo Printed On Lamp Body



Infelite Die Cast Aluminum Recessed LED Downlight Features:

1. Brand new high brightness LM-80 listed COB LED chips output 90lm/W,100lm/W,120lm/W.
2. Aluminum PCB with great thermal conductivity function and heat sink, better heat dissipation.
3. Die cast aluminum body is good at heat dissipation, stay low surface temp. and long lifespan.
4. External constant current driver with over-temp., over-current, overload protection function.
5. No UV, no infrared, no mercury and other hazardous substances for health and environment.
6. Simple installation and connection, support embedded recessed ceiling and wall installation.



Product Applications:
LED Down Lights are used to replace the traditional lamp, and widely applied in commercial lighting and home Lighting, living room, bed room, store, display window, exhibition halls, kitchens, bathrooms, shopping mall, school, hospital, factory, decoration, hotel, office, showcase, square, gymnasiums, meeting room and other indoor commercial lighting area.igh quality led chip.

Detailed Images

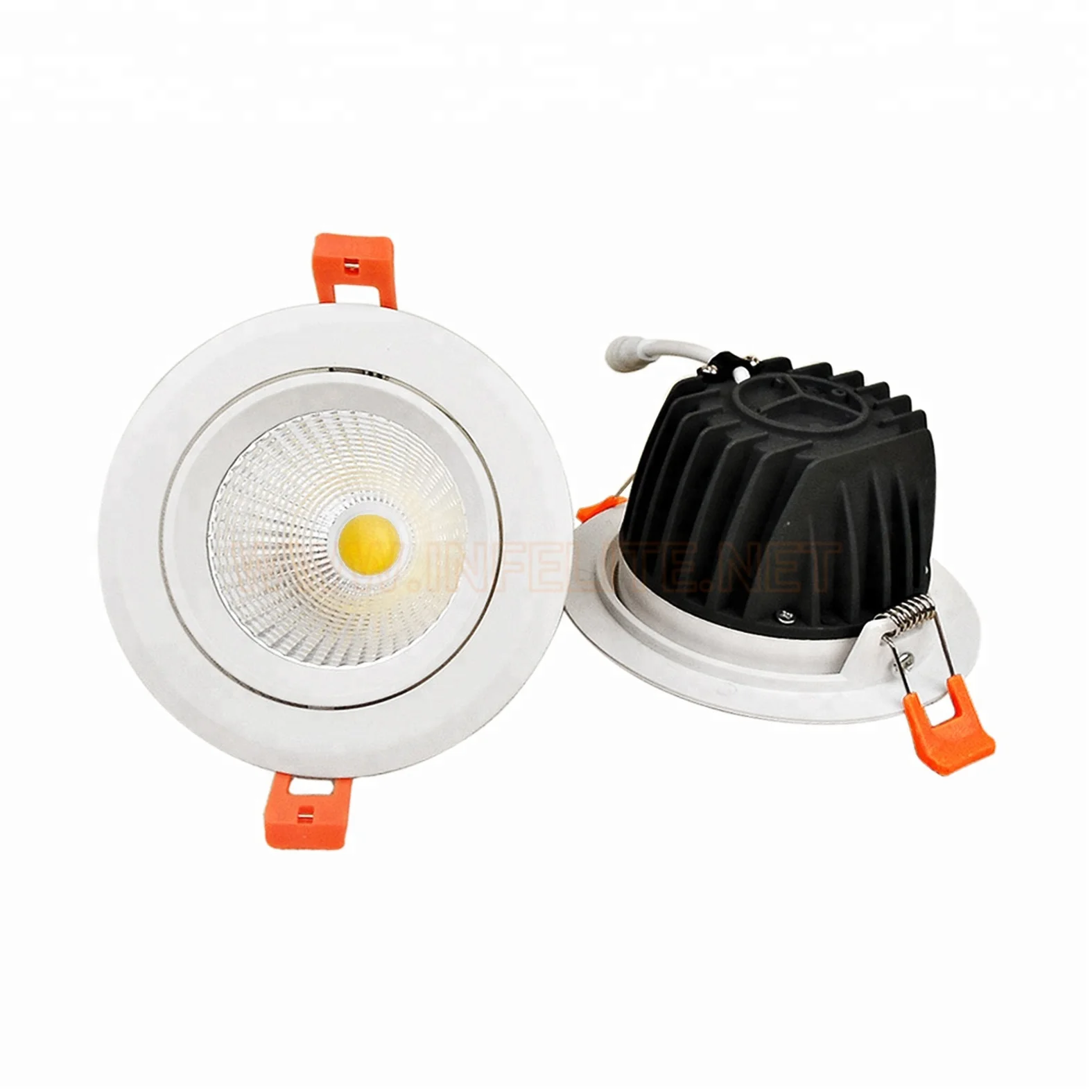

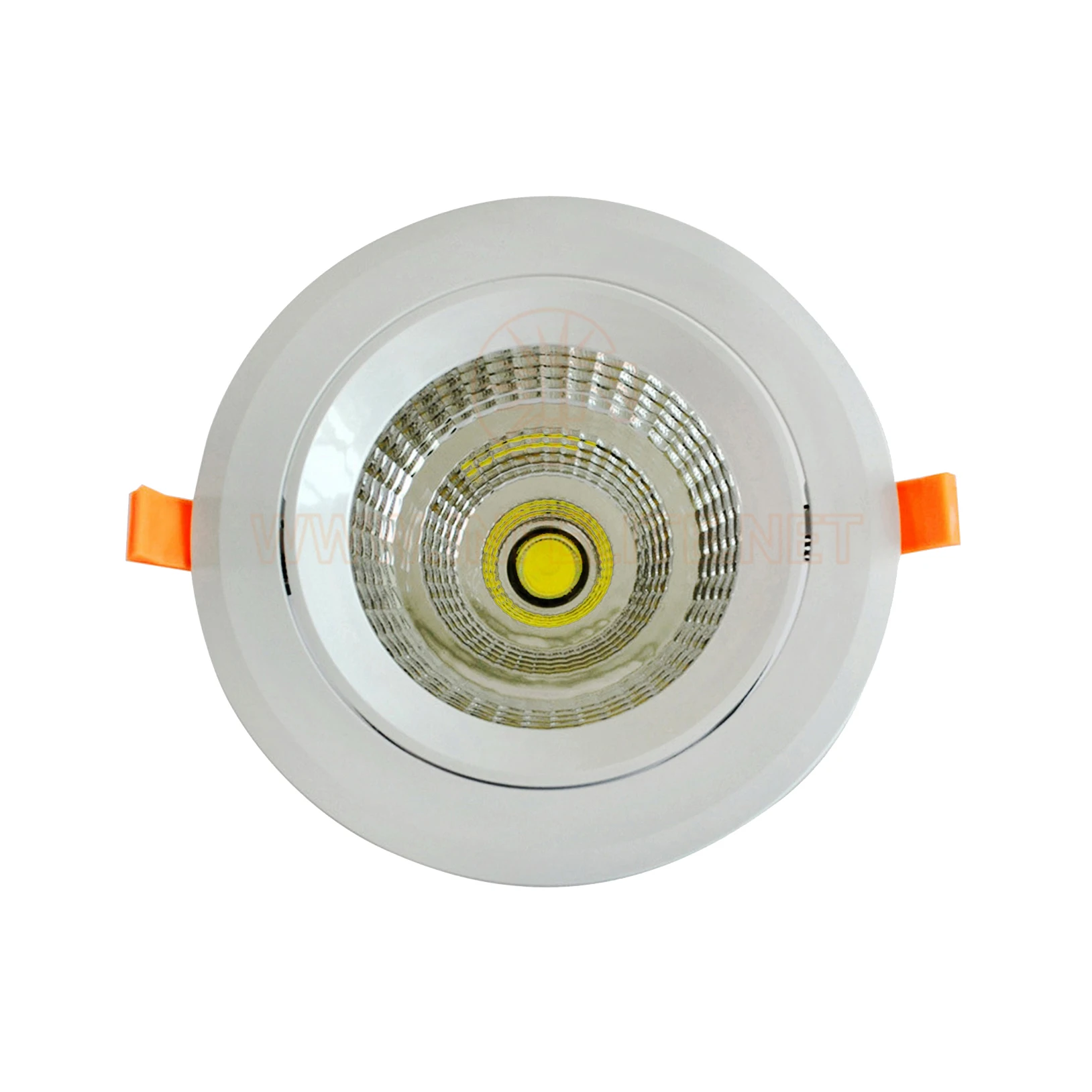

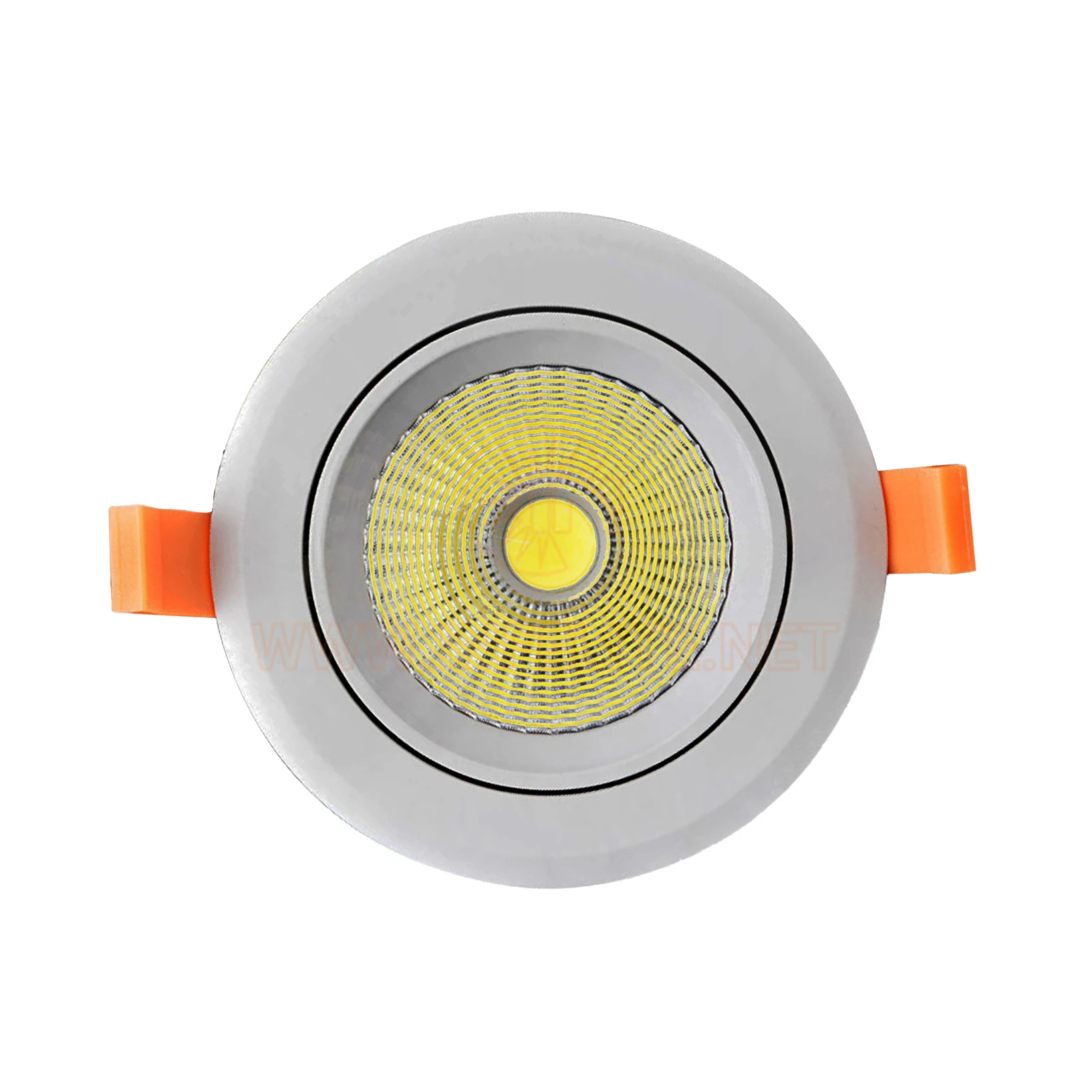

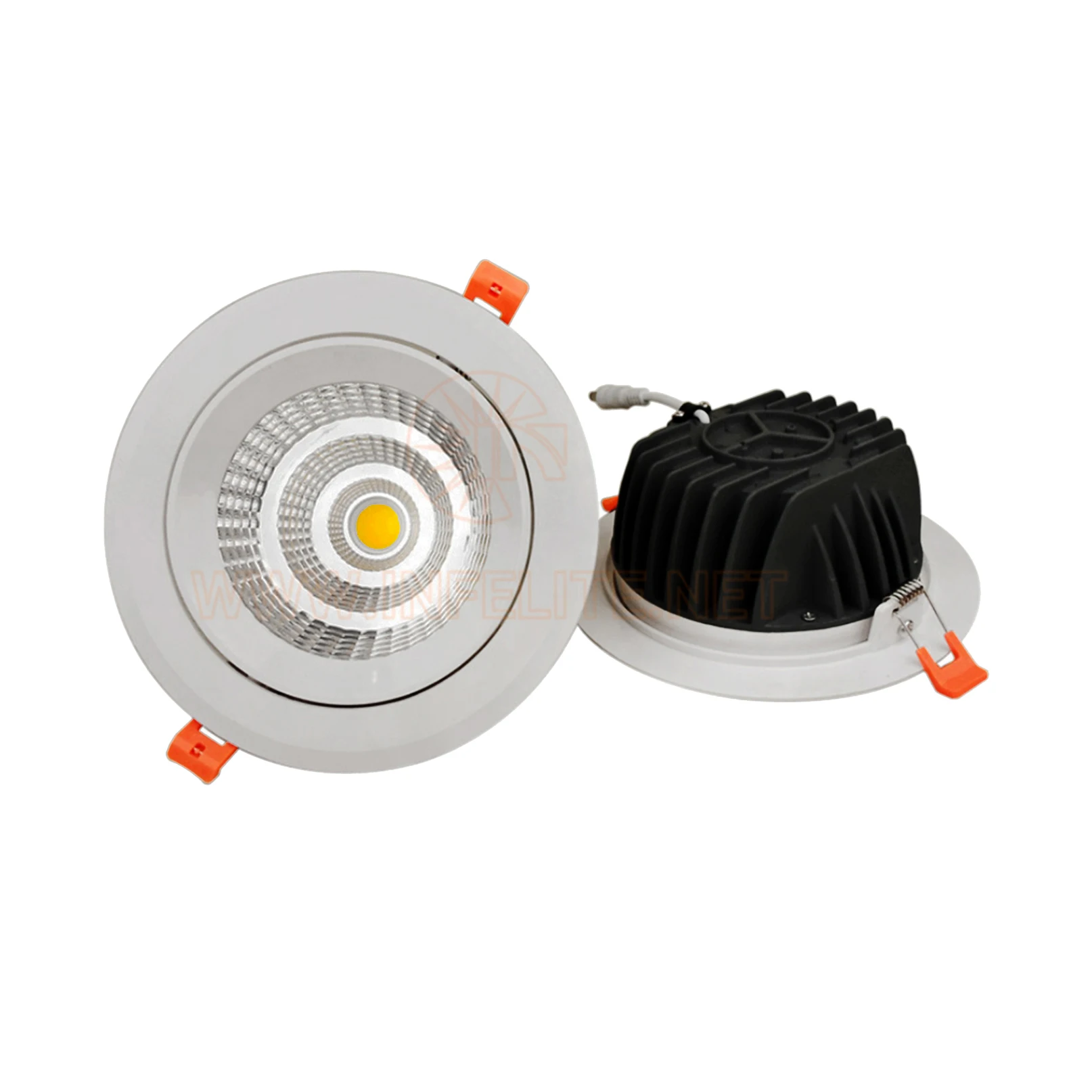

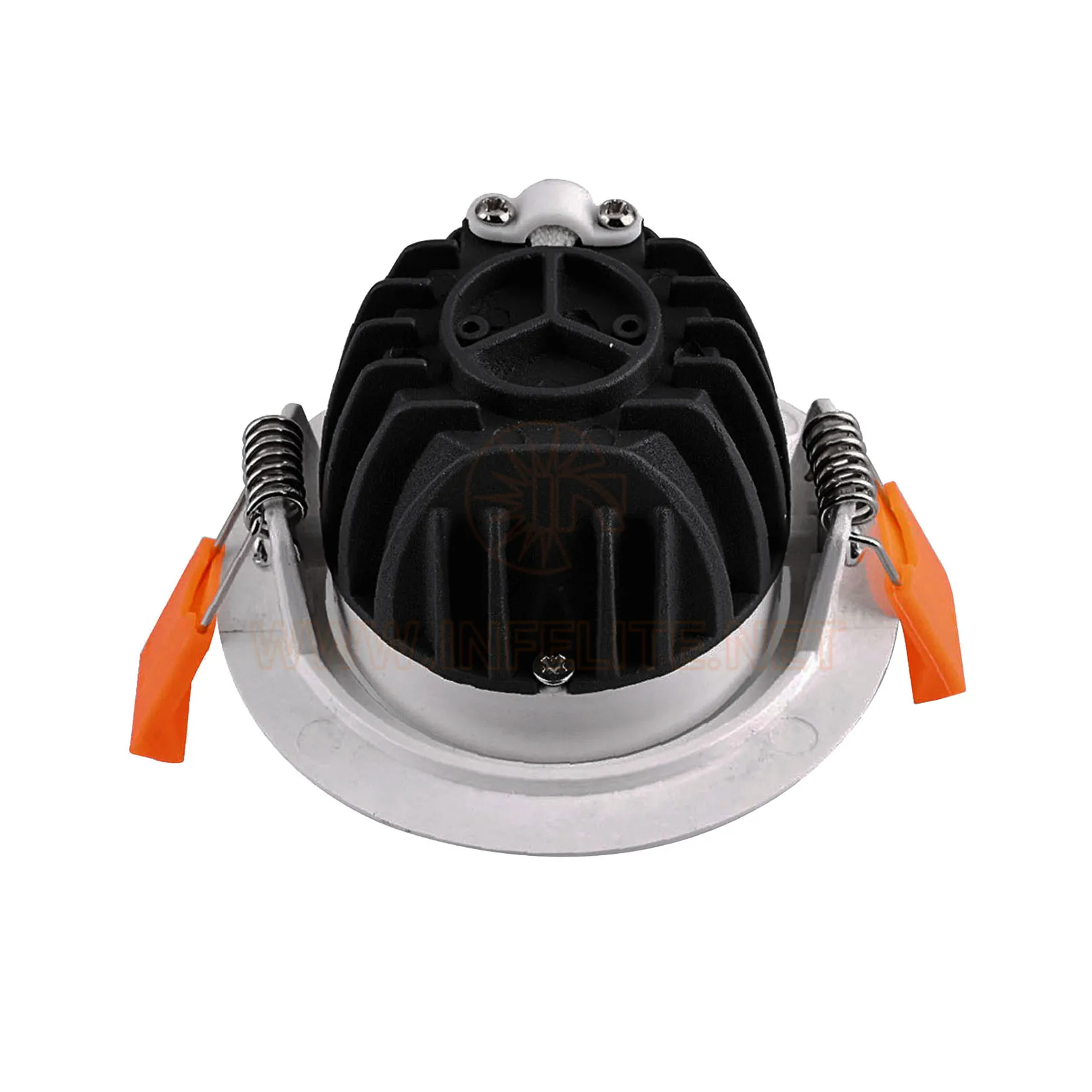

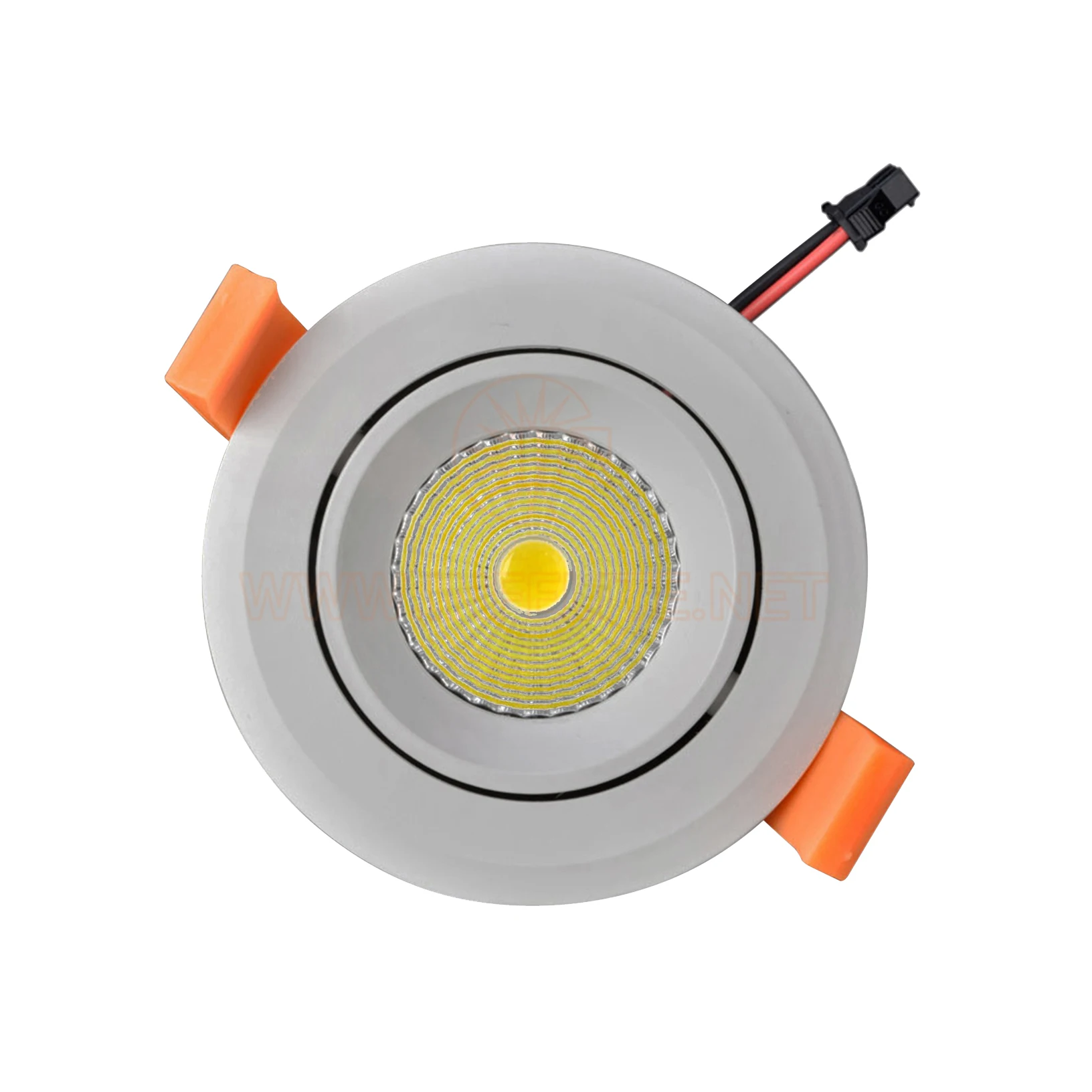

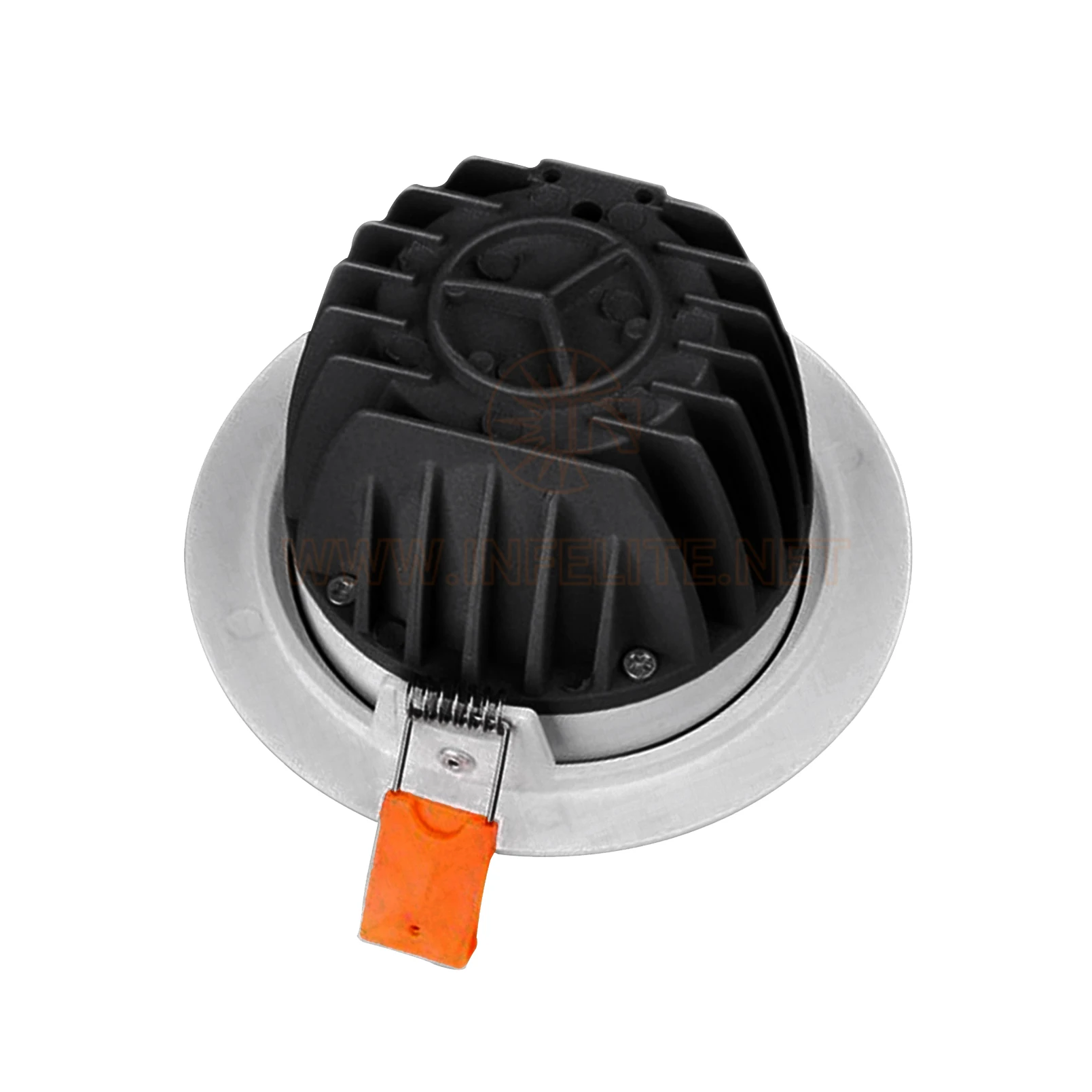

DL10905DL10914DL10902DL10911DL10903DL10909DL10901DL10916DL10917

Packaging Detials



recessed-downlight-packing

1.Angle adjustable round recessed cob led downlight 10w,unit size:D:120*H:60mm.


2.Pkgs. size:150*150*100mm, carton size:47*52*47cm,G.W:26.50kg,20pcs/carton.



3.Pkgs. Contant:1X LED downlight, 1X LED driver,K3K inner box, K=K outer carton.



4.Welcome your logo print on lamp body and packing box for your brand marketing.

Payment & Shipping

1.Payment method:credit card, e-checking, T/T,western union, moneygram, L/C, paypal.


2.Shipment method:air express, sea freight, railway to europe or appointed by the buyer.


3.Leading time: 1~2 days for the lamps in stock, 4-12 daysf for OEM order or bulk order.


4.Delivery time:express:3-7 days, sea freight:30-35 days, railway to europe:20-25 days.

shipment-method

Infelite Factory

                        Welcome To Visit And Investigate Our Infelite Factory !

Shenzhen Infelite Co.,Ltd is an innovative & experienced factory of LED commercial lighting fixture in China. With the complete industrial chain from SMT workshop to testing laboratory for LED illumination field, the main products of LED tube light, LED panel light, LED corn light, LED filament light are produced strictly under ISO9001:2008 quality management system and with CE, RoHS, EMC, TUV, PSE,SAA certifications approved.....

infelite-factory-tour

Our Certifications
new-certifications
Our Services

 1. Innovative Customize Solutions

Infelite provide high quality LED lighting solutions for the commercial sectors at competitive pricing, maximizing utility rebates and reasonable financing charges. The innovative solutions involve a new lighting fixture model design assistance, molding, photo-metric layout consulting, ROI analysis and lighting solution audit etc. Your logo printed on the packing box or laser marked on the products is available.



2. Customized OEM&ODM Service
If our existing design is not satisfactory, just tell us your request of design, such as lamp size, lumen output, lamp shape, heat dissipation solution could design out the product for your demond.We can make out the samples for you in as fast as 7~10 working days, and the test report is free for the samples.



3. 3 ~ 5 Years’ Quality Warranty
Our quality management system is compliant with standard ISO 9001:2008, all products produced by Infelite have 3 years limited warranty period at least, some items have 5 year limited warranty.
If item fails due to quality problem during warranty, we can send new replacement via air freight immediately if urgently. Or we prefer to send replacement with next order. Welcome to choose Infelite lighting to start a Long-Term Win-Win Situation!
