40000 liters 20 metric tons cooking gas plant

Product Overview

Description

40000 liters 20 metric tons cooking gas plant

Ⅰ. The Product Description

The volumes of the tank of skid filling station are mainly from 2cbm to 200cbm.

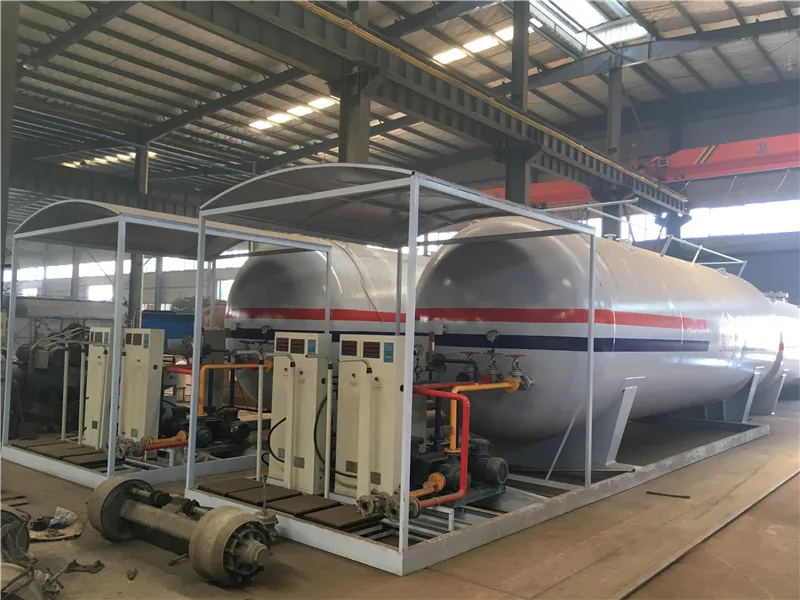

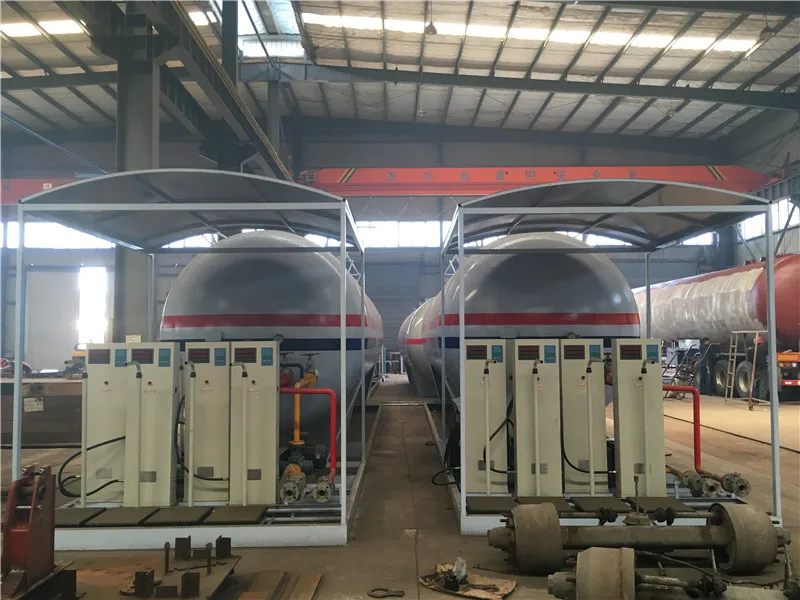

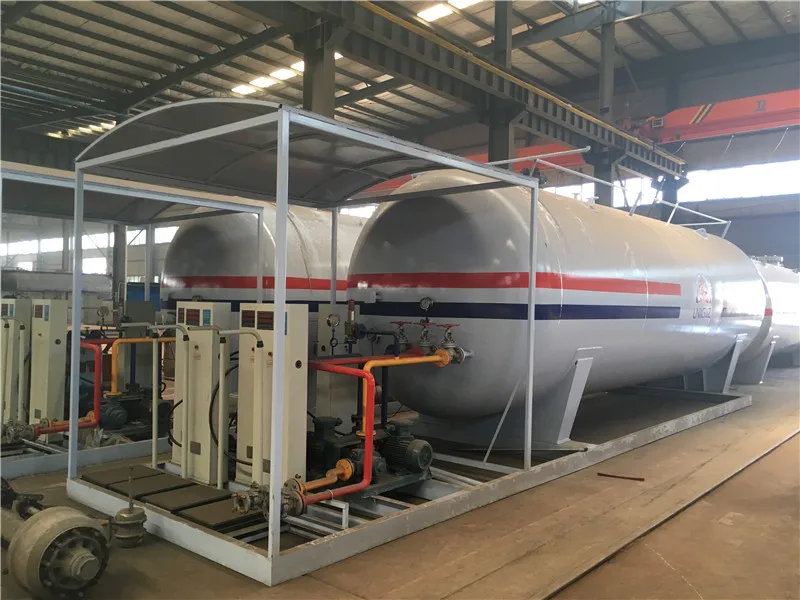

40CBM Skid Mounted LPG Filling Station
Overview
Name	40CBM Skid Mounted LPG Filling Station
Color/LOGO	Customizable
Function	Storing and refueling LPG
Tank
Working Pressure	1.77 Mpa
Designing Temperature	-19~50℃
Meterial	Carbon Steel
Thickness	16 mm
Common Accosseries

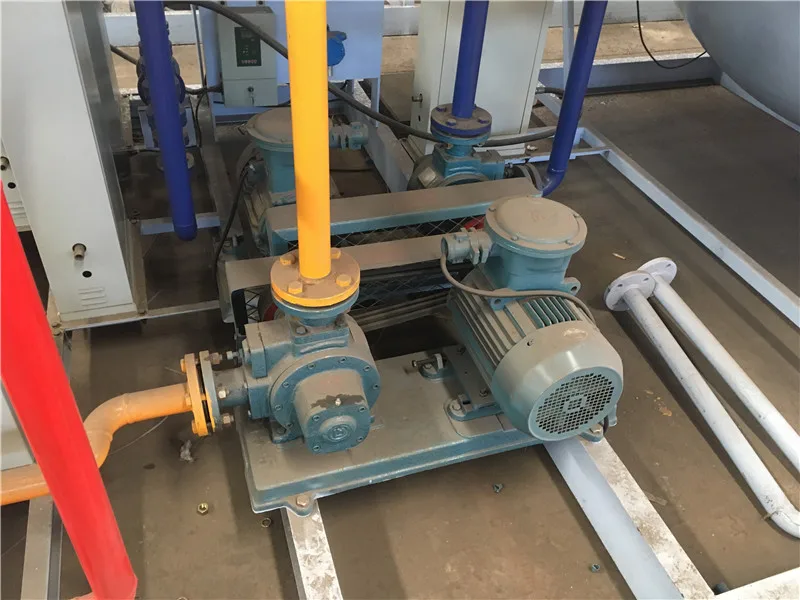

Pump	YQB15-5

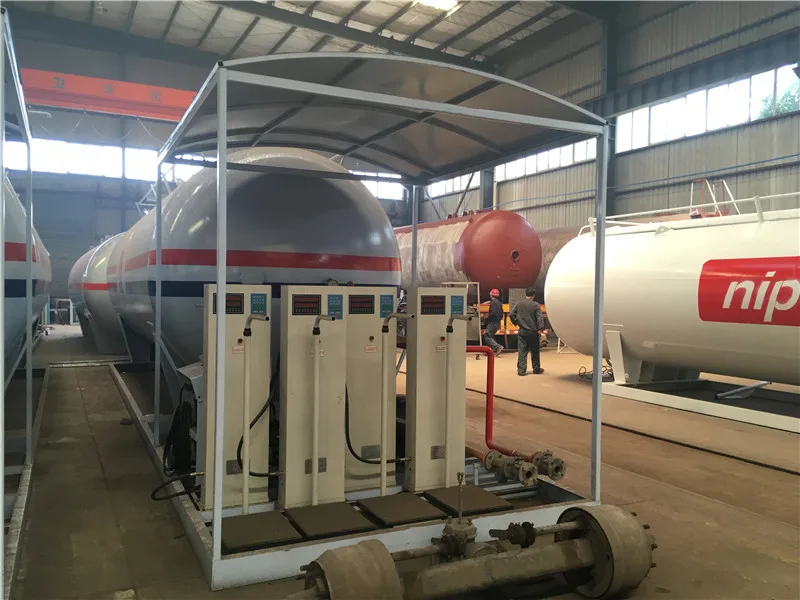

Gas Filling Scale/Dispenser	BSC-150/two nozzles
Gas Gun with Pipe	L=2m
Anti-static Motor	1
Safety Valve	A42F-25 DN50(1)
Backflow Valve	AH42F-25DN25(1)
Check Valve	H42N-40DN50(2)
Stop Valve	J41N-40 DN50(25),J41N-40 DN32(1),J41N-40 DN25(4), J41N-40 DN20(2),J41N-40 DN15(10).
Alarm	QJ-D-99F(2)
Pipe Safety Valve	A21F-25 DN15(1)
Unloading Pipe	L=4m DN50/DN25 (1)
Quakeproof Pipe	L=500mm DN50 (2)
Elbow	DN65(2),DN50(10)
Flange	2.5MPaDN65(1),2.5MPaDN50(50),2.5MPaDN32(1), 2.5MPaDN25(8),2.5MPaDN15(20)
Metal Gasket	DN65,DN50,DN32,DN25,DN20,DN15
Bolt Glass 8.8	16*70 (300),12*55(100)
Pipe	1 set
Base	1 set
Sprinker System	1 set

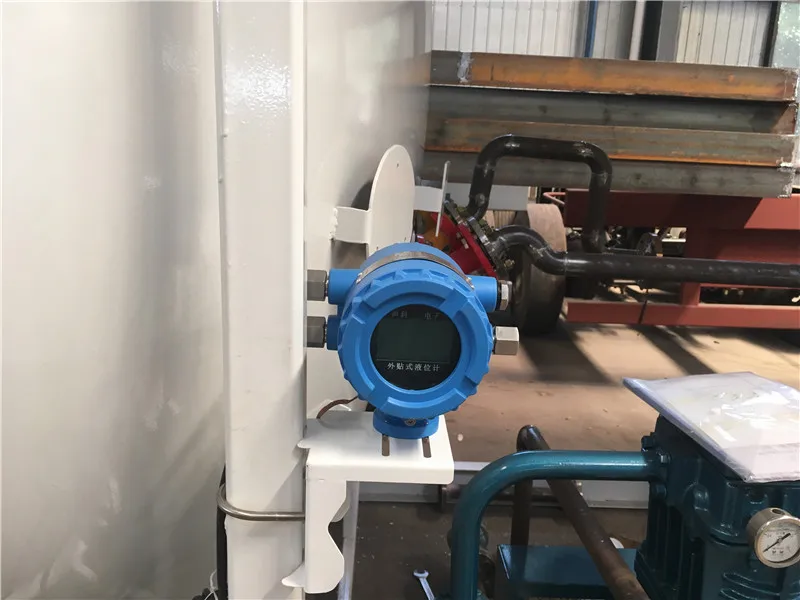

Safety Equipment	Pressure gauge, temperature gauge, level sensor, etc.
Tests	Termal treatment, X-Ray test, hydrapress measurement, welding line density test.



The dimension of the tank is customizable. The color/LOGO of the tank is customizable.

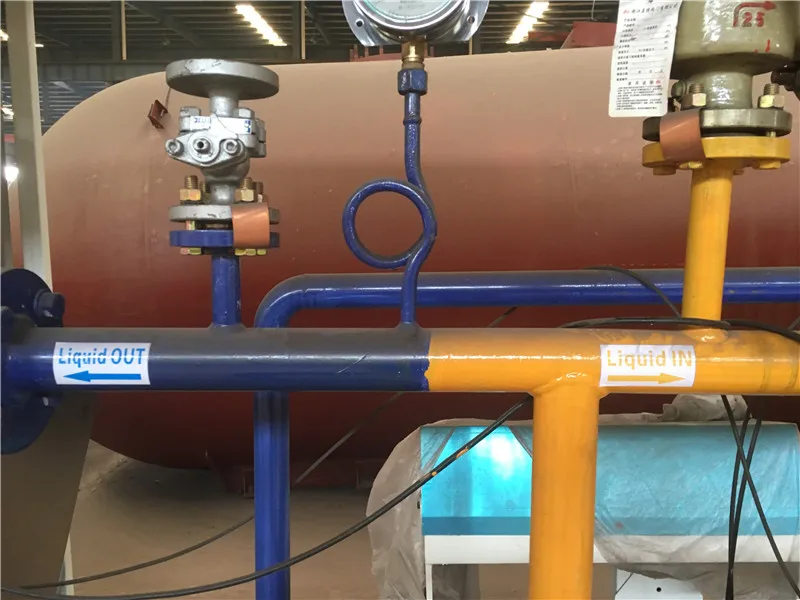

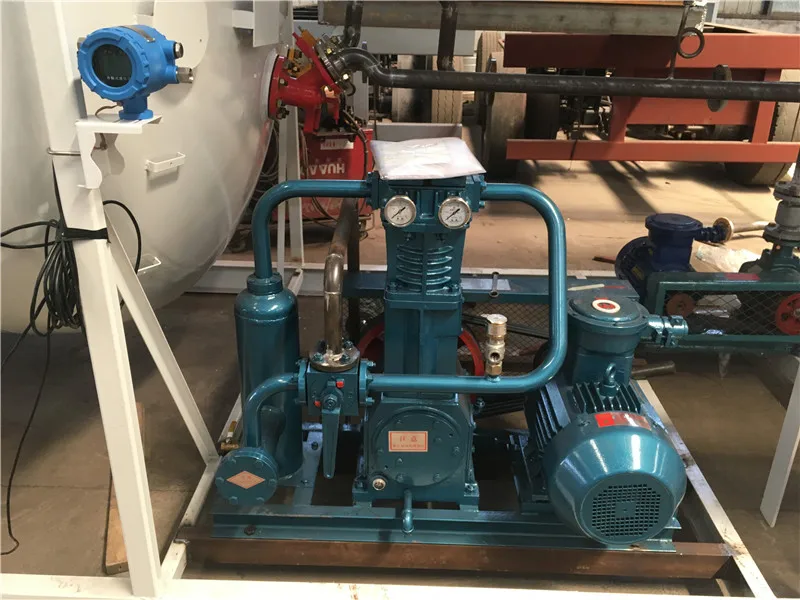

The basic equipment includes liquid indicator, safet accessories, backflow valve, liquid hydrocarbon pump, check valve, stop valve, anti-static motor, alarm, pipe safety valve, unloading pipe, quakeproof pipe, gas gun with pipe, elbow, flange, metal gasket, bolt glass 8.8, gas filling scale, pipe, base, etc.





For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.

Ⅱ. Packaging&Shipping

We provide Ro-Ro, container and bulk shipping.

Ⅲ. Our Factory&Certificate

Hubei Dali Special Automobile Manufacturing Co,. ltd. is located in the China special automobile industry city-Suizhou, Hubei Province. The company is the first domestic private enterprise entering the special automobile industry, which is also the first pressure tank vehicle manufacturing private enterprise and got the quarantine license from General Administration of Quality Supervision of China. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service. Dali Special is a high-tech enterprise in Hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.
