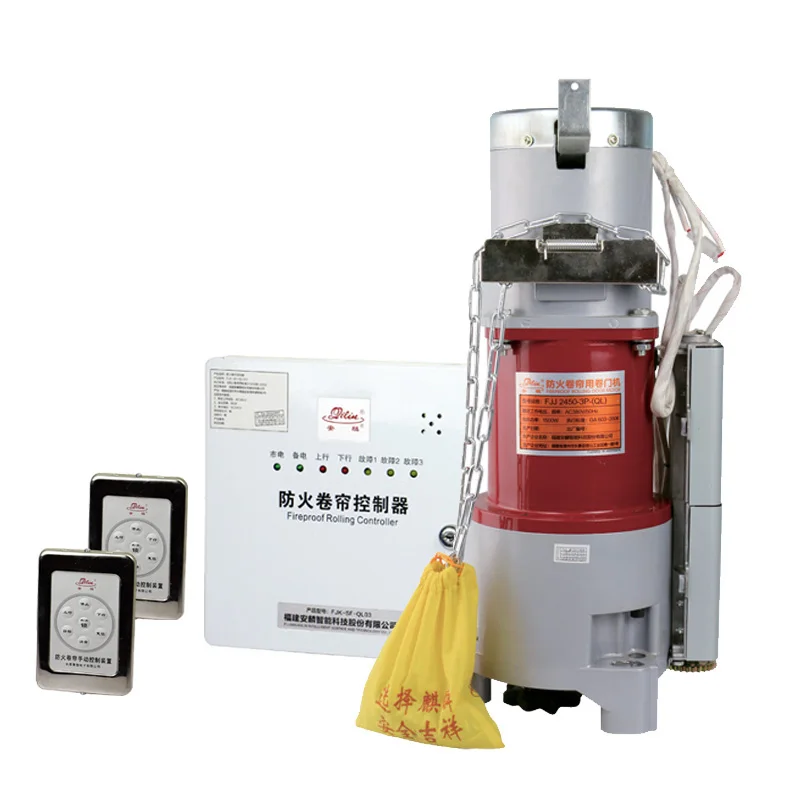

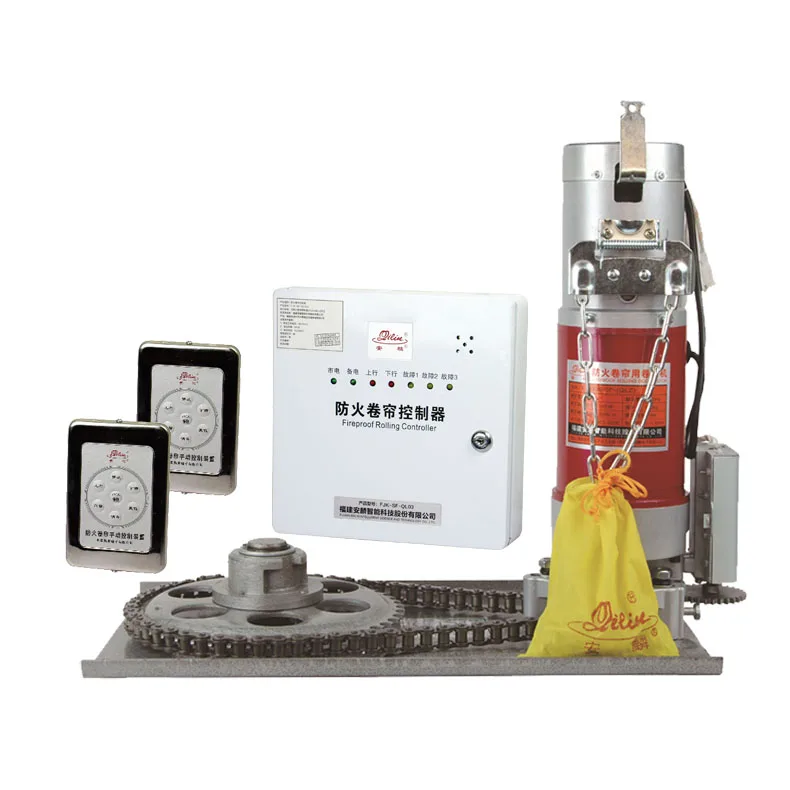

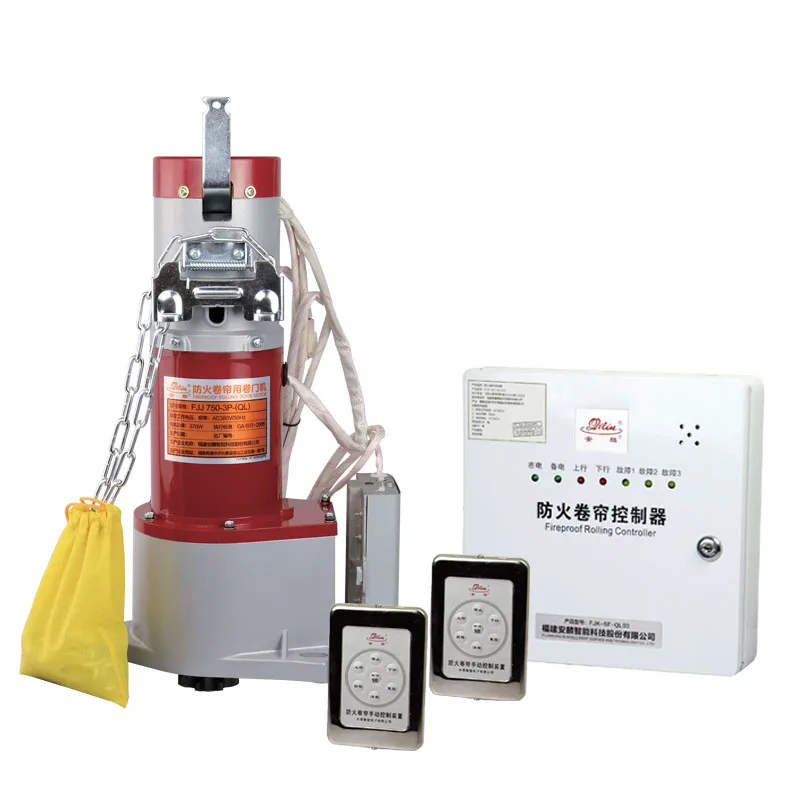

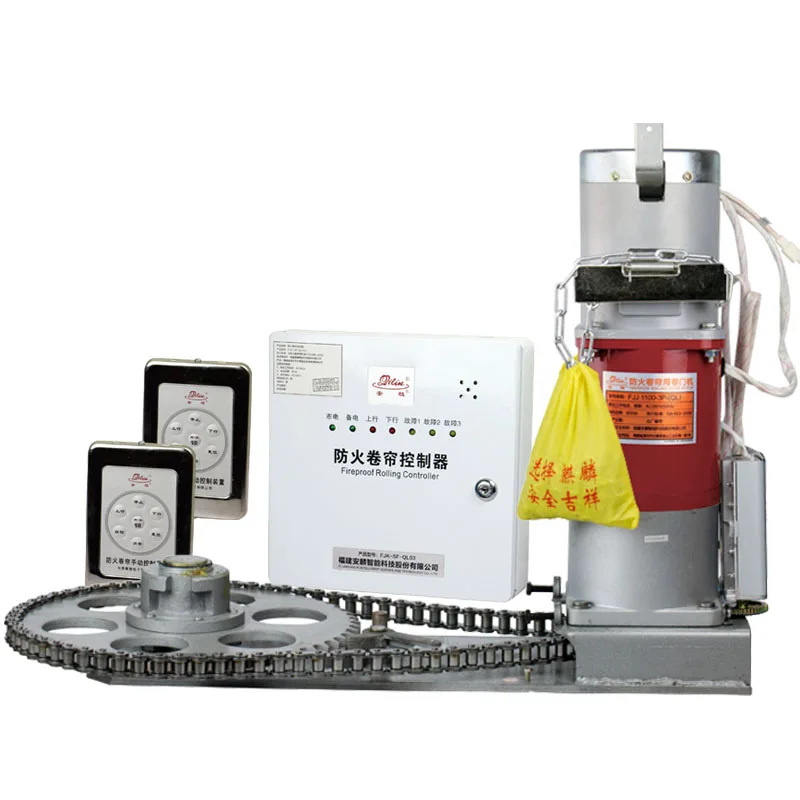

AC600 Fireproof automatic roller shutter operators rolling door motor
- Category: >>>
- Supplier: Fujian Anlin Intelligent Science And Technology Co. Ltd.
Share on (60801967714):
Product Overview
Description
Company Profile
Fujian Anlin inteligent science andtechnology Co, Ltd,is a Fujian province National High TechnologyEnterprises which is engaging in researching, manufacturing.
Established in 1992, after 28 years, has more than 100 patents, including .more than 30 invention patents, the annual sales performance of nearly .200 million, with 310 employees, the factory covers an area of 50 acres.with the whole automation production line equipment, the company is the main editor unit of the rolling door motor standard .
Products Description
Fireproof Rolling Door Motor
1.Models are from 600KG to 2000KG (can be customized according to customer requirements)
2.Not affected by power outages
2.Not affected by power outages
3.A series of fireproof accessories such as smoke sensor and temperature sensor can be configured
4.The whole set of fire shutters could be customized
110V/220V/380V are ok for our Fireproof Roller Door Motor. 100% copper material inside the motor, so it have a larger capacity and
durable than other motors
durable than other motors
FEATURES

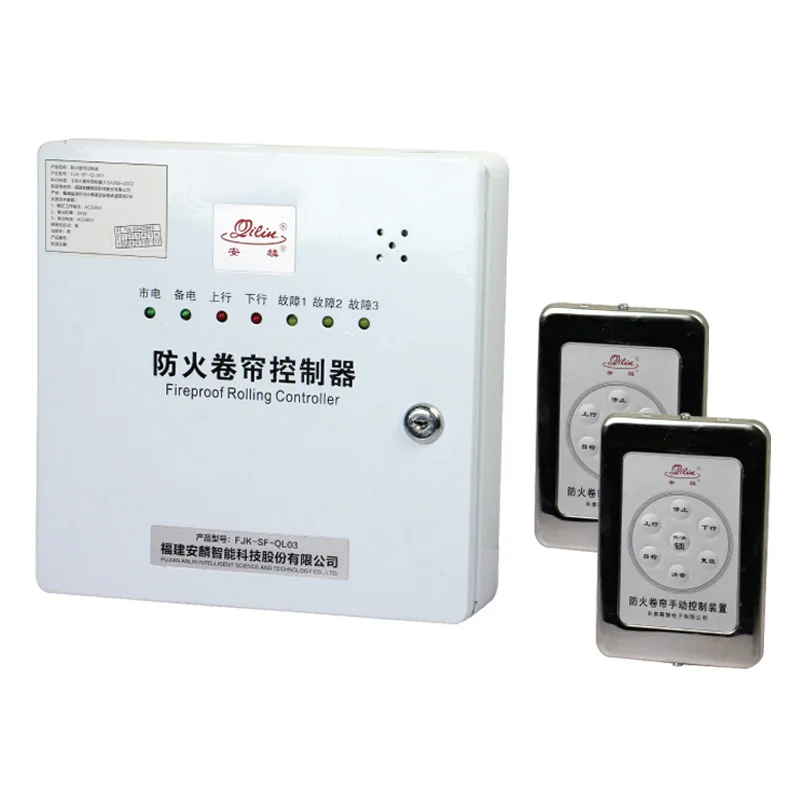

The fire shutter door controller is a fire control device used for public production. It can control the rise and fall of rolling door to achieve evacuation crowd and fire isolation.
It has a quick release control device, which can be realized by starting the power supply when the power supply fails.
It has a quick release control device, which can be realized by starting the power supply when the power supply fails.
The weight of the shutter door decreases intermittently, and there is a median waiting function (waiting time set by itself). Wait until the end of the boot speed again, to the lower limit stop
Specifiction
600KG | 1000KG | 1500KG | 2000KG | |
Rated power | 250W | 370W | 800W | 1500W |
Type of chain | 10A | 10A | 12A | 16A |
Output speed | 5.5r/min | 4.0r/min | 4.0r/min | 3.5r/min |
Output torque | 335N.m | 750N.m | 1100N.m | 2450N.m |
Elevation | 600KG | 1000KG | 1500KG | 2000KG |
Rolling tube diameter | 5" | 6" | 8" | 8" |
Max elevation distance | 6m | 9m | 9m | 16m |
short-time rating | <10min | <10min | <10min | <10min |
Anlin rolling door motor
Fujian Anlin intelligent science andtechnology Co , Ltd ( Zhangzhou Kylin electronics co , td ) is a Fujian province National High
TechnologyEnterprises which is engaging in researching , manufacturing , selling and offering service of intelligentelectric doors
and windows Have import and export right .
TechnologyEnterprises which is engaging in researching , manufacturing , selling and offering service of intelligentelectric doors
and windows Have import and export right .
Anlin rolling door motor
The ANLIN-Customized leading the whole industry with innovation and has developed customized motors for the UK, South Korea,Dubai,
Vietnam, Malaysia and other countries .
Vietnam, Malaysia and other countries .
Anlin rolling door motor
Every year we take part in many exhibition of door and window industry & R+T and Canton Fair.(Beijing)International Construction ,
Decoration and Materials .exhibition.Canton Window and Shading exhibition .
Decoration and Materials .exhibition.Canton Window and Shading exhibition .
An lin rolling door motor
It has the strict product inspecting system ,our company’s motor’s service life use the.standard of 10000 working times instead of
the 8000 times.of the ordinary standard of the.roller door motor industry , The New Product-All aluminum shell motor, warranty for
three years, the motor has the thermal protection,when the shell temperature is not higher than 78 degrees and the outdoor
temperature is 28 degree,after the thermal protection works, the waiting time for the motor restart is 2-3 minutes.
the 8000 times.of the ordinary standard of the.roller door motor industry , The New Product-All aluminum shell motor, warranty for
three years, the motor has the thermal protection,when the shell temperature is not higher than 78 degrees and the outdoor
temperature is 28 degree,after the thermal protection works, the waiting time for the motor restart is 2-3 minutes.
Anlin rolling door motor
Our products are exported to more than 60 countries, and has cooperated with more than 10 overseas Listed companies for more than five years.
