  • HX SJA 1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX SJA 1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line
HX-SJA-1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line

HX SJA 1575 Fully Automatic Toilet Paper Roller and Kitchen Towel Paper Production Line

Share on (60801972061):


Price:

Quantity:


Product Overview

Description


Product Description

outline.

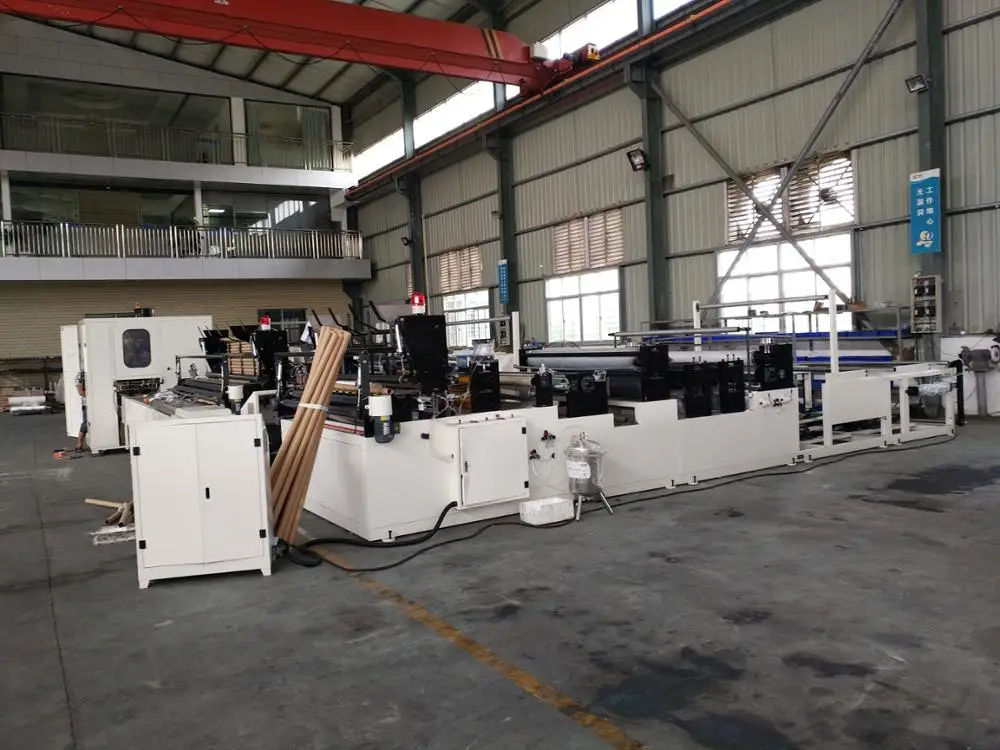

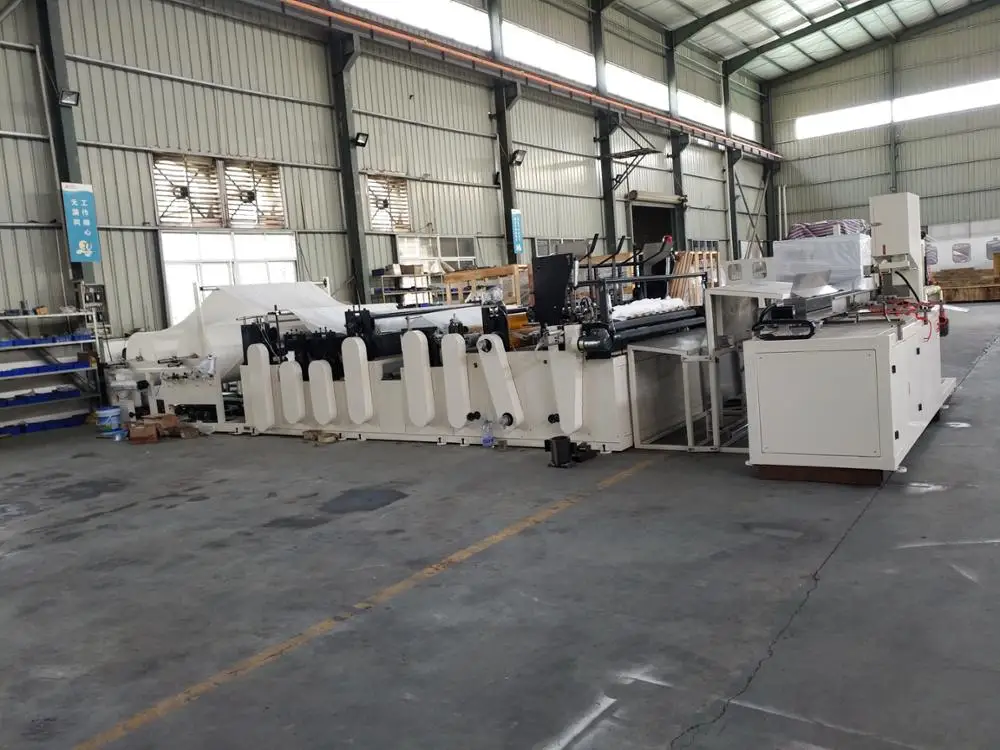

This production line consists of Fully Automatic Rewinding Machine, Accumulator and automatic band saw machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable, saving the labor cost and reducing the labor strength, it’s best choice for the producing hygienic paper products.


product
\t
Rewinding Machine Technical Parameters
\t
Model
\t
HX-SJA-1575 Fully Automatic Toilet Paper/Kitchen Towel Rewinding Machine(Other size can be specified)
\t
Jumbo Roll Max Width
\t
1750mm (Other size can be specified)
\t
Jumbo Roll Diameter
\t
Φ1100mm(Other size can be specified)
\t
Jumbo Roll Inner Diameter
\t
3inches(76.2mm)
\t
Perforation Distance
\t
4 anvil Blades（115mm.、230mm）(Other size can be specified)
\t
Finished Product Diameter
\t
Φ80~φ140mm
\t
Finished Product Core Diameter
\t
φ38~φ48mm
\t
Production Speed
\t
0~180m/min
\t
Program Controller
\t
PLC(Delta)
\t
Unwind Stands
\t
1 or 3 Stands（Need to be specified）
\t
Pneumatic System
\t
0.5~0.8MPA（Provide by user）
\t
Main Power
\t
18KW
\t
Dimension
\t
10000*3000*2000(L*W*H)
\t
Weight
\t
About 12T(wall board structure)(Other size can be specified)
\t
Jumbo Roll Layers
\t
1~3plys,14~30gsm Toilet paper or kitchen towel
\t
Edge-Line Embossing(can be specified)
\t
Steel to steel (Pneumatic Control)
\t
Embossment (can be specified)
\t
Steel to Rubber, Double Sets
\t
Voltage
\t
380V 50HZ
\t
HX-SJA-1575 Automatic Band Saw Machine
\t
Model
\t
HX-SJA-157 5 Log Accumulator (Other size can be specified)
\t
Log Max Length
\t
1750（mm）(Other size can be specified)
\t
Log Diameter
\t
φ80~φ115mm (Other size can be specified)
\t
Log Amount
\t
26logs
\t
Working Mode
\t
Cycling
\t
Program Controller
\t
PLC
\t
Power
\t
3KW
\t
Dimension
\t
3000*2000*2300（L*W*H）
\t
Weight
\t
About 1.3T
\t
Voltage
\t
380V 50HZ
\t
HX-SJA-1575 Log Accumulator
\t
Model
\t
HX-SJA-157 5 Log Accumulator (Other size can be specified)
\t
Log Max Length
\t
1750（mm）(Other size can be specified)
\t
Log Diameter
\t
φ80~φ115mm (Other size can be specified)
\t
Log Amount
\t
26logs
\t
Working Mode
\t
Cycling
\t
Program Controller
\t
PLC
\t
Power
\t
3KW
\t
Dimension
\t
3000*2000*2300
\t
Weight
\t
About 1.3T
\t
Voltage
\t
380V 50HZ
\t
HX-SJA-1575 Automatic Band Saw Machine
\t
Model
\t
HX-GS-1575 Automatic Band Saw
\t
Jumbo Roll Max Width
\t
1750mm
\t
Jumbo Roll Diameter
\t
φ80~φ115mm
\t
Design Speed
\t
60cut/min
\t
Design Speed
\t
40-50cut/min
\t
Grinding System
\t
Pneumatic Sharpen, grinding time can be set
\t
Driving System
\t
Delta Servo Motor
\t
Power
\t
2.2KW
\t
Dimension
\t
3800*2500*2000mm
\t
Blade Size
\t
3900*80*1（mm）
\t
Voltage
\t
380V 50HZ
\t
Weight
\t
About 1.5T
