Sodium Hypochlorite Equipment Using Titanium Electrode
- Category: >>>
- Supplier: Baoji Qixin Titanium Co. Ltd.
Share on (60801980769):
Product Overview
Description
Product Description

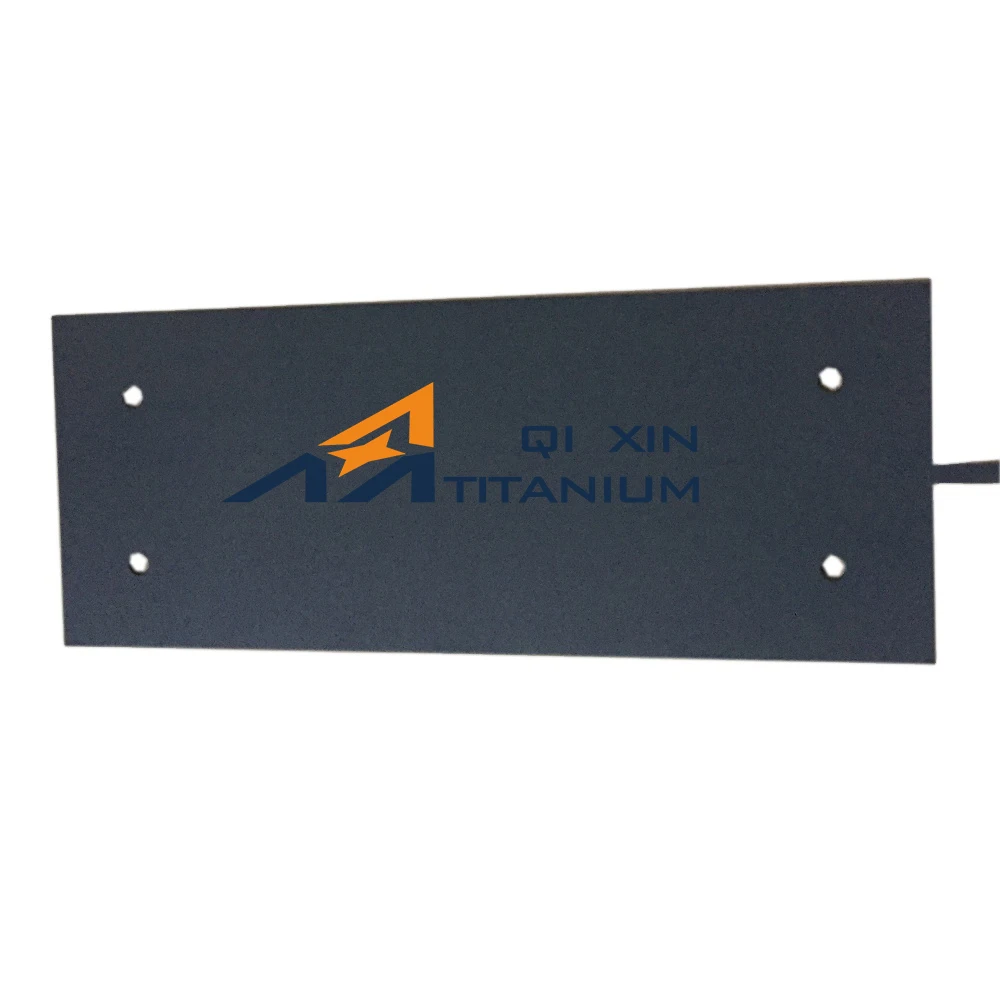

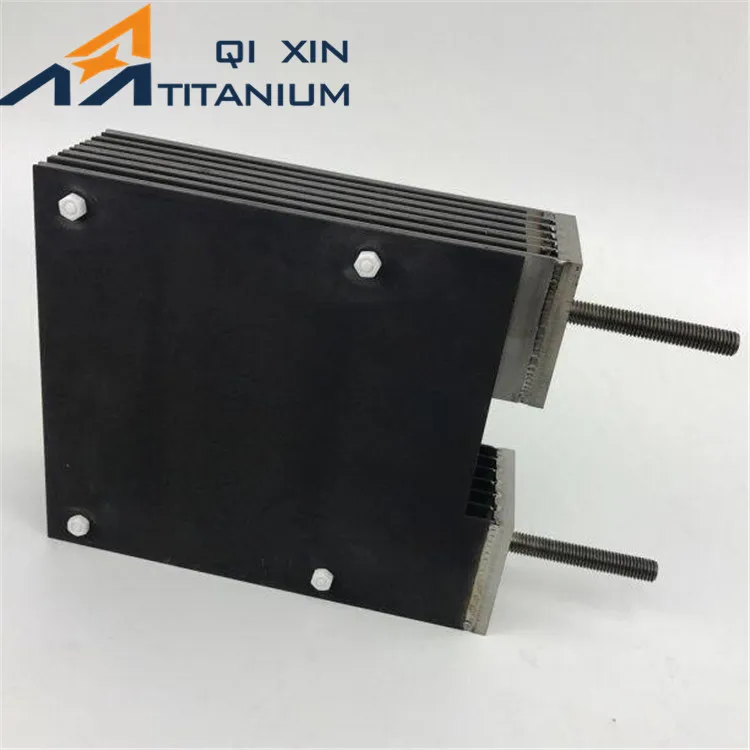

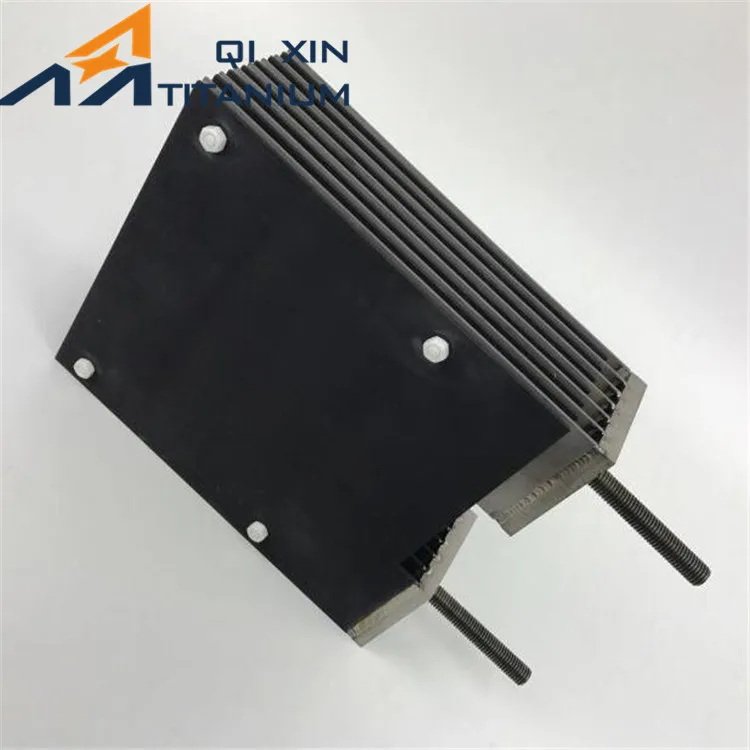

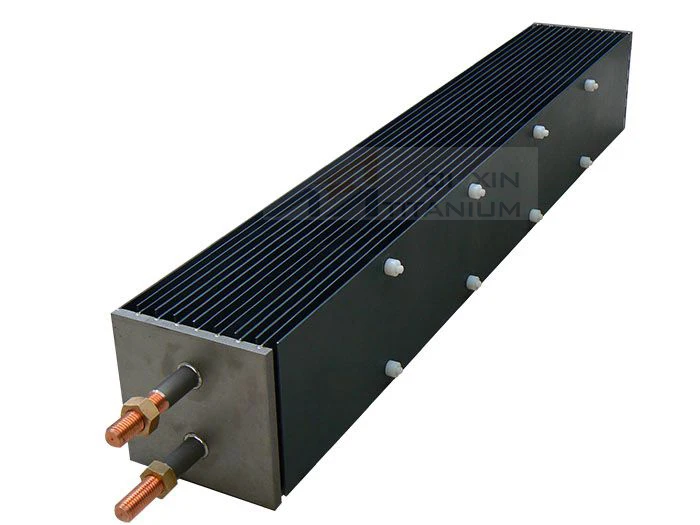

Sodium Hypochlorite Equipment Using Titanium Electrode
| Material | Gr1 Titanium as substrate,mixed Ruthenium-Iridium oxide as coating |
| Technology | Sand blasting, Acid washing and Brush Coating |
| Dimension&Shape | Different dimension and shape is available,or according to client's drawing |
| Working Parameter | Current density: 800A/M2~1000A/M2 Brine Density: 4% Interpole gap: 3.5mm Temperature: 25℃~40℃ |
| Working Parameter | NaCL+H2O=NaCLO+H2↑ NaClO + H2O = HClO + NaOH HClO → HCl + [O] HCl + NaOH =NaCL+H2O |
| Electrolyte | Salt water / Saline solution/ Brine/ Sea water |
| Features | 1)Dimension Stable; 2)Lower working voltage and small energy consumption; 3)Longer working life; 4)Avoiding any pollution to electrolyte and products on cathode; 5)High anti-corrosion property; 6)Light weight can easily to be installed. |
| Applications | Sodium hypochlorite(NaCLO) production |
| Remarks | Titanium electrode also called MMO titanium anode,DSA & Insoluble anode;Cathode also be provided |
| MOQ | Flexible,sample order acceptable 100x100mm mesh and plate are available. |
Production Flow
| |||
| 1. Substrate treatment | treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic. | ||
2. Brushing Drying | 1)After substrate treatment, it will be brush coated. The main coated content is ruthenium iridium oxide, which is a kind of mixed solution. 2)Then, heat treatment will be going on after drying. 3)The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface. | ||
| 3. Heat Treatment | |||
Company Information
| Baoji Qixin Titanium Co., L td. was built in 2006. It is located in Xuguang Industrial Park , Maying town,in Baoji. The company is private enterprise and focus on production and research of electrochemical industrial titanium anode plate, titanium materials or other related titanium products. |
| The main products are including Ru-Ir oxide,mixed Ru-Ir-Sn oxide coated, mixed Ir-Ta oxide coated, platinium coated titanium electrode,lead oxide coated titanium anode and so on. |
Packaging & Shipping
Packing details
We will suggest you the packing by plywood cases or cartons. Because we must consider about
the safe and freight cost.
Inside of the Plywood cases,we usually keep the products inside a plastic bag or foam paper to prevent the products from being scratched.
Most importantly,we must ensure the products safe during shipping and you pay less freight.
Shipping terms
Below is the shipping terms we usually suggest.
By Express: FedEX, DHL, TNT, SF etc.
Most importantly,the products will be shipped according to customers’ demands.
Certifications
Quality Guarantee:
(1) Main quality indicators: titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate.
(2) With advanced technology & equipment, abundant experiences and skilled workers,during the production of Ruthenium Oxide Coated Titanium Anode, each process must be strictly supervised and tested.
(3) We have own R&D, Production and Sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most efficient service.
(4) Each production process are looked at to make sure the specifications and performance are qualified.
Our Services
After receive your inquiry,we need to analyze your detailed demands. If your demands are not details,we need ask for your detailed demands including the application,the precision sizes,the tolerance,etc.Then we could offer you the fittest price,the delivery time,shipping terms,payment. Most importantly,your demands is our offering standard.
Contact us
Baoji Qixin Titanium Co., Ltd specializes in titanium electrode research and production with strict quality control. If you have any requirement, please do not hesitate to contact us.
