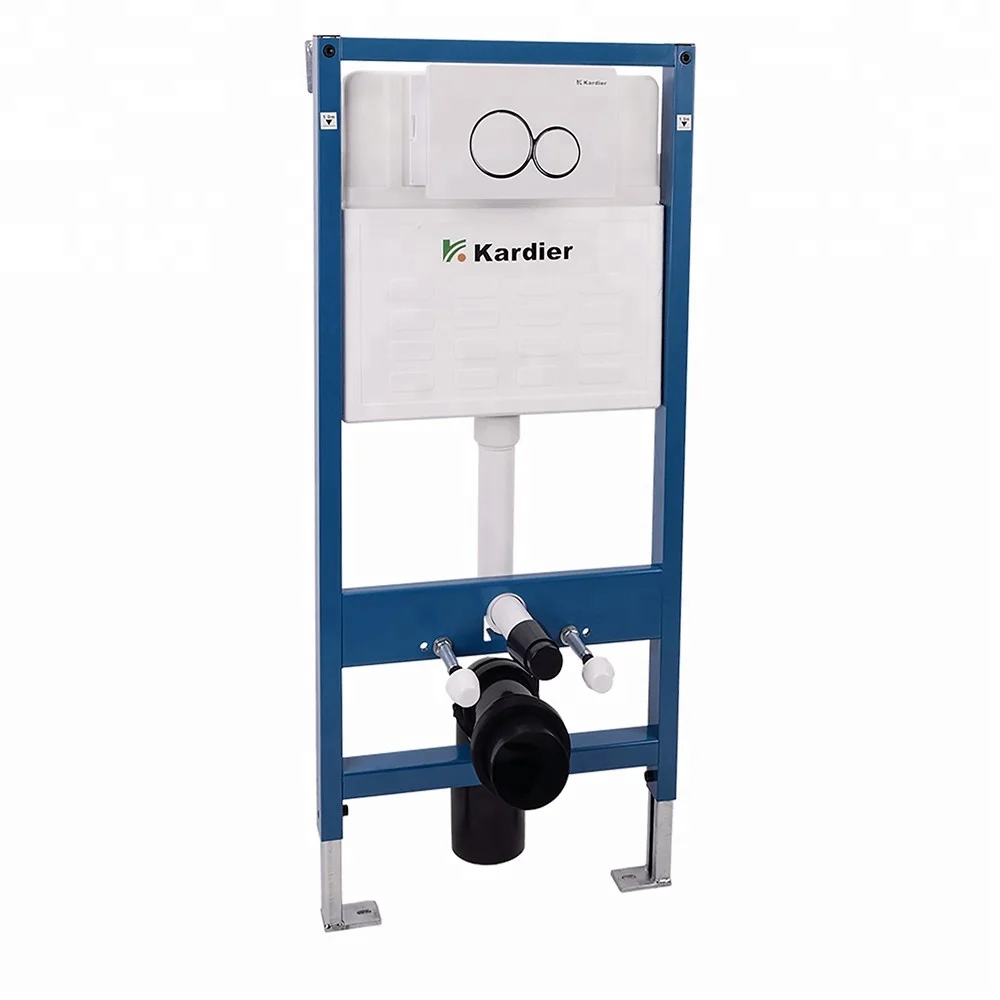

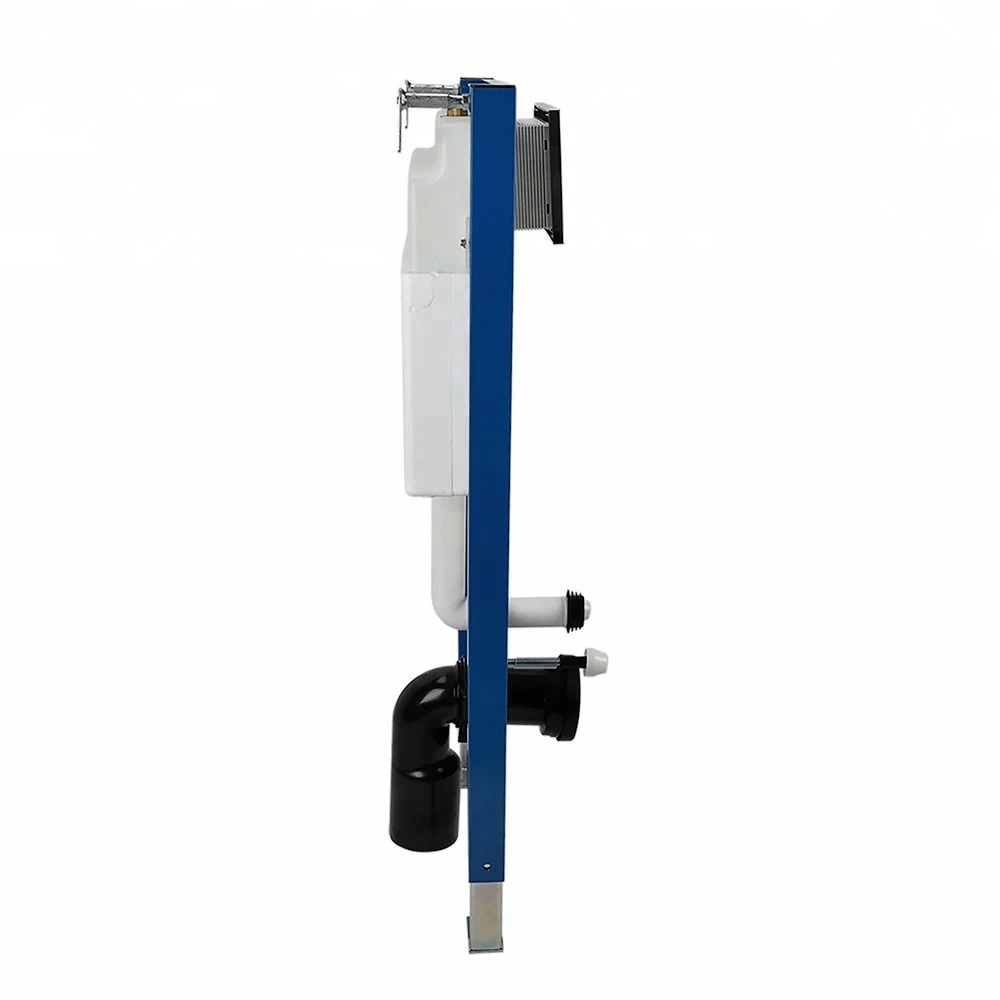

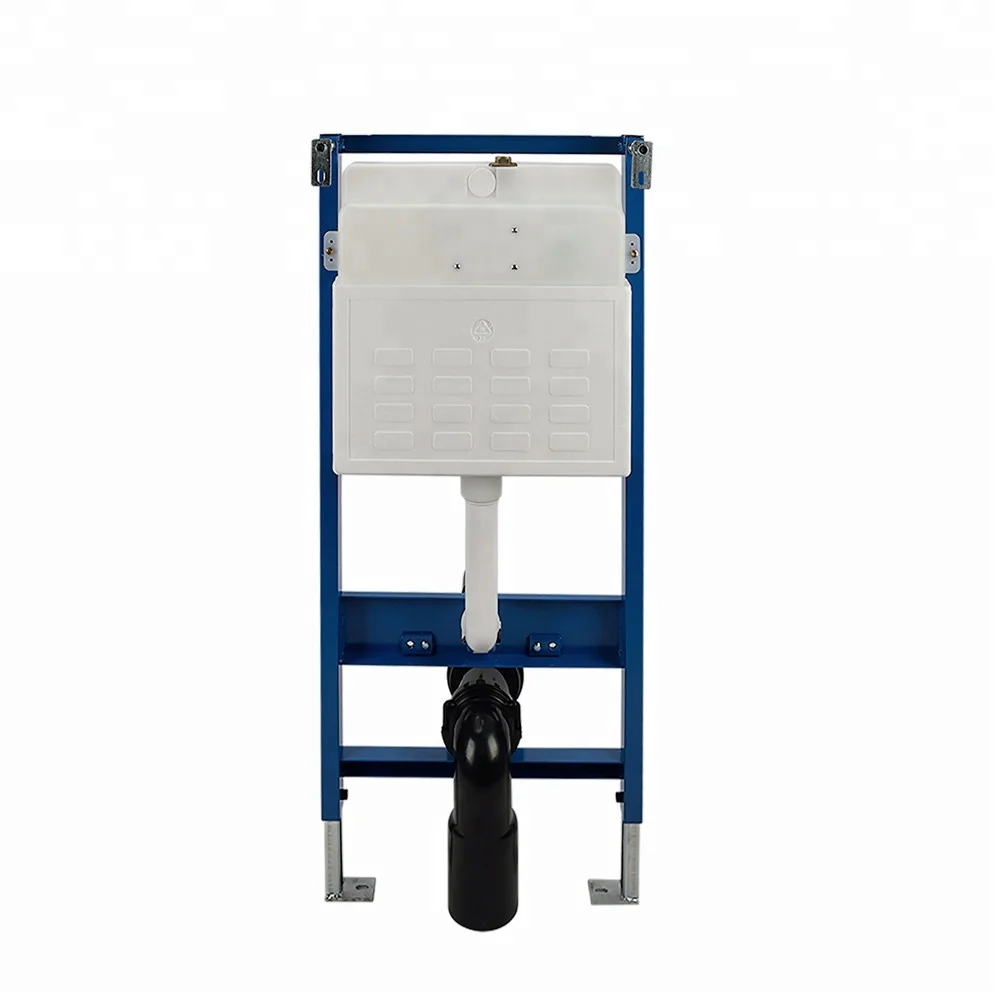

CE standard inbuild in wall concealed toilet water tank for wall hanging toilet
\t
Speical points
\t
High class D frame Concealed Toilet Cistern with 127mm body thickness
\t
Item code
\t
009D1
\t
Certificate
\t
CE.WRAS.WATERMARK.WELS
\t
Dimension
\t
512x127x1042mm
\t
Flush pipe size
\t
110
\t
Carton Size (mm)
\t
523x150x1100
\t
Suit for
\t
wall hung toilet
\t
wall thickness
\t
≥155mm
\t
Material
\t
HDPE + D metal frame
\t
For wall
\t
dry wall;pre-wall;dry half wall;pre-half wall
\t
Flushing volumn
\t
3L/ 6L max. 8L
\t
Button size(mm)
\t
250x165
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
black/gold/chrome/satin/white/ silver etc
\t
Flushing
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL:EXW SHUNDE,CHINA ;20GP and 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
Carton packing ,1set/ctn
\t
Loading qty
\t
0.0871CBM/PC 20GP: 305 PC 40GP: 650 PC 40HQ: 760 PC

Special point  :


Technologic data :

1. 1/2" standard fill water hole
2.The water stress range of fill water is 0.02--1.0Mpa
3.The water temperature range is 2°-45°
4.3L/6L dual flush water volume ,the flush water time is 3S-5S
5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress
6.The product can be installed in the wall of 155mm thickness

The measure requirement of wall hung toilet :


1.\tthe distance of the the two hanging holes centre is 180mm or 230mm
2.\tThe distance between fill hole's centre and the flush hole's centre is 135mm
3.\tThe distance between flush hole's centre and the hanging hole's centre is 100mm
4.\tThe inner diameter of fill hole is φ52~φ58mm
5.\tThe outer diameter of flush hole is φ80~φ100mm
6.\tThe diameter of hanging hole can't less than φ20mm
7.\tThe height from the top surface of wall hung toilet to the floor is 400mm (10mm more or less)


Product Details

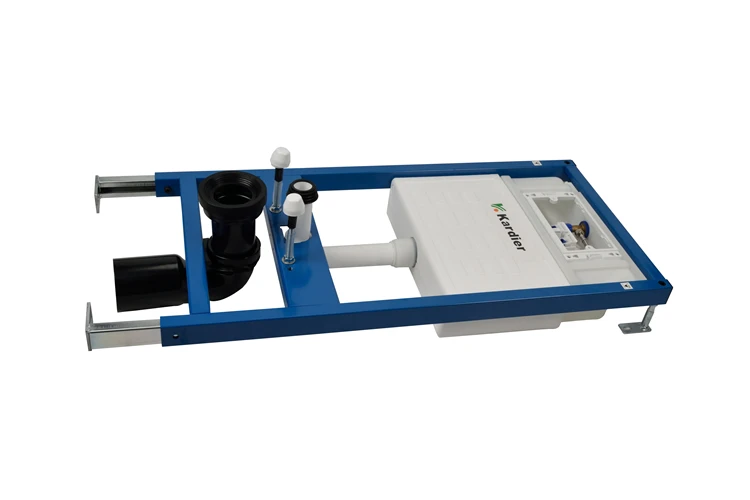

Metal frame installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

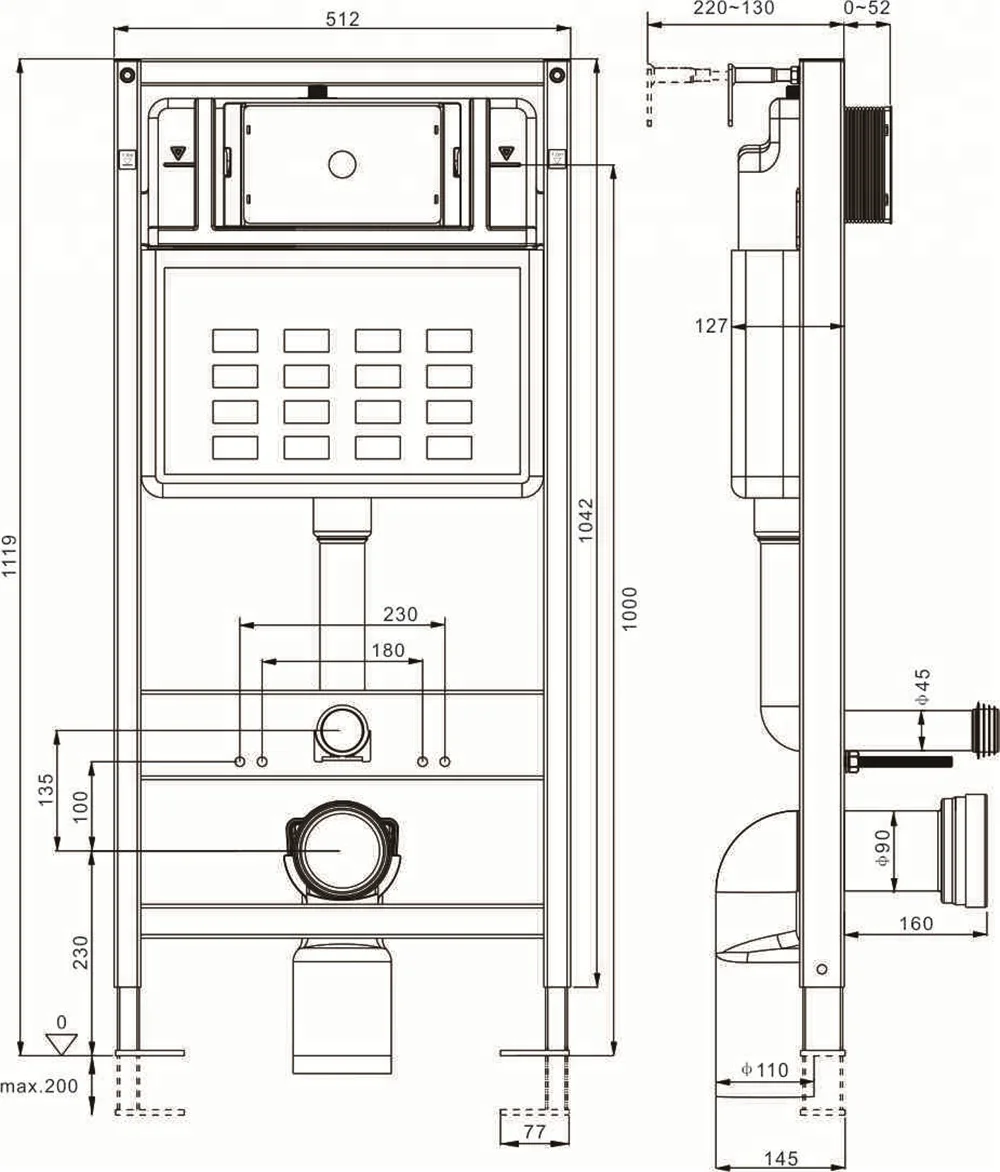

The Technical size standard requirement and installation guide of Wall hung toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1.After 19years update ,our concealed cistern are mature and quality very stable ,no trouble for after sales .

2. Space-saving: 011 series cistern can be hidden in the wall of 110mm thickness.

3.Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes ,No trouble for installation

4.One meter line notice : Our frame have one meter height notice ,much more easy for plumber install our concealed cistern,seat cover after open will not touch the panel.

5.QC check : 100% tank body & fill valves & flush valves tested by QC to promise good quality and no any leaking,finish product check by sampling .
FAQ
1.Can i get better price ?
A: Yes ,there are different price for LCL,20GP and 40HQ qty .take more qty then with more discount ,pls kindly let us know your purchase qty for us give you the best price .

2. How long is the delivery time?
A: Under normal conditions, LCL just need around 7~10days and 20GP & 40HQ need 20 to 25 days. The first time OEM order as need to confirm all package and logo drawings will need more time .


3. What is the push panel size?
A: 250x165mm for all 009 & 011 series cisterns ; 228x140mm for 010 series cistern

4. Do you offer OEM service?
A: Yes, but you need provide certification of trademark authorization and trademark registration certificate.

5.Do you offer ODM service ?
A: Yes ,but you need to provide a stable certain annual purchase qty ,and we will charge you mold fee first and return back continually till all fees returned .
