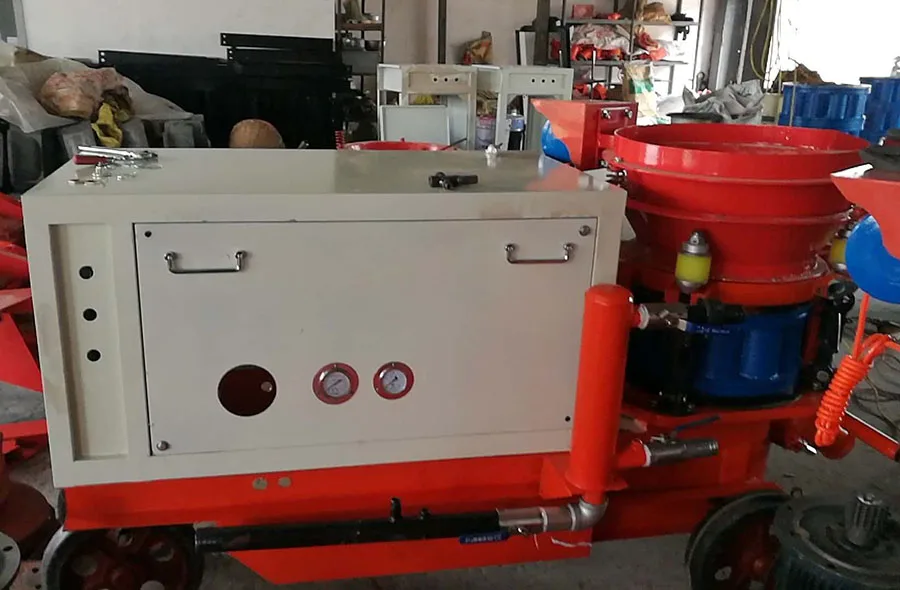

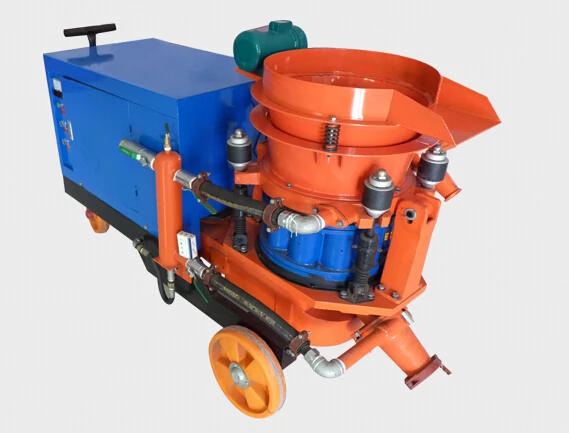

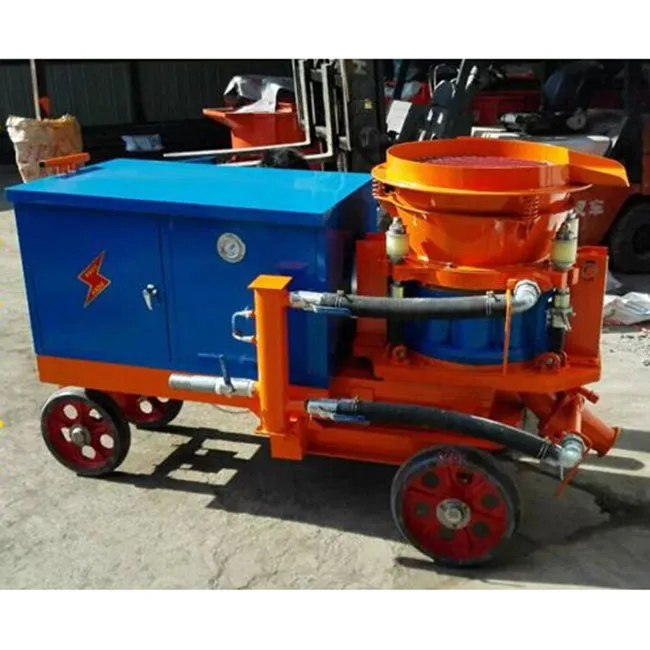

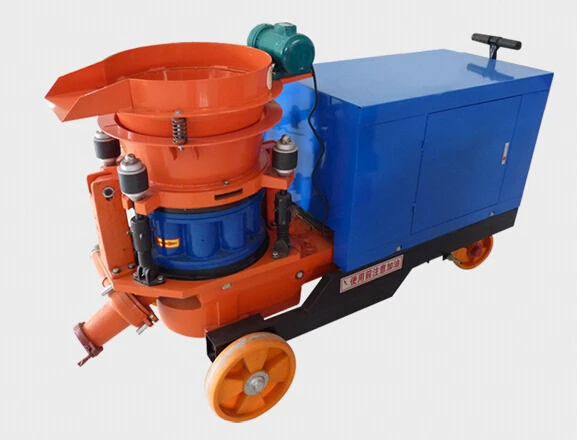

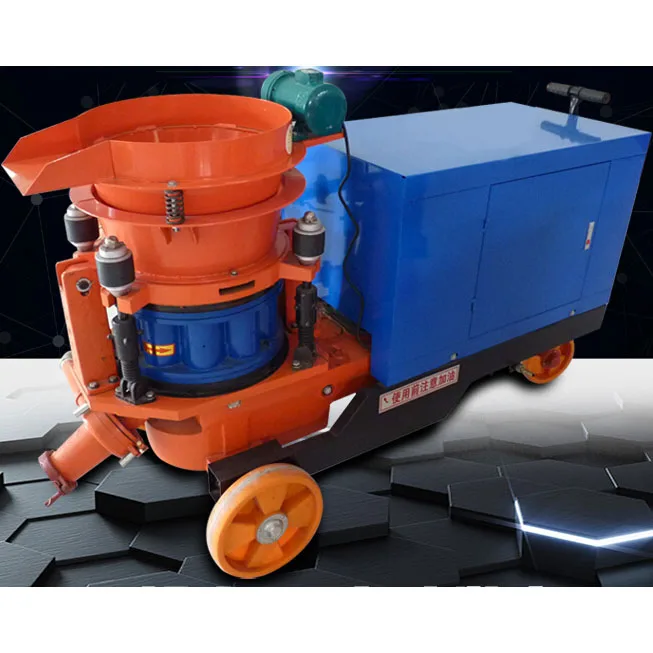

Portable wet shotcrete machine for sale

Share on (60802031805):


Price:$2,288.00 - $2,590.00

Quantity:


Product Overview

Description


Product Description

Portable wet shotcrete machine for sale


The wet shotcrete machine is an anchor spray support machine with good comprehensive performance such as reducing dust, reducing rebound and saving materials at home and abroad. The wet spray machine is a kind of construction equipment widely used in engineering construction.


It uses compressed air or other power, and the mixing material blended in a certain proportion is transported by pipeline and sprayed at high speed onto the sprayed surface to form a concrete branch.


As to our wet shotcrete machine,

the protective layer, the sprayed concrete technology is simple,

the construction cost is low, the adaptability is wide,

the operation dust is small, the spray rebound is small,

the working environment is protected,

the raw materials are saved,

the quality of the spray layer is improved, which plays an important role in various construction fields.


 Various types of industrial furnaces, lining refractory spraying forming or repair: all kinds of slope protection afforestation construction, soil and injection.


Pls check the folllowing technical data and the detailed pictures:

\t
Technical Parameters of Portable wet shotcrete machine for sale
\t
Model
\t
HW HSP-7
\t
Production capacity
\t
7m3/h
\t
Max. convey distance
\t
Horizontal: 50m; Vertical: 20m
\t
Max. Aggregate Diameter
\t
Ø 15mm
\t
Inner diameter of pipe
\t
Ø 64mm
\t
Rotor block diameter
\t
Ø 480mm
\t
Working pressure
\t
0.4-0.6Mpa
\t
Air consumption
\t
10-15m3/min
\t
Liquid Accelerator Additive Amount
\t
0.3%-0.7%
\t
Flow meter type
\t
LZB-F-10
\t
Average Rebound Rate
\t
≤10%
\t
Main motor model
\t
Y160m-6-7.5KW
\t
Voltage
\t
380V
\t
Accelerator motor
\t
YB2-802-4
\t
Vibration motor power
\t
0.37KW
\t
Pressure adjustment at accelerating agent outlet
\t
0.65~0.70Mpa
\t
Accelerator metering pump
\t
pneumatic
\t
 Overall dimensions
\t
2000mm*800mm*1320mm
\t
Weight
\t
800KGS
Products Show
Detailed Image

Low pressure high speed vortex air.

The low pressure and high speed vortex air transport overcomes the problem of bond tube and pulse separation

Four point elastic compensation compaction

Four - point elastic compensation compaction, good sealing effect, machine side less dust, long service life of vulnerable parts

Discharge elbow

Discharge bending device, improve spray effect, less rebound, high quality spray layer

Good quality rubber lining

Using high quality wear-resistant lining and rubber sheet, the service life is greatly improved,  good price HSP-7 wet shotcrete machine for sale

Our Service
We train you to operate the machines
Welcome to visit our factory

Best after-sales service, any question, pls let us know, we support you

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our Certifications
Portable wet shotcrete machine for sale   Quality is guaranteed by ISO, ECE, CCC etc.  Very popular home and abroad.
Packing wooden box

Standard strong export wooden box for wet concrete shotcrete machine
