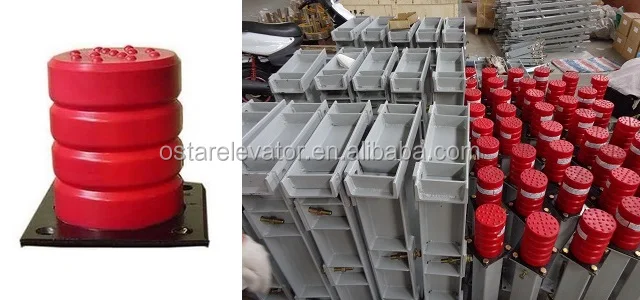

Rubber Elevator Buffer Elevator Safety Parts
Product Description
Specification:

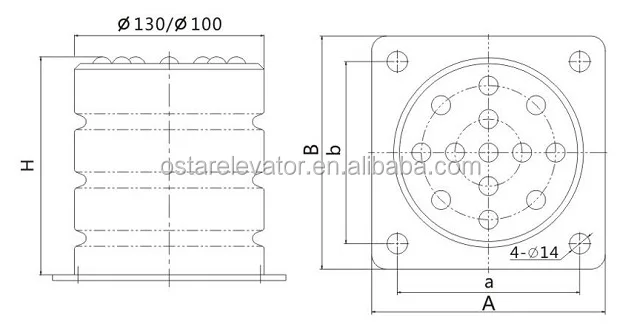

| Model | Specification D*H | Mounting Dimensions | Travel | Rated Speed | Capacity (P+Q) kg | |||
| B | b | h | Φ | |||||
| OS210-A1 | 88*128 | 108 | 80 | 4 | 12 | 89 | ≤1.0m/s | 500~1000 |
| OS210-A2 | 100*160 | 128 | 96 | 4 | 14 | 116 | ≤1.0m/s | 500~1600 |
| OS210-A3 | 120*192 | 160 | 126 | 4 | 14 | 136 | ≤1.0m/s | 800~1980 |
| OS210-A4 | 130*208 | 160 | 126 | 4 | 14 | 123 | ≤1.0m/s | 500~4000 |
| OS210-A5 | 150*240 | 200 | 156 | 4 | 16 | 168 | ≤1.0m/s | 1000~4000 |
| OS210-A6 | 80*96 | 108 | 80 | 4 | 12 | 68 | ≤0.75m/s | 500~31500 |
| OS210-A7 | 100*120 | 128 | 96 | 4 | 14 | 86 | ≤0.75m/s | 850~2200 |
| OS210-A8 | 130*156 | 160 | 126 | 4 | 14 | 109 | ≤0.75m/s | 850~3200 |
| OS210-A9 | 160*200 | 200 | 156 | 4 | 16 | 138 | ≤0.75m/s | 1000~4200 |
| OS210-A10 | 80*96 | 108 | 80 | 4 | 14 | 68 | ≤0.63m/s | 500~1900 |
| OS210-A11 | 100*96 | 128 | 96 | 4 | 14 | 86 | ≤0.63m/s | 500~2600 |
| OS210-A12 | 130*156 | 160 | 126 | 4 | 14 | 109 | ≤0.63m/s | 500~4500 |
| OS210-A13 | 160*200 | 200 | 156 | 4 | 16 | 150 | ≤0.63m/s | 3000~5160 |
| OS210-A14 | 200*220 | 246 | 196 | 4 | 16 | 156 | ≤0.63m/s | 2900~9680 |
Packaging & Shipping
Company Information
OSTAR Elevator is one-stop elevator parts supplier, and following parts can be provided by us.
Shaft Components includes
Machined/ Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Bracket etc.
Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block, Guide Shoes, Rope Attachment etc.
Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts, Safety Light Curtain/Photocell etc.
Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
Traction System includes
Geared/ Gearless Traction Machine, Pulley Sheave, Anti-vibration Pad, Steel Wire Rope etc.
Electrical Components includes
Integrated and Separated Controlling Cabinet, Yaskawa L1000A Inverter, Elevator Display, COP & LOP & HOP, Elevator Push Button, Flat Travelling Cable etc.
