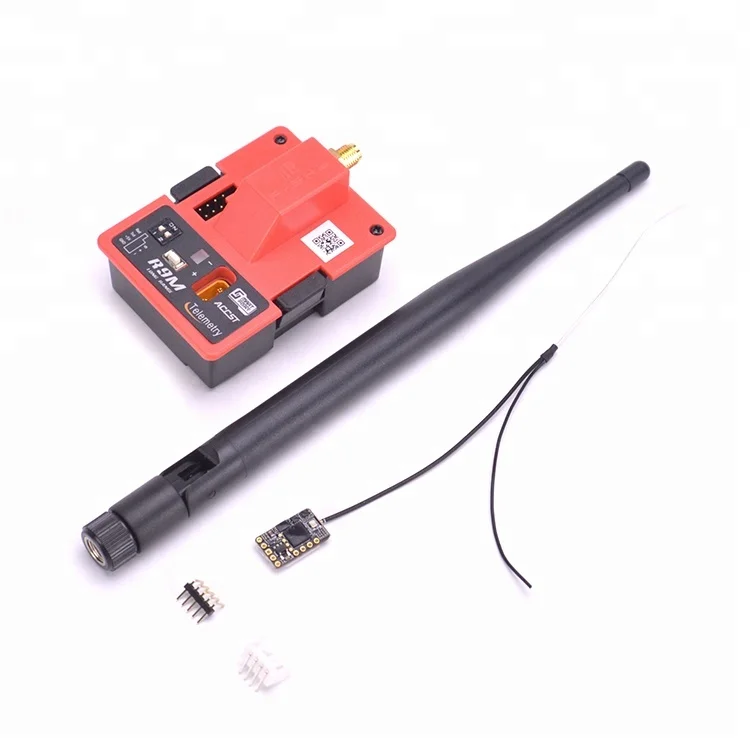

Frsky R9M Module R9 MM 900MHz Mini Receiver combo RSSI Output Long Range Distance 4/19CH Telemtry Receiving Board

Share on (60802070937):


Price:

Quantity:


Product Overview

Description


Product Description

 Frsky R9M Module + R9 MM 900MHz Mini Receiver combo RSSI Output Long Range Distance 4/19CH Telemtry Receiving Board

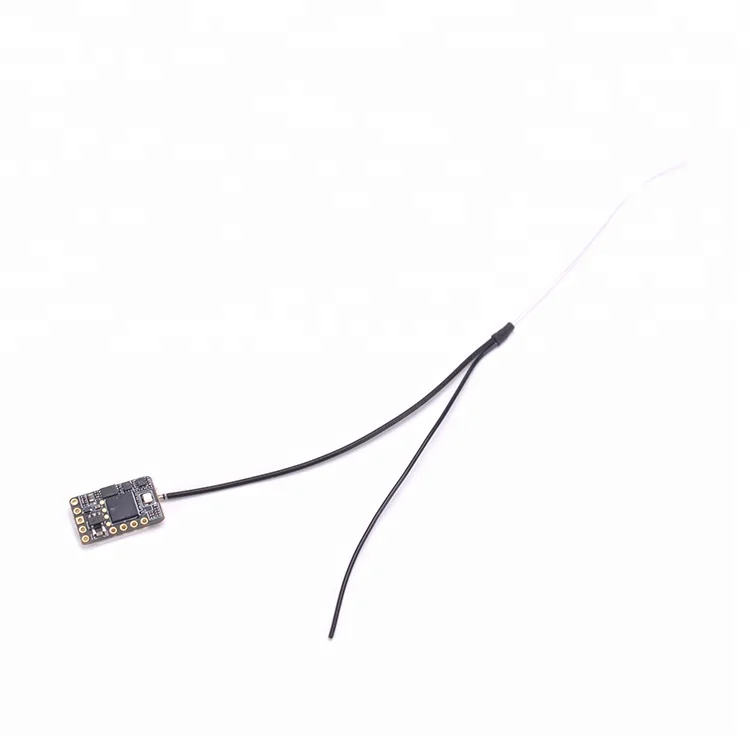

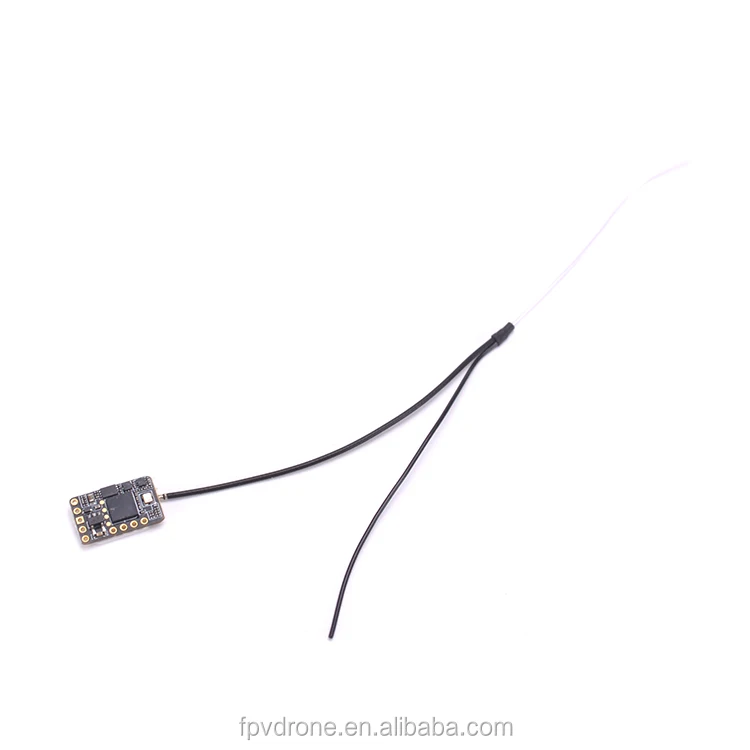

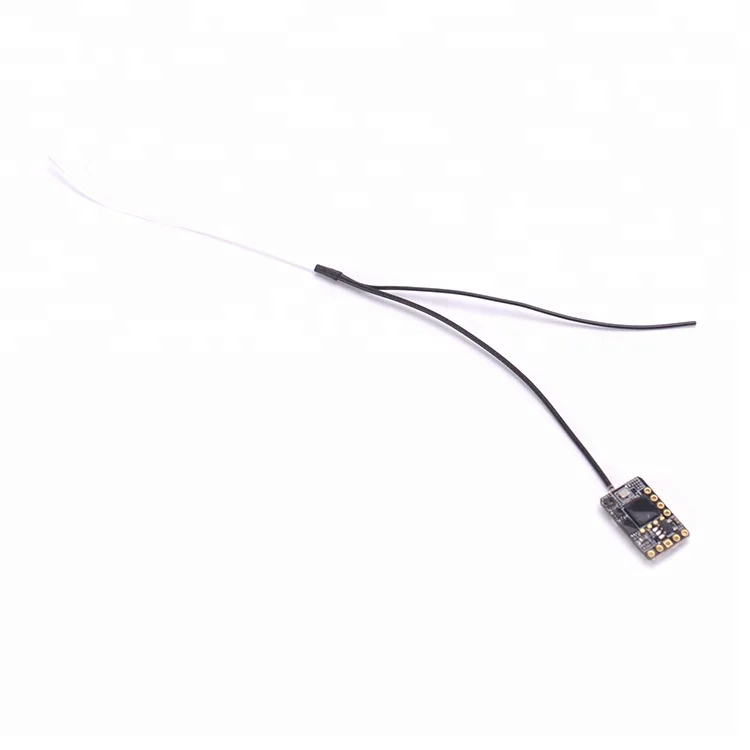

R9 MM Description

Feature:

915MHz (Non-EU Version)/ 868MHz(EU Version)
Mini size and superlight weight
Inverted S.Port enabled
S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
Low latency and high precision
With RSSI output in SBUS
Battery voltage detection supported
Detachable Ipex connector antenna

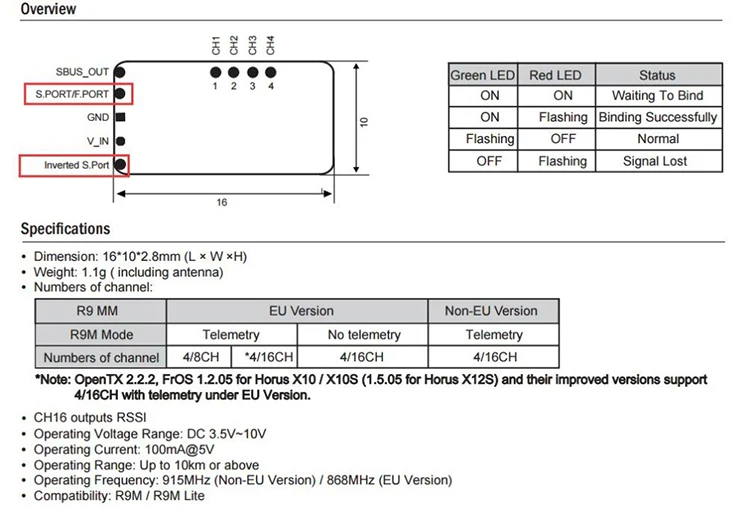

SPEC:
Dimension: 16*10*2.8mm (L×W×H)
Weight: 1.1g (including antenna)
Number of Channels:
Non-EU Version: 4/16CH (Telemetry)
EU Version: 4/8CH (Telemetry) / 4/16CH (Telemetry) / 4/16CH (No Telemetry)
Operating Voltage Range: DC 3.5V – 10V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9M and R9M Lite

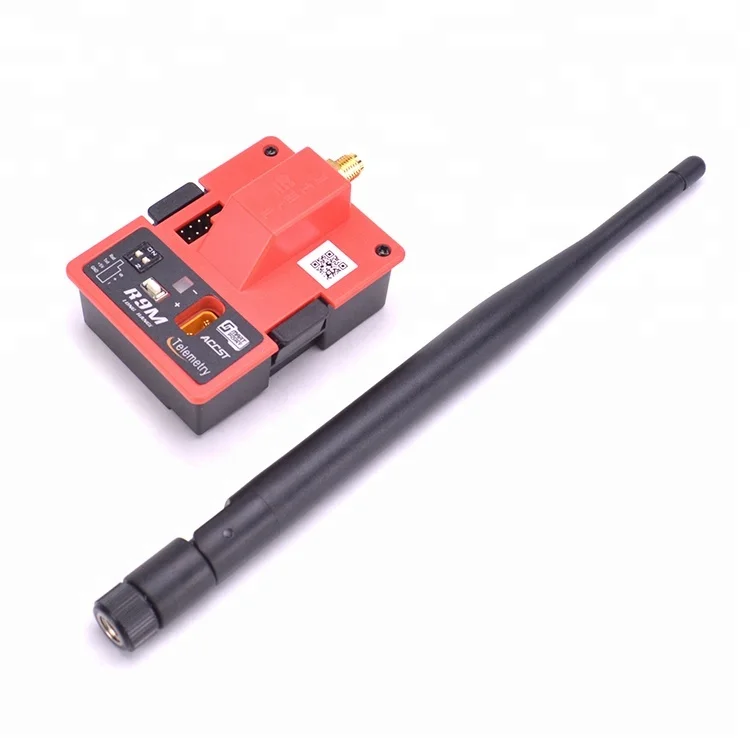

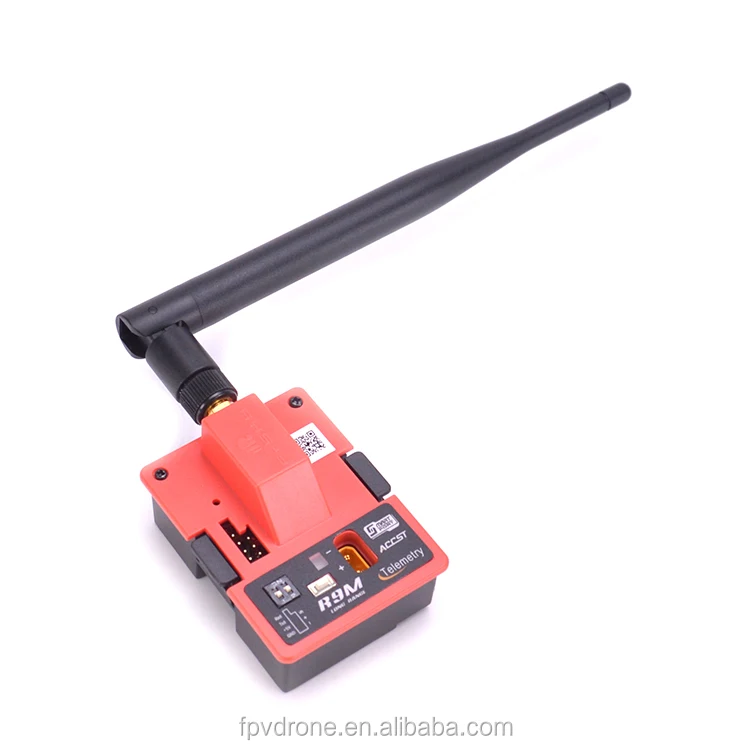

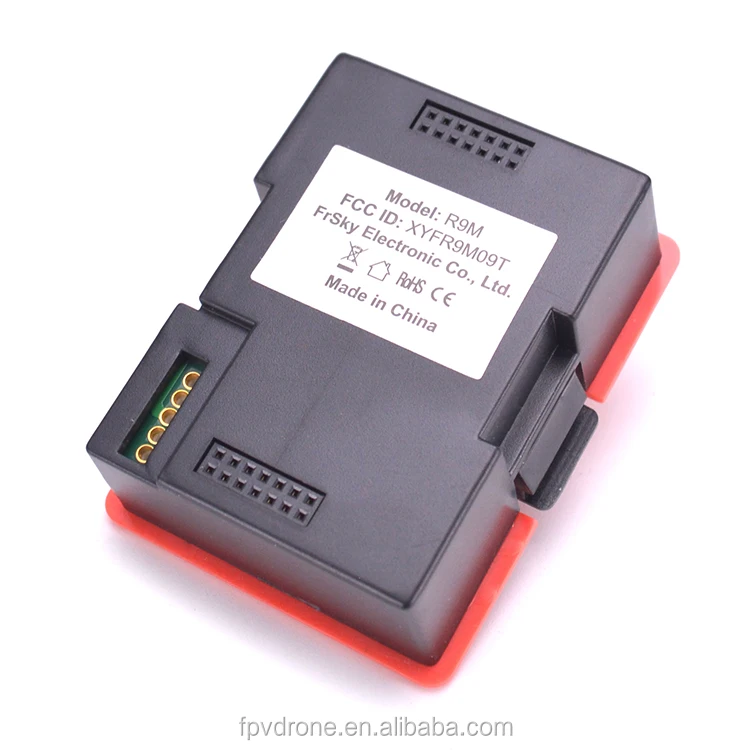

R9M Transmitter Module

Description:
Brand name: FrSky
Item name: R9M Transmitter Module
Compatibility: FrSky R9 series
Operating Voltage Range: 4V-12.6V
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Modulations: PXX or CPPM (auto-detected)
Transmission Frequency: 900MHz
Transmission Output Power: 10mW, 100mW, 500mW and 1W

Features:
* 900MHz/868MHz working mode
* Long range, low latency and high precision RC system
* 4 Optional RF power (Non-EU Version)
* Telemetry (25mW)/non-telemetry (500mW) mode
* Smart Port enabled and support telemetry data transmission

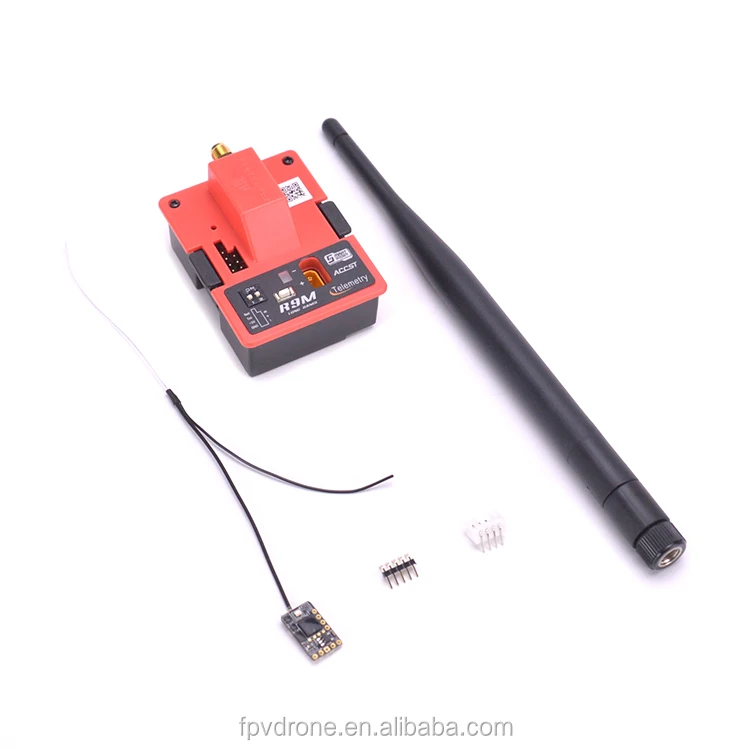

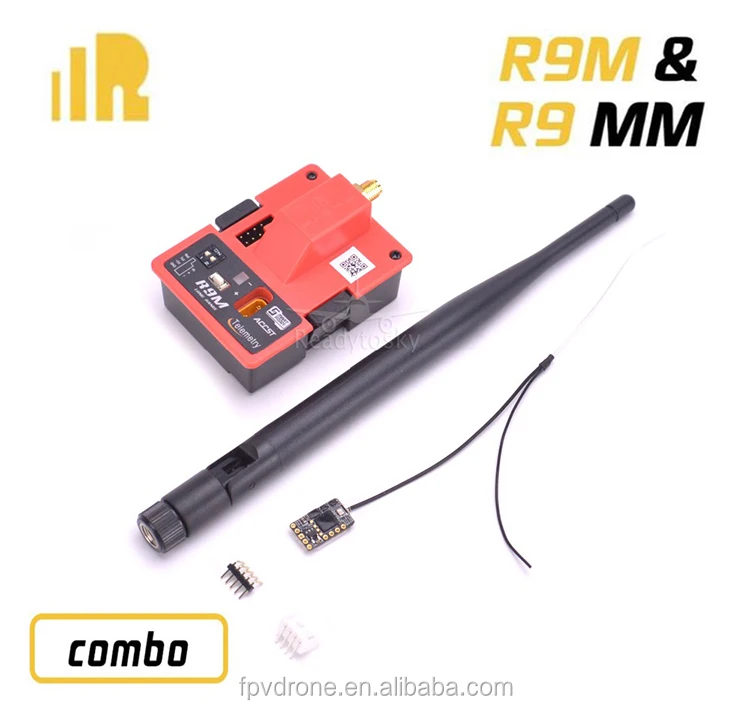

Package included:
1 x R9M module
1 x R9 mm receiver
