OUORO SB 22 (22mm) nylon wire accessories bushing
- Category: >>>
- Supplier: Yueqing City Ouoro Electric Co. Ltd.
Share on (60802088820):
Product Overview
Description
OUORO SB-22 (22mm) nylon wire accessories snap bushing
Material: UL approved Nylon 66, 94V-2

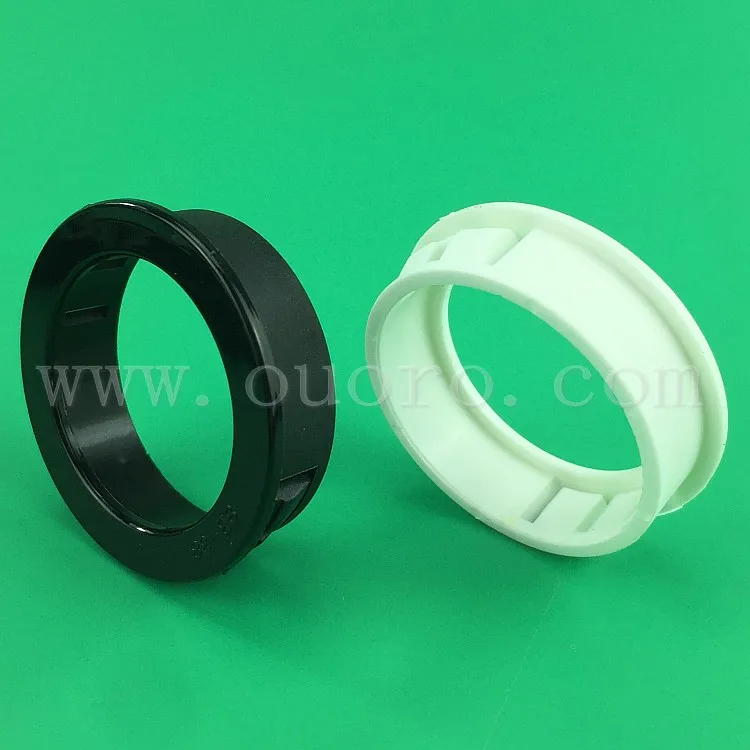

Color: black, other color can be customized

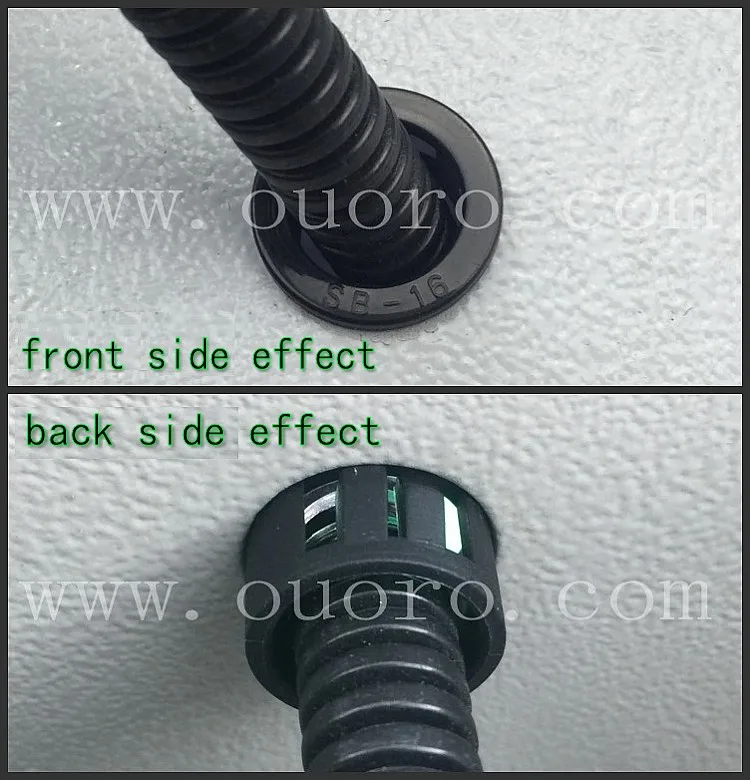

OUORO SNAP BUSHING smooth and insulate your raw-edged holes in metal chassis.
Locking into hole firmly with fingertip pressure.
Protect electrical cables, ropes, utility lines through metal holes.
Available in application for chassis thickness Under 3mm

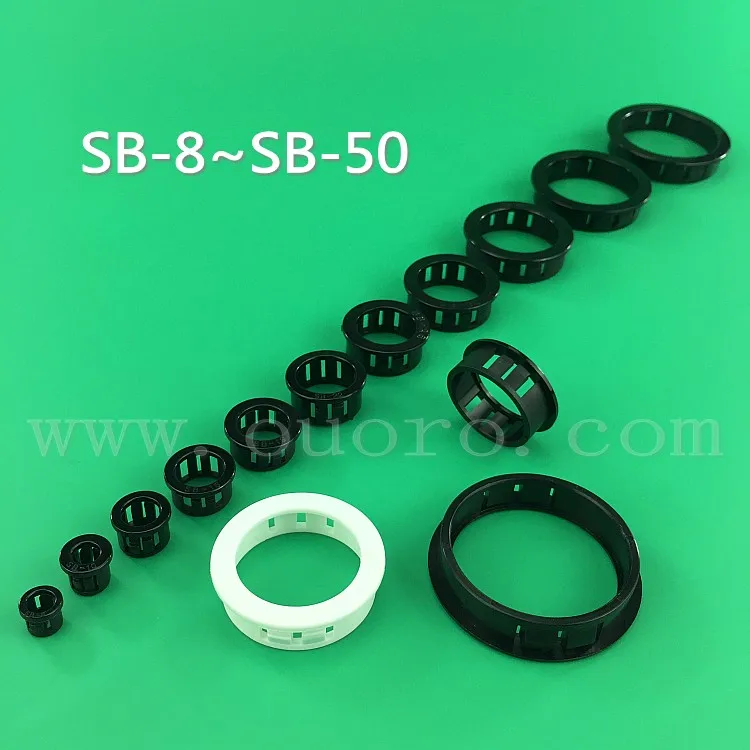

| Snap Bushing | ||||||||
| Unit: mm | ||||||||
| Item No. | Mounting Hole A | Borehole range | B | C | L | T | Packing | |
| mm | inch | |||||||
| SB-8 | 7.8 | 5/16" | 7.9~8.2 | 6.4 | 9.5 | 8.1 | 1.5 | 500pcs / Bag |
| SB-10 | 9.5 | 3/8" | 9.6~10.2 | 6.5 | 12 | 10.6 | 1.5 | 500pcs / Bag |
| SB-11 | 10.86 | 4/9" | 10.9~12 | 8.39 | 13.63 | 10.08 | 1.47 | 500pcs / Bag |
| SB-13 | 12.8 | 1/2" | 12.9~13.9 | 9.4 | 14.7 | 10.52 | 1.51 | 500pcs / Bag |
| SB-16 | 15.9 | 5/8" | 16~17.2 | 12.7 | 18.7 | 10.3 | 1.5 | 200pcs / Bag |
| SB-19 | 18.85 | 3/4" | 18.9~19.5 | 14.4 | 21.8 | 10.36 | 1.53 | 200pcs / Bag |
| SB-22 | 21.58 | 7/8" | 21.7~22.74 | 17.5 | 24 | 11.64 | 1.55 | 200pcs / Bag |
| SB-26 | 25.5 | 1" | 25.6~26.4 | 19.4 | 28.38 | 11.45 | 1.46 | 200pcs / Bag |
| SB-30 | 29.82 | 1-3/16" | 30~30.6 | 24.43 | 33.58 | 11.36 | 1.45 | 100pcs / Bag |
| SB-38 | 37.68 | 1-1/2" | 37.8~38.5 | 29.8 | 41.48 | 11.47 | 1.63 | 100pcs / Bag |
| SB-45 | 44.02 | 1-3/4" | 44.1~45.34 | 37.35 | 48.79 | 11.35 | 1.63 | 100pcs / Bag |
| SB-50 | 49.25 | 2" | 49.3~50.6 | 41.74 | 53.88 | 11.52 | 1.52 | 100pcs / Bag |

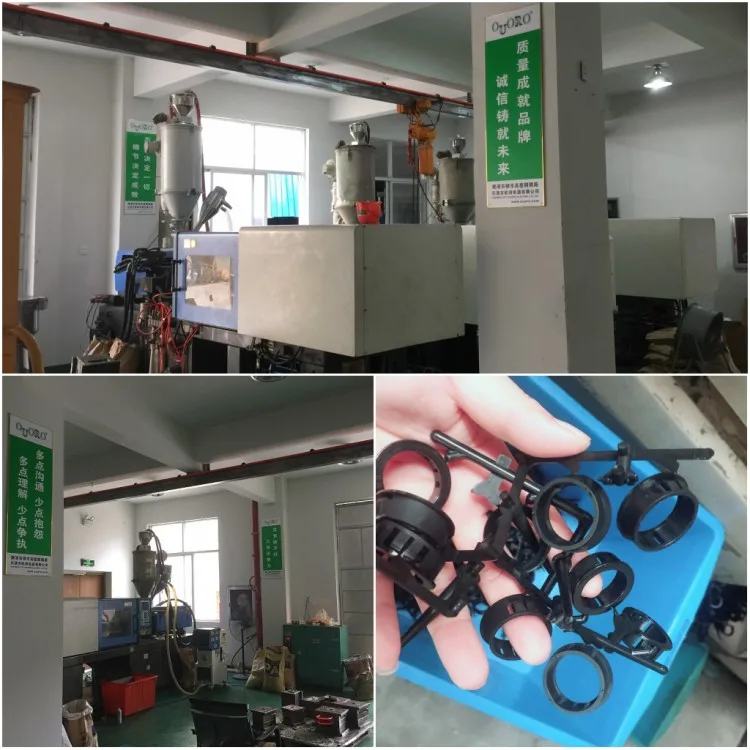

1.Q:Do you have your own factory?
A:Yes,H-V-S Company is manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.
2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?
A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.
3.Q:How can I visit your factory?
A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.
4.Q:Do you provide free sample?
A:Yes, we always do, but first time you'd better pay the delivery charge.
5.Q:Could you print our company logo on nameplate and package?
A:Yes,we can do that.
6.Q:Do you accept custom design on size?
A:Yes, if the size is reasonable.
7.Q:What's your delivery time?
A:H-V-S is factory, so we can efficiently control the production time.
