Dongfeng euro V 18 meters telescopic boom Aerial truck, High Lifting Platform Truck
- Category: >>>
- Supplier: Hubei Jiangnan Special Automobile Co. Ltd.
Share on (60802094459):
Product Overview
Description
Product Description

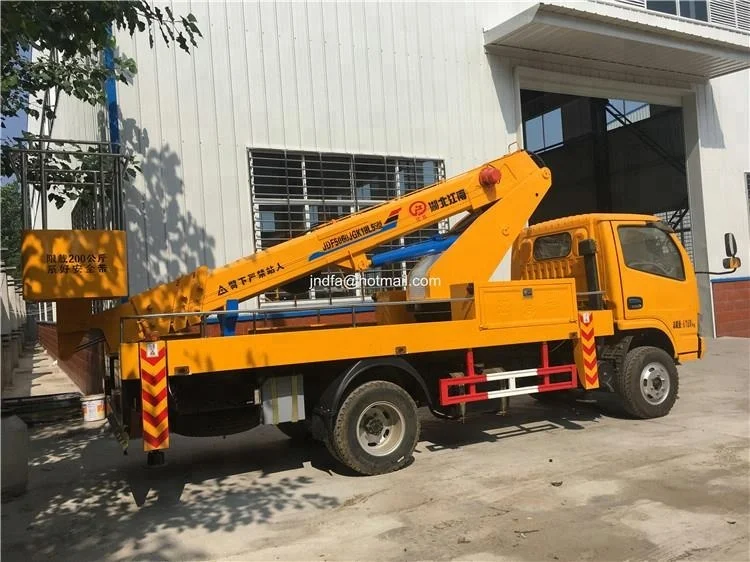

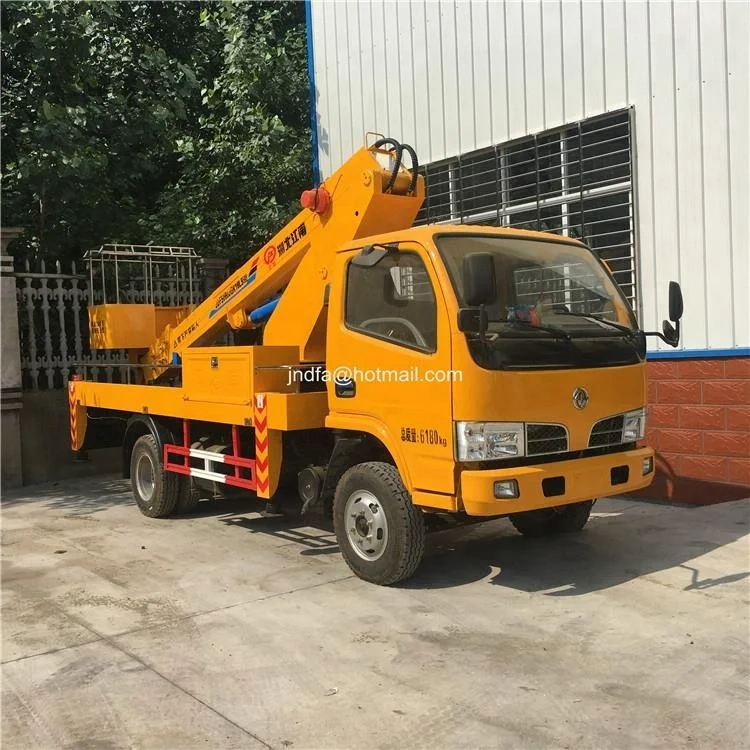

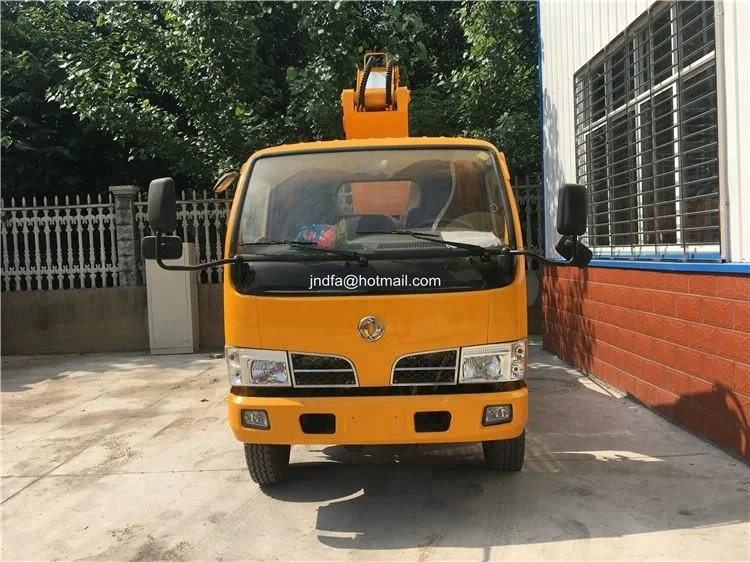

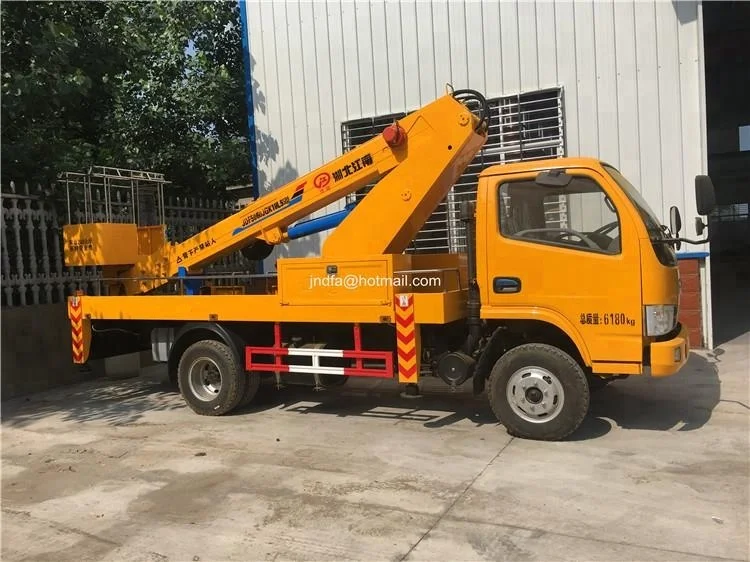

Dongfeng euro V 18 meters telescopic boom Aerial truck

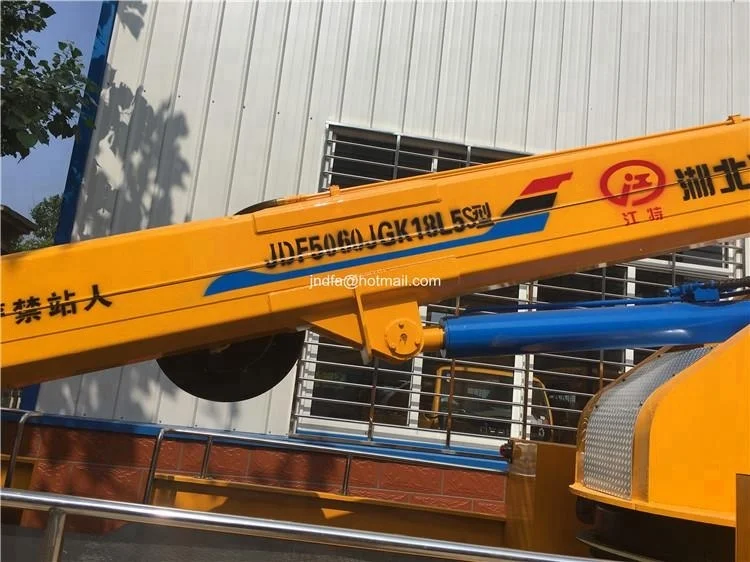

Product name: JDF5060JGK18L5S type aerial work vehicleDimensions (mm):7010x2060x3150,3250
Total weight (Kg) : 6180
Service Quality (Kg) : 6050
Number of riders in the cab (person): 2
Approach angle / departure angle (°): 24/13
Front suspension/rear suspension (mm): 1070/1995
Number of axes: 2
Wheelbase (mm): 3300, 3800
Axial load (Kg) : 2470/3710
The maximum speed (Km/h) : 90
Others: 645mm after extension; cab optional with chassis; side protection and rear lower guard material: Q235, connection: welded and bolted; rear lower protective device cross-sectional dimensions (width × height): 30 × 200 (mm ), height above ground: 510mm.
[chassis technical parameters]
Dimensions (mm):6185,6960×1950,2100×2190,2390
Number of tires :6
Approach angle/departure angle (°) : 24/11, 24/13
Tire specifications: 7.00-16, 7.00R16, 7.50-16, 7.50R16
Number of leaf springs: 8/9+5, 8/10+7, 9/10+8
Fuel Type: Diesel
Front track (mm): 1506, 1590, 1750
Fuel Type: Diesel
Rear track (mm): 1530, 1586, 1650
Emission standard: EURO V
Engine Model:CY4BK251
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Displacement (ml): 3856
Power (Kw): 96
18-meter Telescopic Aerial Vehicle Function Description:
Four-section telescopic boom (straight arm), maximum operating range Rear cab rear area: 11.5m; cab area 4m, maximum working height: 18m; operating radius at maximum working height 2.9m, 360° rotation. H-type legs, double-row cab: lateral span of front leg (mm) 1050; rear leg longitudinal X-direction (mm): 4000X4000. Suspension blue rated load ≤ 200kg. Hanging blue size:1100X700X1150, hydrostatic leveling, with cylinder lock function, turntable and hanging blue double operation.
With emergency power unit.
1. The use of international advanced Dongfeng high-end chassis to install telescopic arm hydraulic lift special device;
2.Environmental protection to the fifth phase emission standard of national motor vehicle (National V);
3. The control system adopts CAN bus technology and computer intelligent automatic limiting device;
4. Made of high-strength steel plate, full telescopic working arm, built-in hydraulic drive structure, strong driving force,compact structure, good maneuverability, large operating range, smooth and flexible operation;
5.Automatic leveling mechanism, with manual leveling control function, the working platform can be rotated 360 degrees continuously, the bottom plate adopts non-slip steel plate, working bucket rear, convenient for personnel to enter and exit,reduce the vehicle's center of gravity;
6.H-type legs, large span, good stability, the legs can be independently retractable, but also linkage, equipped with support leg flashing lights, used for the leg profile during work, issued a light alarm signal;
7. Equipped with emergency power source, can achieve emergency car;
8.Imported hydraulic valve adjusting boom running speed.
1. The use of international advanced Dongfeng high-end chassis to install telescopic arm hydraulic lift special device;
2.Environmental protection to the fifth phase emission standard of national motor vehicle (National V);
3. The control system adopts CAN bus technology and computer intelligent automatic limiting device;
4. Made of high-strength steel plate, full telescopic working arm, built-in hydraulic drive structure, strong driving force,compact structure, good maneuverability, large operating range, smooth and flexible operation;
5.Automatic leveling mechanism, with manual leveling control function, the working platform can be rotated 360 degrees continuously, the bottom plate adopts non-slip steel plate, working bucket rear, convenient for personnel to enter and exit,reduce the vehicle's center of gravity;
6.H-type legs, large span, good stability, the legs can be independently retractable, but also linkage, equipped with support leg flashing lights, used for the leg profile during work, issued a light alarm signal;
7. Equipped with emergency power source, can achieve emergency car;
8.Imported hydraulic valve adjusting boom running speed.
