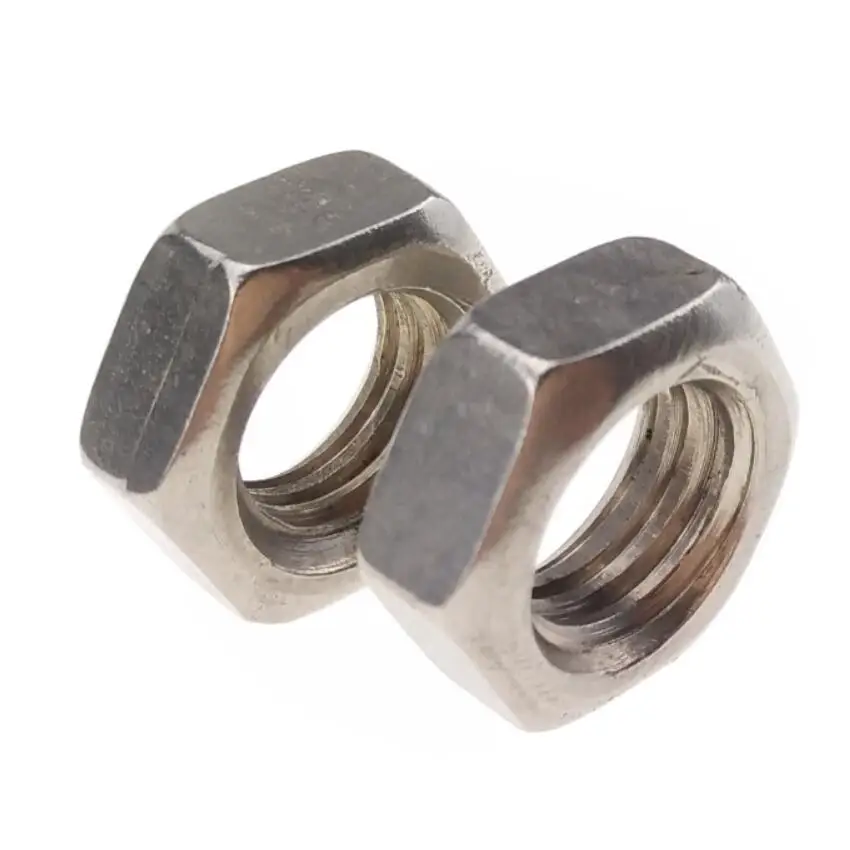

304 Stainless Steel Hex Nuts for Screws Bolts M6 Standard DIN 934
- Category: Nuts >>>
- Supplier: Dongguan Vedali Hardware Co. Ltd.
Share on (60802103271):
Product Overview
Description

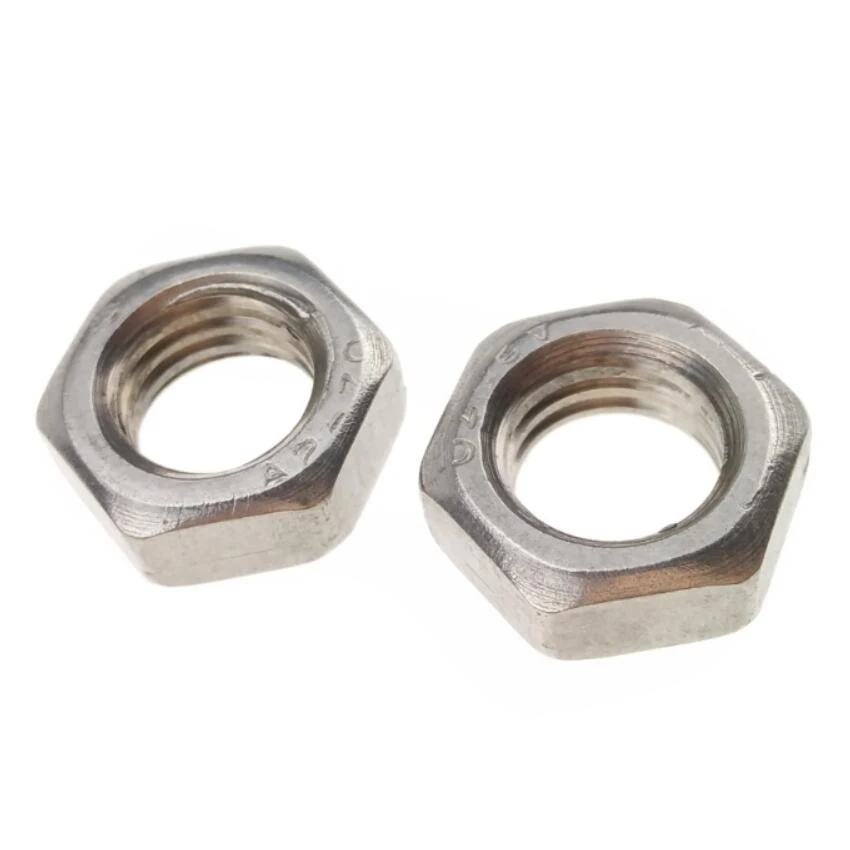

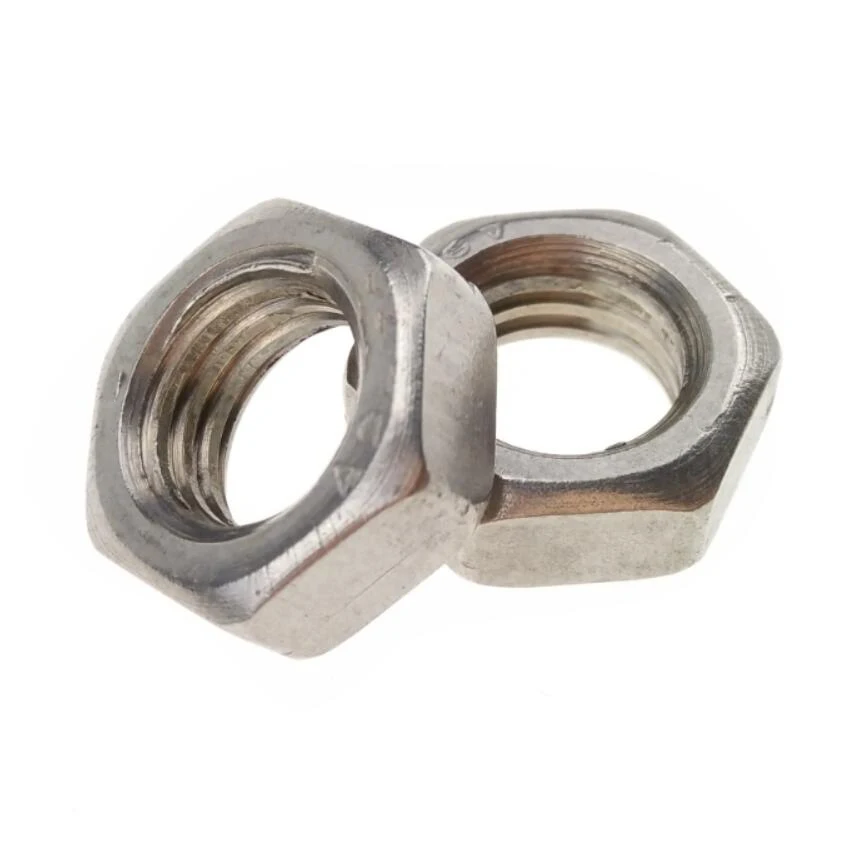

304 Stainless Steel Hex Nuts for Screws Bolts M6 Standard DIN 934
Product Description

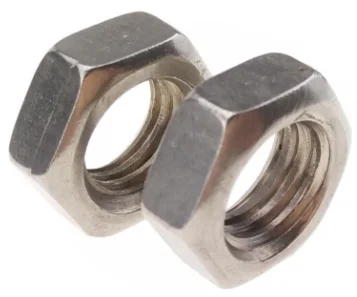

Stainless steel hex nuts with plain finish for bolts or screws assembly , chamfered edge with standard metric threads .
Technical Data
Items | Description | Remark | Picture |
Material | Stainless Steel | A2-70 |
|
Finish / Plating | Plain |
| |
Hardness | 20 | HRC | |
Tensile Strength MPA | 650 |
| |
Standard | DIN 934 |
| |
Dimensions | Thread | M6 | |
Pitch | 0.8 | ||
Head height | 5.0 | ||
Hex cross width | 10.0 | ||
Standard stainless steel hex nuts based on DIN933
| Thread | Height | Width Hex | Corner diameter |
| 1.6 | 1.3 | 3.2 | 3.41 |
| 2 | 1.6 | 4 | 4.32 |
| 2.5 | 2 | 5 | 5.45 |
| 3 | 2.4 | 5.5 | 6.01 |
| 4 | 3.2 | 7 | 7.66 |
| 5 | 4.7 | 8 | 8.79 |
| 6 | 5.2 | 10 | 11.05 |
| 8 | 6.8 | 13 | 14.38 |
| 10 | 8.4 | 16 | 17.77 |
| 12 | 10.8 | 18 | 20.03 |
| 16 | 14.8 | 24 | 26.75 |
| 20 | 8 | 30 | 3295 |
| 24 | 21.5 | 36 | 39.55 |
| 30 | 25.6 | 46 | 50.85 |
| 36 | 31 | 55 | 60.79 |
| 42 | 34 | 65 | 71.3 |
| 48 | 38 | 75 | 82.6 |
| 52 | 42 | 80 | 88.25 |
Product Features
1 . Not easy to be rusted
Hex nuts are made from stainless steel .
2 . Stanard sizes and strict tolerances .
3. High tensile strength
4 . Easy installation
5 . Free burrs or scratch .
6 . Recyle use
Tips for application
1 . Hex nuts are used for locking parts assembled screws or bolts .
2 . Take care thread type before installation .
3 . Right direction for operation of threads .
Product Application
Stainless steel hex nuts are assembled with a bolt or screw for fastening working pieces .
How we pack
Normal packing
1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN
2. Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN
3. All cartons to a pallet ( 1X1.2 m )
4. Customized packing |  |
Note : Objects showed in picture are only for reference , not stand for described items .
Optional Products
We manufacture various hardware parts , you can find and click following descriptions to see more items .
Screws
| Various standard and non-standard fastener screws with qualified materials for different applications . |
Nuts and bolts | High tensile strength bolts nuts for engineering projects . |
Washers and spacers | Different materials washers and spacers for mechanical and clectronic parts |
Fastener Pins | Precise mechanical tolerances and good quality for industry . |
Plastic Parts | Customized manufacturing service and top materials for communication and electronics and auto etc . |

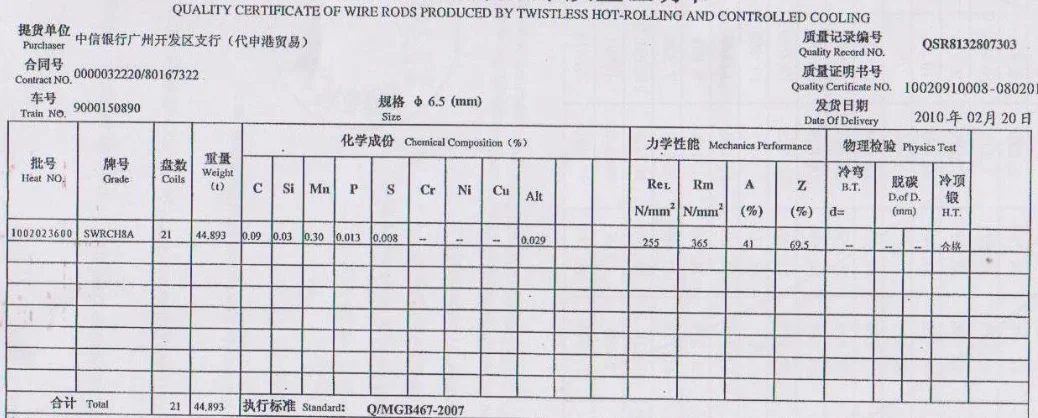

Quality Guarantee

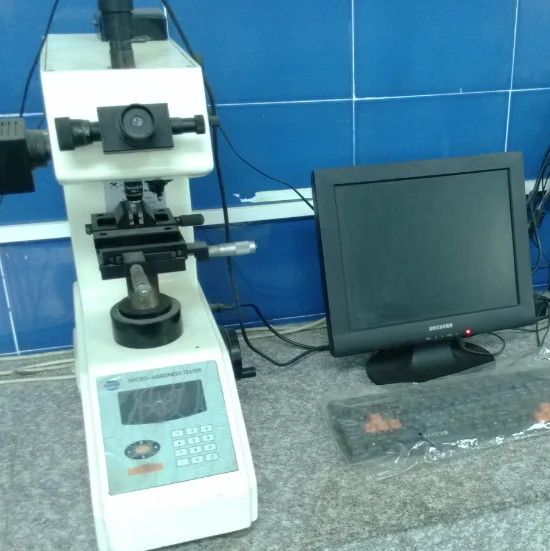

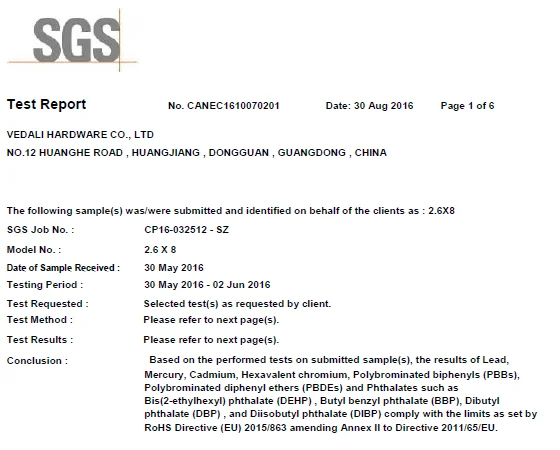

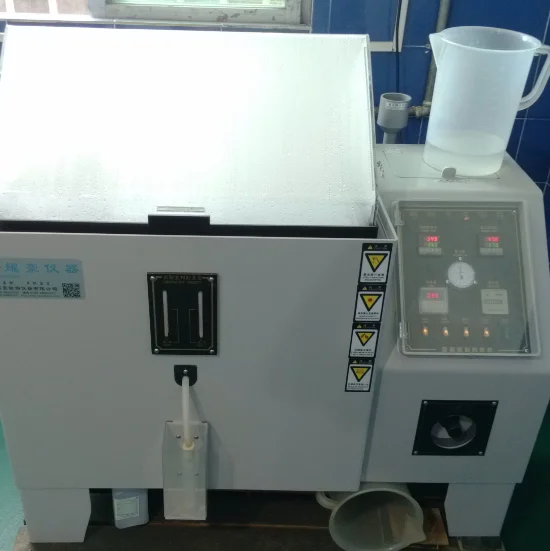

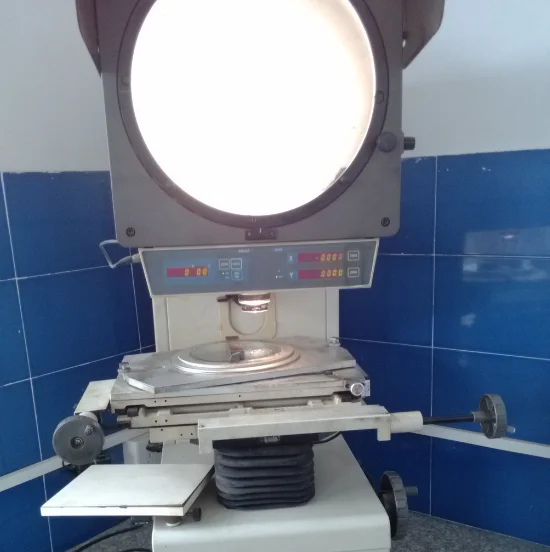

Precise testing equipments and tools for hardness , dimensions , corrosion resistance and pass rate etc . our tolerance for tools is up to 0.005 mm . | All products are compliance with RoHS and REACH standards | |
| |
|
| |
|
Note : We are available for customized requests on quality
| ||
Production Capacity

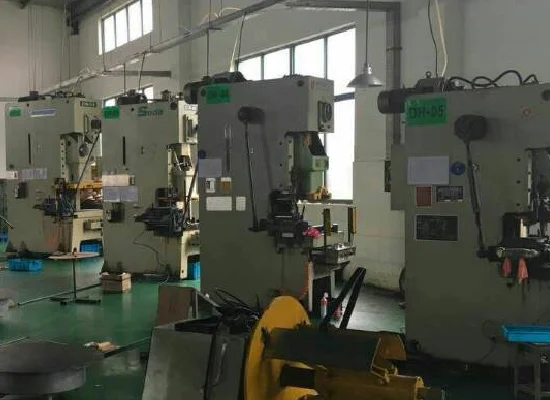

Stamping parts with complicated designs , min. tolerances to 0.01mm (0.0004 inch ) , monthly capacity ups to 100 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |
|

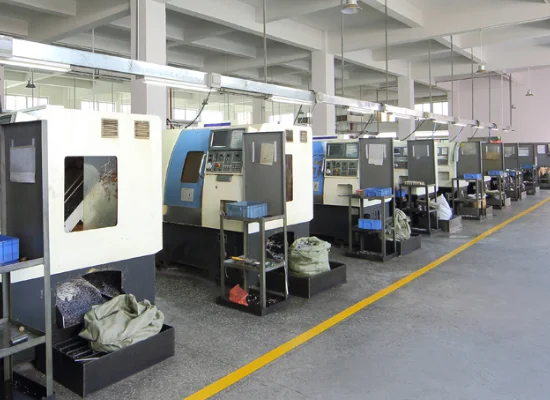

 | Precise turning machines and CNC , tolerances are up to 0.01 and 0.008 mm for limitaiton . 5 million pcs monthly capacity .
Availabe material :
1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy .
|

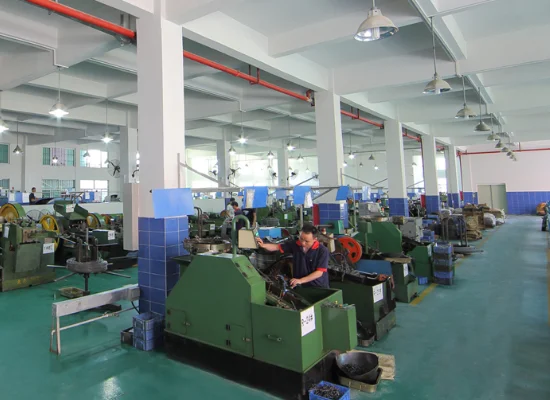

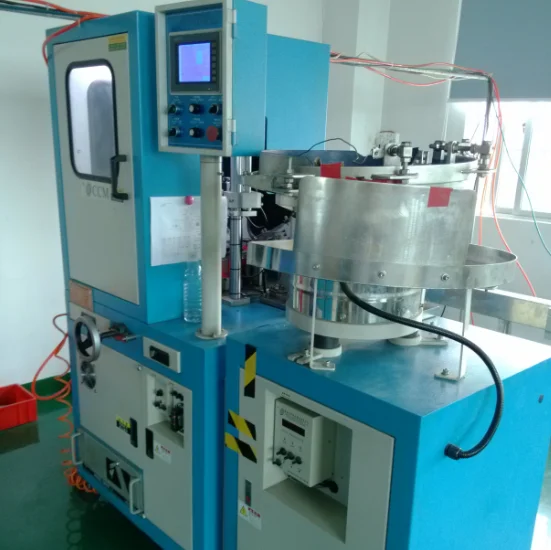

Assorted fastener machines to make different screws , bolts , nuts and pins etc . Diameter from M0.8 to M30 . Monthly capacity ups to 300 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |  |
Warm Tips
If you are interesting in standard stainless steel hex nuts , please contact us via email or phone , we will get back to you within 12 hours , Thank you !
