4K Ultra HD IP PoE 8MP 12MP High Speed Dome PTZ camera Sony IMX334 30X Optical Zoom Starlight 4K Ultra HD IP PoE 8MP High Speed Dome PTZ camera Sony IMX334 30X Optical Zoom Starlight illumination
4K Ultra HD IP PoE 8MP 12MP High Speed Dome PTZ camera Sony IMX334 30X Optical Zoom Starlight 4K Ultra HD IP PoE 8MP High Speed Dome PTZ camera Sony IMX334 30X Optical Zoom Starlight illumination

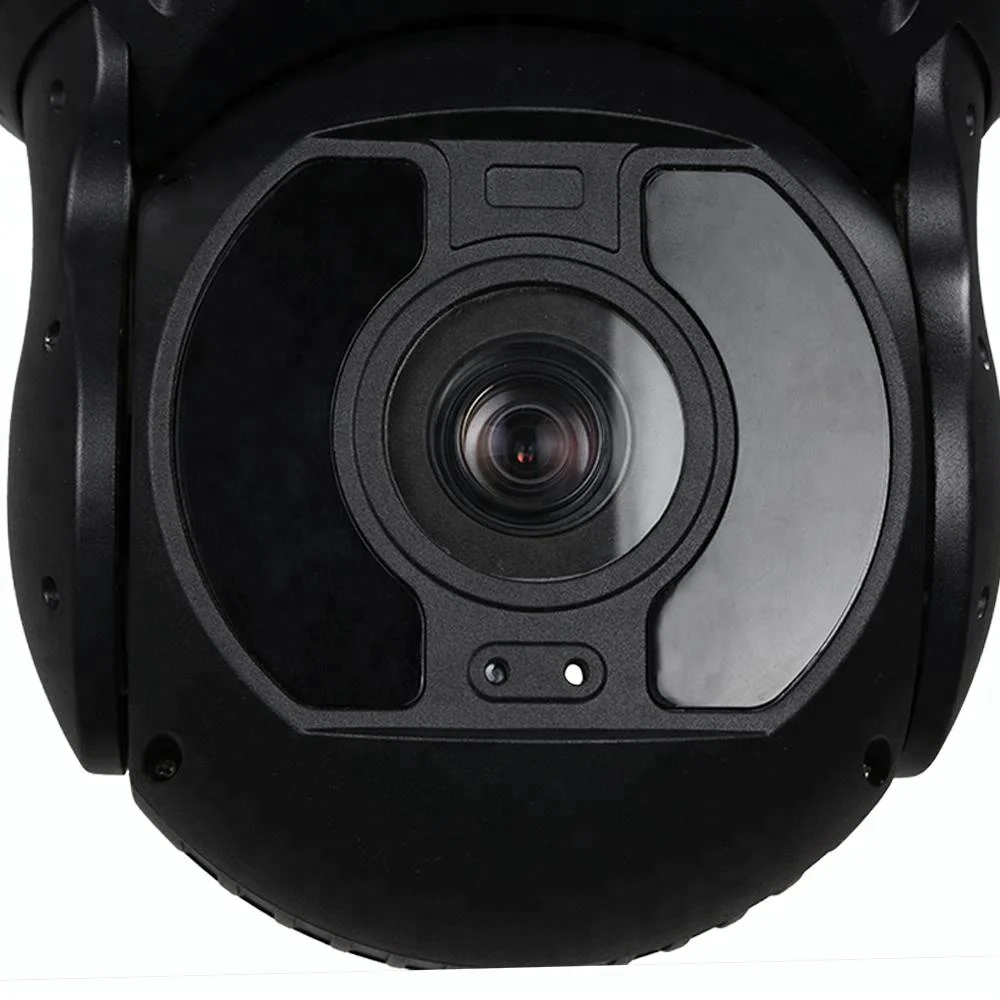

10pcs High quality array LEDs + 4pcs Laser LEDs, auto-switch to long/middle/close distance focus, 500M IR distance.
50X Optical zoom, 600 meters to see the license plate,1 kilometres to see people's activities.
High performance encoding scheme with 4K UHD CMOS image sensor(Sony IMX334LQR) for clear and dynamic image.
Support 5A:Auto white balance,Auto focus,auto exposure,Auto noise reduction,Auto contrast enhancement
Full compatible with ONVIF protocol
High precision motor, precise control, smooth motion, stable rotation.
Support POE+
Support Audio I/O
Support Alarm I/O
Support CVBS out
Adopt high performance platform, stable and reliable. support dual stream, H.264/H.265 video compression. support multiple levels of video quality configuration Infrared light and magnification range matching algorithm based on IR distance, brightness and angle for best image quality.
Model | NDR-809-S850H-POE Camera Image Sensor | 1/1.8" CMOS (Sony IMX334) DSP | Hi3519A Minimum Illumination | Color: 0.05Lux, B/W: 0.01Lux,0 Lux with IR Starlight Low illumination 3D NDR | Support WDR | Support Electronic Shutter | Supports automatic and manual electronic shutter 1/3~1/30000s Day Night Mode | AUTO ICR Color to B/W Fog penetration | Electronic Fog penetration +Optical Fog penetration Anti-shake | Digital anti-shake Focal Length | 50X Optical zoom, 6- 300mm Digital zoom | 4X Digital zoom Zoom Speed | Approx.3.5s(Optical Wide~Tele) Angle of View | 63°-2.6°(Wide-Tele) Resolution | 3840(H)x2160(V) 8MP/4K Main Stream | 25FPS/30FPS:(3840×2160) Video Compression | H.265/H.264 High profile / M-JPEG Network protoco | l TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS Interface protocol | ONVIF 2.4 PTZ Control IR Distance | 500m Horizontal Range | 0°~360° continuously Vertical Range | -10°~90° Horizontal Speed | 0.05°~240°/s Vertical Speed | 0.05°~180°/s Max Speed | 240°/S Preset | 256 Patrol | 4pcs(10 preset for each) L/R Scan | 1pc Horizontal Scan | 1pc Power-off memory | Support PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise Watch position | Support Wide angle speed limit | Focus / speed automatic matching function POE function POE supply voltage | DC48V POE supply PIN | 1,2(+),3,6(-) / 4,5(+),7,8(-) Auto adaptation General Power DC | 12V/4A Consumption | <25W Mounting | Wall mounting or lifting work environment temperature | -30~60℃;humidity<90% Protection level | IP66 waterproof,8000V lightning protection GW | 5.5KG
600 meters to see the license plate!
1X Zoom
3X Zoom
20X zoom

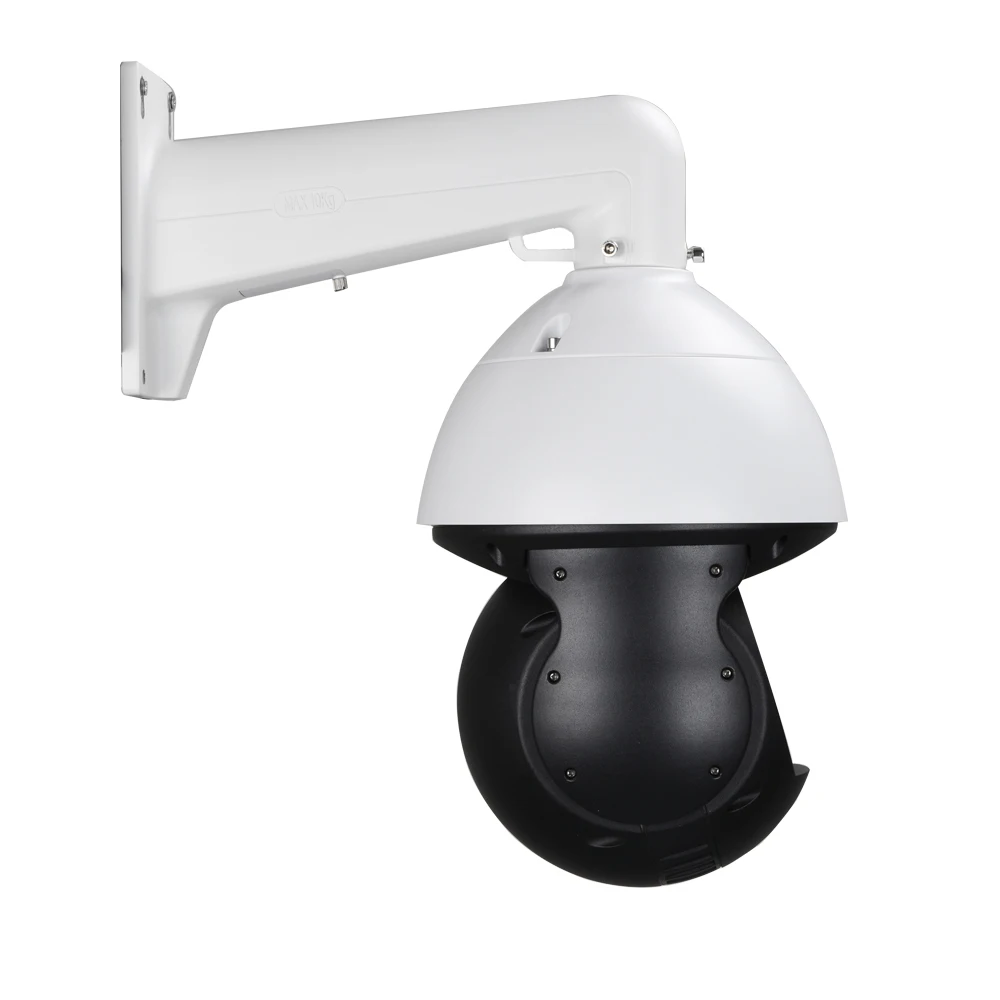

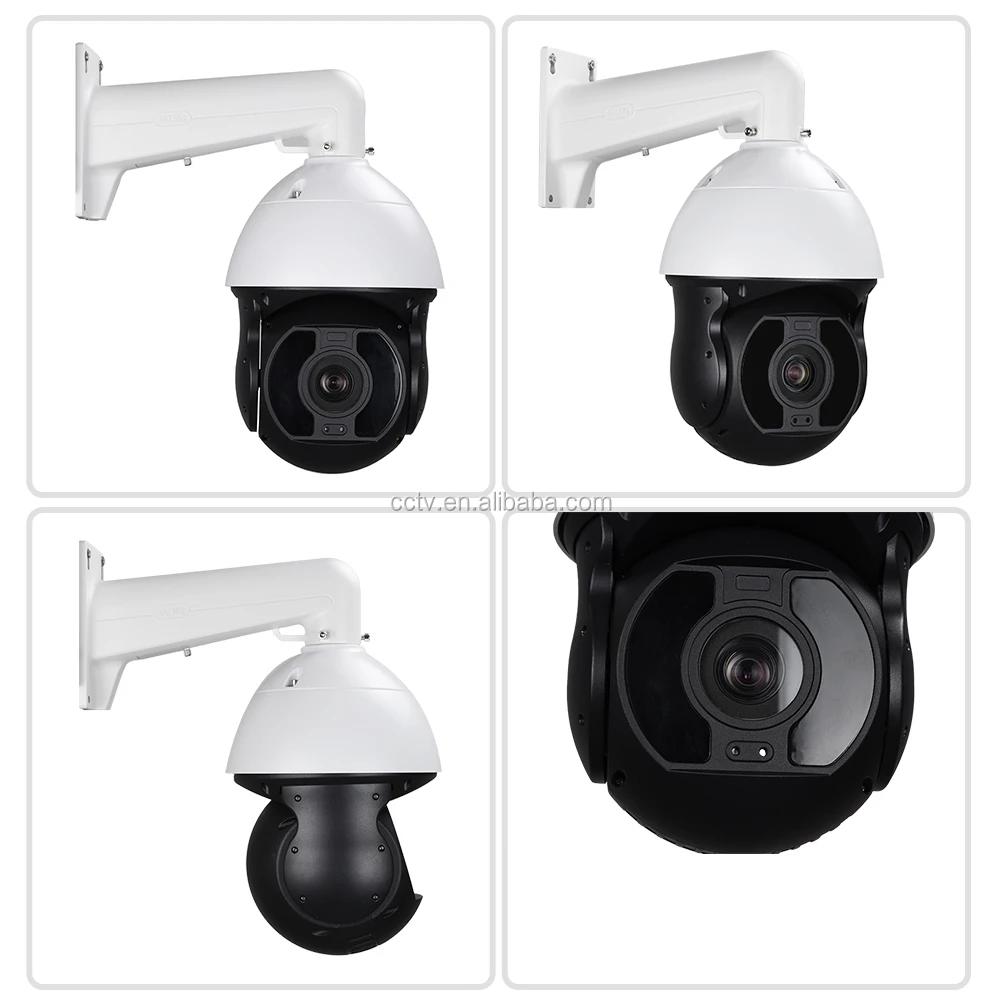

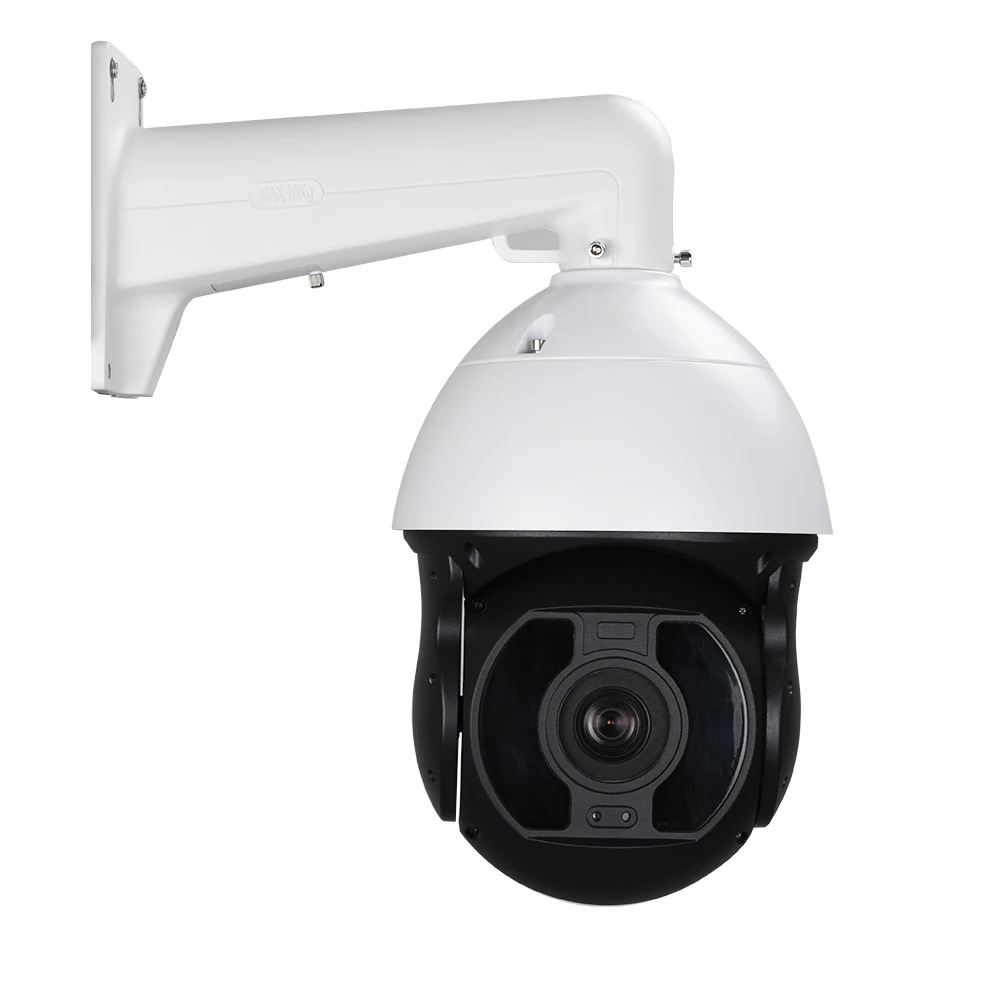

PTZ camera overview

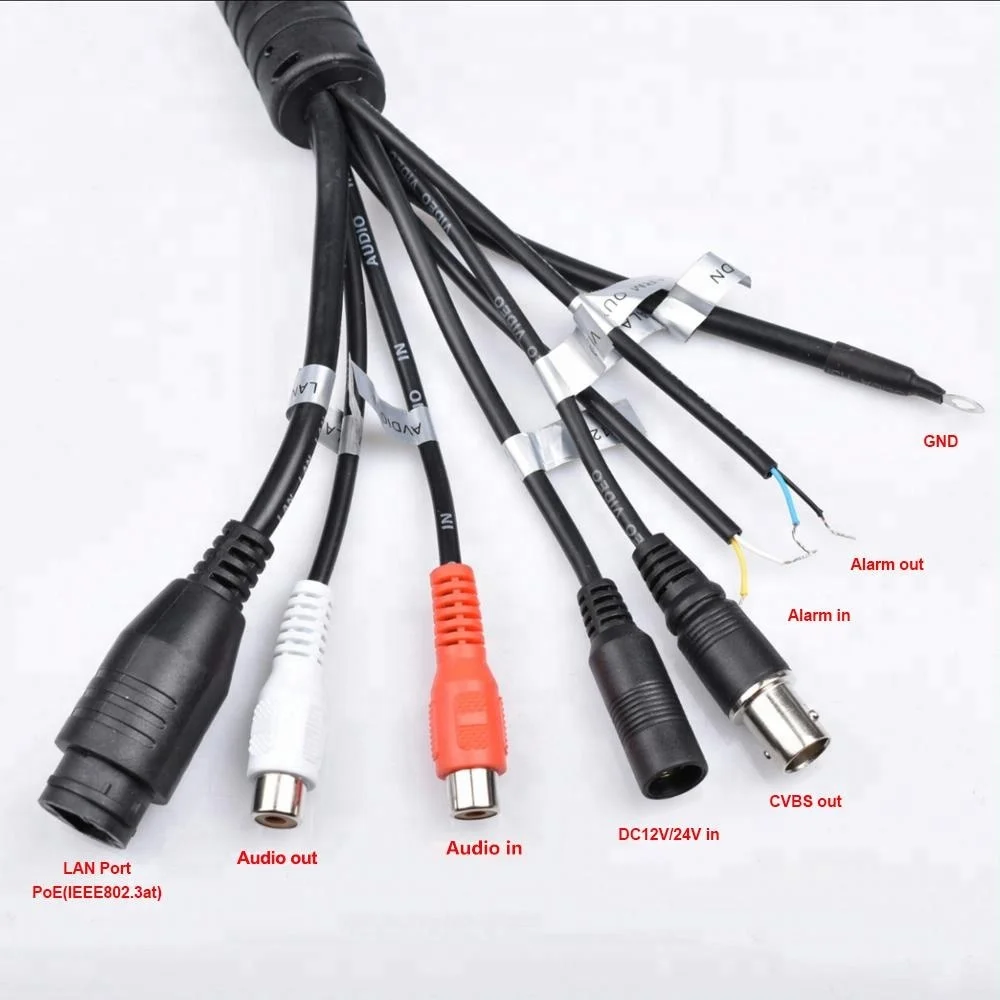

Connection

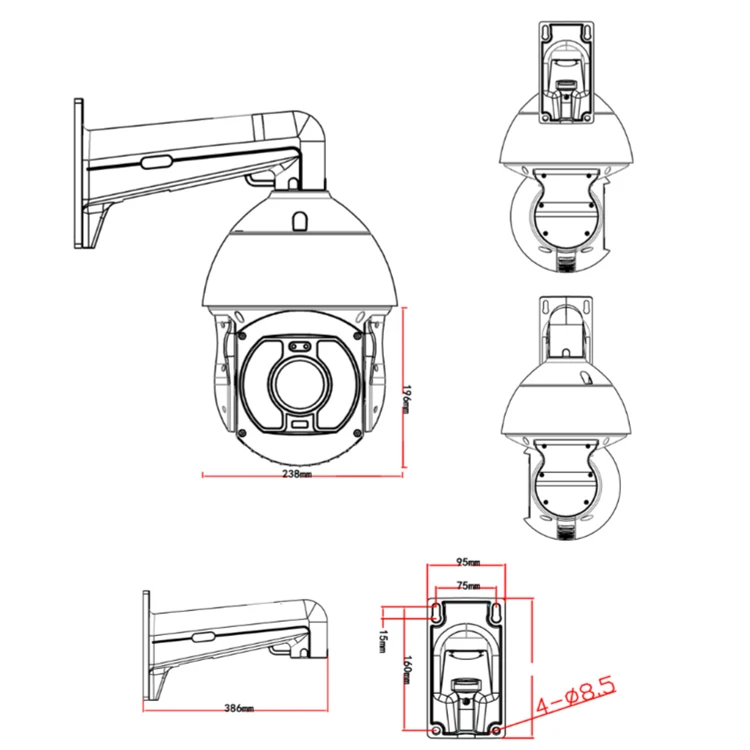

Dimension
Packaging & Shipping
Company Information
Shenzhen Qianpei Technology Co,Ltd is commited to the CCTV security industry since 2007 in Shenzhen, China. With more than 10 years experience in developing,designing and manufacturing surveillance products which are widely used and popular in North & South America, Europe and Middle East. We're capable of providing our customers most benefits by latest technology and service. Main products: PTZ cameras, Zoom cameras, High Speed dome cameras, DVR/NVR.
FAQ
1.Can you put my own Logo on the products? Yes we do offer logo printing service, OEM orders are warmly welcomed.
2.Can I put sample order and how? Yes we do accept sample order and please contact our sales person to place order.
3.What's the warranty time? We offer 2 years warranty for our PTZ cameras.
